ICL HAGE Led design

Indirect light appliance made with aluminium profiles holding LED modules, or light rails, fixed on a Simopor Light screen sheet. Light rails are oriented at a 45° so that light beams reflect on the ceiling in the most effective way to illuminate the whole room.
The shape and soze of the screen sheet can be customised. The number of LED modules is limited only by the size of the scree sheet. Different types of LED modules can be included, with the option to turn on or off each one ondividualy or to turn on or off entire light rails to adjust the light output or light colours.
In big rooms with relatively low ceiling, the LED module could be visible from certain angles. If this is annoying, an additional translucid screen can be added.
It can either include its own pwoer supply, or be supplied with 24VDC current from a separate supply.

Indoor use only.

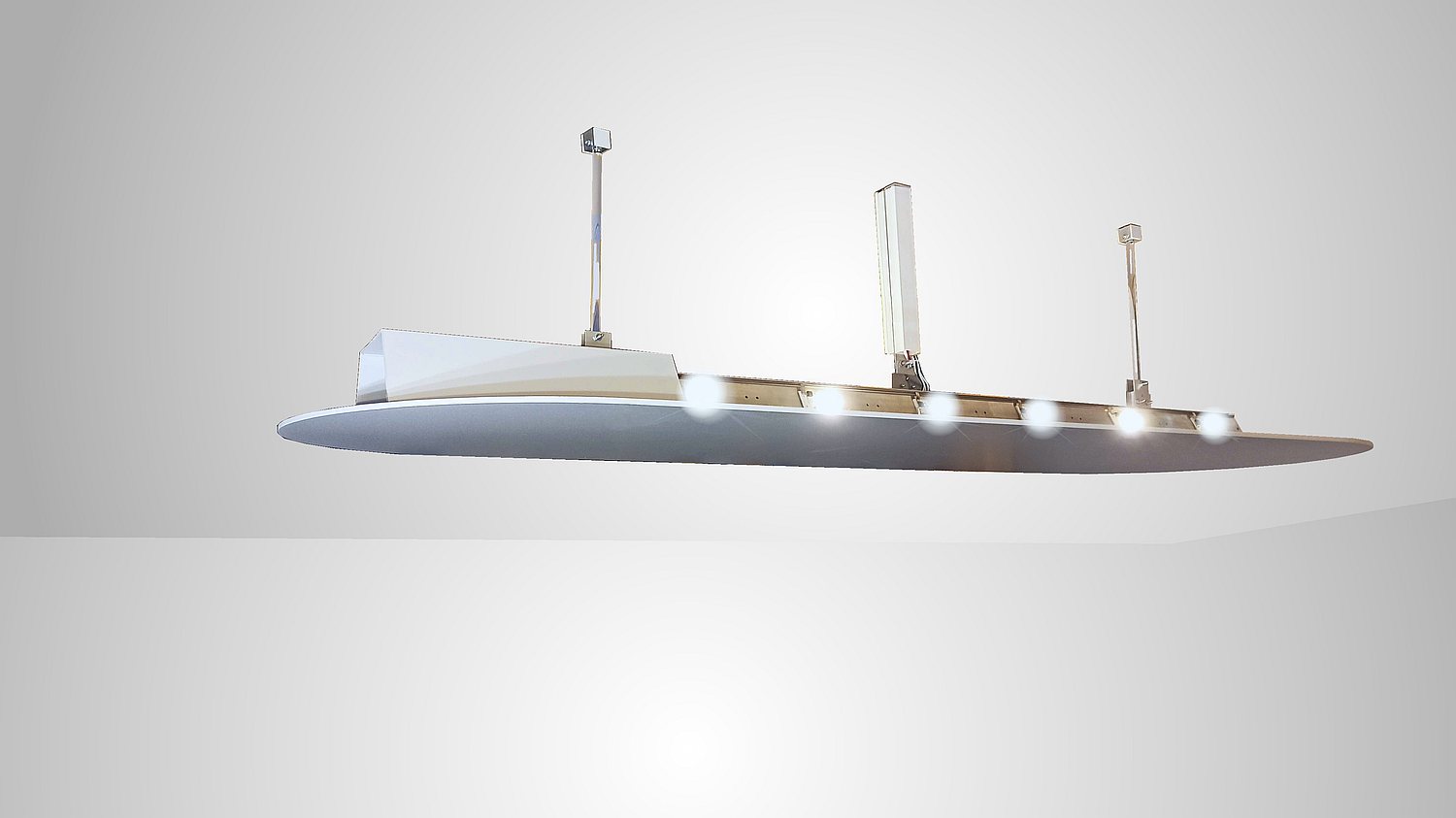

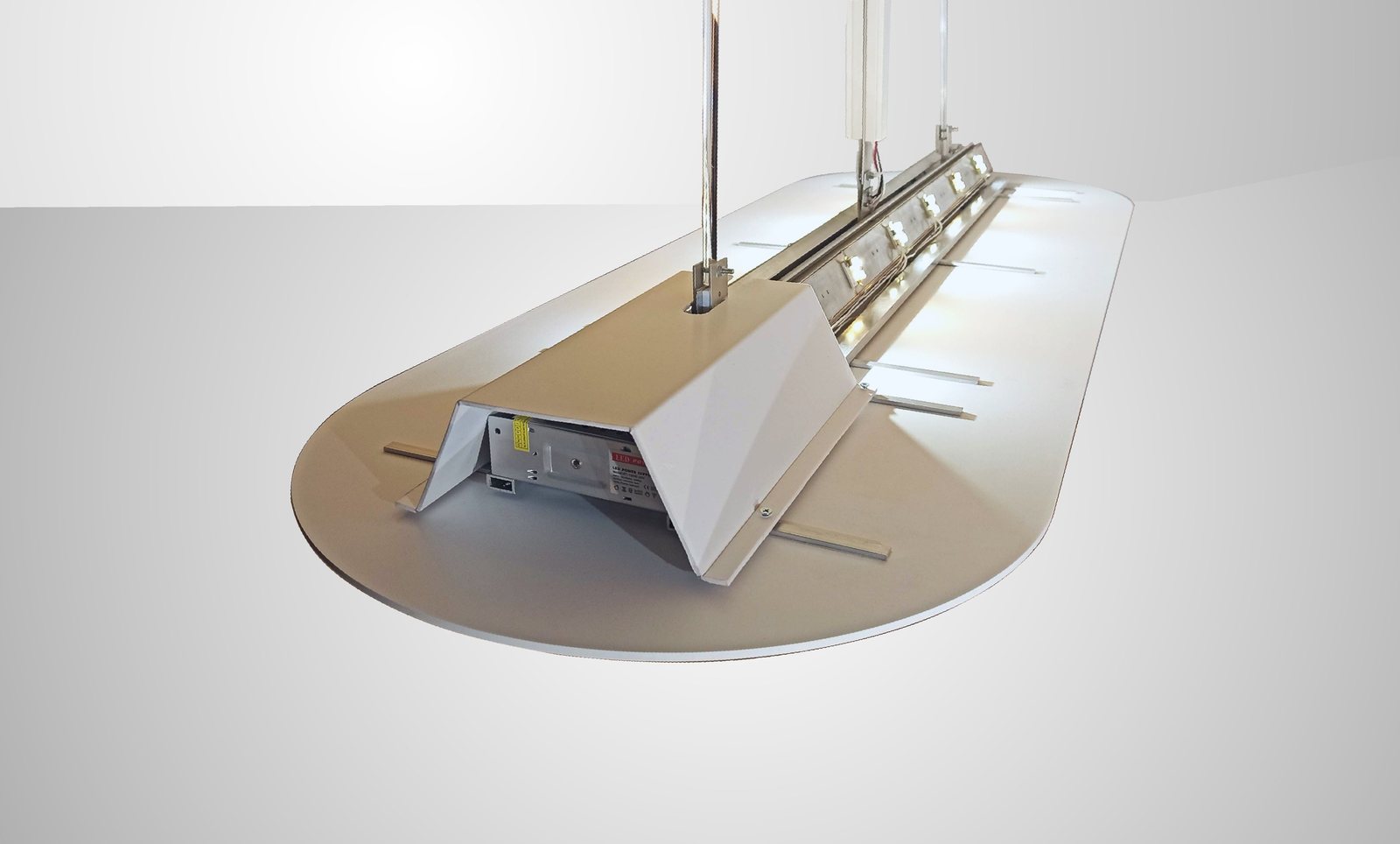

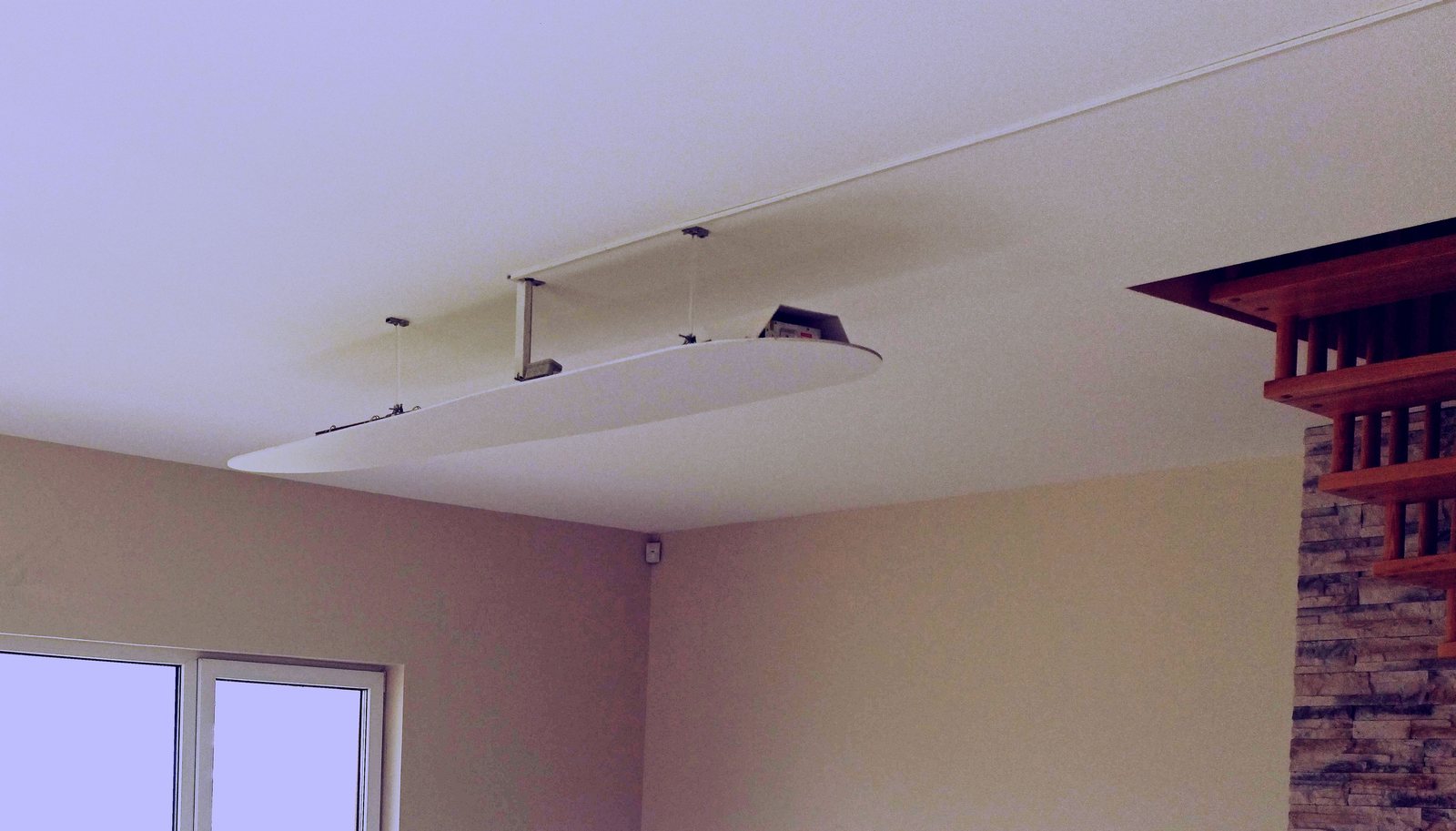

The first picture shows how it looks normaly in a room.
The background has been erased for better visibility but the main picture is real.

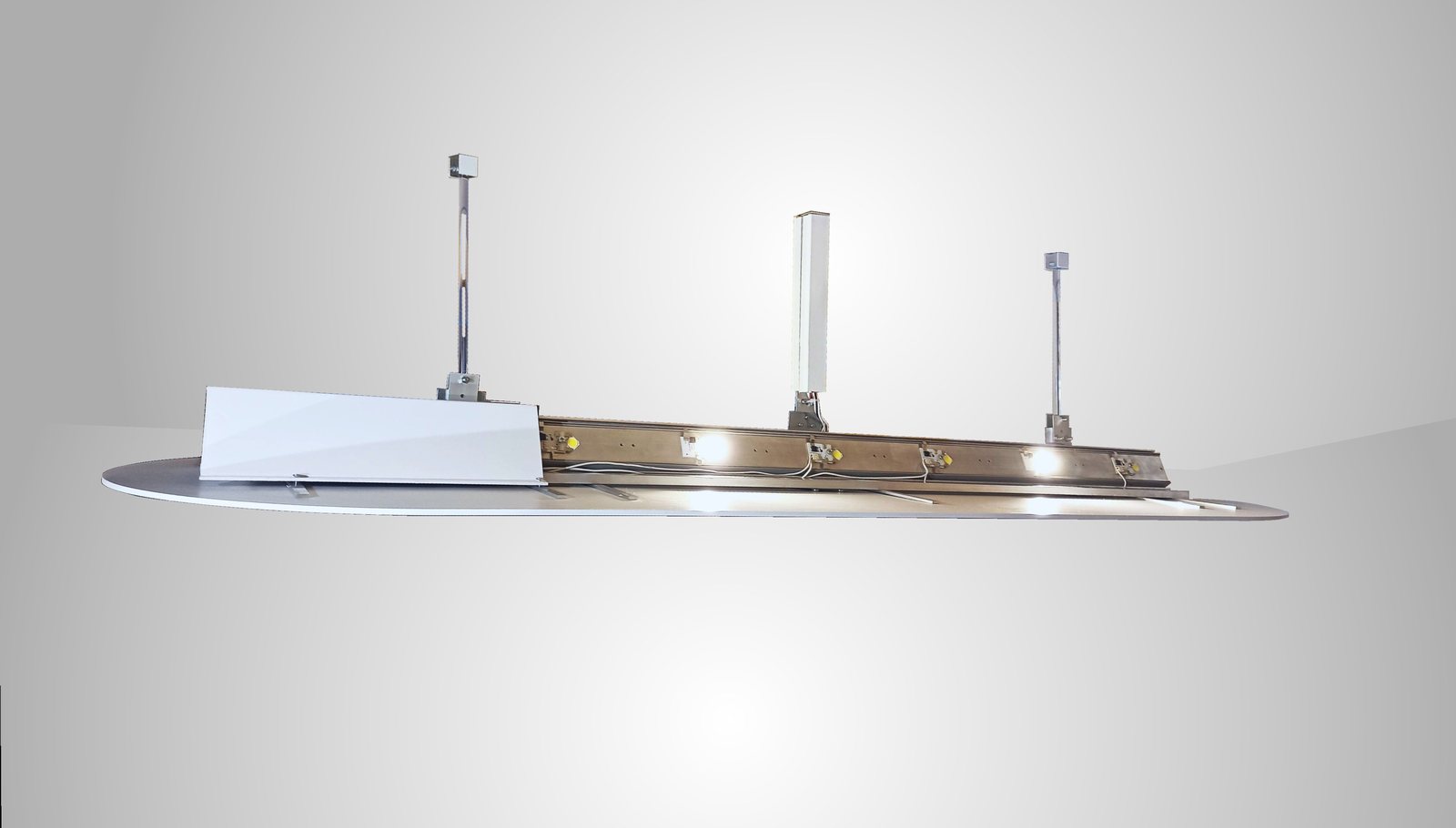

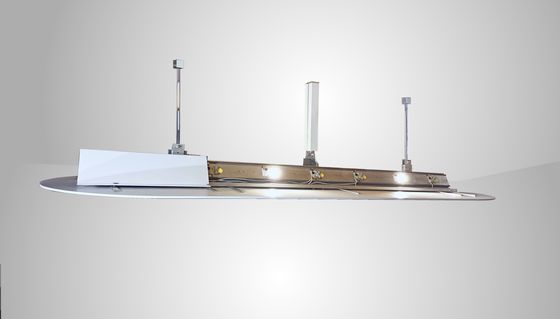

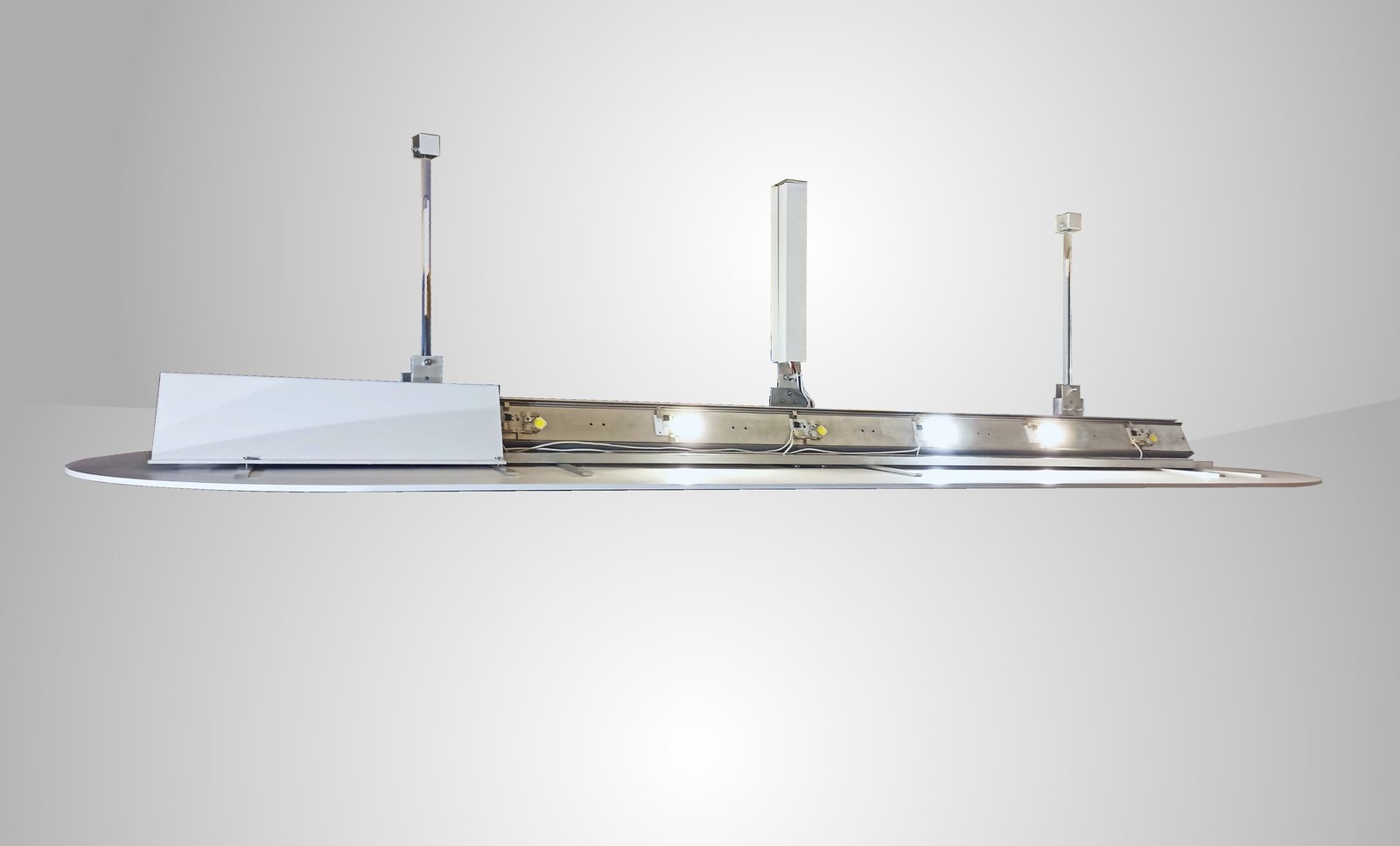

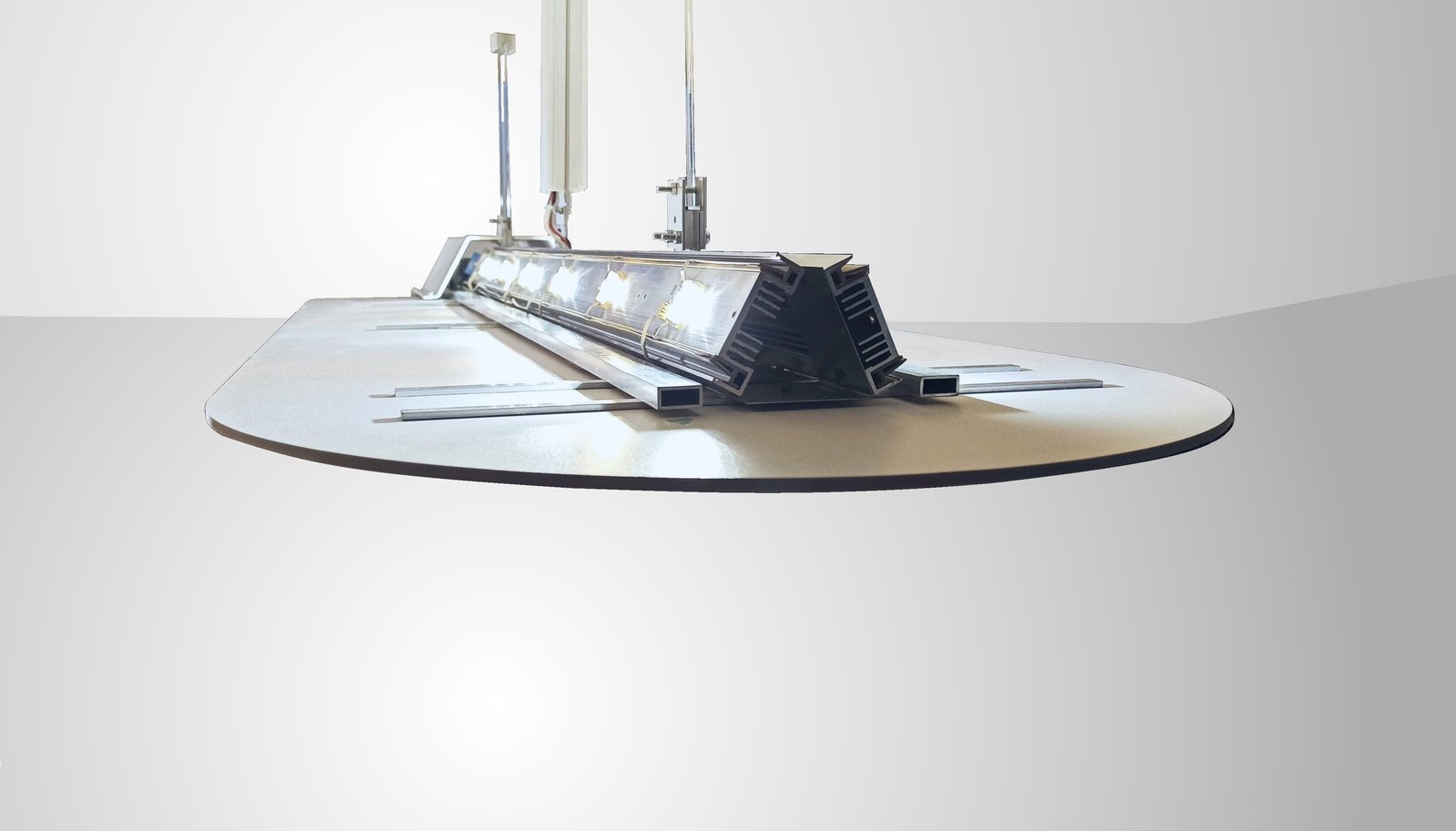

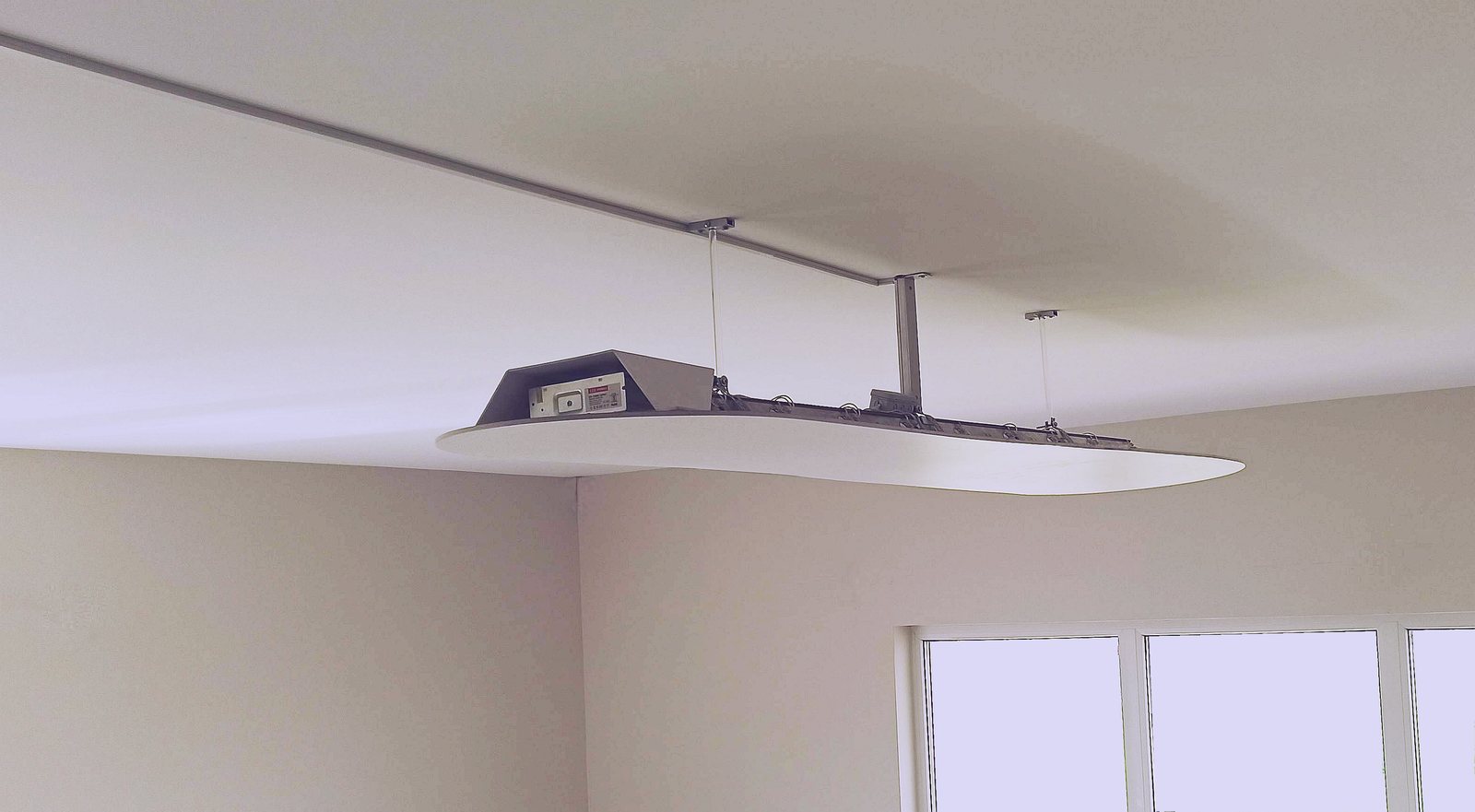

The next pictures show views form side and from above to see
how it works and how it's constructed.
This model uses two rails of 6 LED modules (12 modules intotal) and
is typically adjusted between 70W (8600 lm) and 120W (14000 lm).
Keep in mind that because the light is indirect,
more lumens are necessary to illuminate the room.

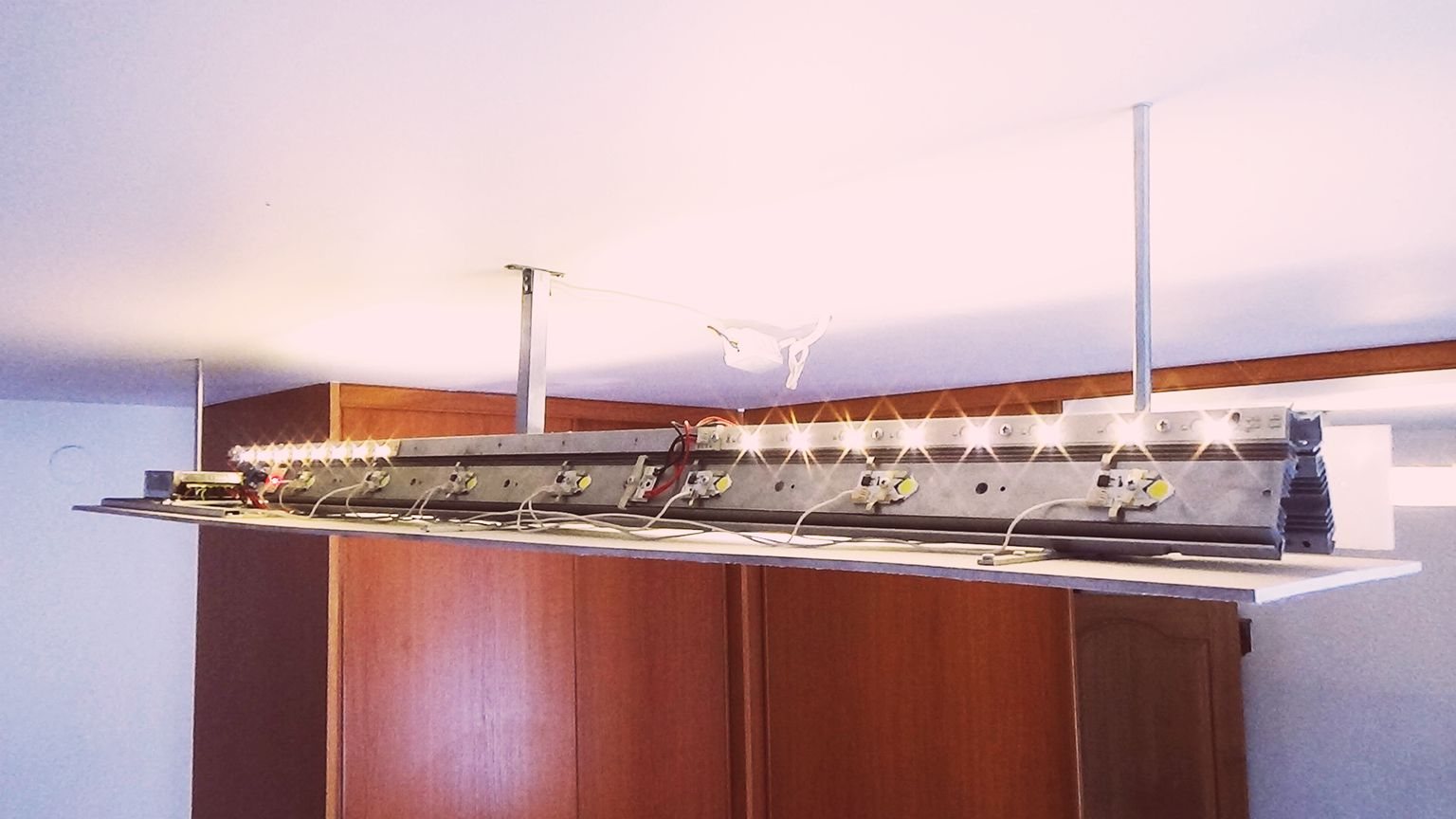

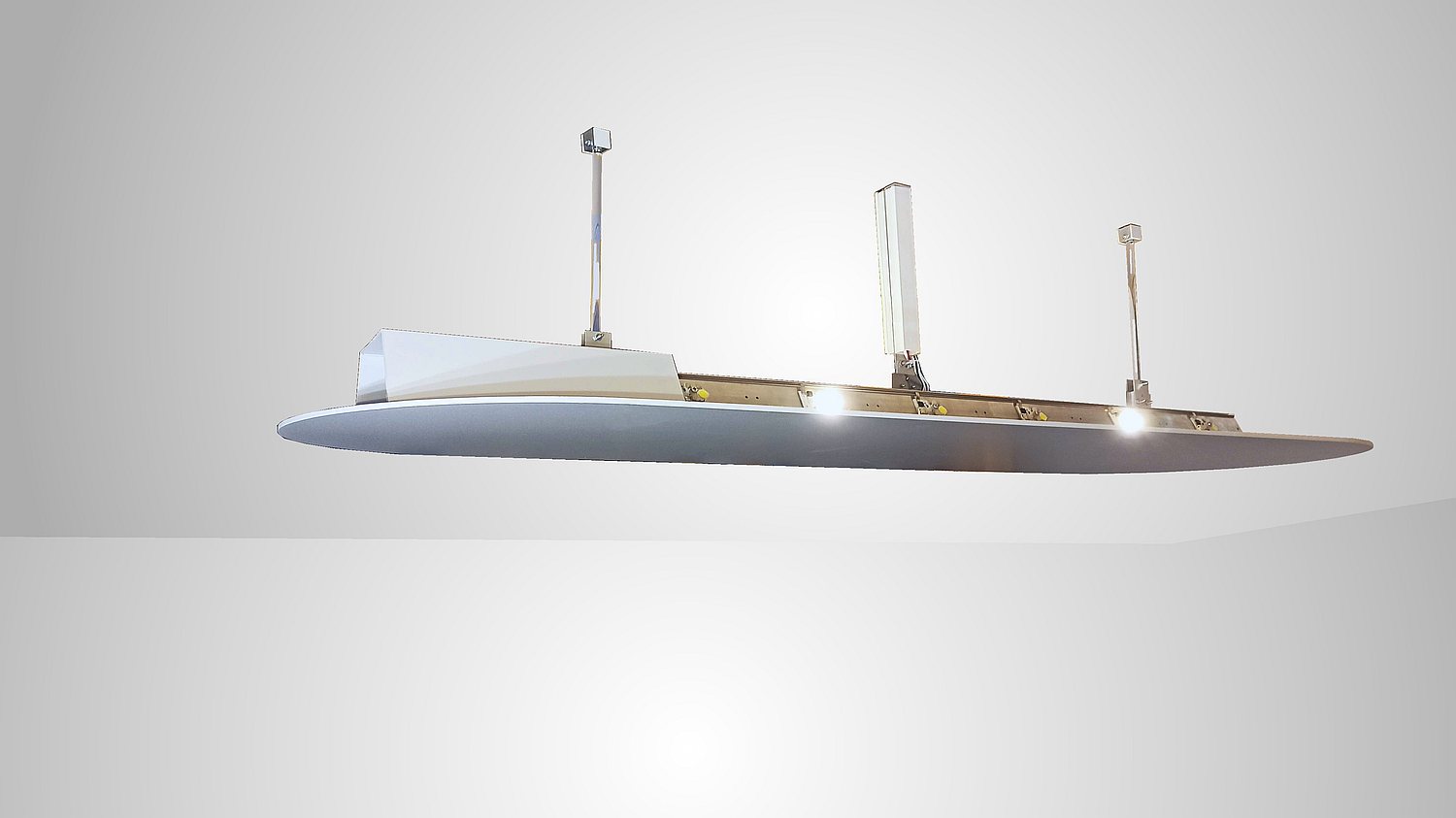

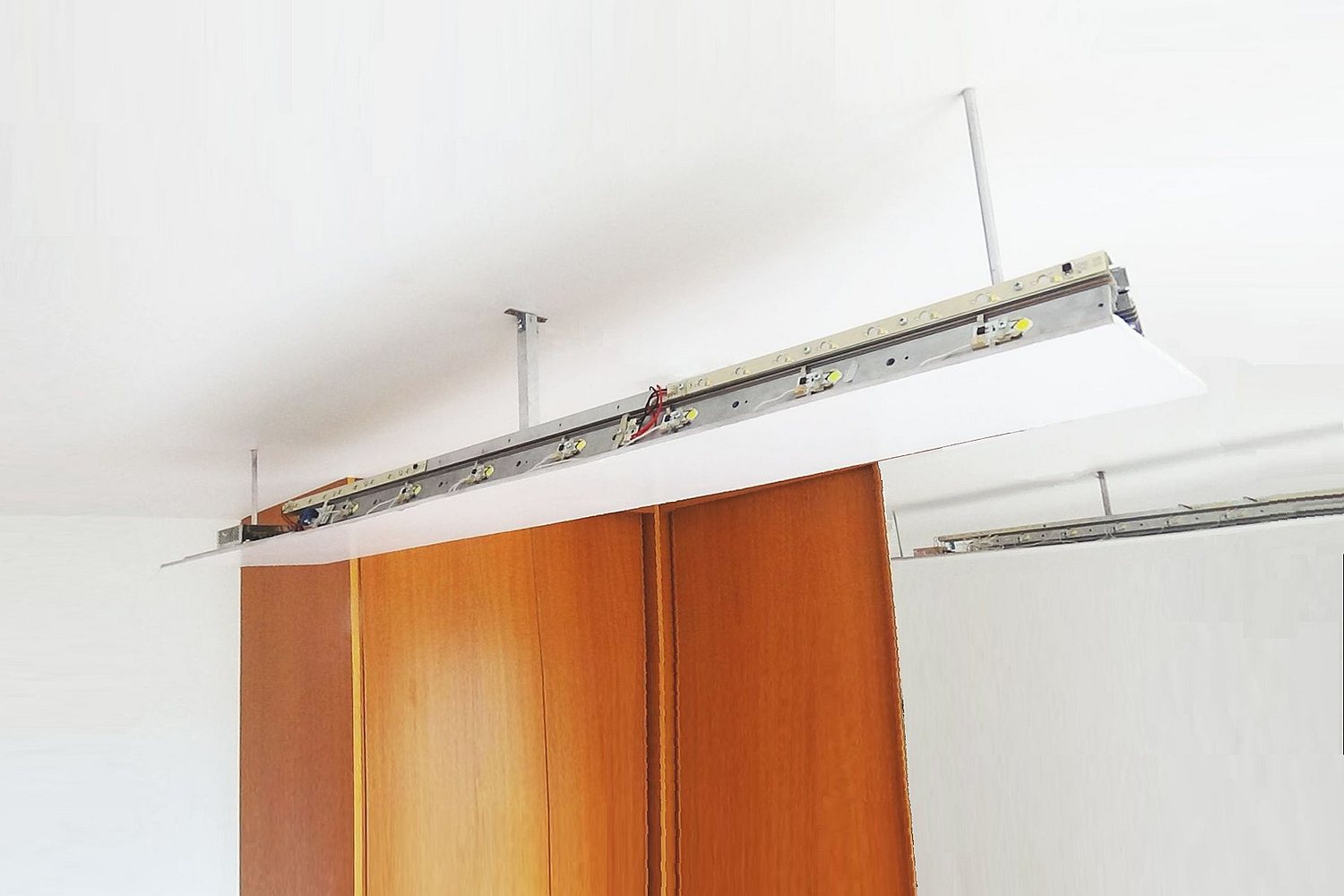

The same model with 4 LED modules turned off with a secondary switch.

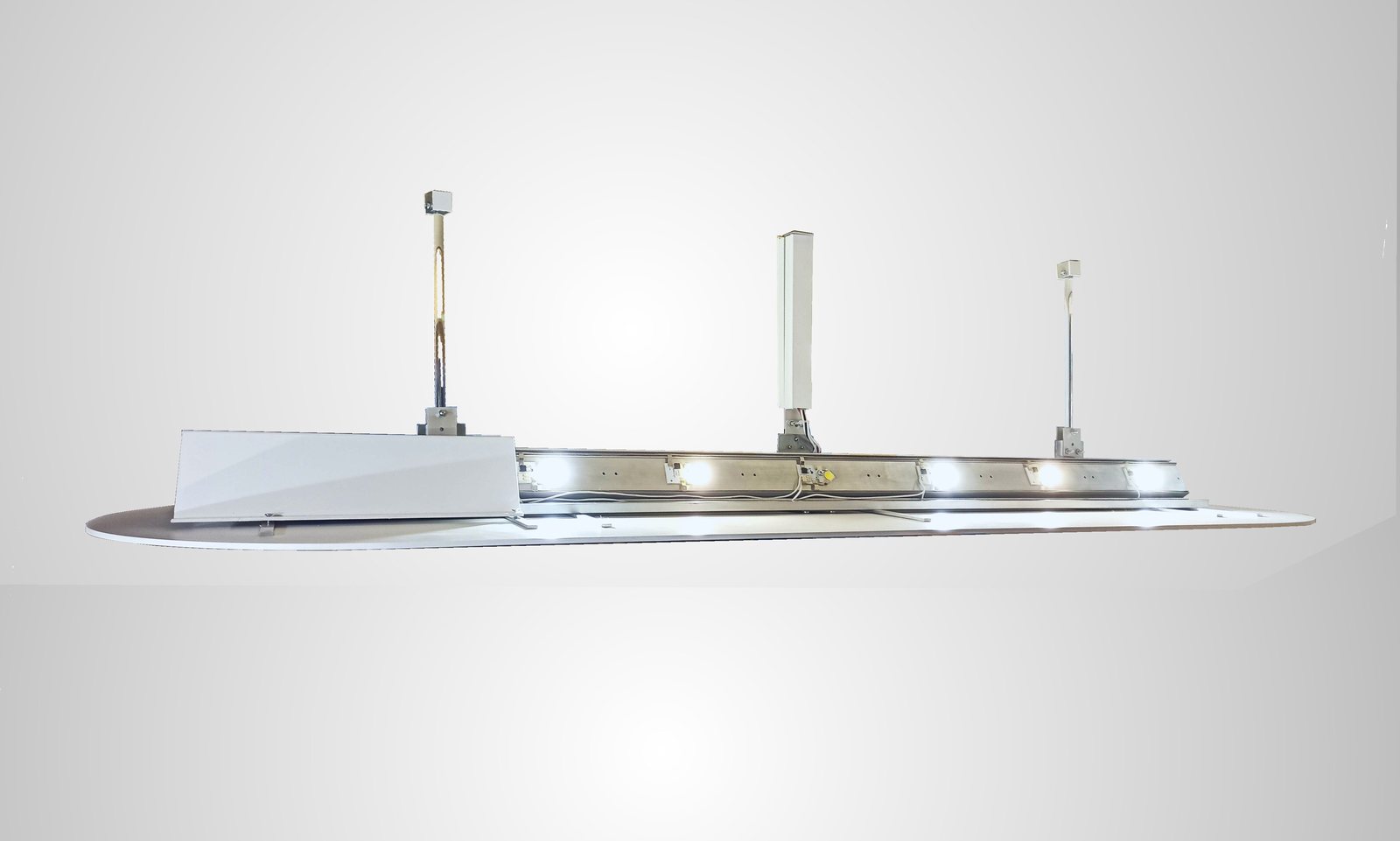

The next four pictures will show a sequence of LED modules

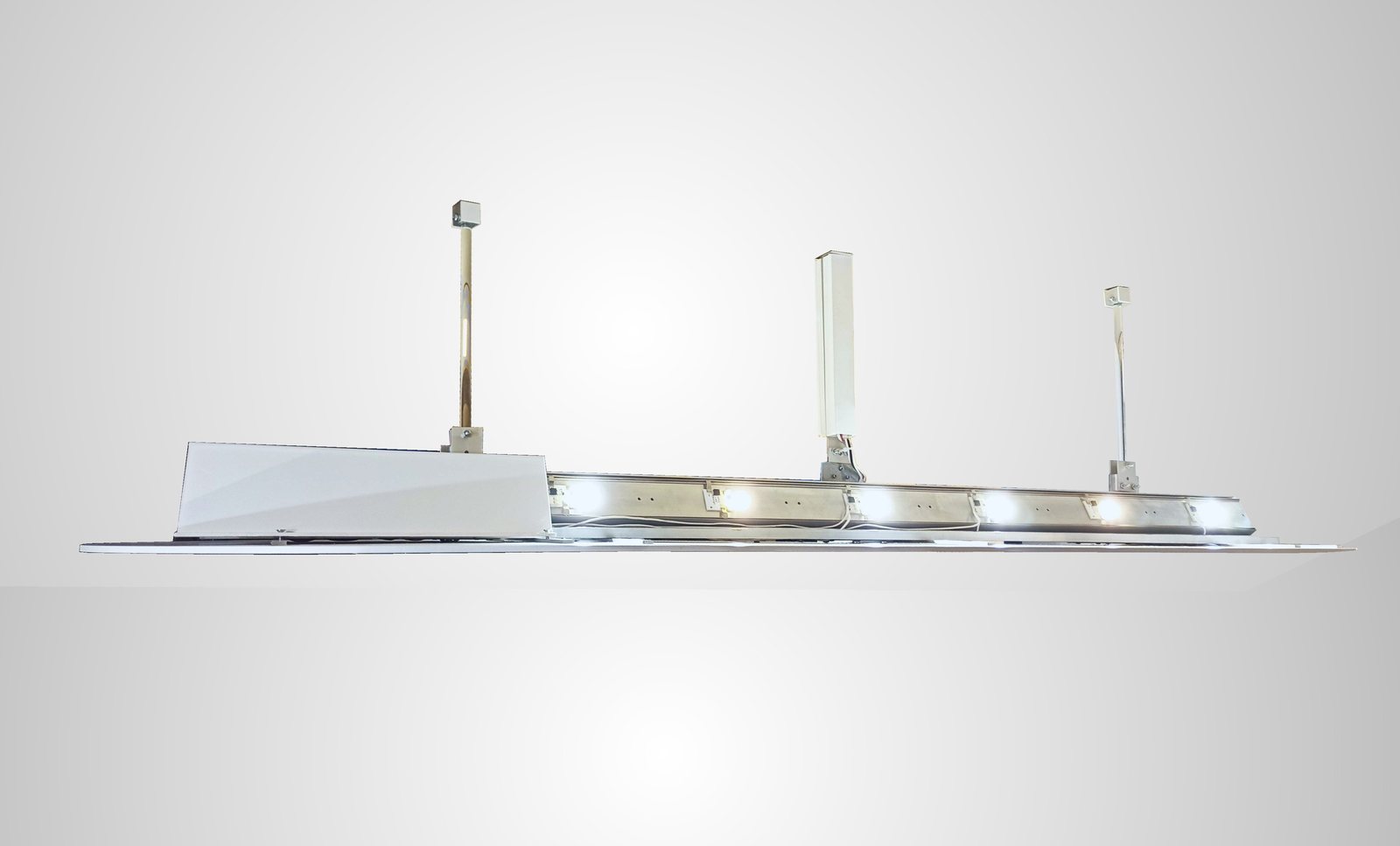

gradualy turning on with secondary switches.

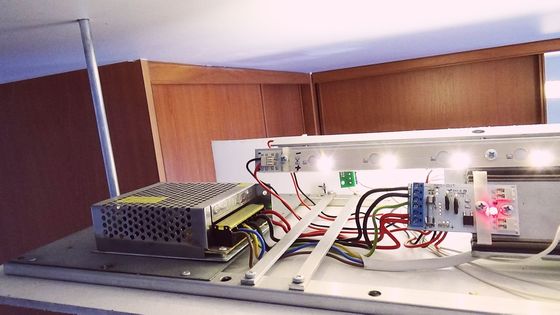

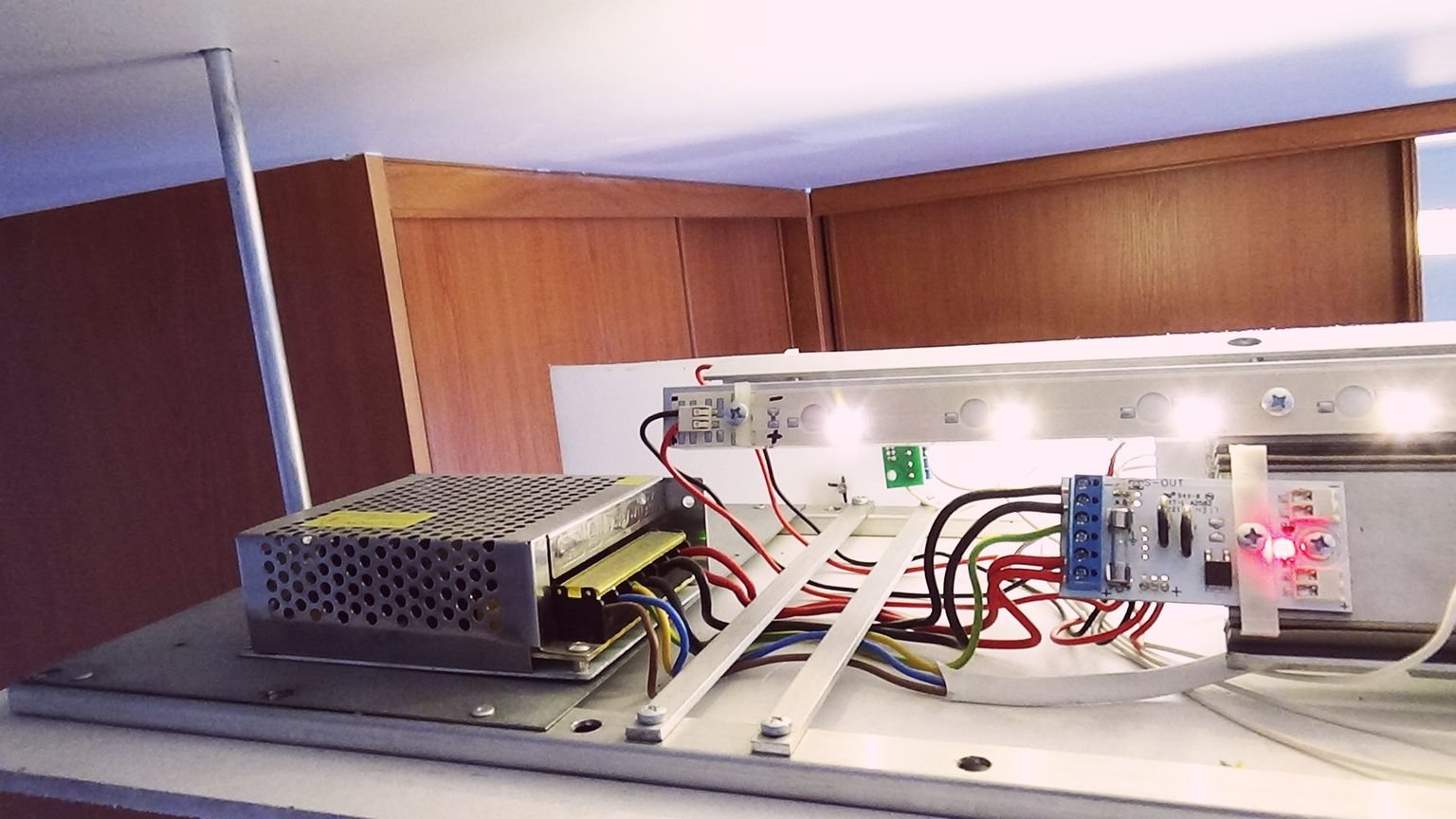

The next picture shows the power supply protected with a white cover.

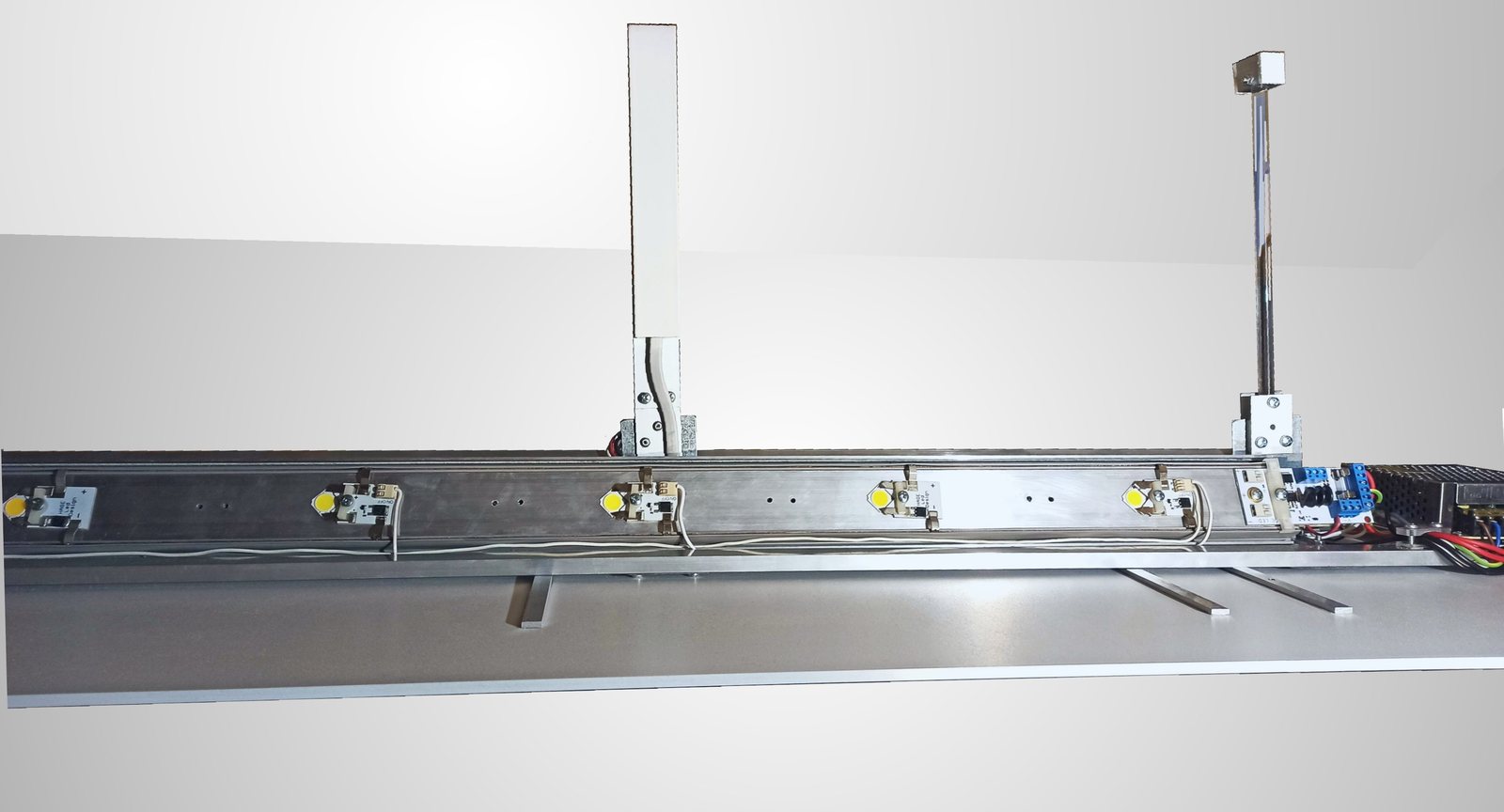

View from the opposite end

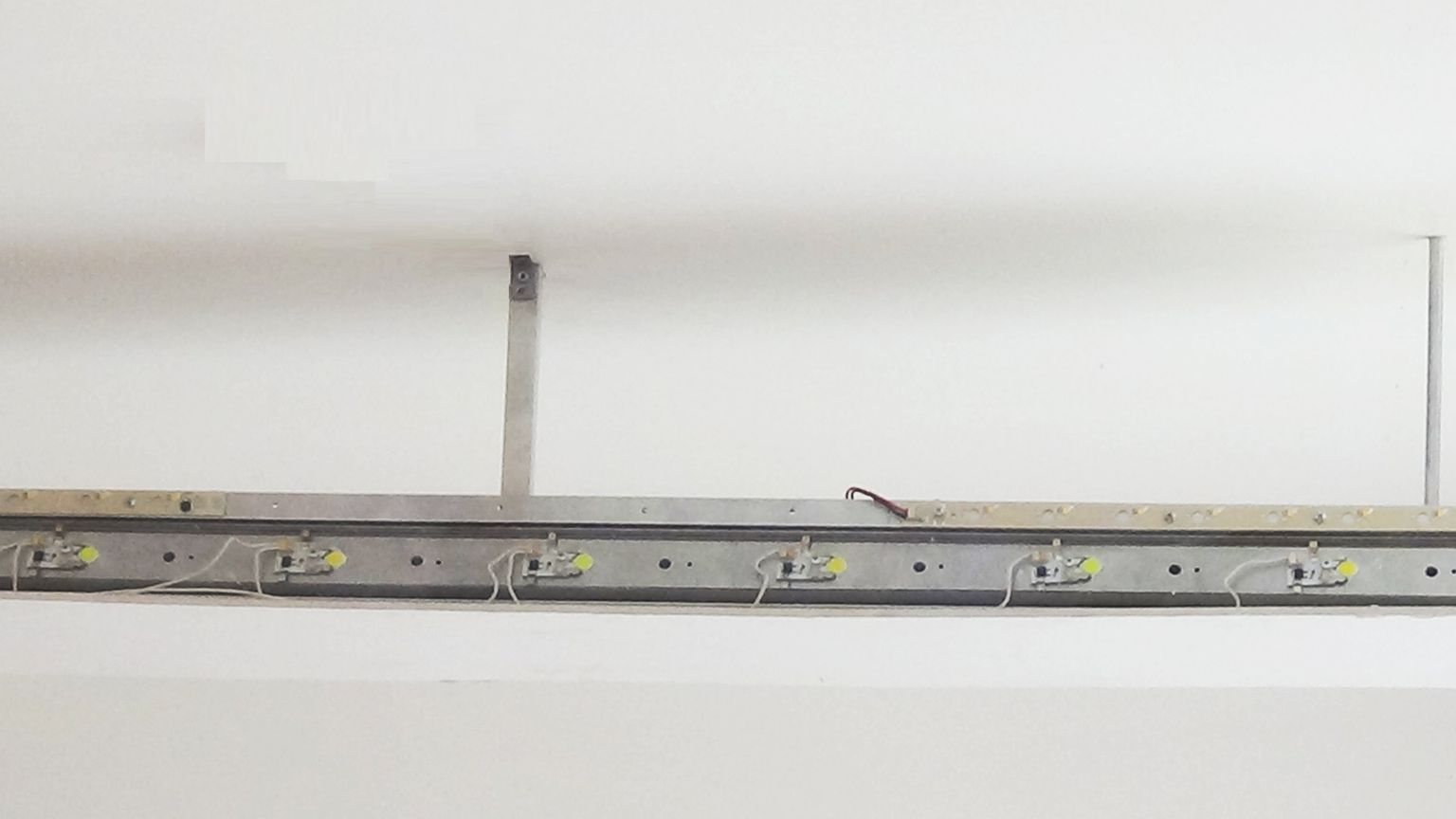

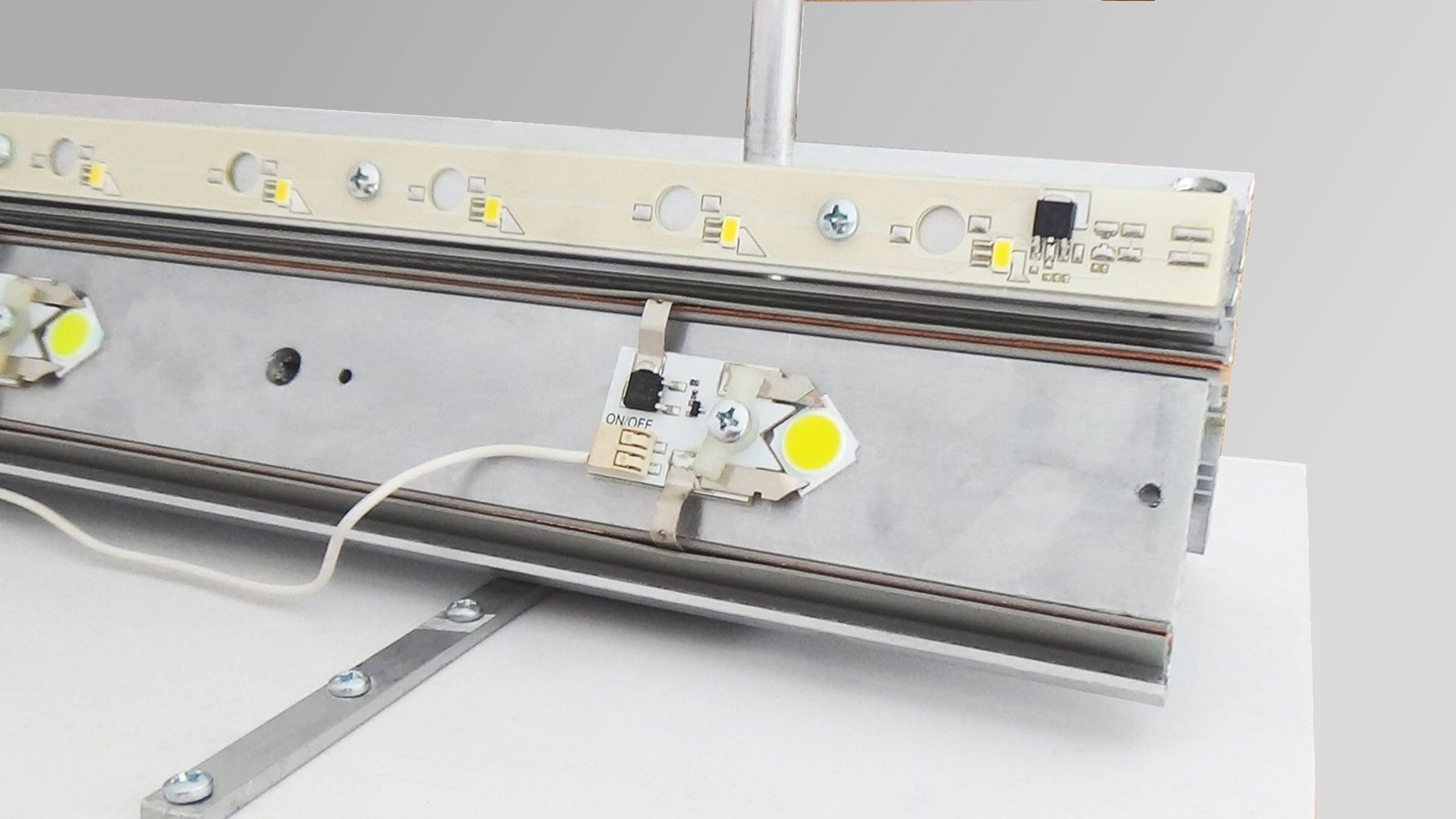

Details of the LED rail from the side.

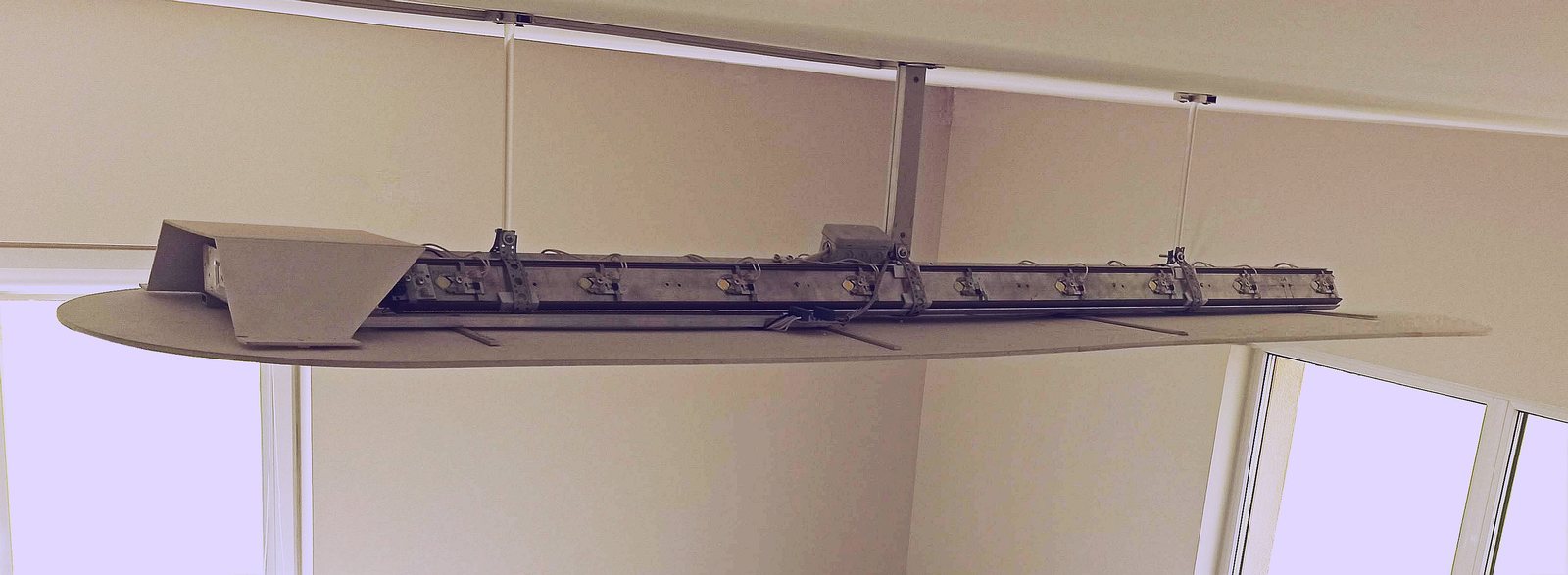

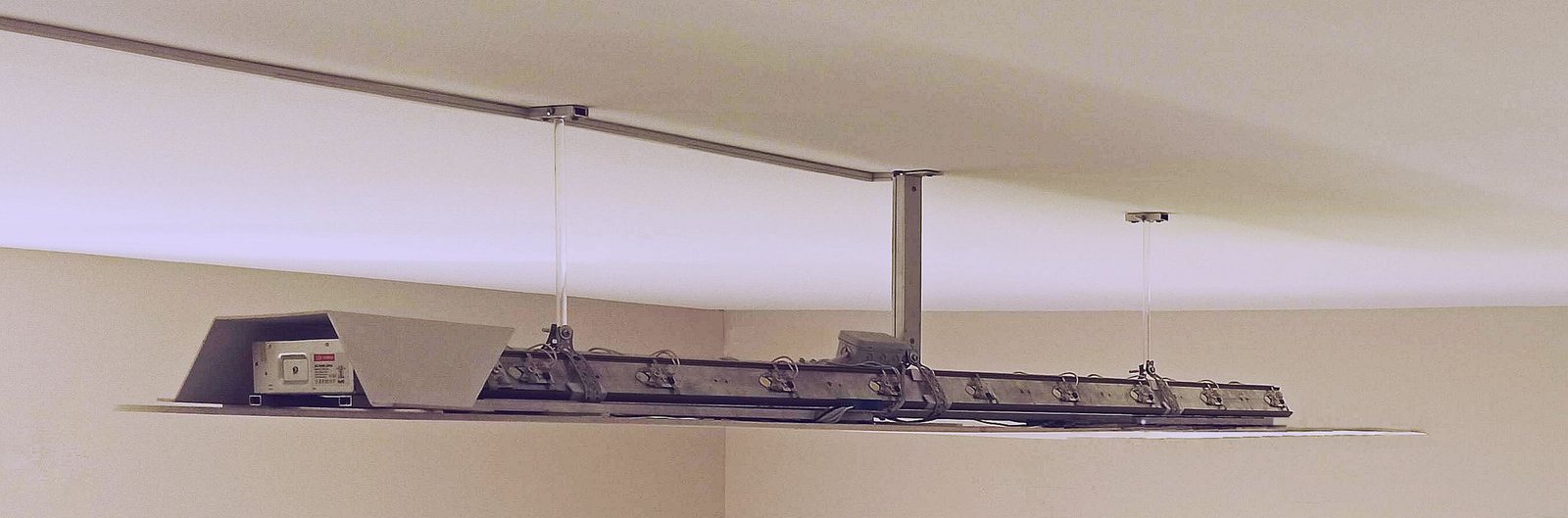

The next four pictures show another model in a real environement.

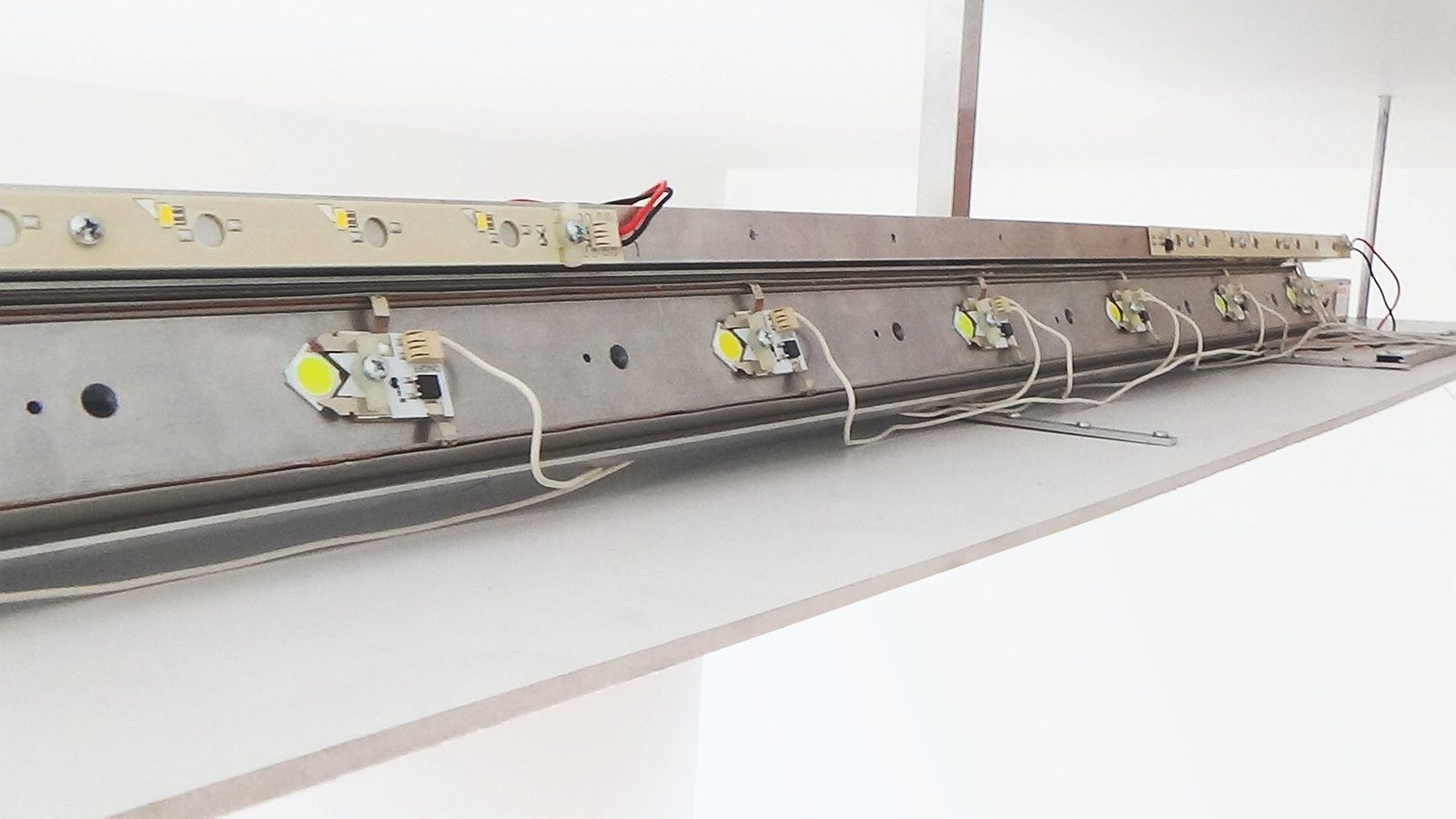

The next pictures show details of yet another model with additional
LED stripes on top of the main light rail.
These LED stripes allow for very dim light effect when all the light rails
are turned off. They also enable the use of colour light when white light
is turned off. (Coloured light are not available on light rails.)

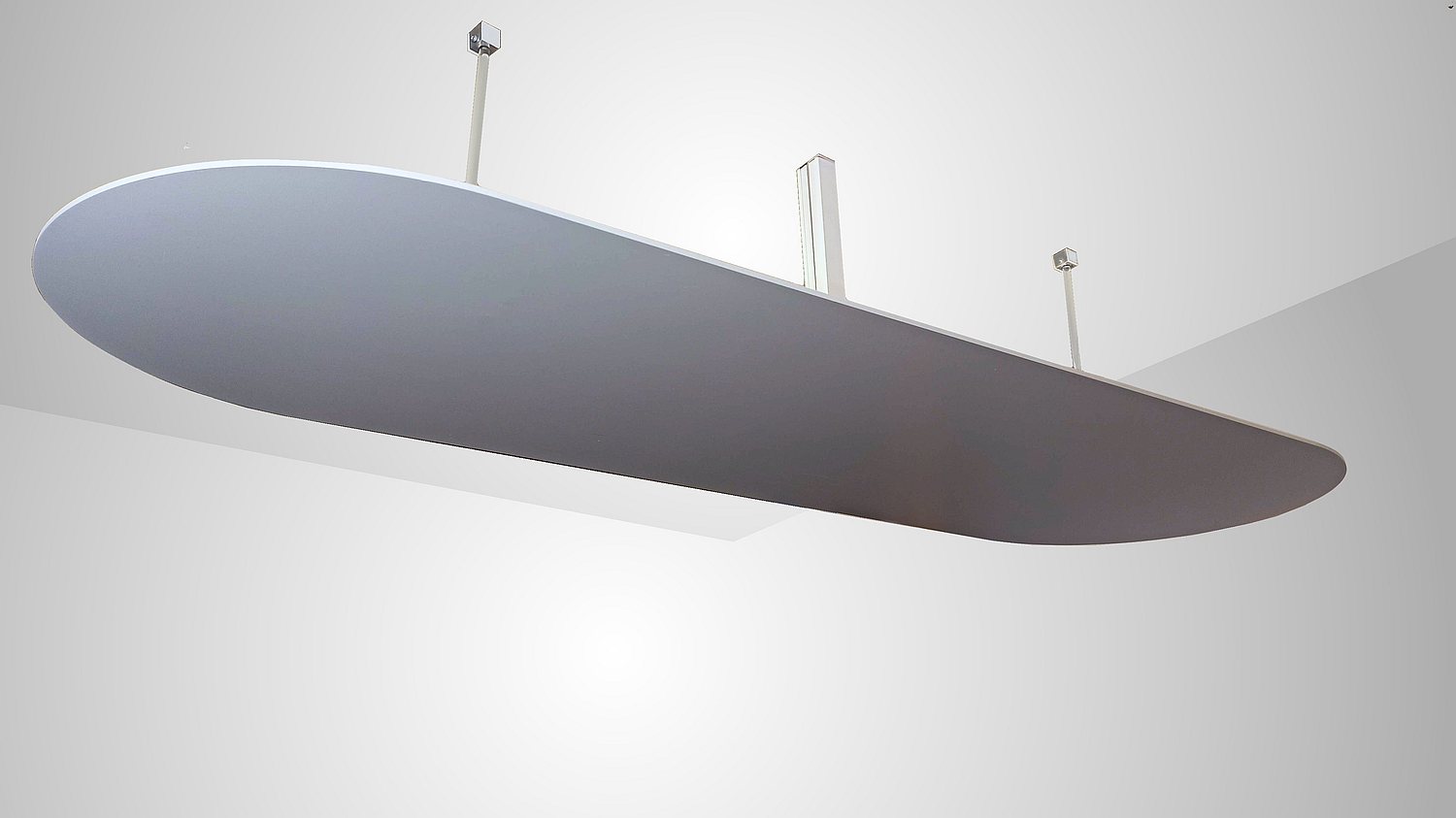

This model has a square reflector plane instead of a round one.
The reflector plane can take any shape you want.

More details of this modeal with the additional stripes
are turned on and the main rail turned off.
