LR3 HAGE Led design

Suitable for small, large and very large indoor spaces, requiring powerful illumination, with modern interior design and high ceilings.
This model is made of three light rails, each composed with a customized number of light spots. This model can include, and conceal, any type of power supply.

Two light rails are inclined at ±45° in opposite directions. A third light rail is oriented downward. This arrangement optimises the light beam angle which spread in the entire room.
Each light rail can be turned on or off separately. Additionaly, each light spot can also be turned on or off separately.

The transparent satine surface of the cover diffuses the light beams while keeping the light output optimal. The clear transparent cover offers an even better light output but should be used only on high ceilings to avoid hurting the eyes.
White matt and white shiny covers are also proposed, thought not recomended for strong light output. White covers are more recomended for the smaller variants and where aesthetic is more important.
There is no limitation in length or in the number of light spots for this model.

The cover is made of transparent 0.75mm polycarbonate (PC) covered by a 0.15mm satine or matt white film when these options are selected. It's also possible to use 2mm or 3mm PMMA (Plexiglass), a litle bit stiffer, but much more expensive. White PMMA exist only in 3mm thickness and it's not the best choice because of its relatively poor transparency ratio reducing the light output.
Indoor use only.

The pictures below show a powerful appliance with 12 light spots.
It's typically adjusted between 75W (±9000 lm) and 120W (±14400 lm).
It's made of three light rails of 4 light spots each. Each light rail can be turned on or off whith secondary switches. Additionaly, each light spot can also be turned on or off separately. The same model can be made with less or more light spots, different lenghts, different ON/OFF combinations and different options.

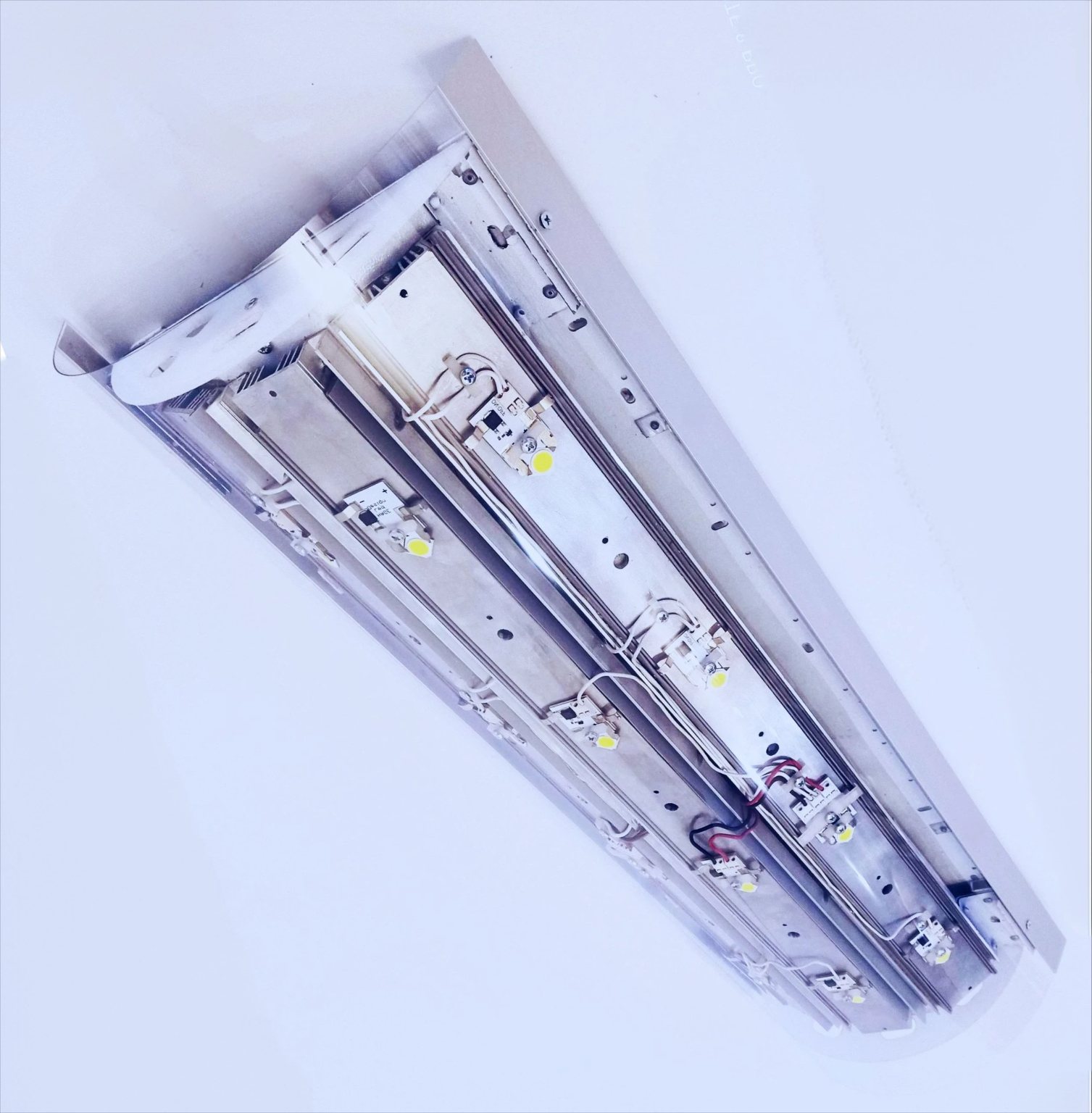

The first three pictures show the same appliance with transparent cover,
transparent satine cover and matt white cover.

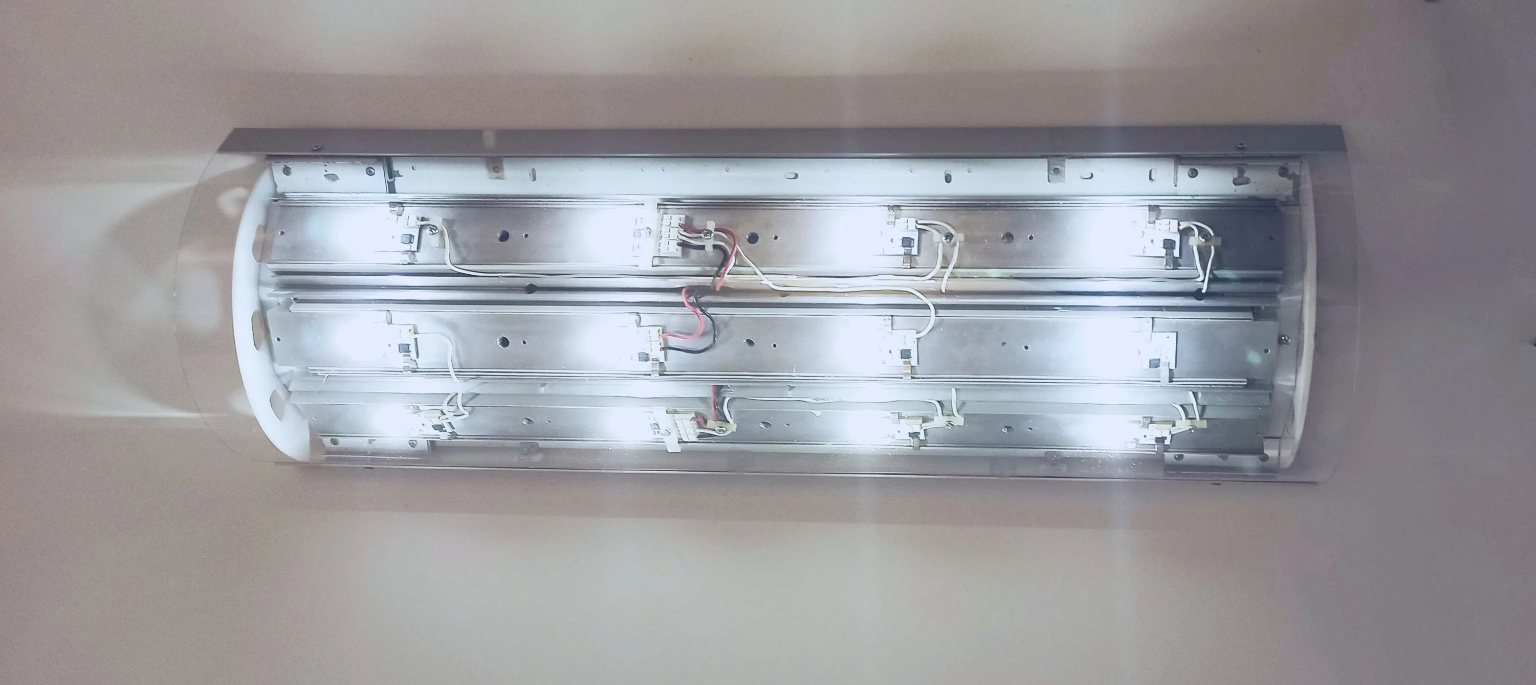

The same three variants seen from below

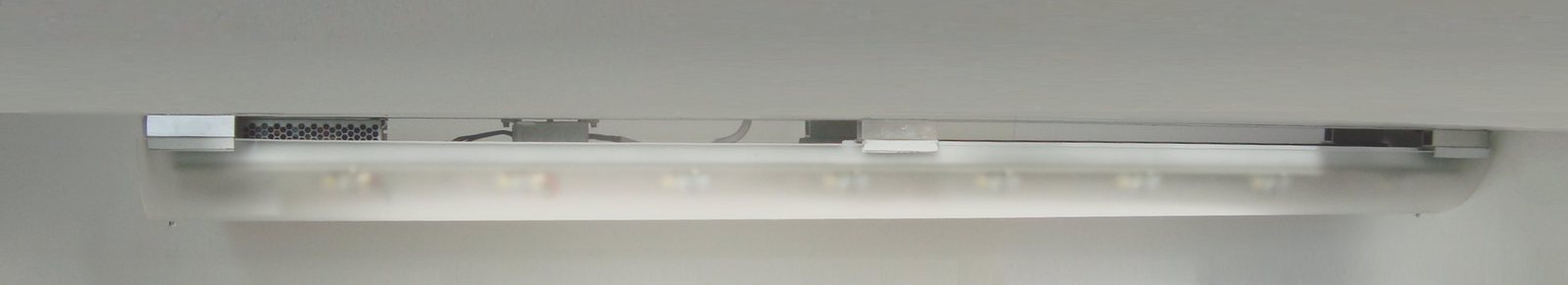

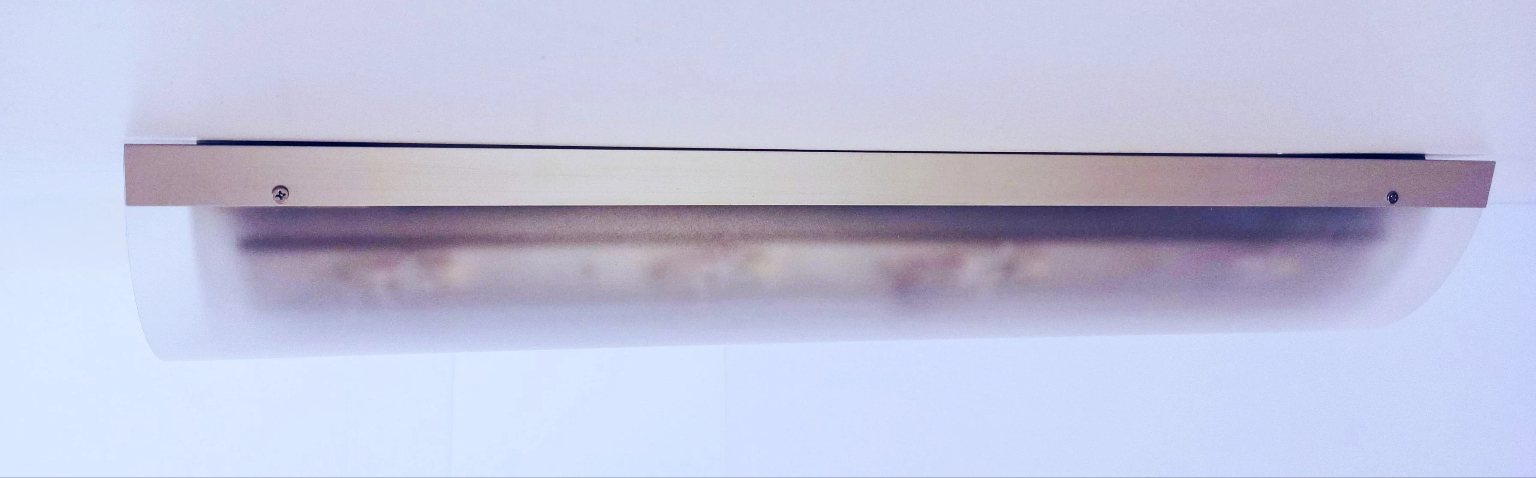

The same three variants seen from the side

The next four pictures show the same appliance with transparent cover,
transparent satine cover, PMMA satine cover and matt white cover.

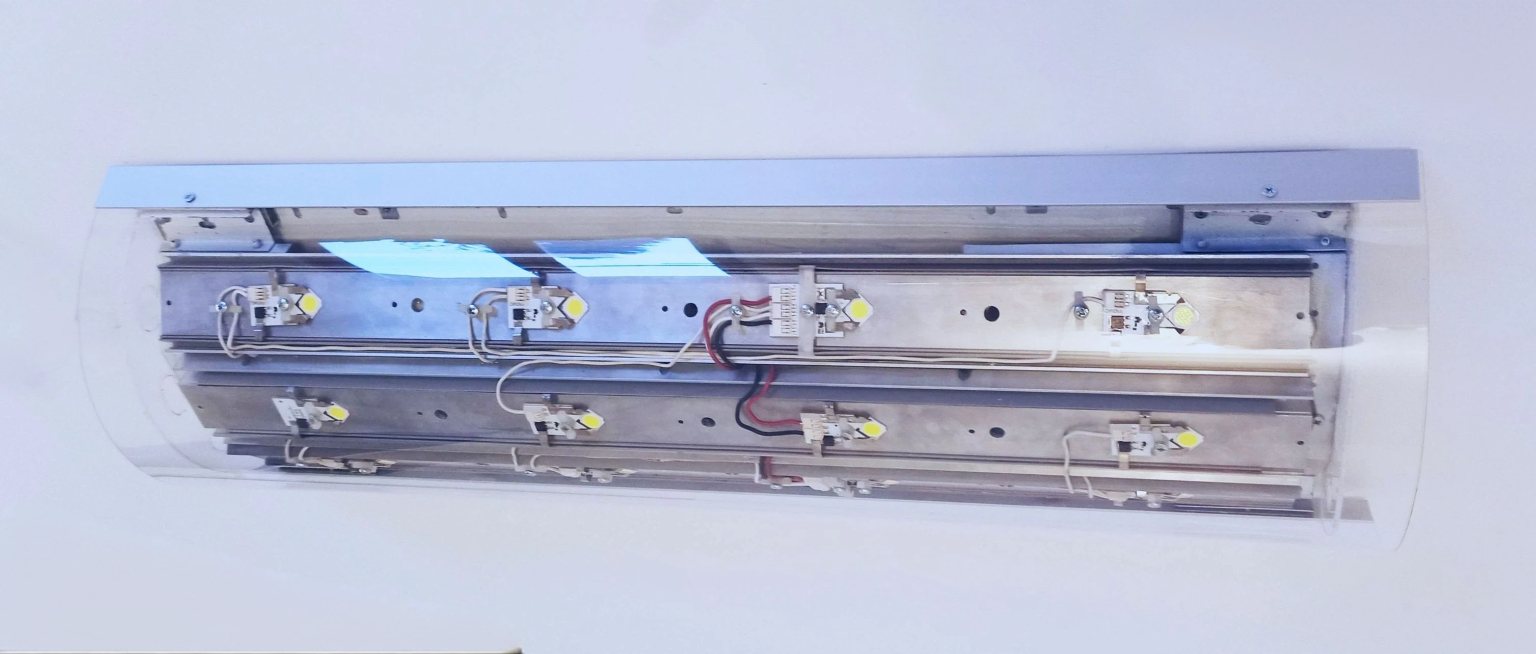

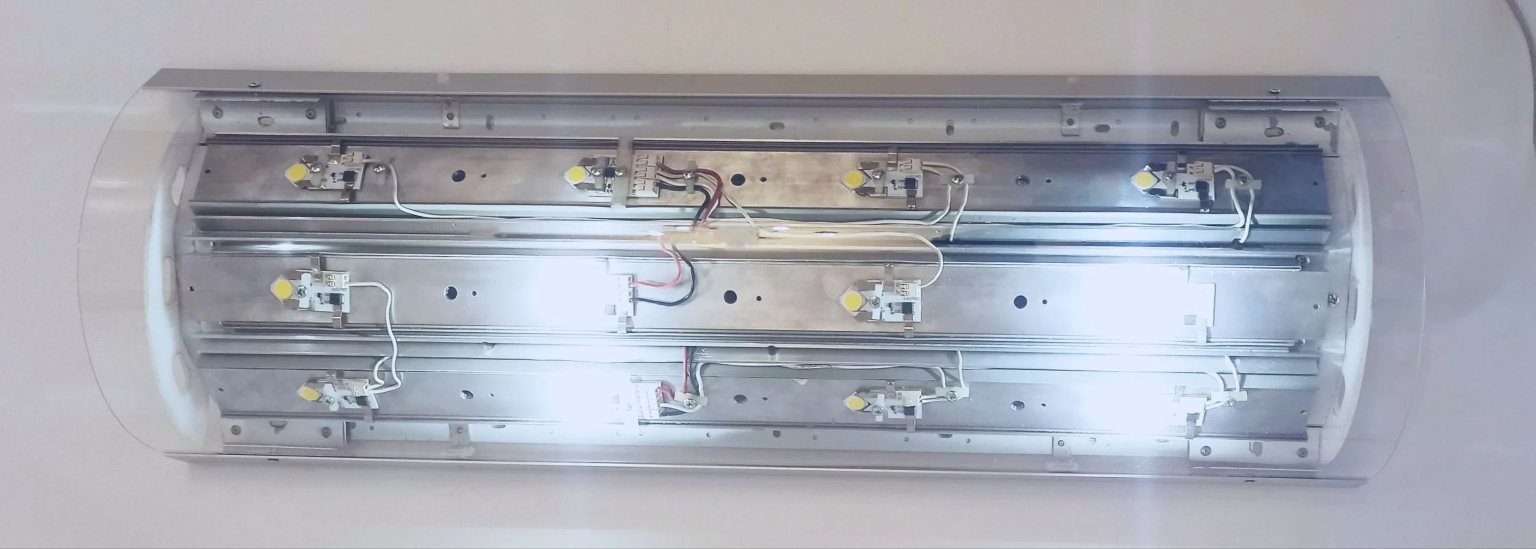

PC transparent cover

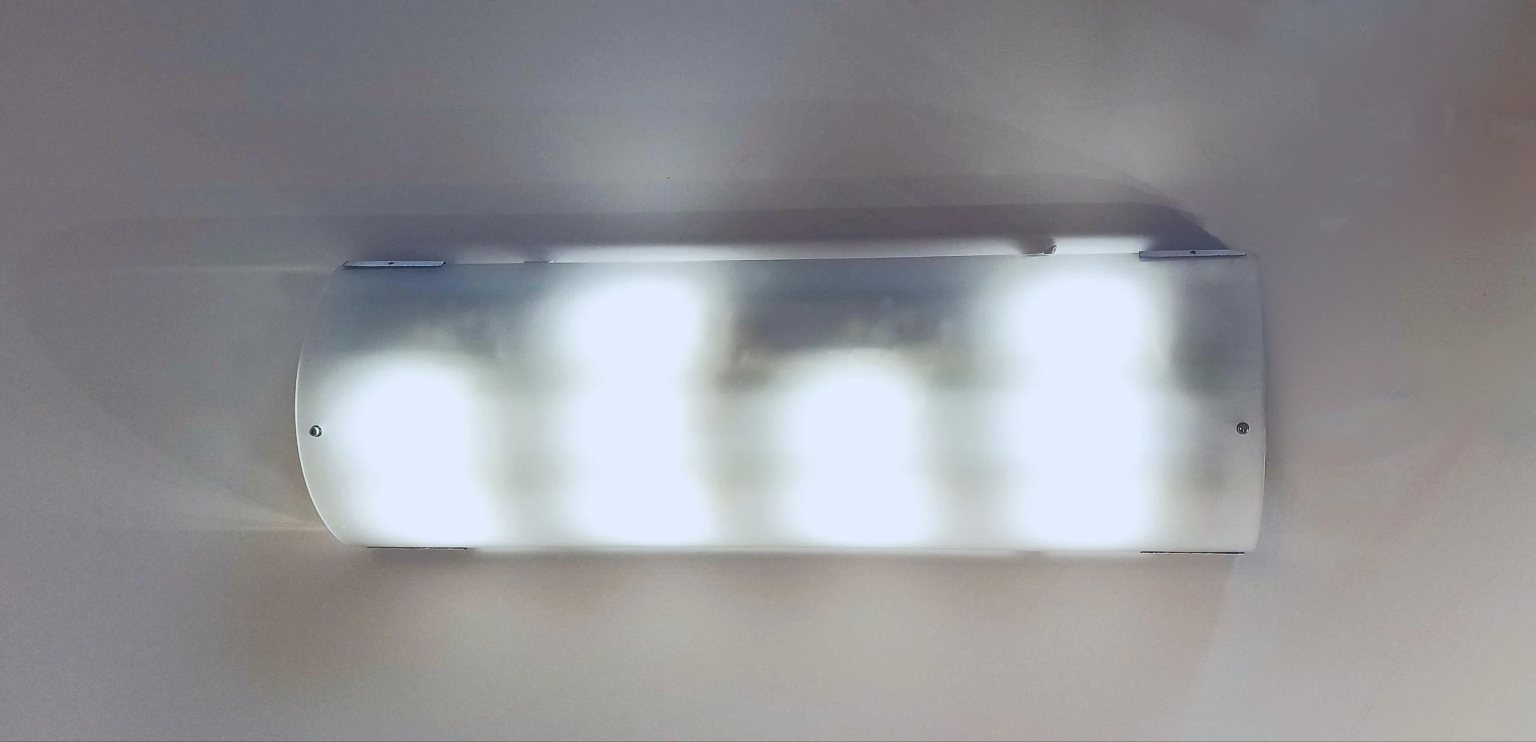

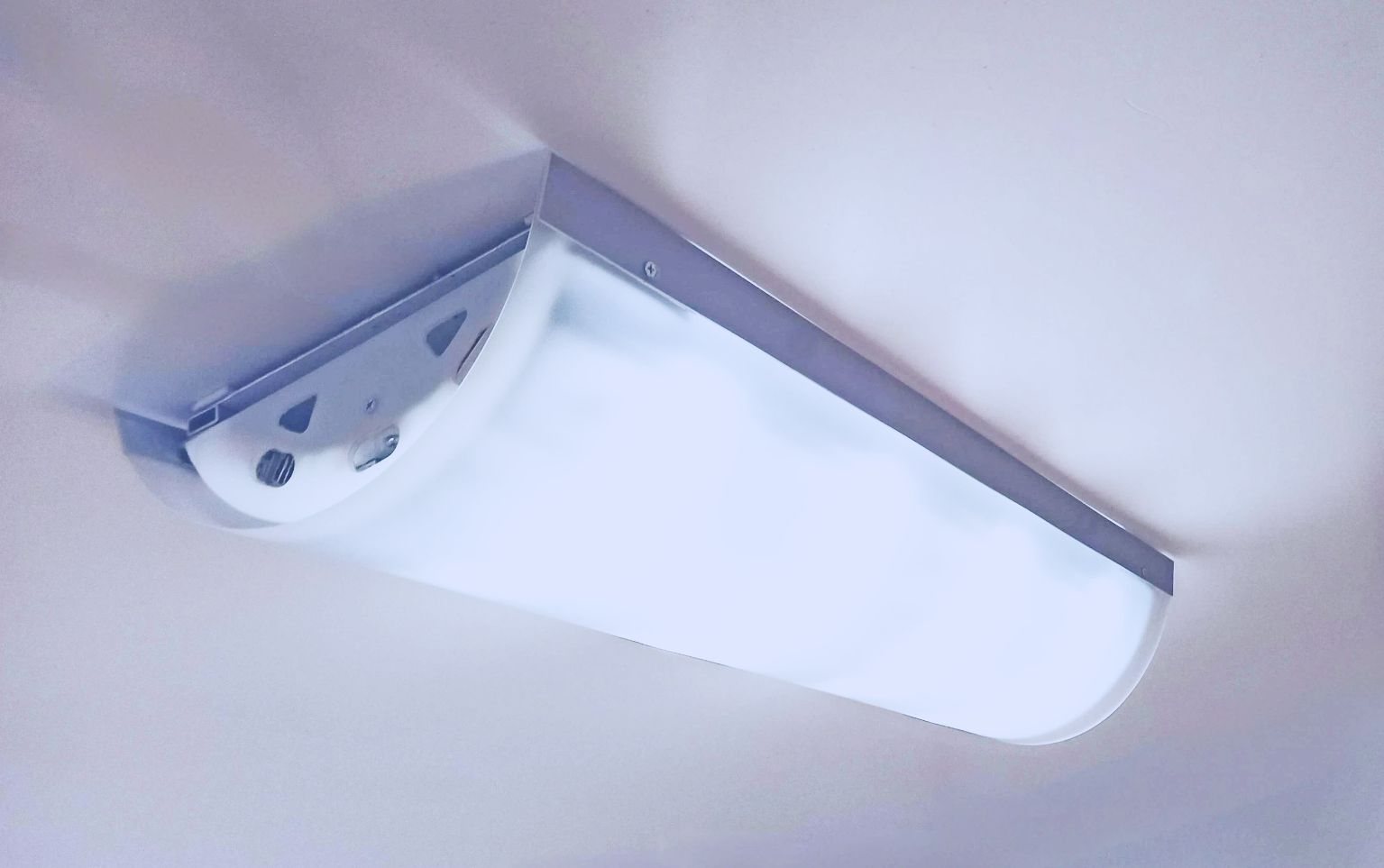

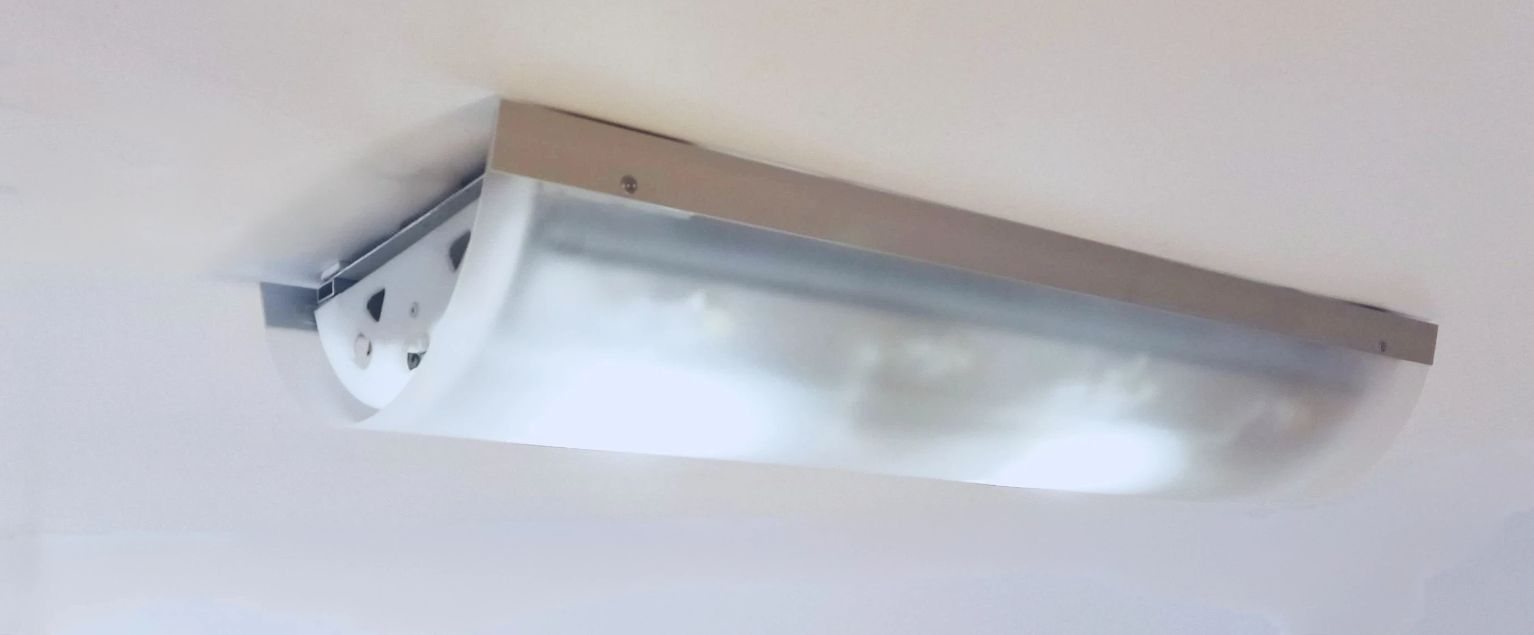

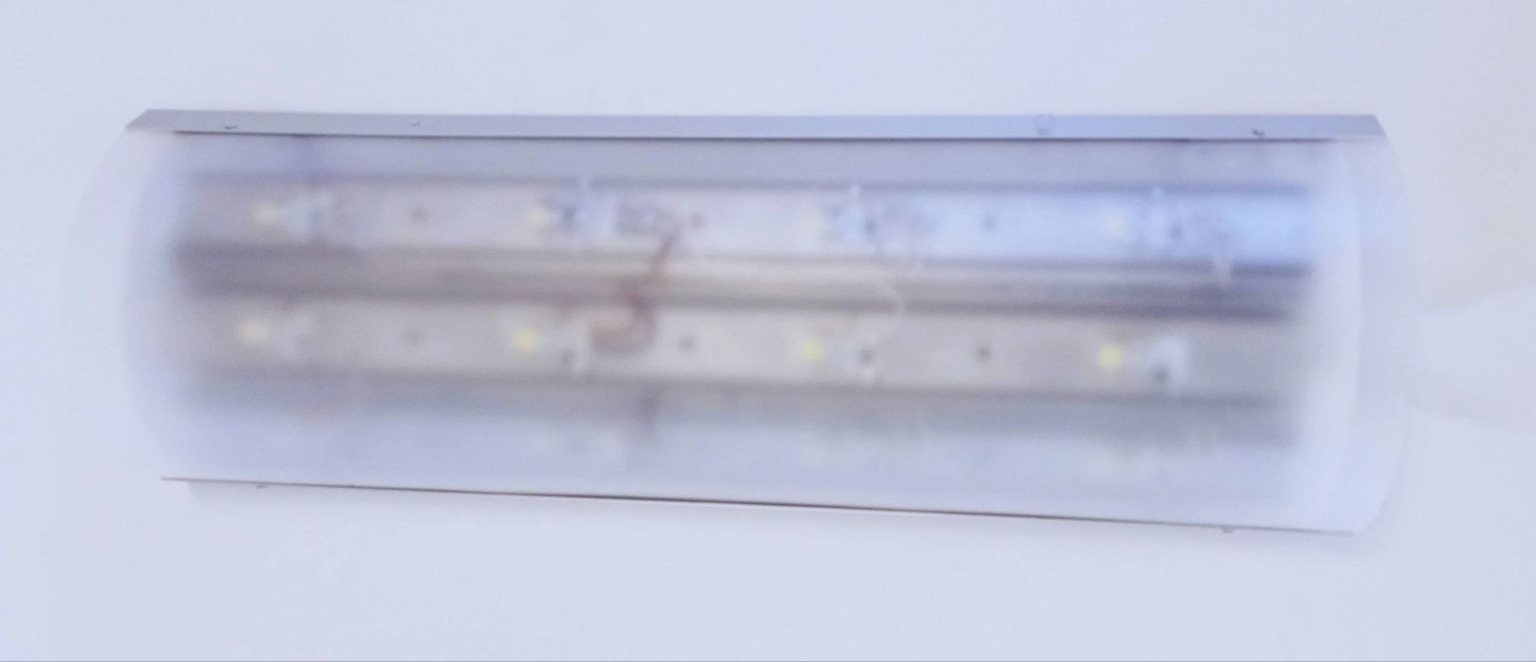

PC satine cover

PMMA satine cover

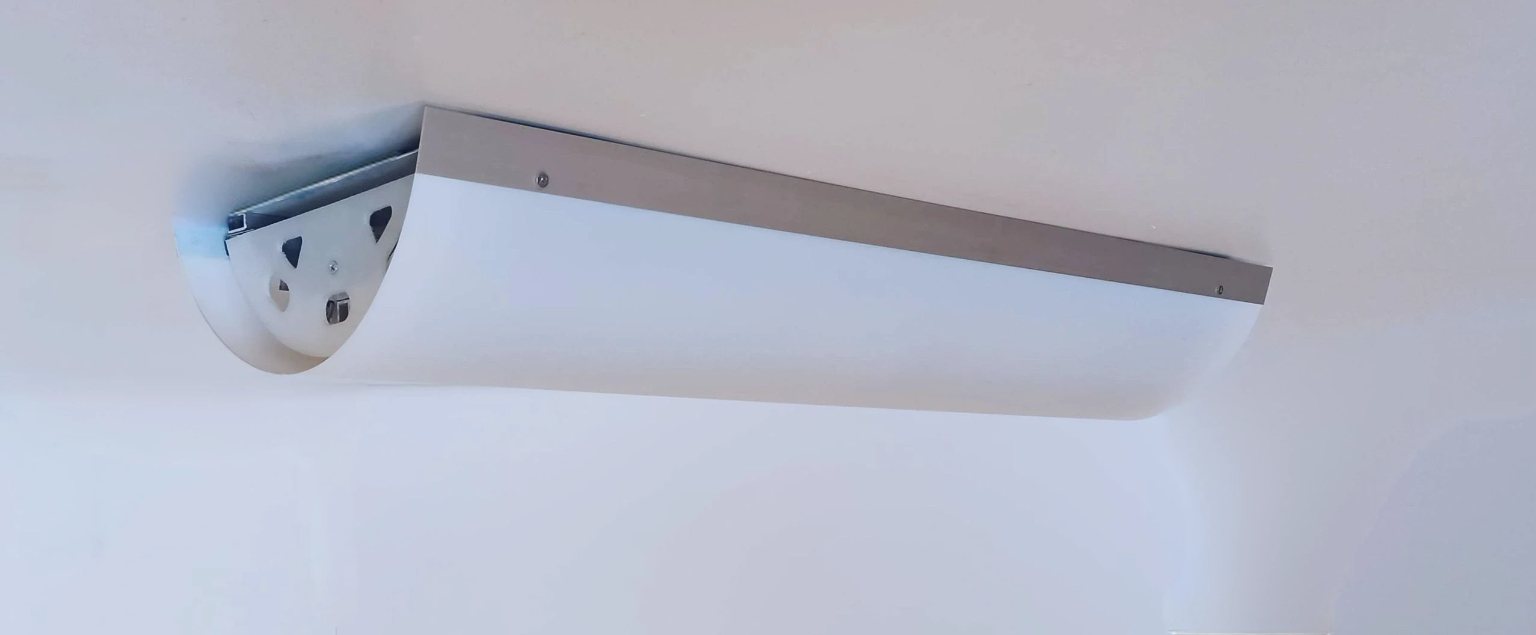

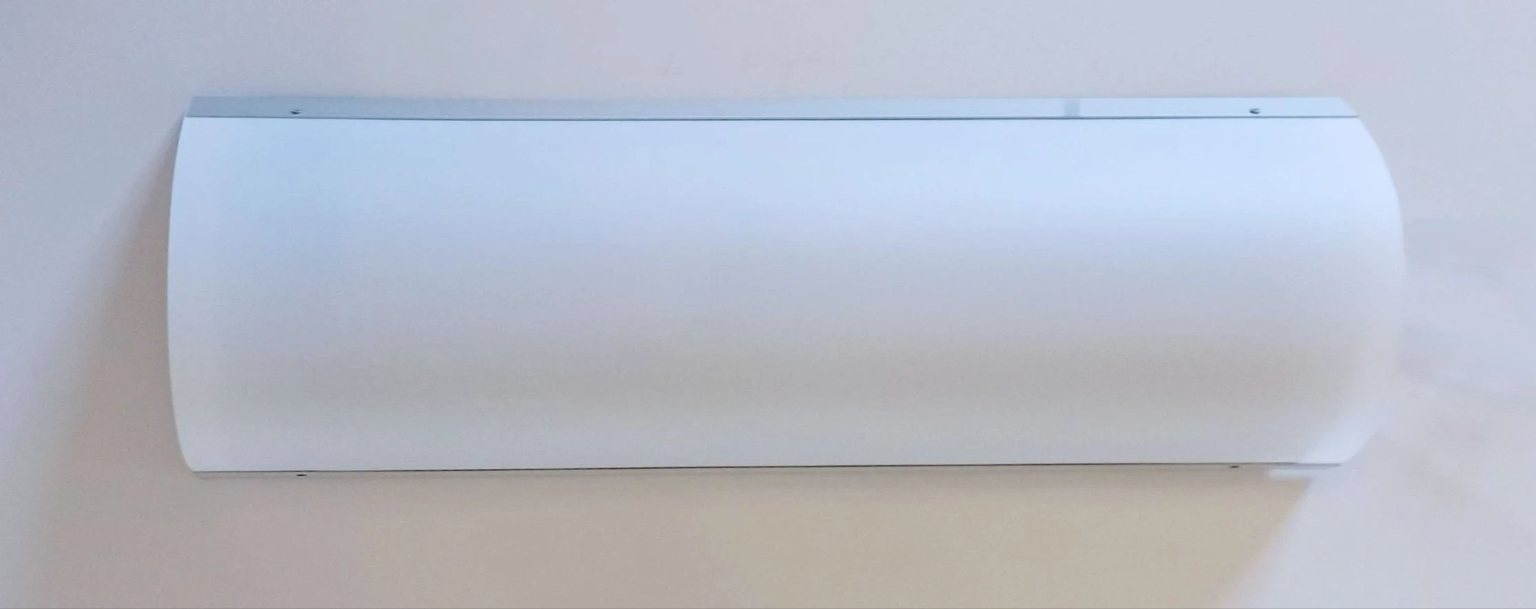

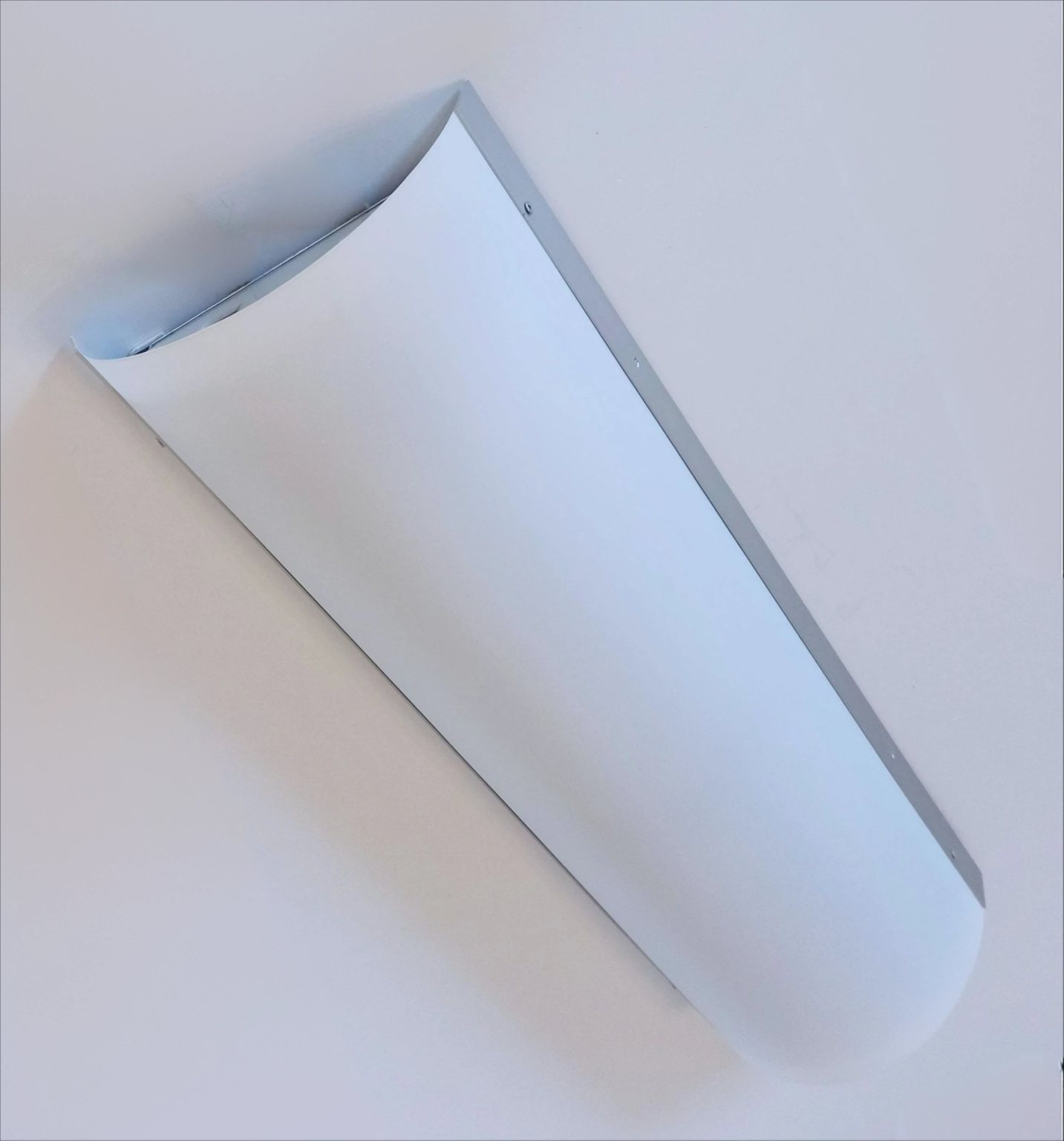

PC matt white cover

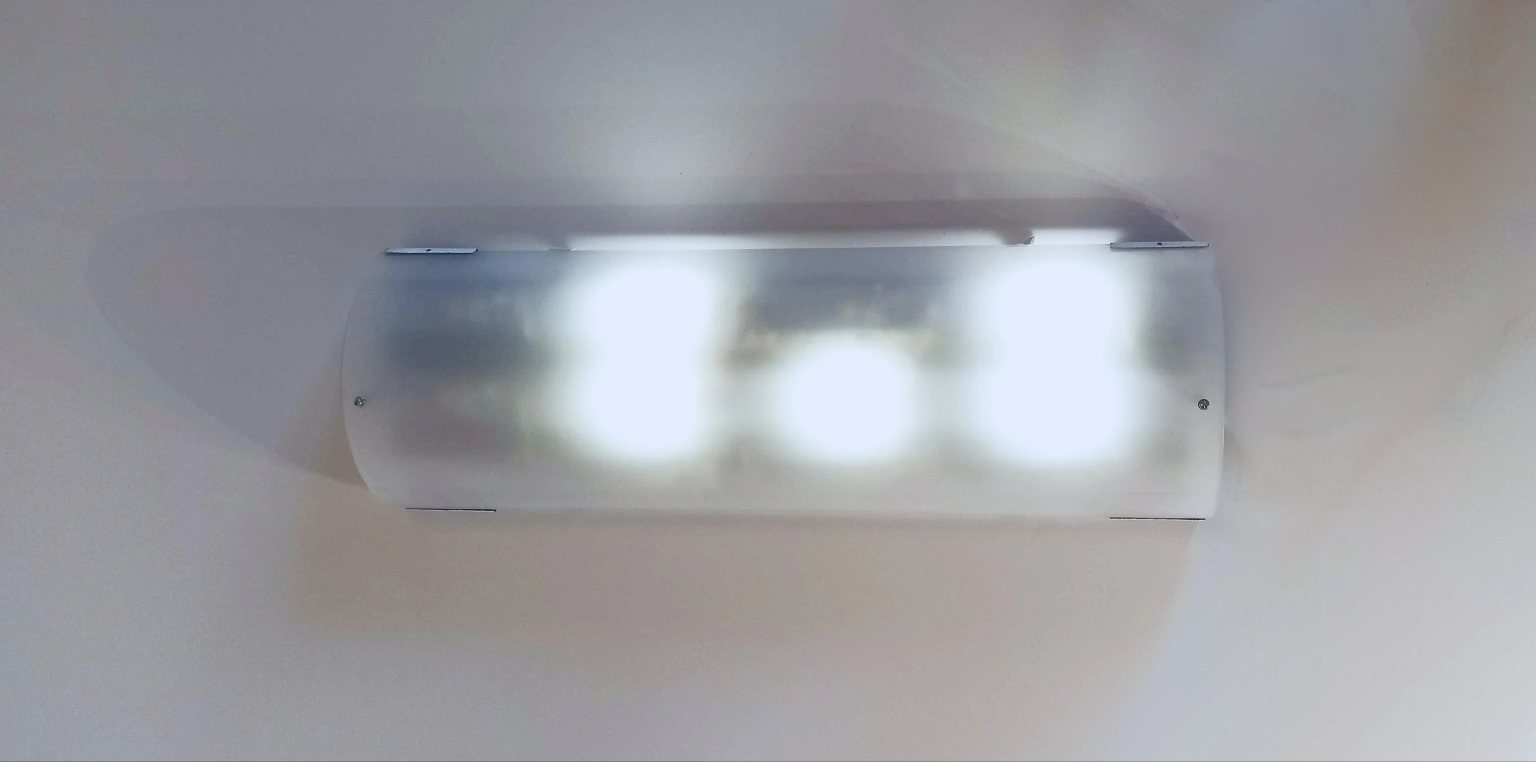

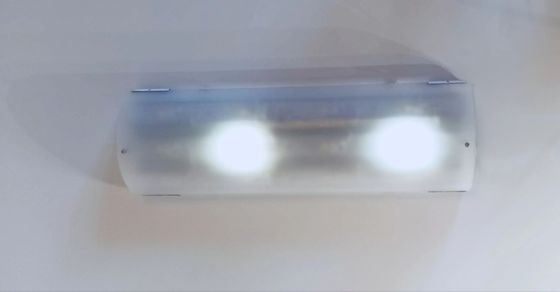

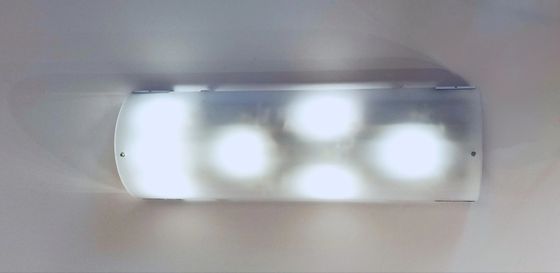

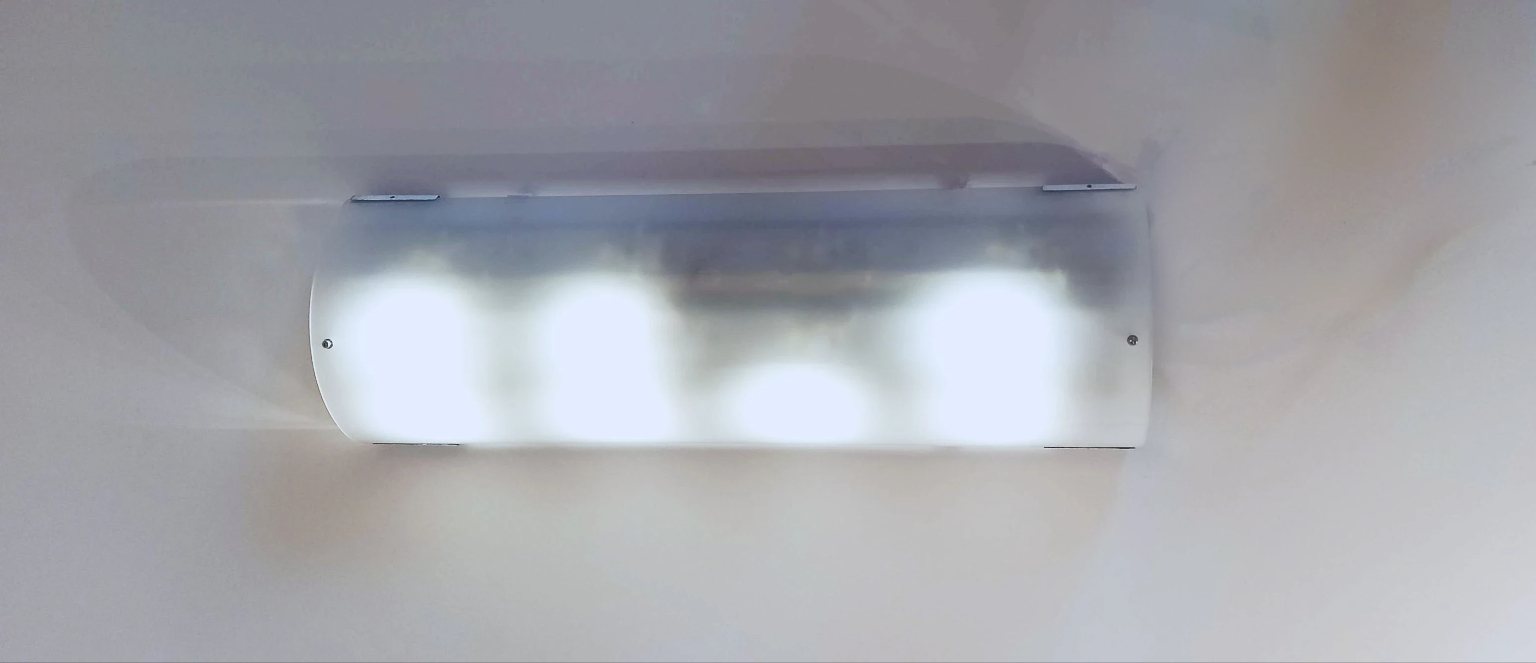

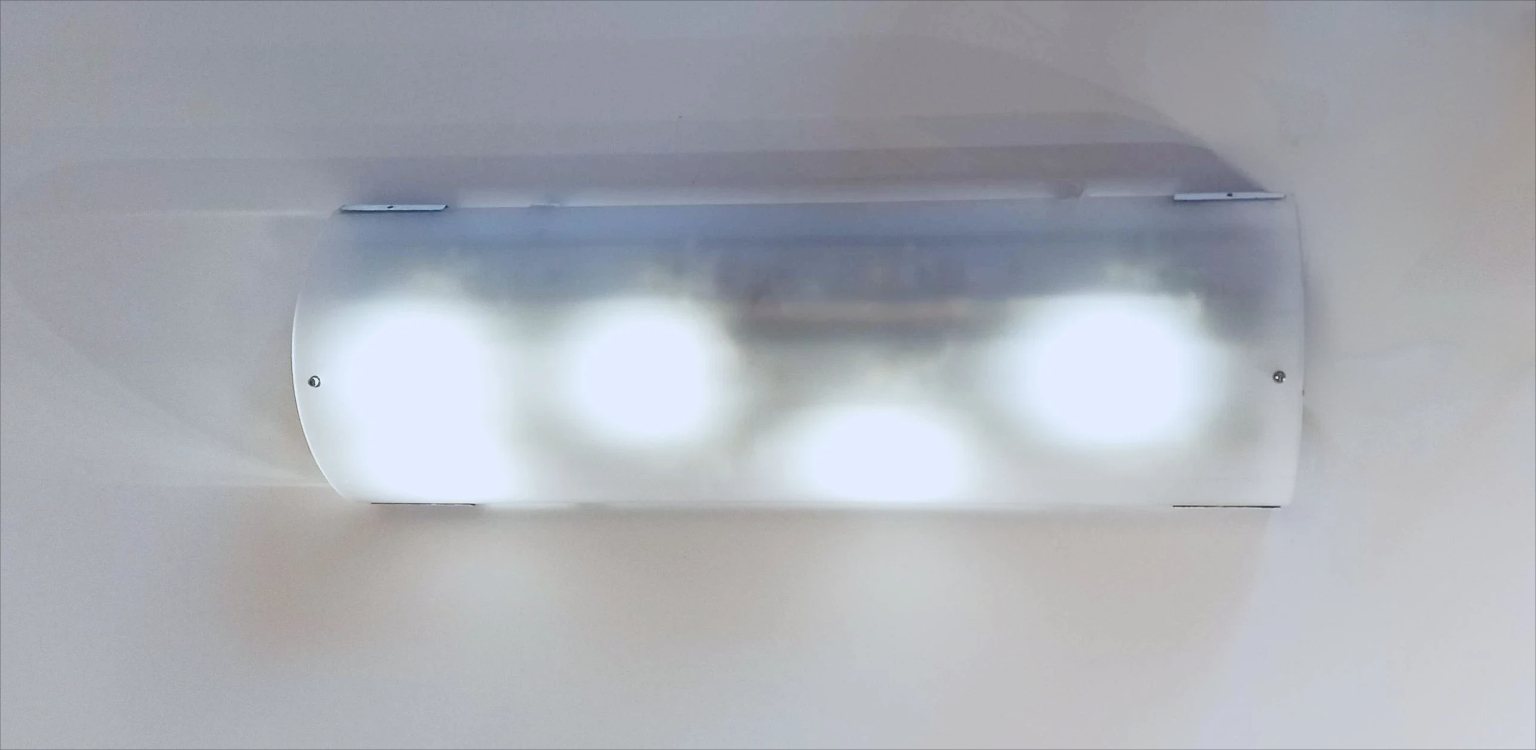

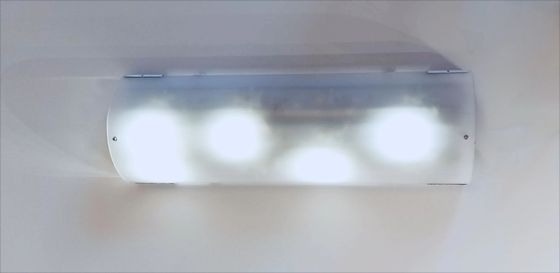

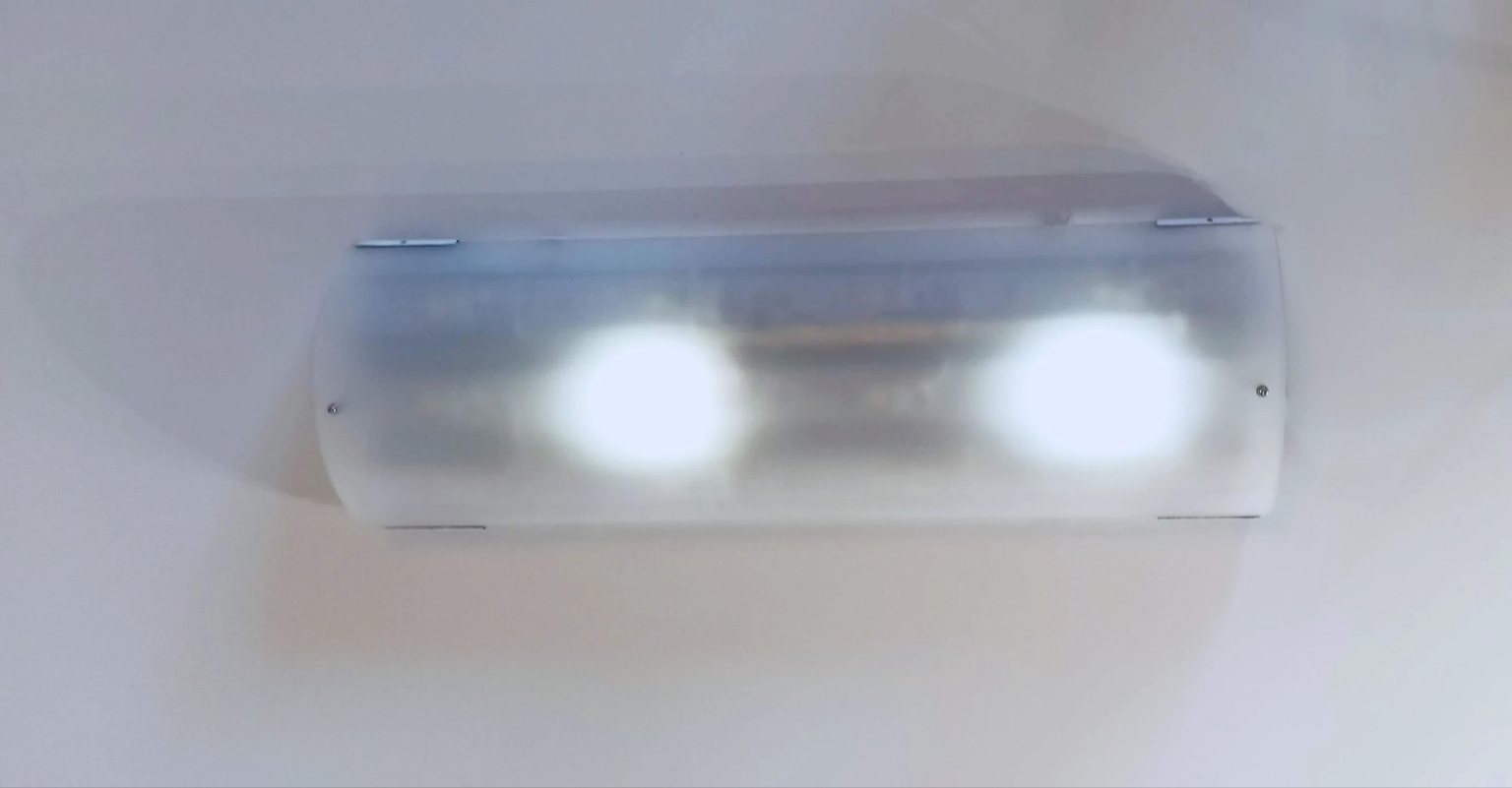

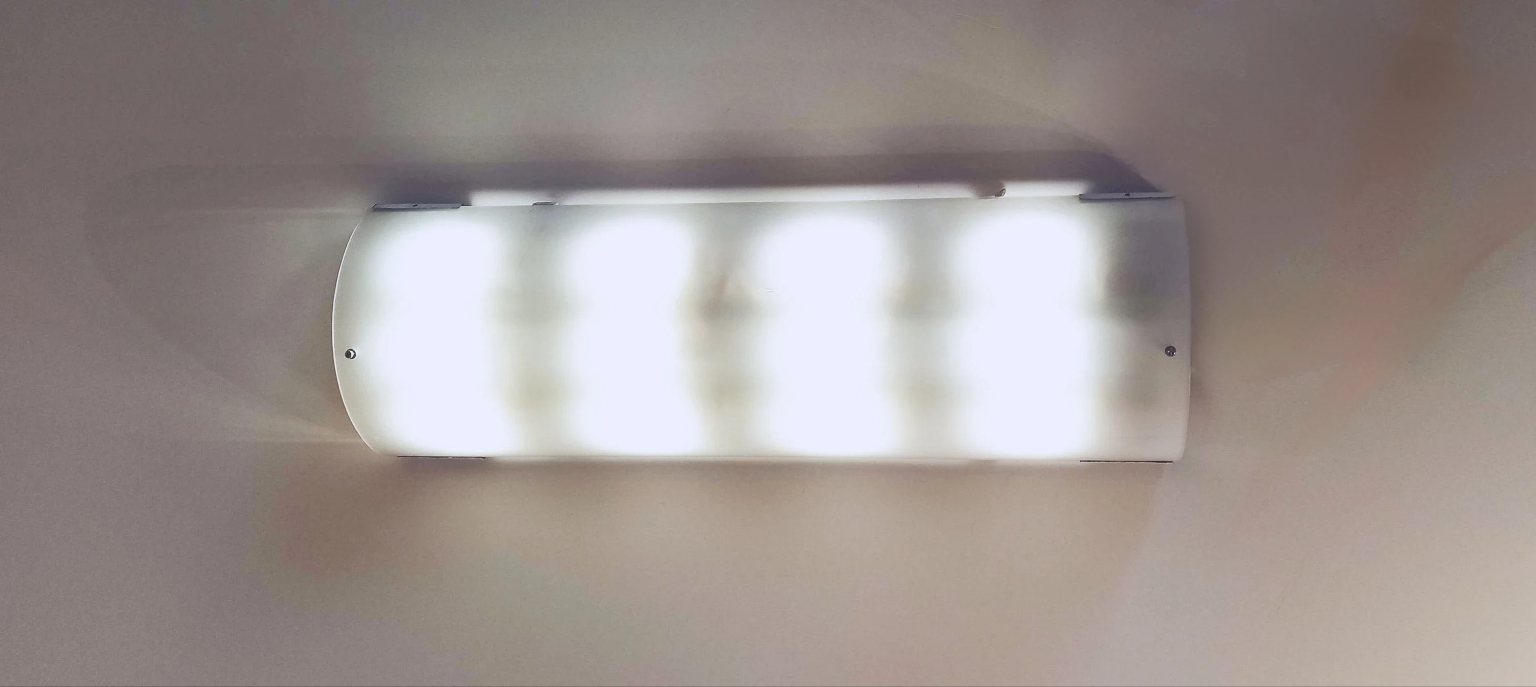

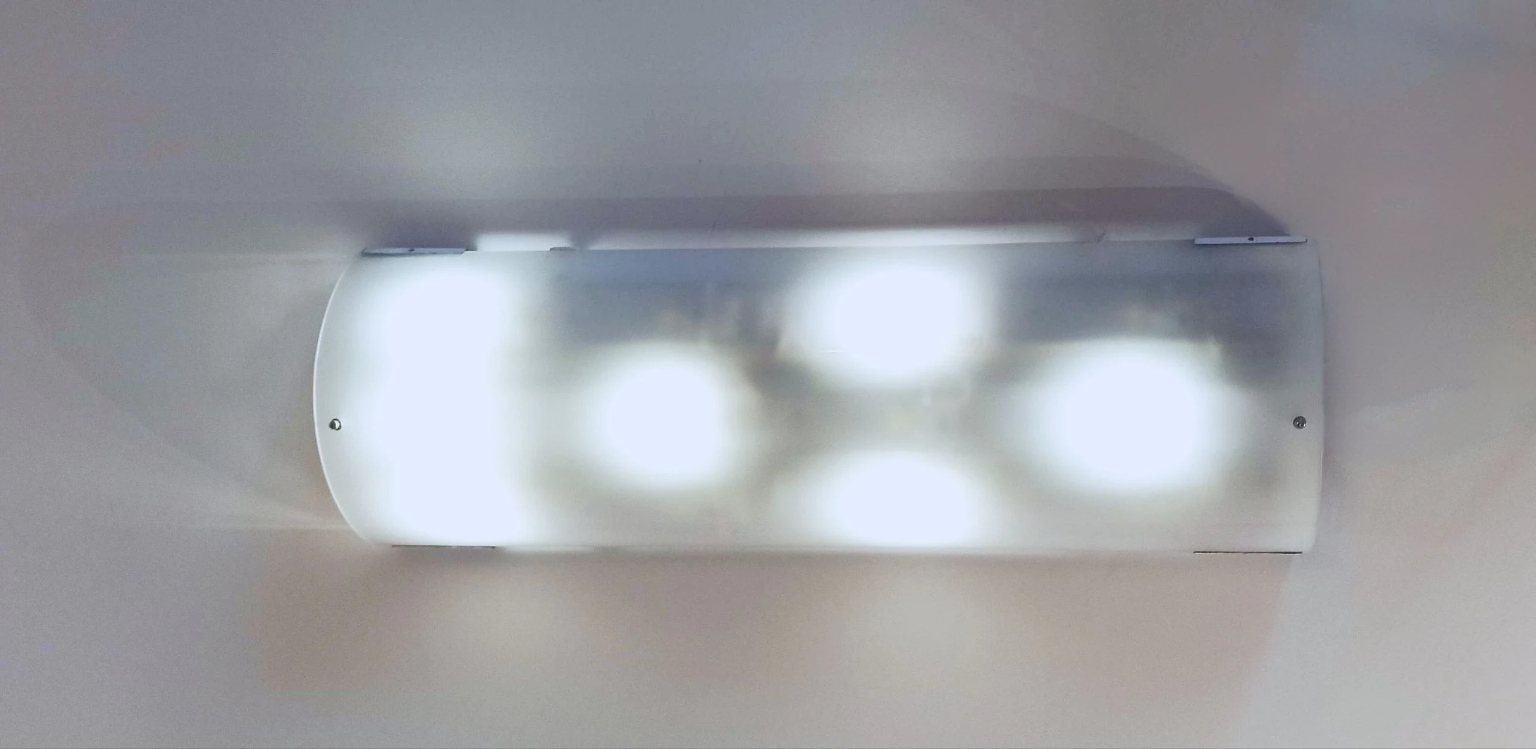

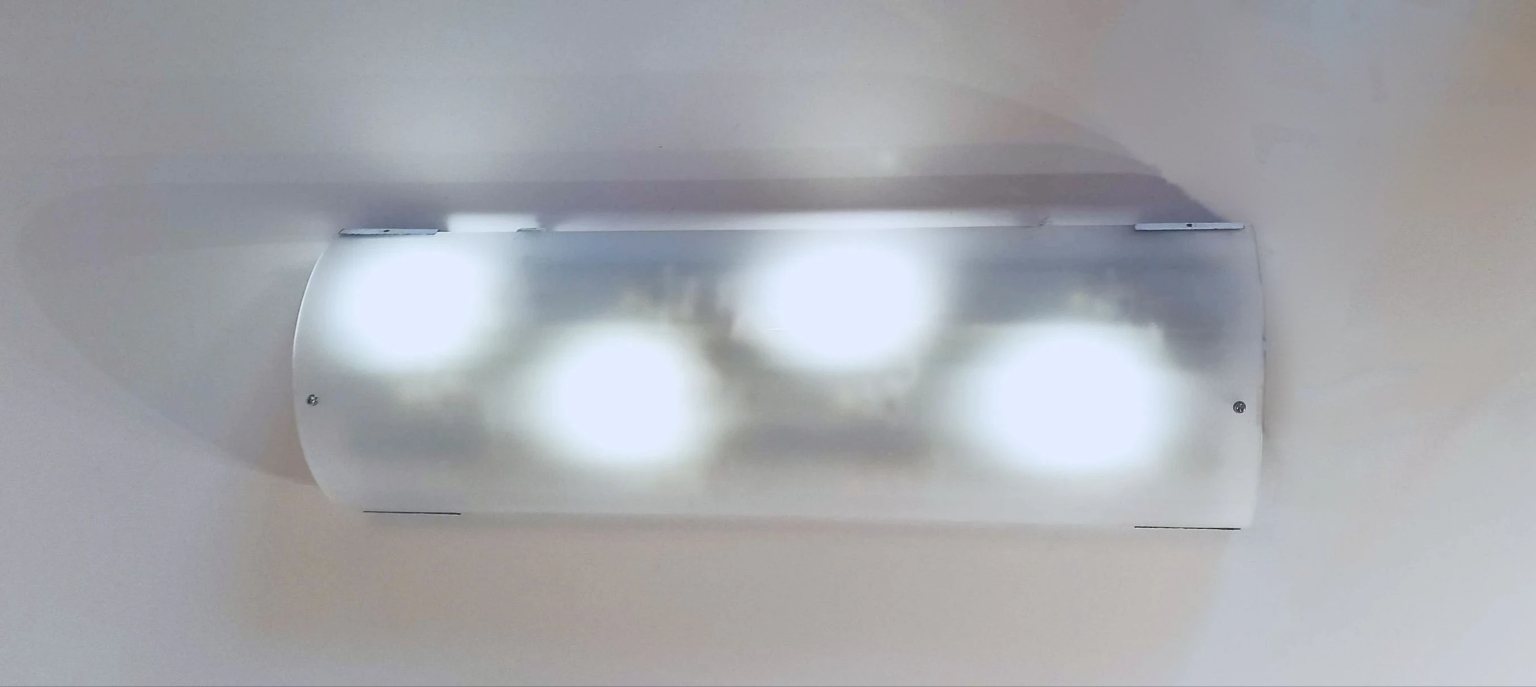

The next eight pictures show the same appliance with light spots
being gradually turned on, then gradualy turned off again in other combinations.
This option allows to control the direction and intensity of the light.
The cover used in this example is satine PMMA
now usualy replaced by satine polycarbonate.

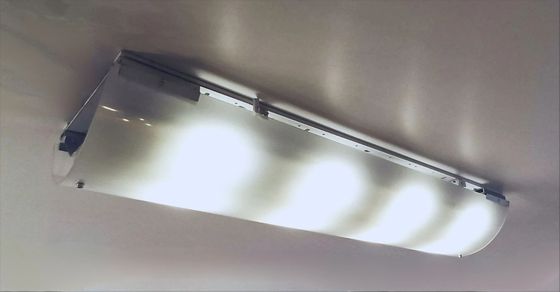

The next four pictures show the same appliance with light spots
being turned on and off in various combinations.

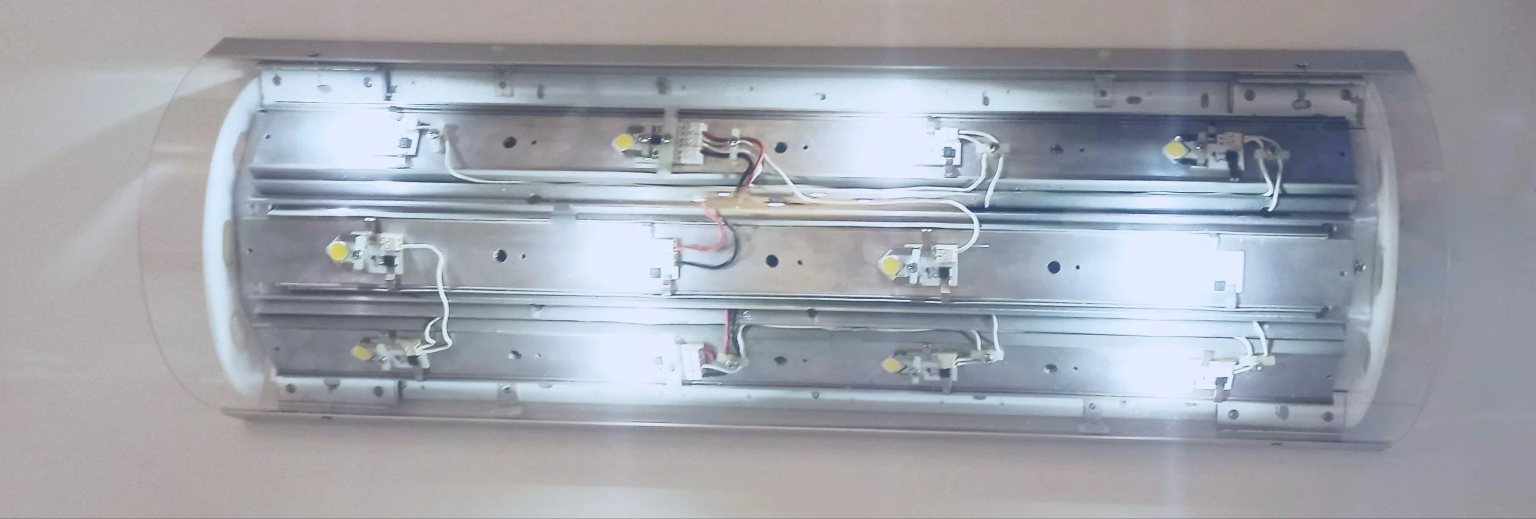

The cover used in this example is transparent polycarbonate.

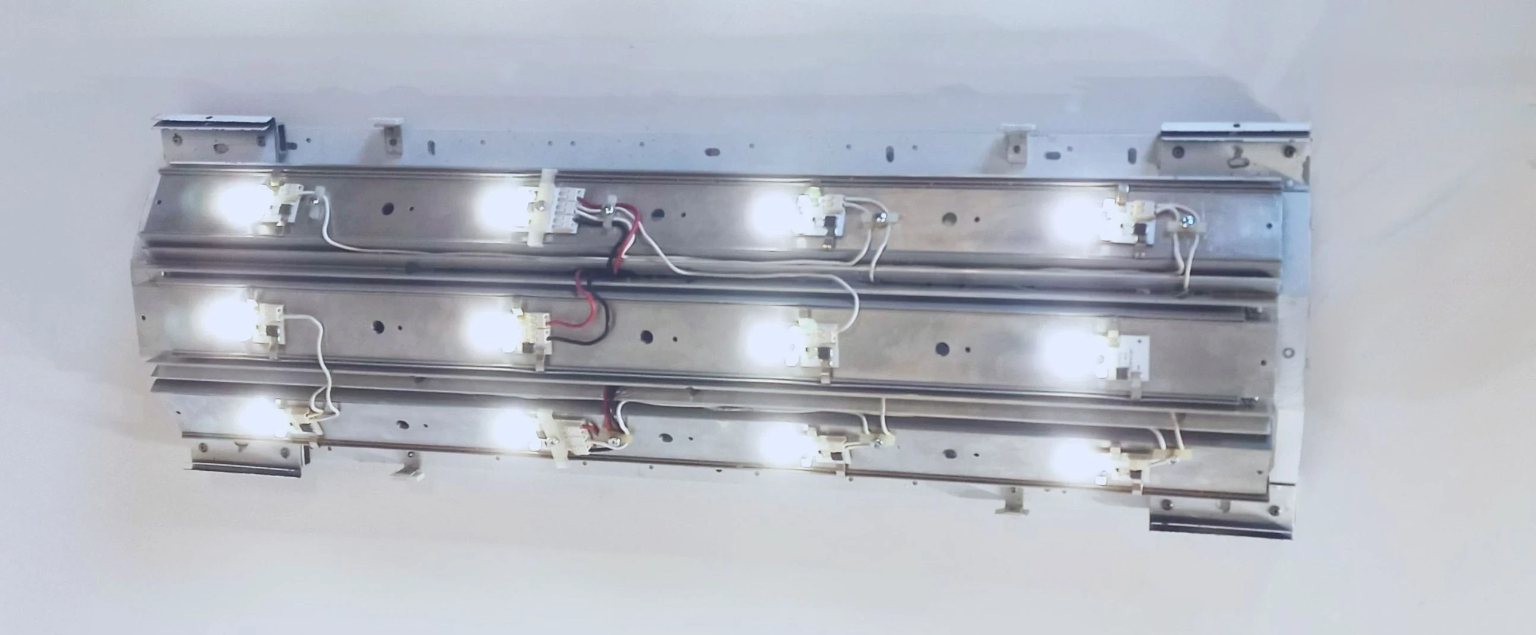

The next four pictures show the same appliance with light spots
being turned on and off in yet other combinations.

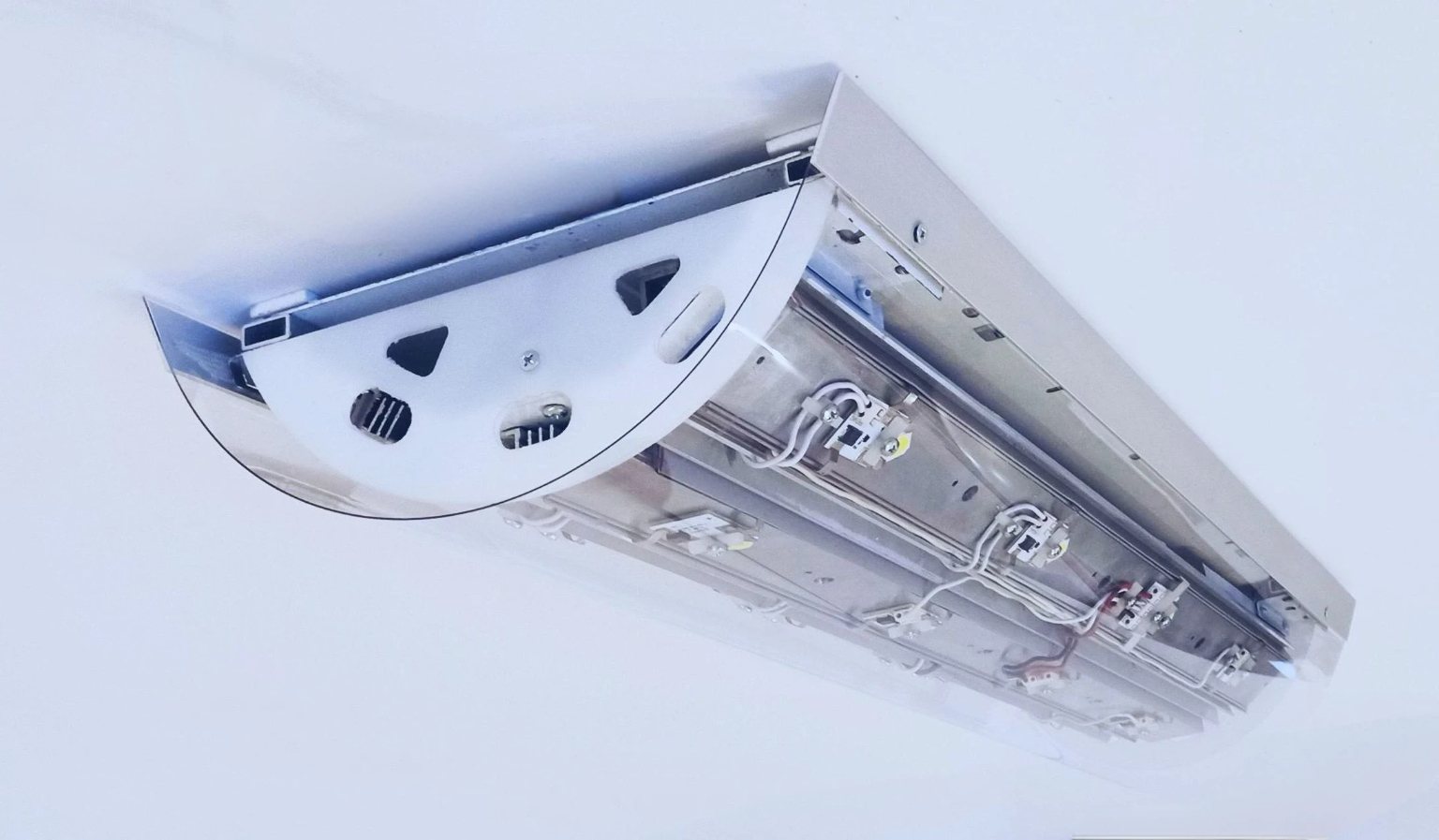

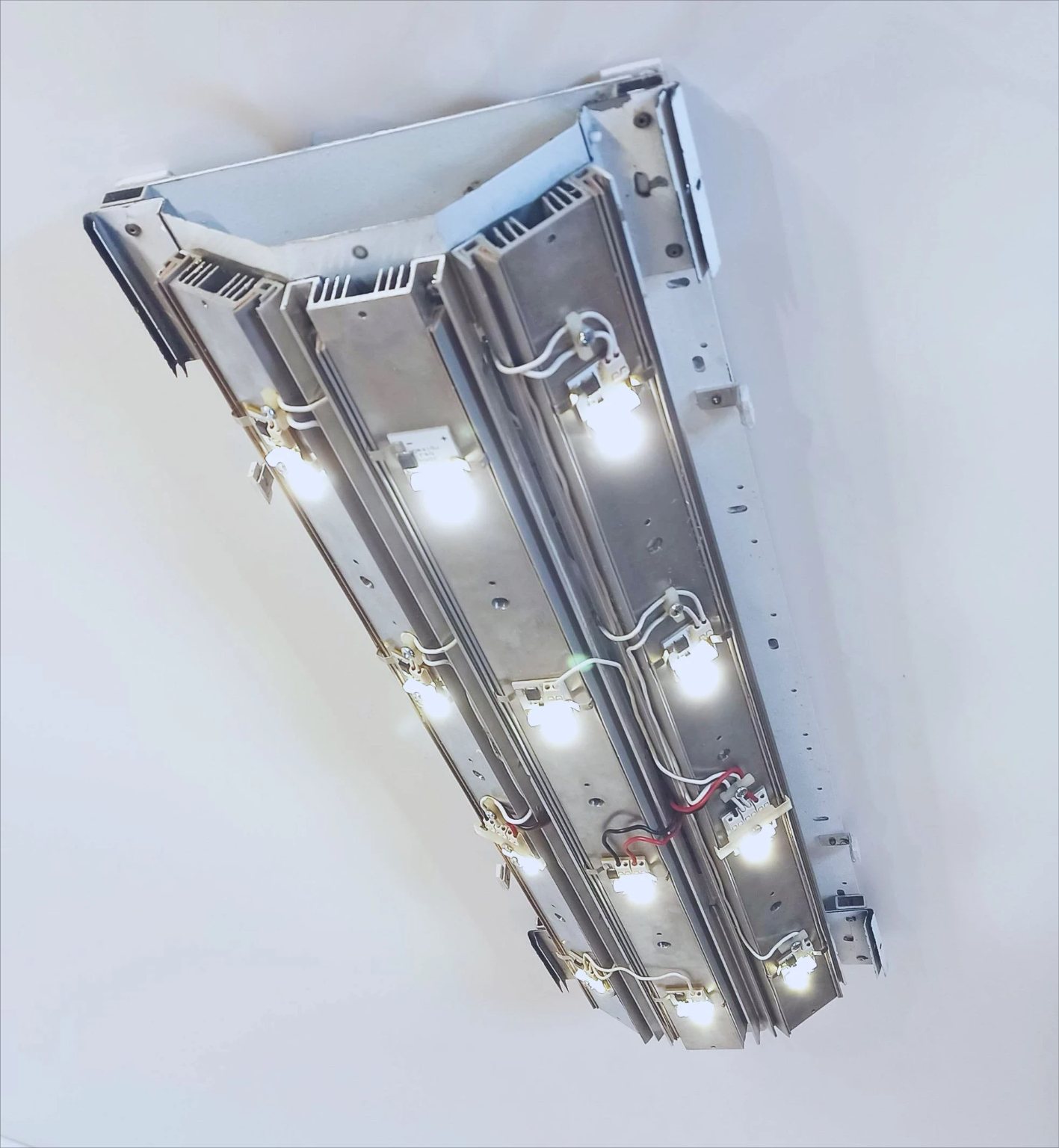

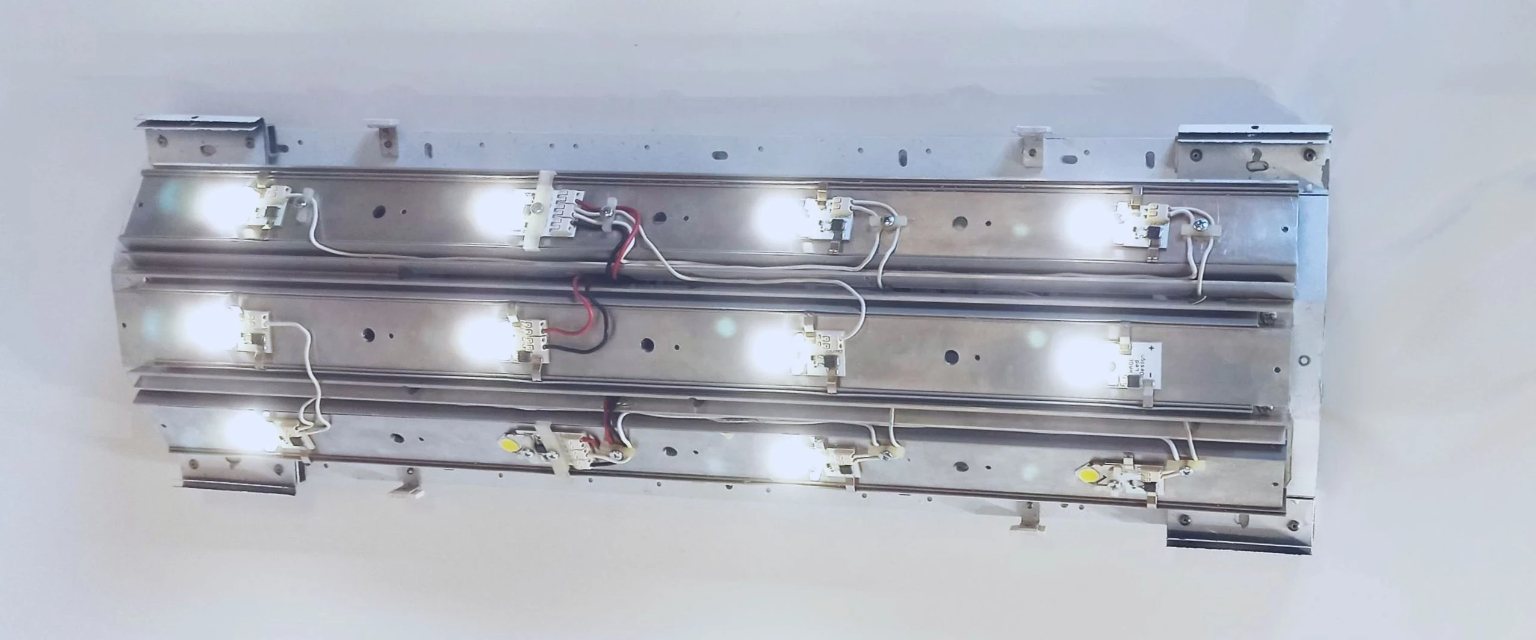

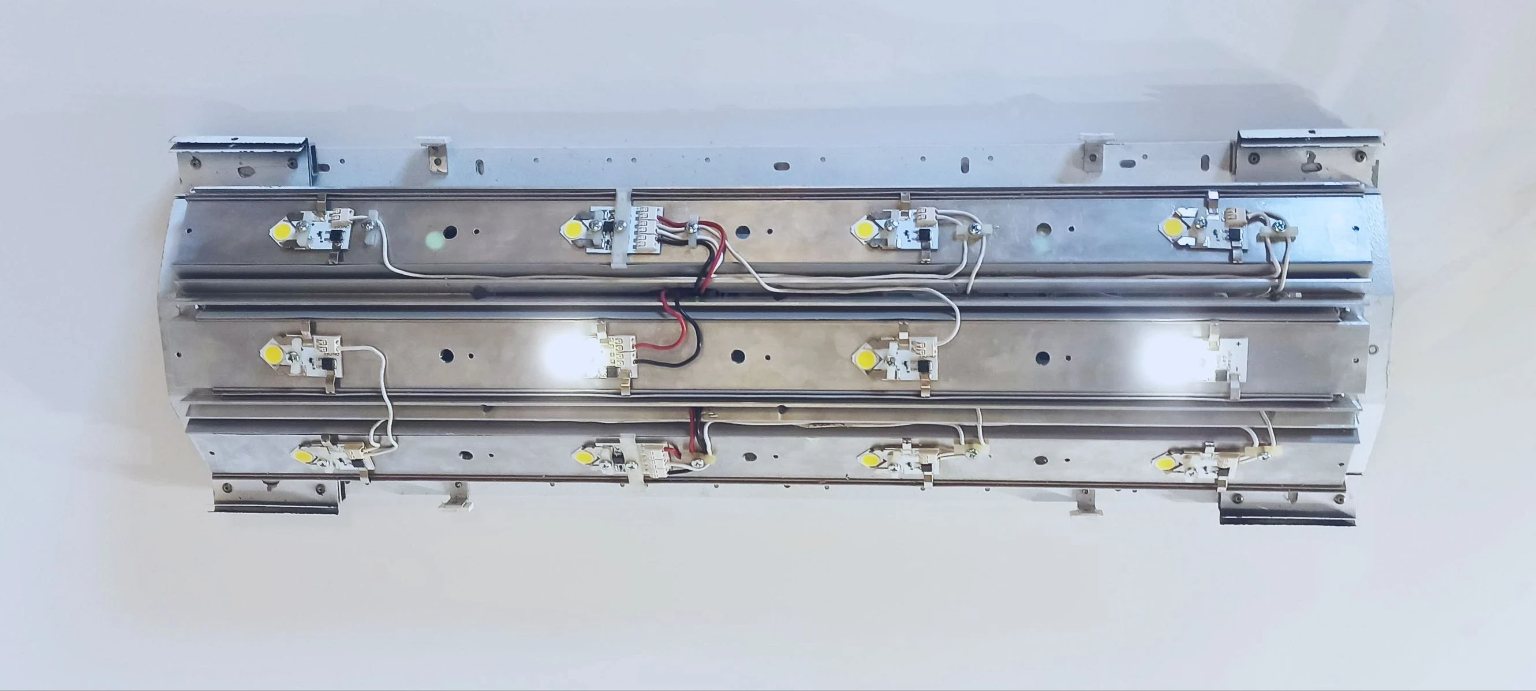

In this example there is no cover at all.
Aplliances without cover can be delivered at a much lower cost
when protection and light difusion is not needed.

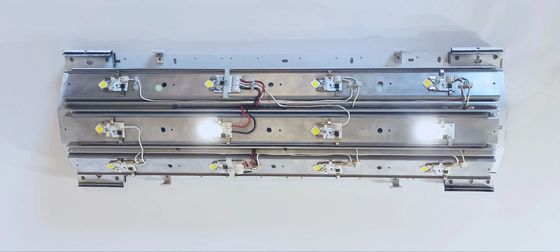

The next four pictures show the same appliance without
and with various covers
Without cover

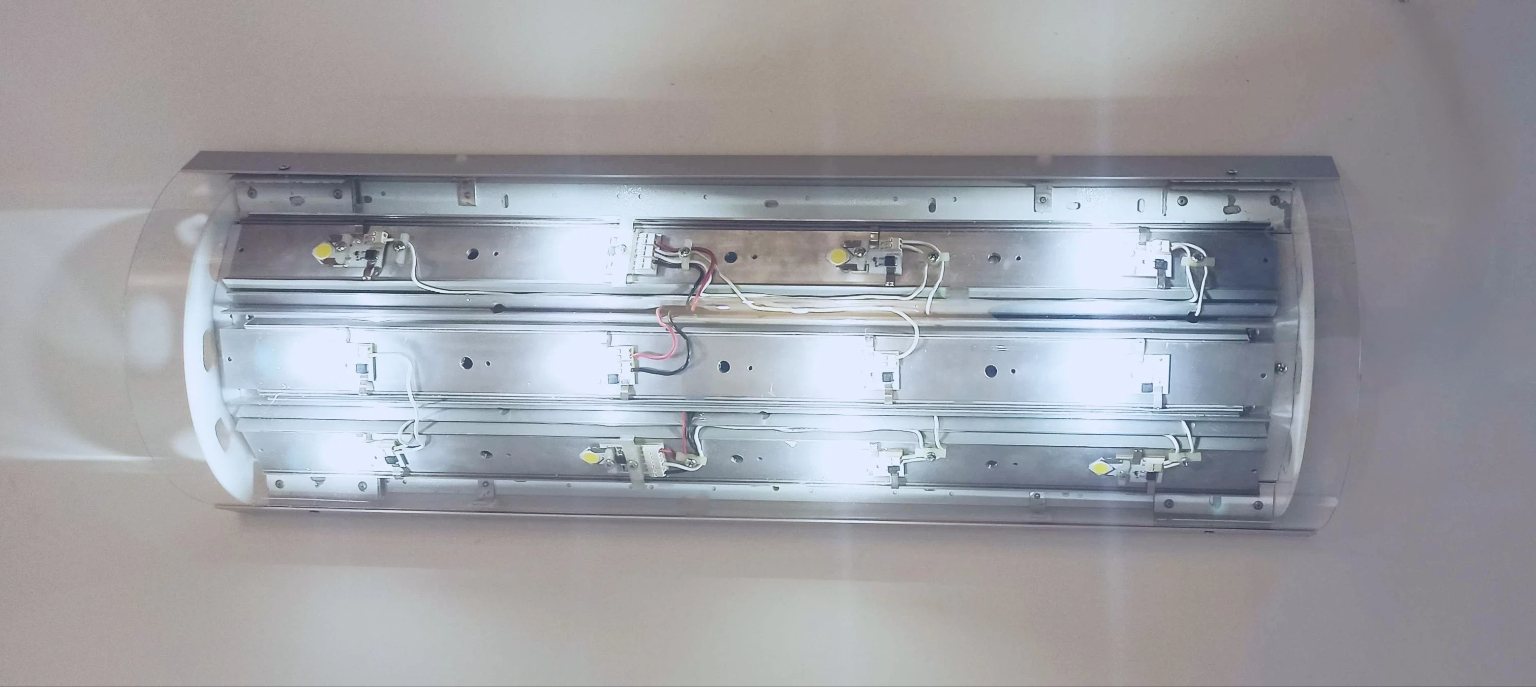

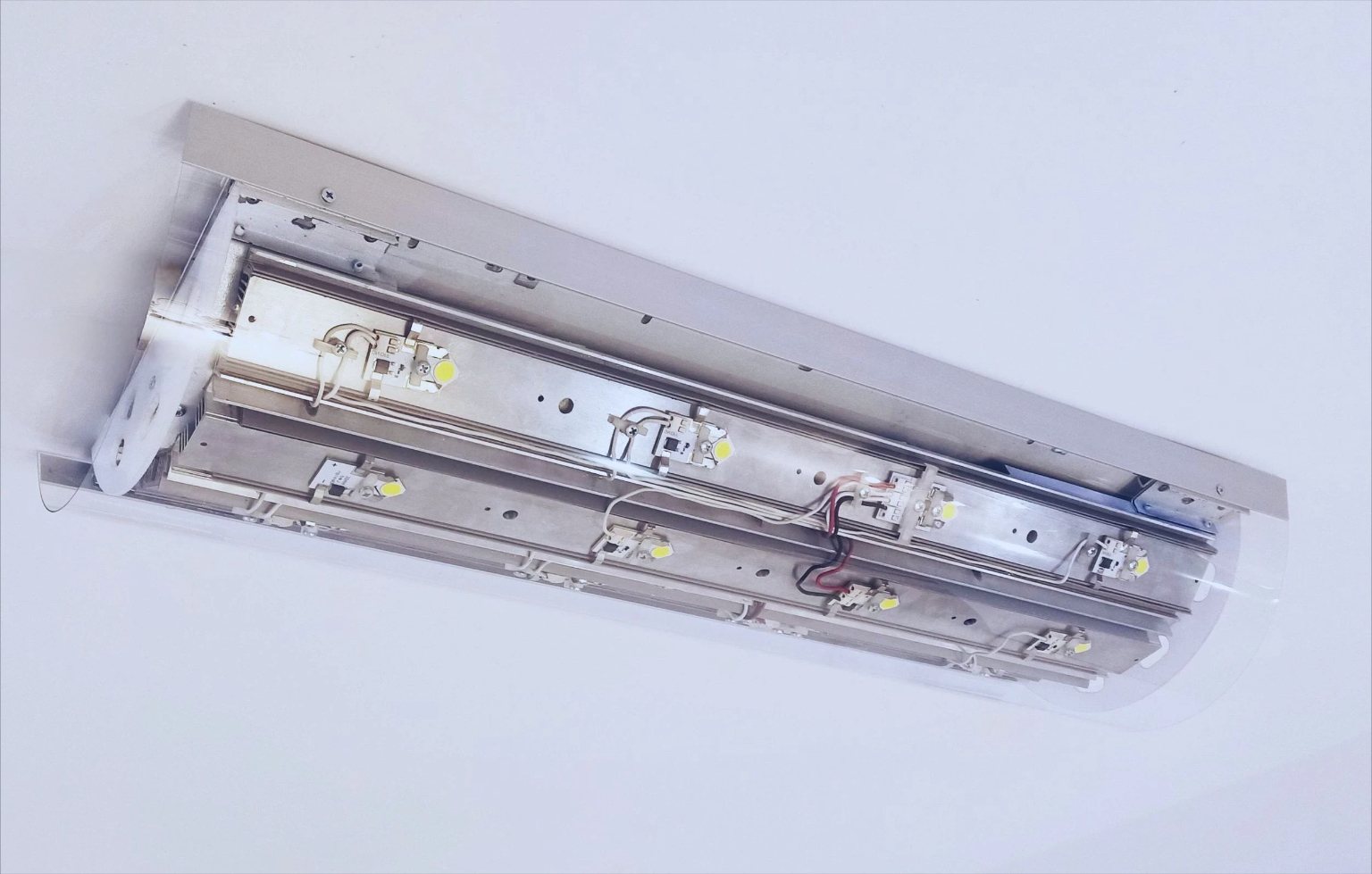

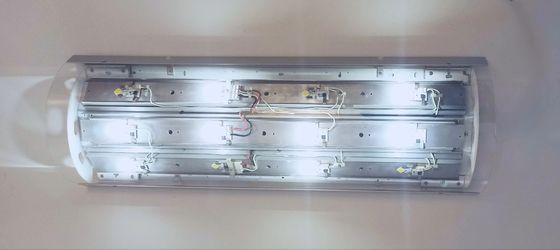

PC transparent cover

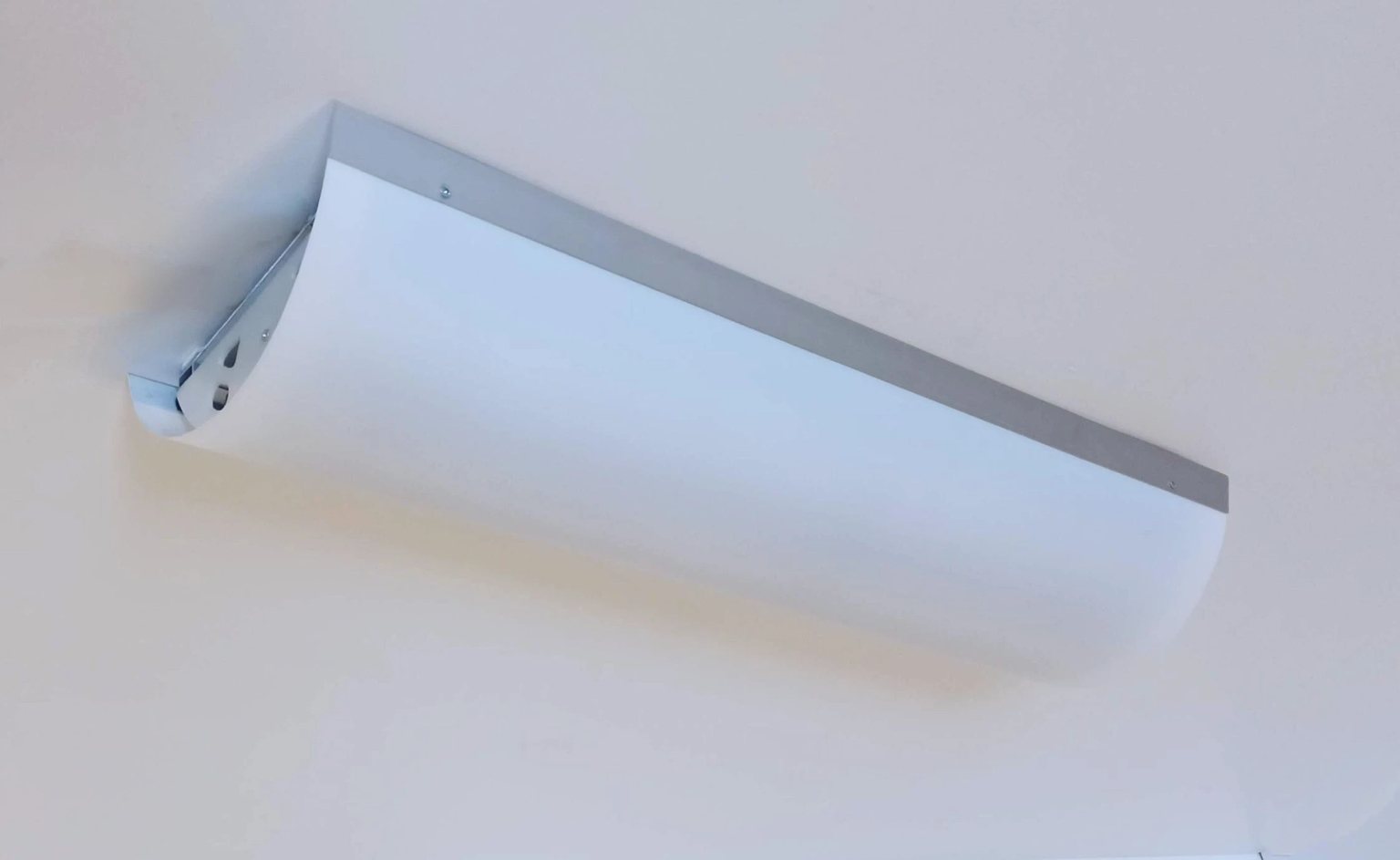

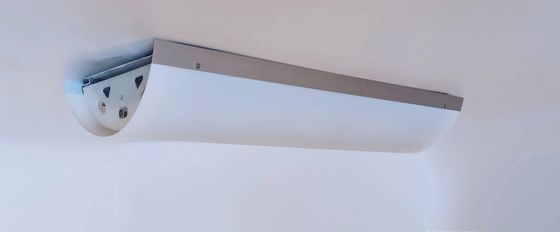

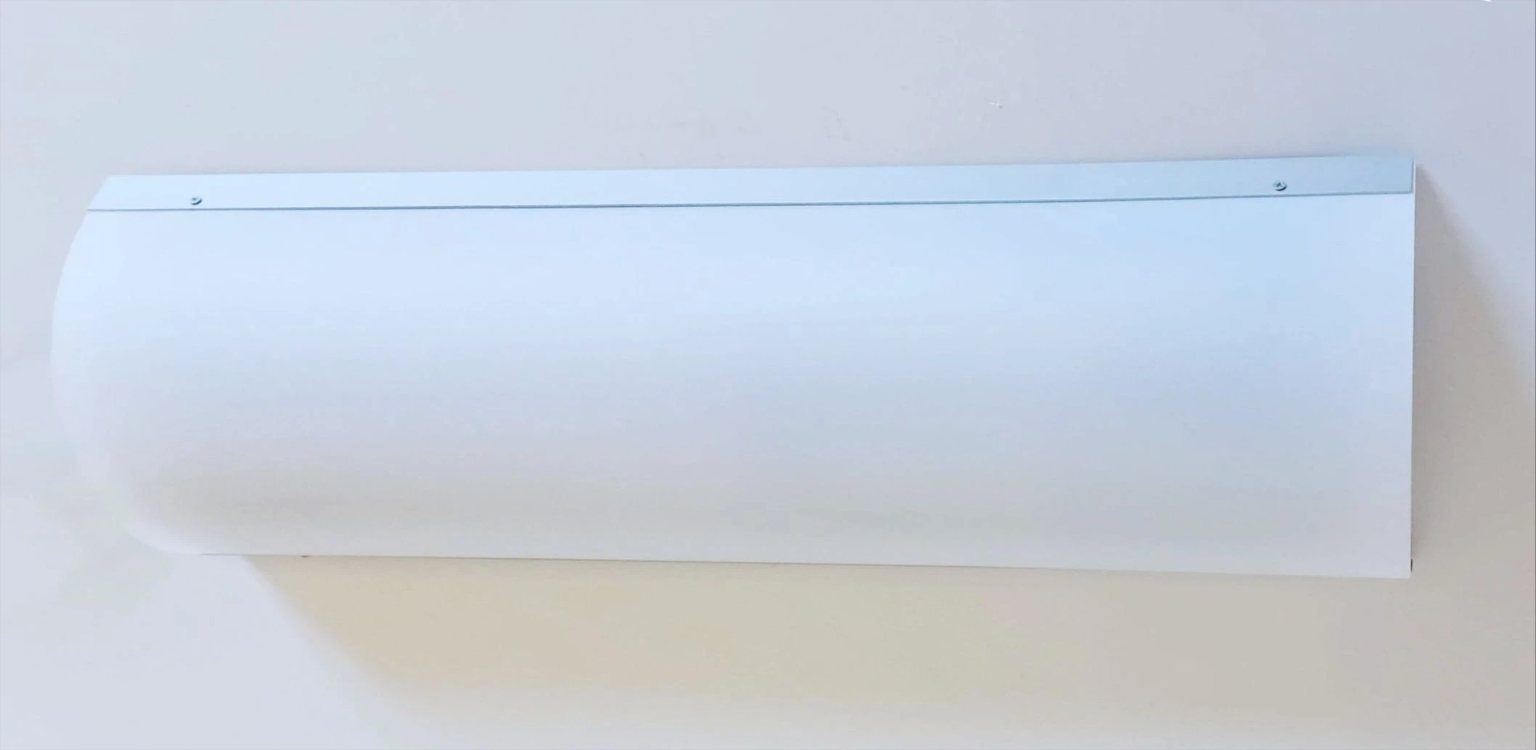

PC matt white cover

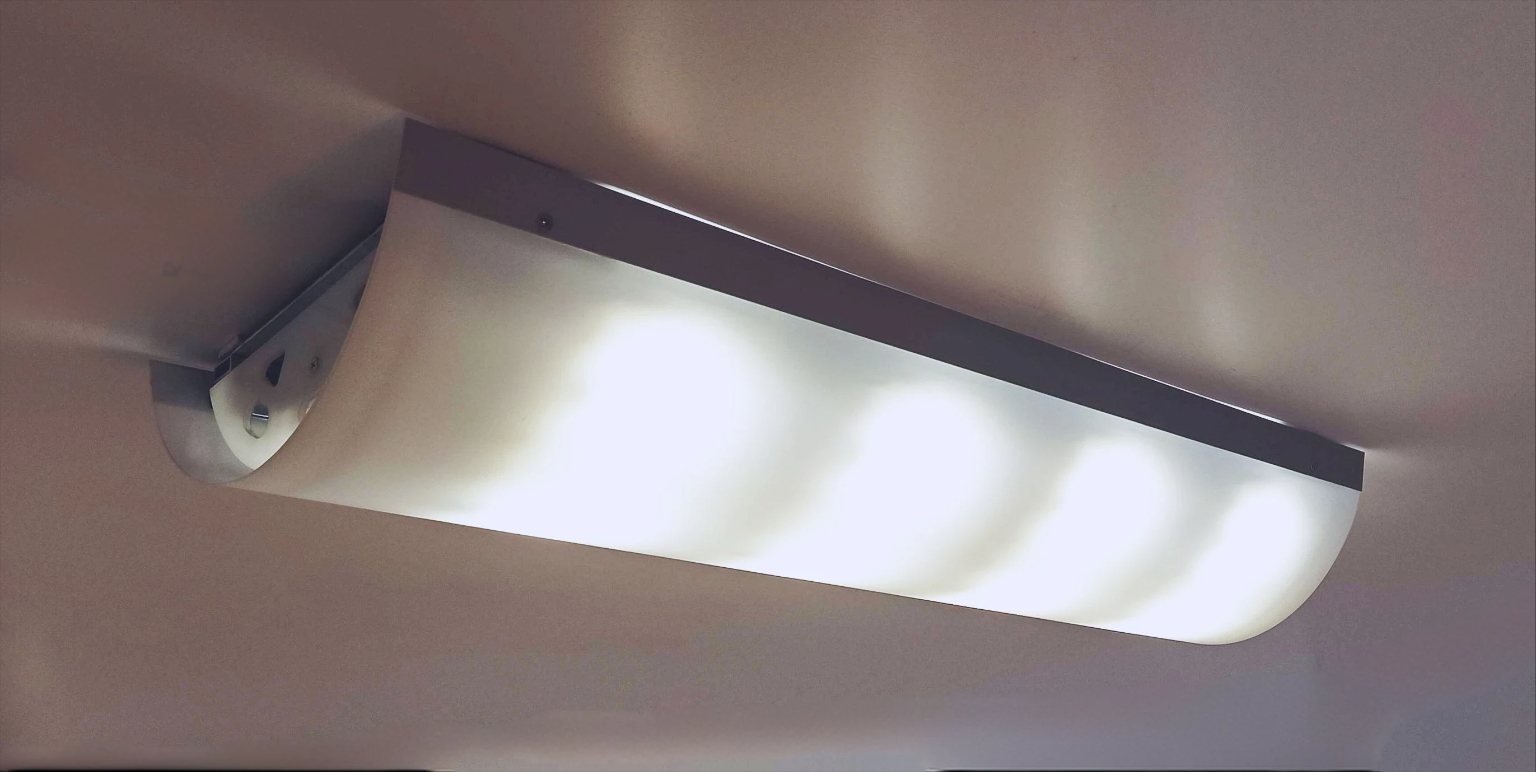

PC matt white cover, lights turned on

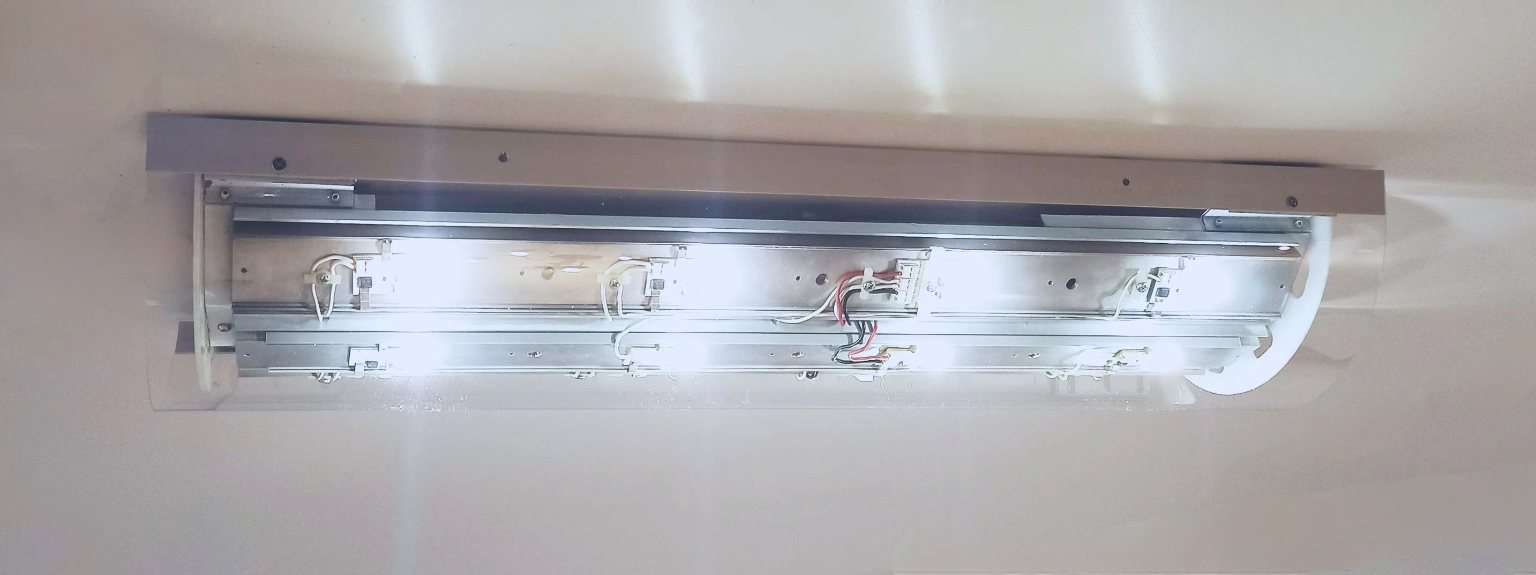

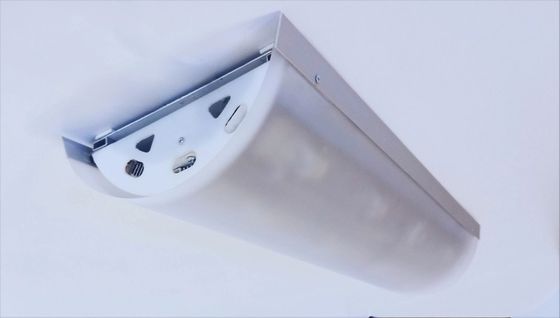

The next four pictures show how the appliance looks from the side.

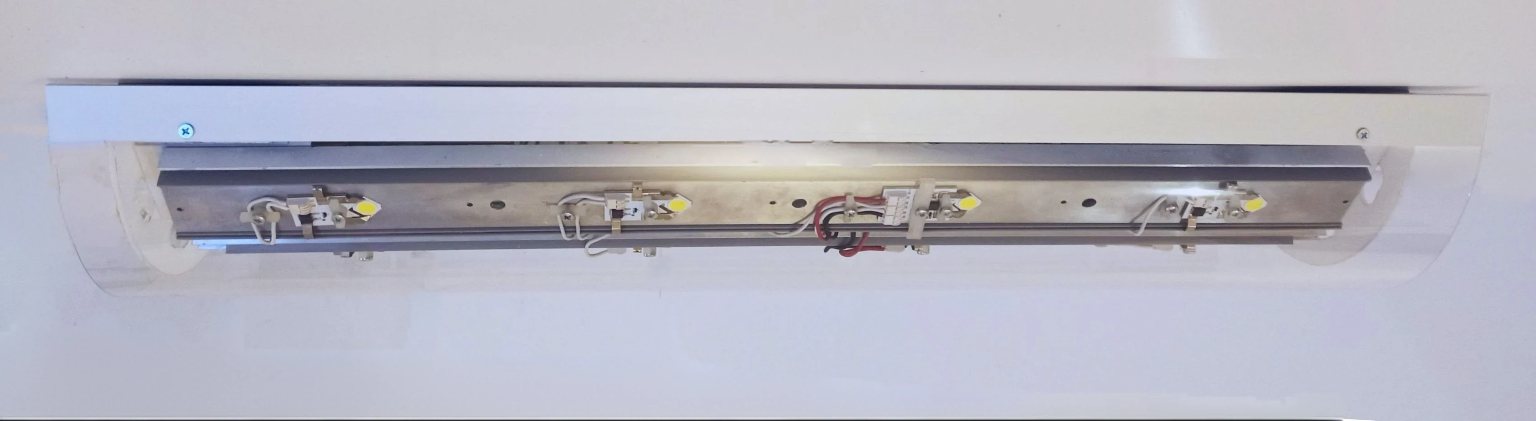

Transparent cover

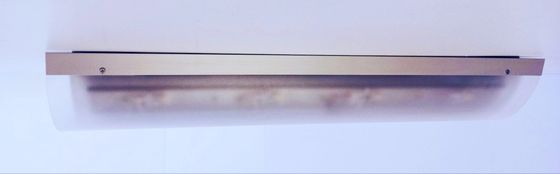

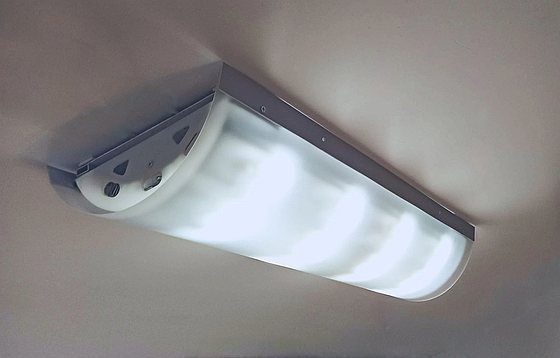

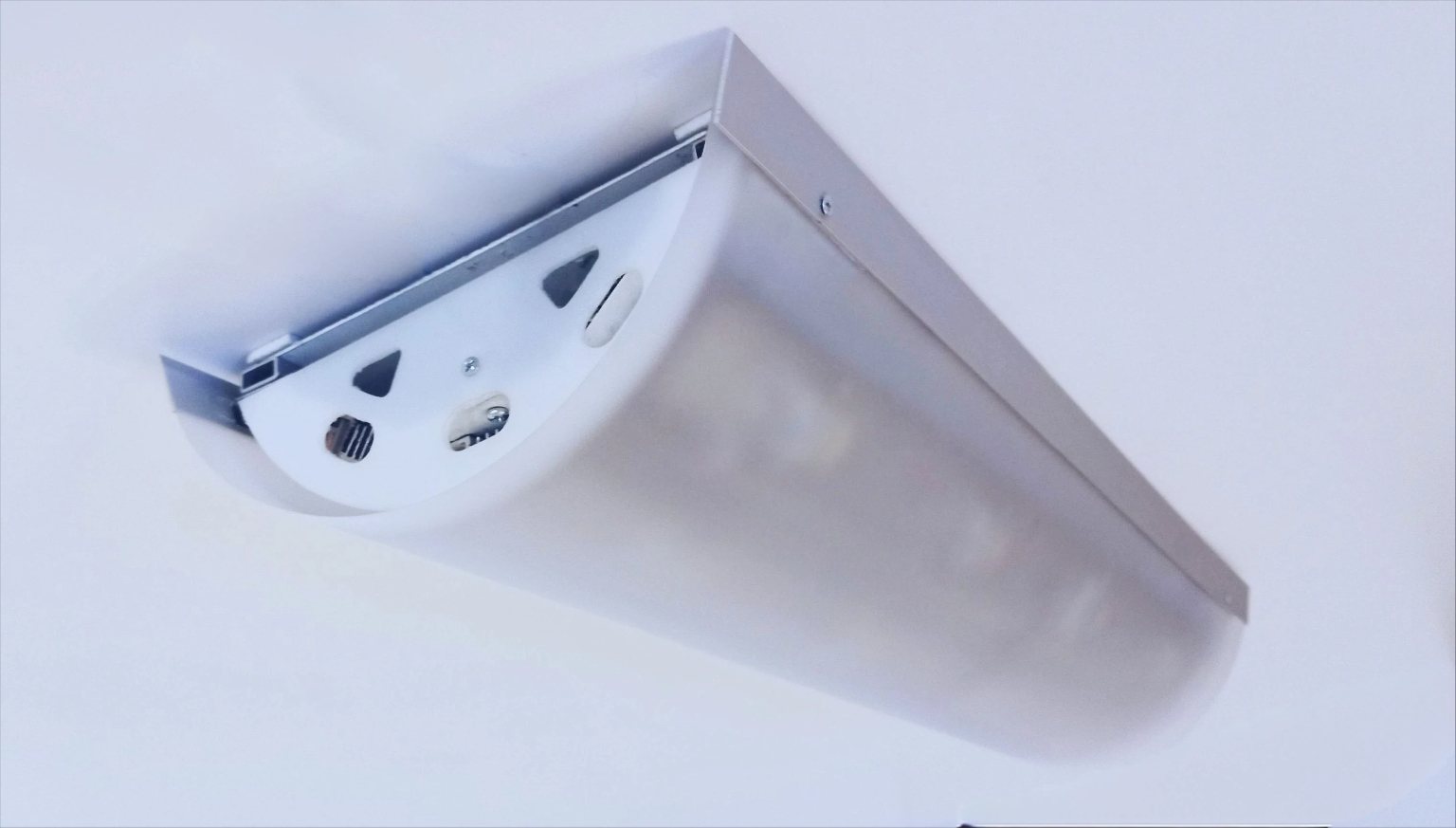

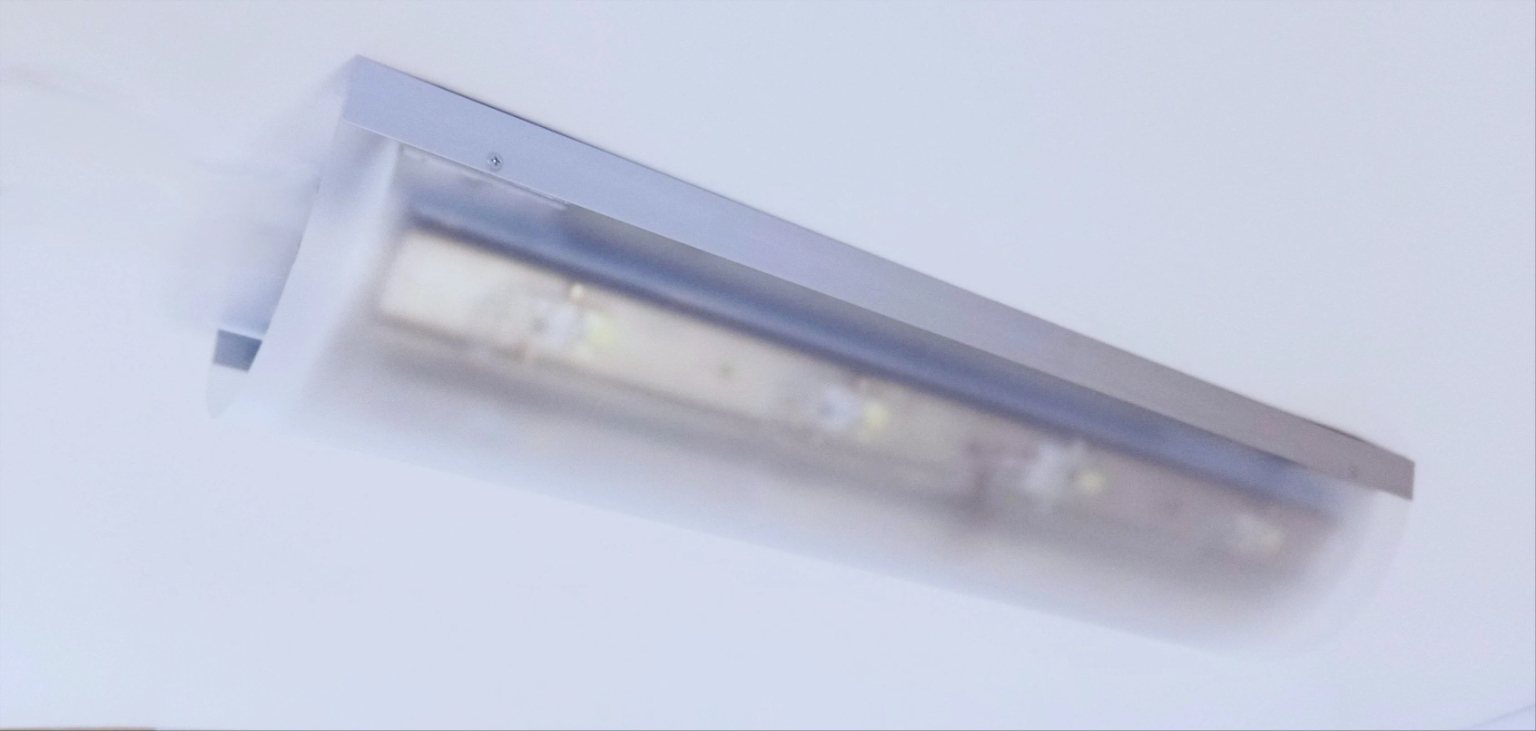

Satine cover

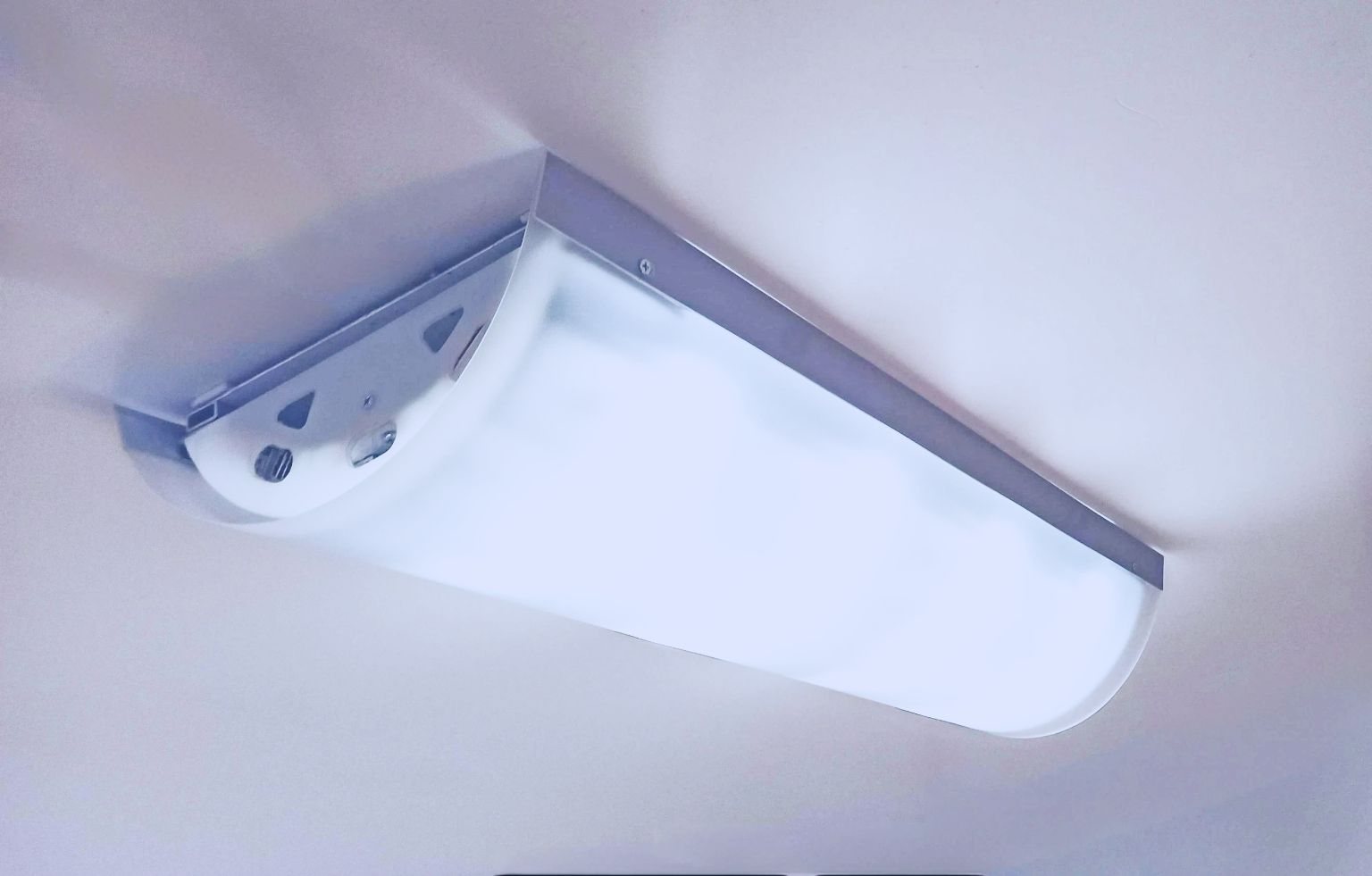

The next four pictures show again the appliance under differnt views
with differnt covers.

The pictures below show a very powerful appliance with 24 light spots.
It's typically adjusted between 150W (±18000 lm) and 240W (±28500 lm).
It's made of three light rails of 8 light spots each.

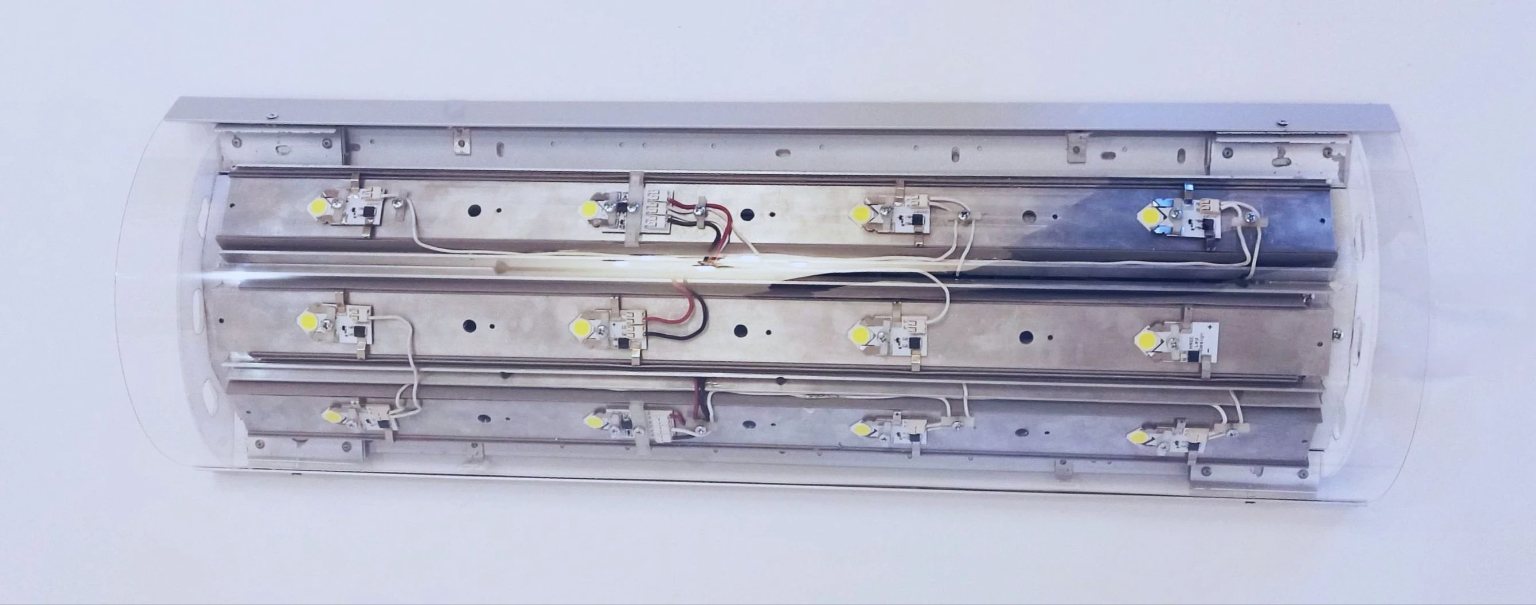

View from below with transparent cover

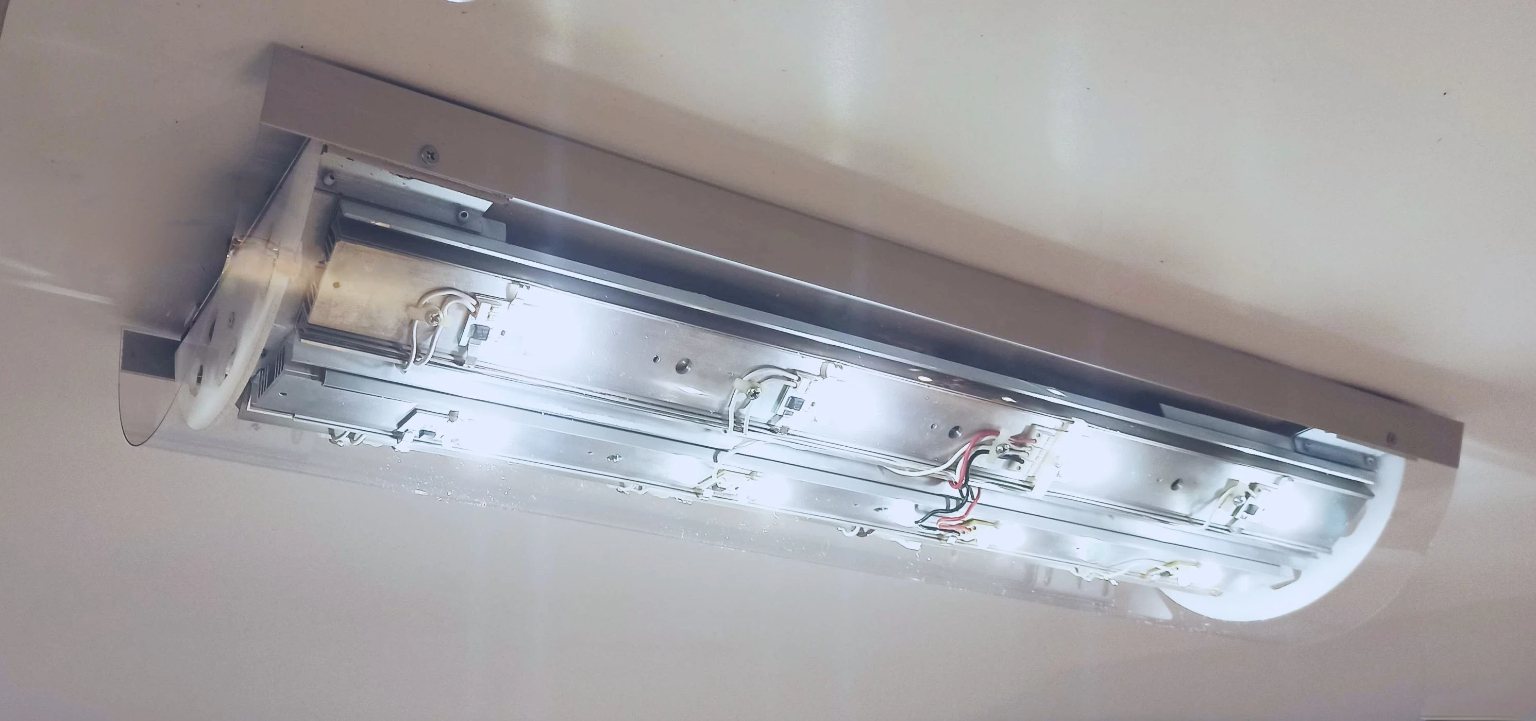

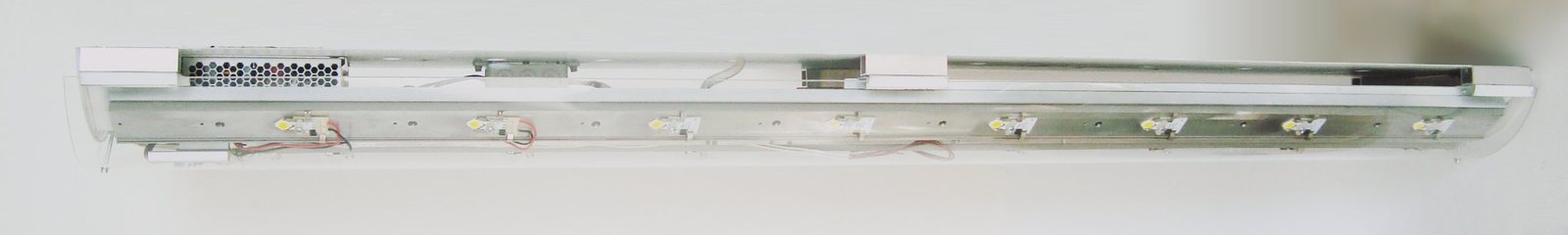

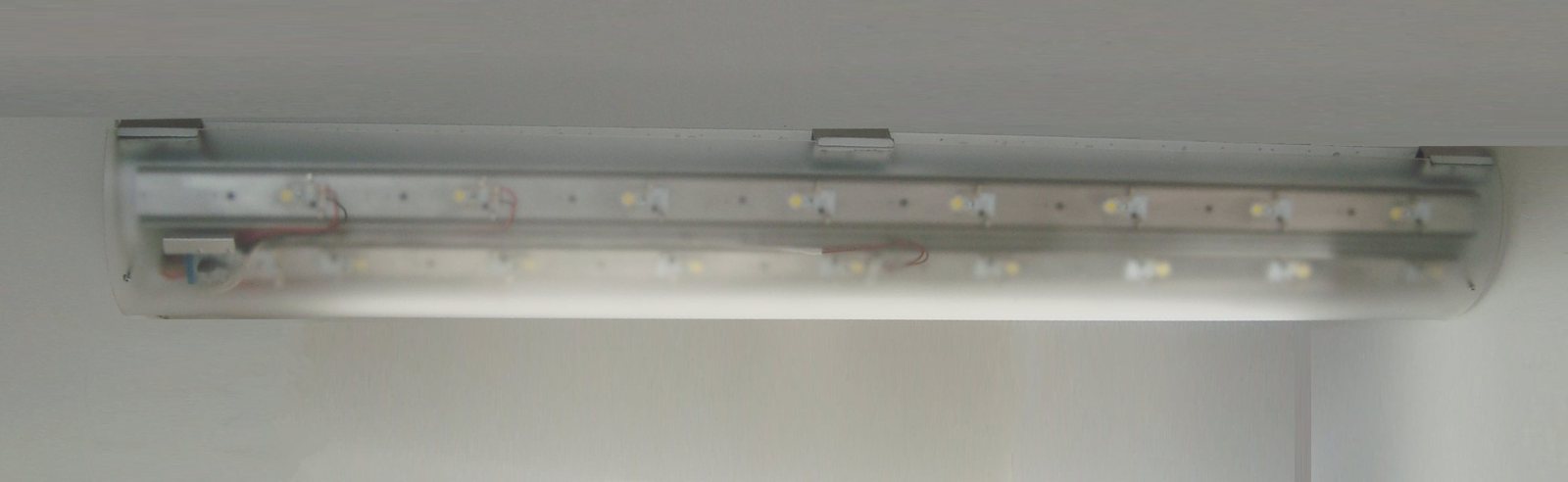

View from side with transparent cover

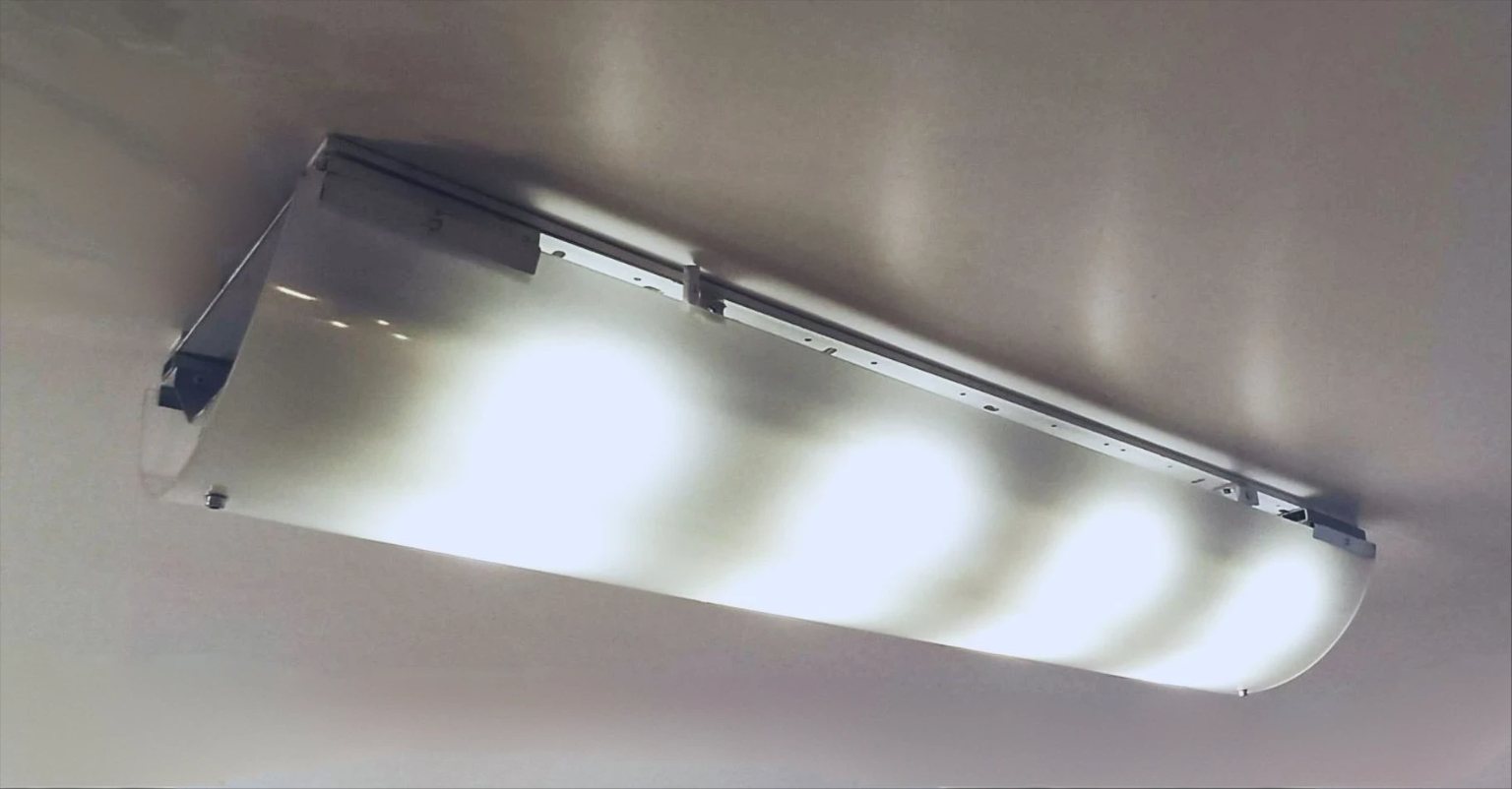

View from side with satine cover

View from 3/4 side with satine cover

Close up view on the visual effect of the satine cover

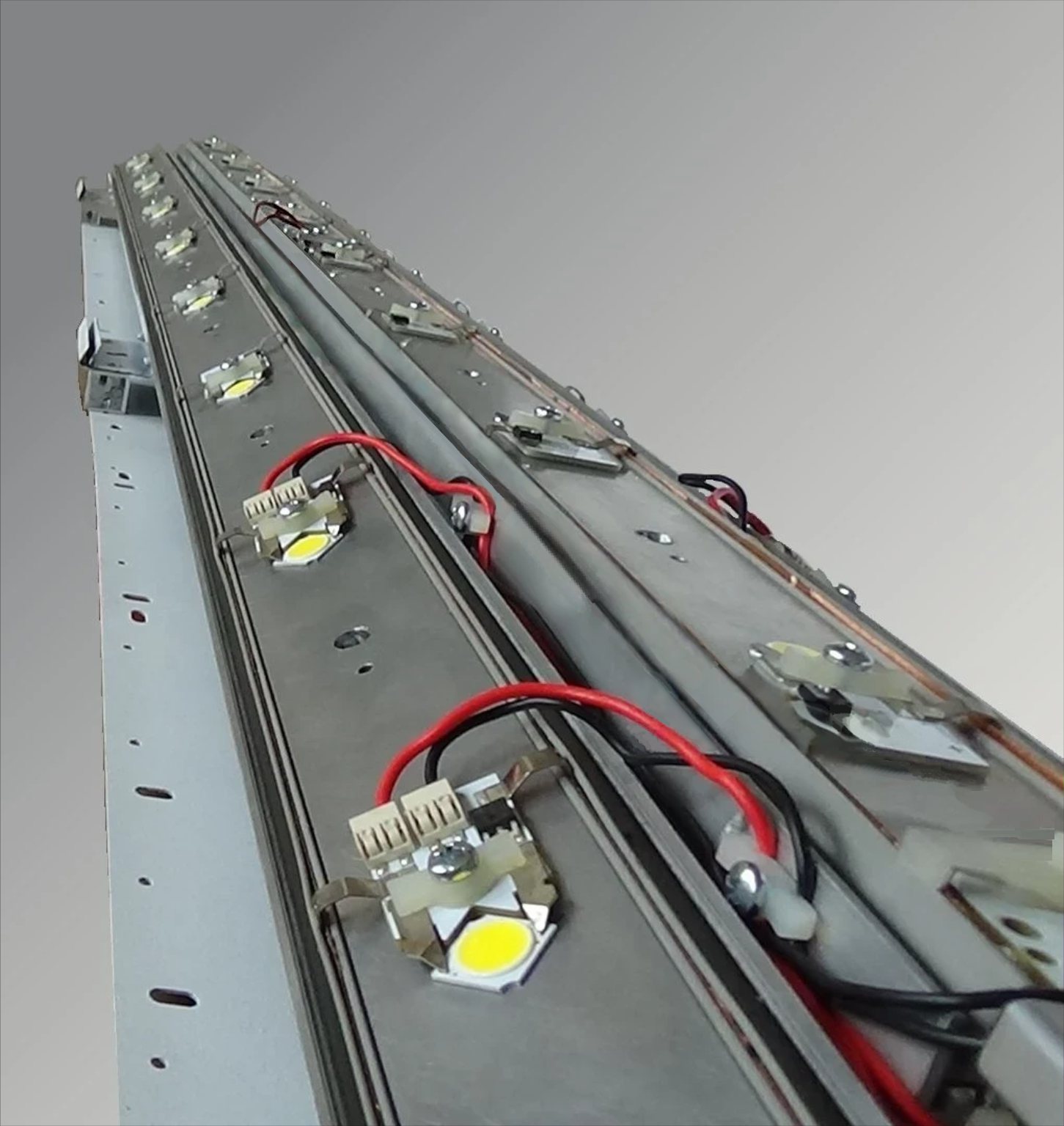

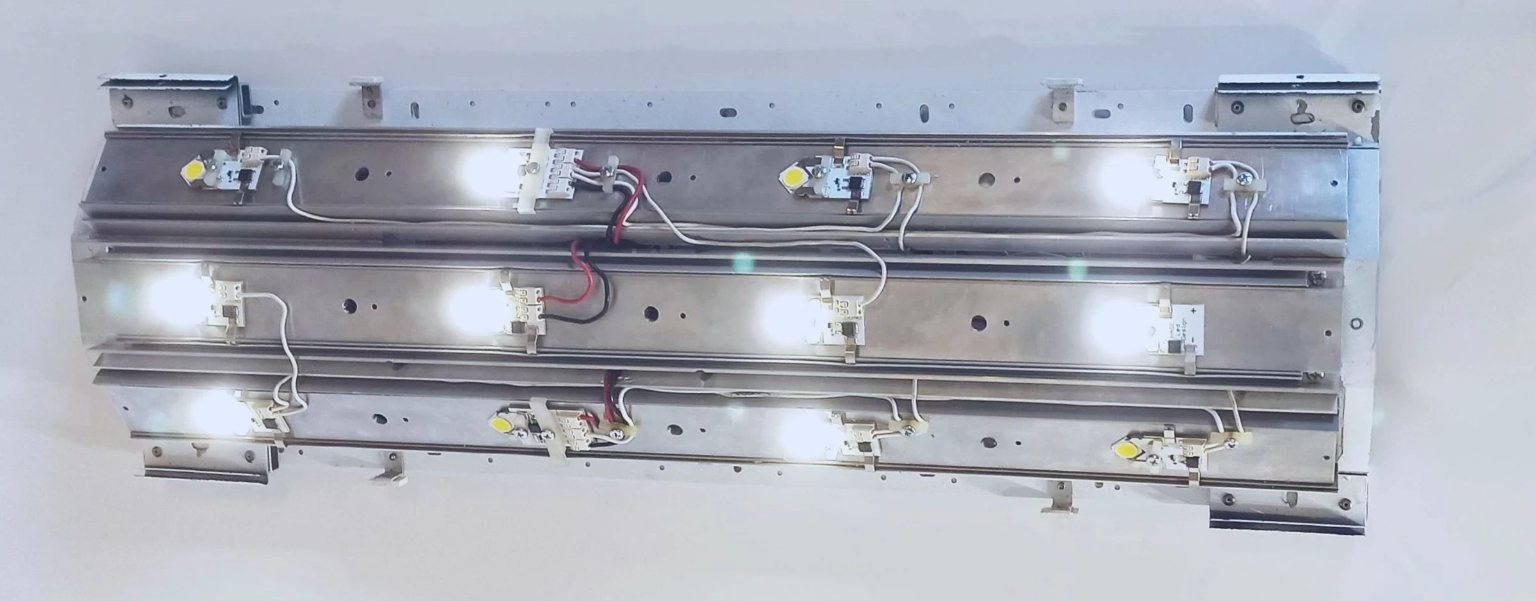

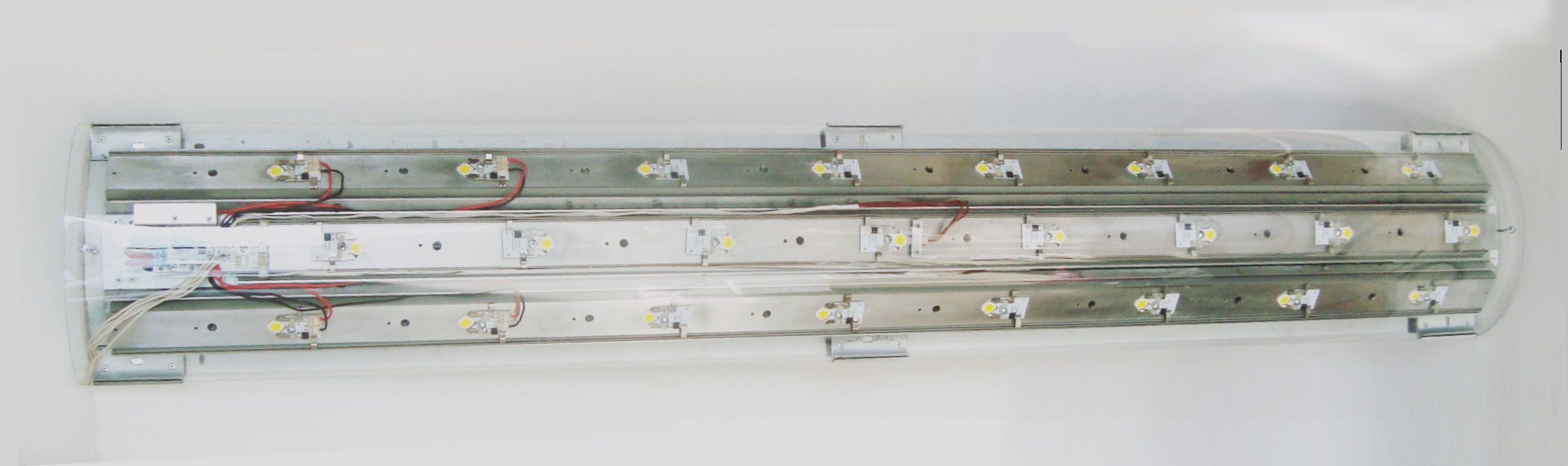

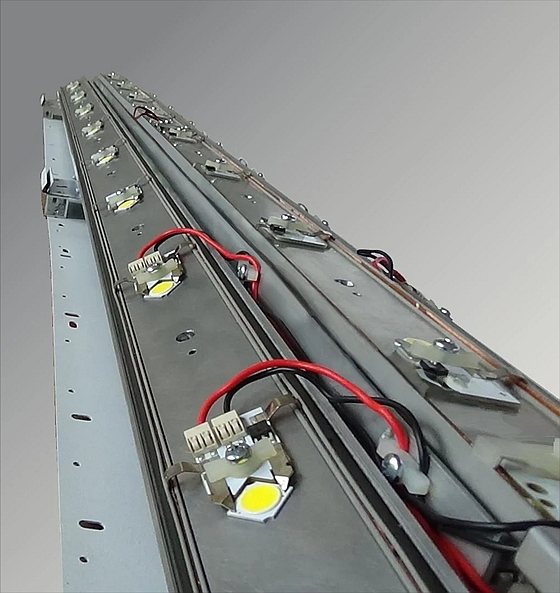

View of the LED units on the light rail.

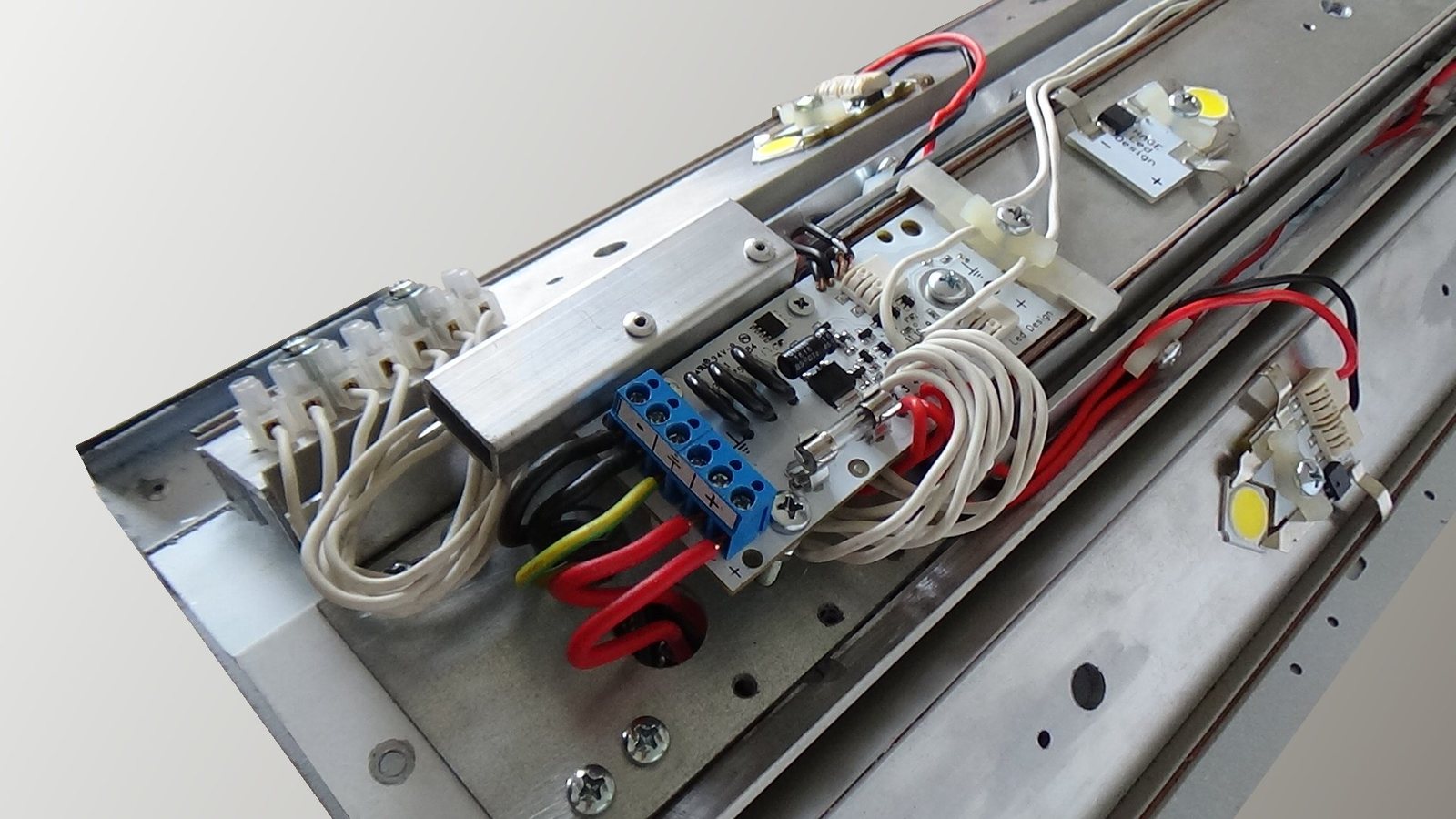

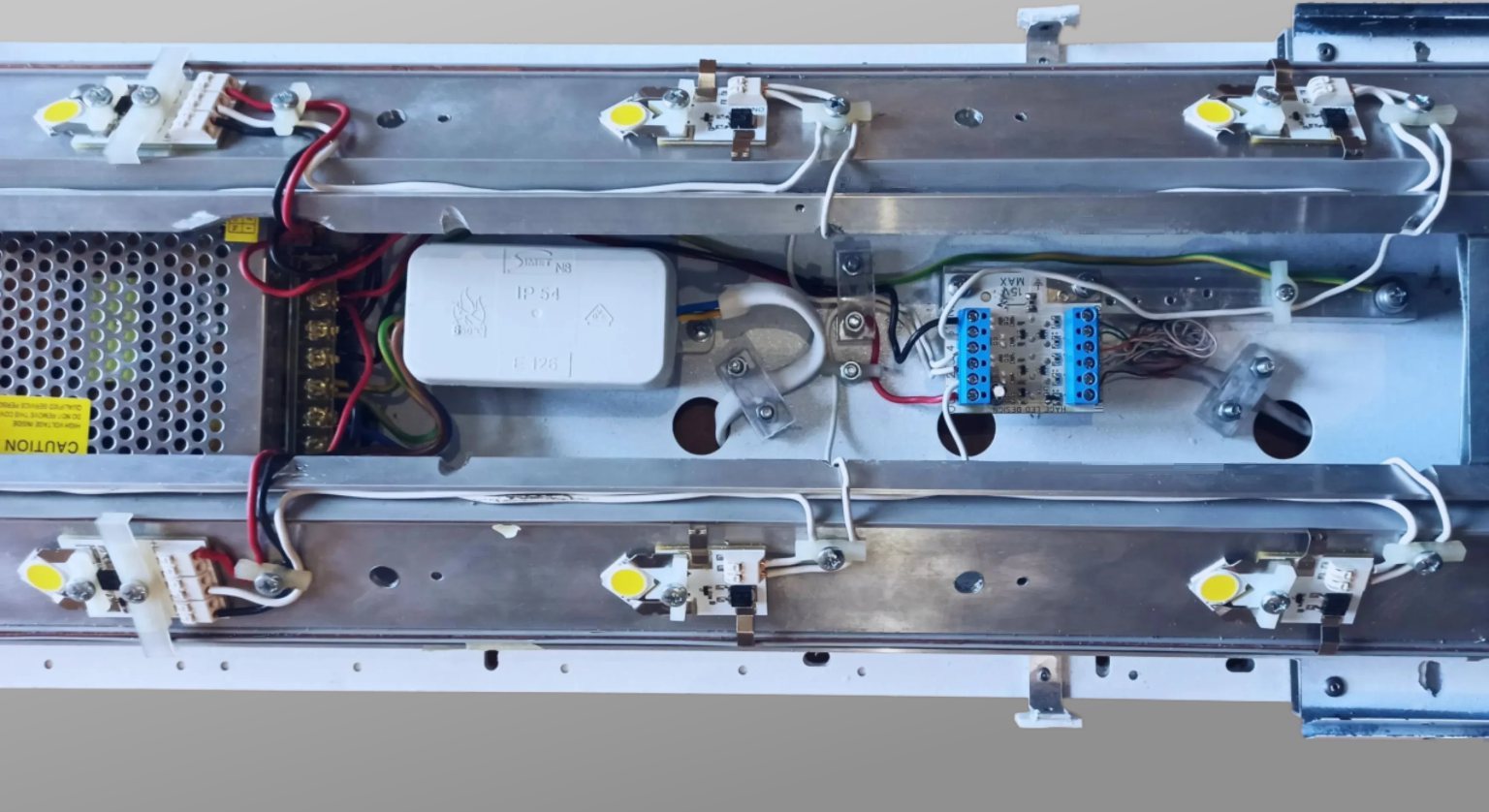

View of internal connections.

Another view of internal connections on another model.

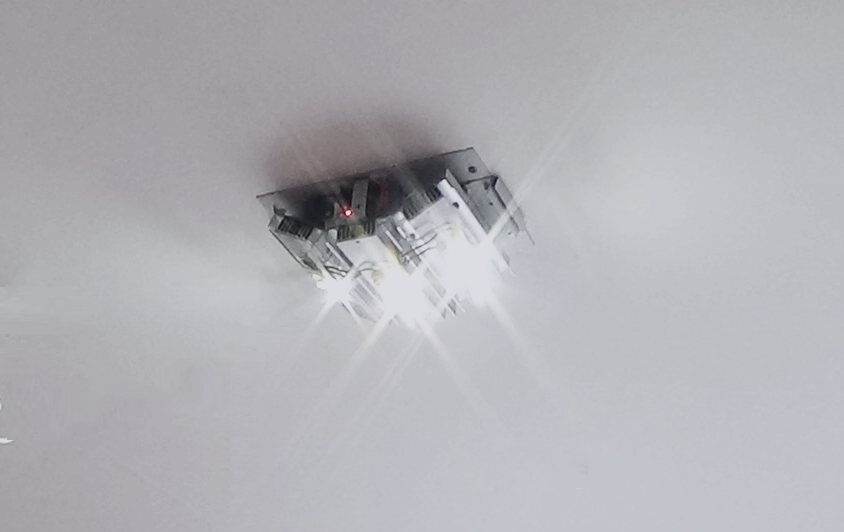

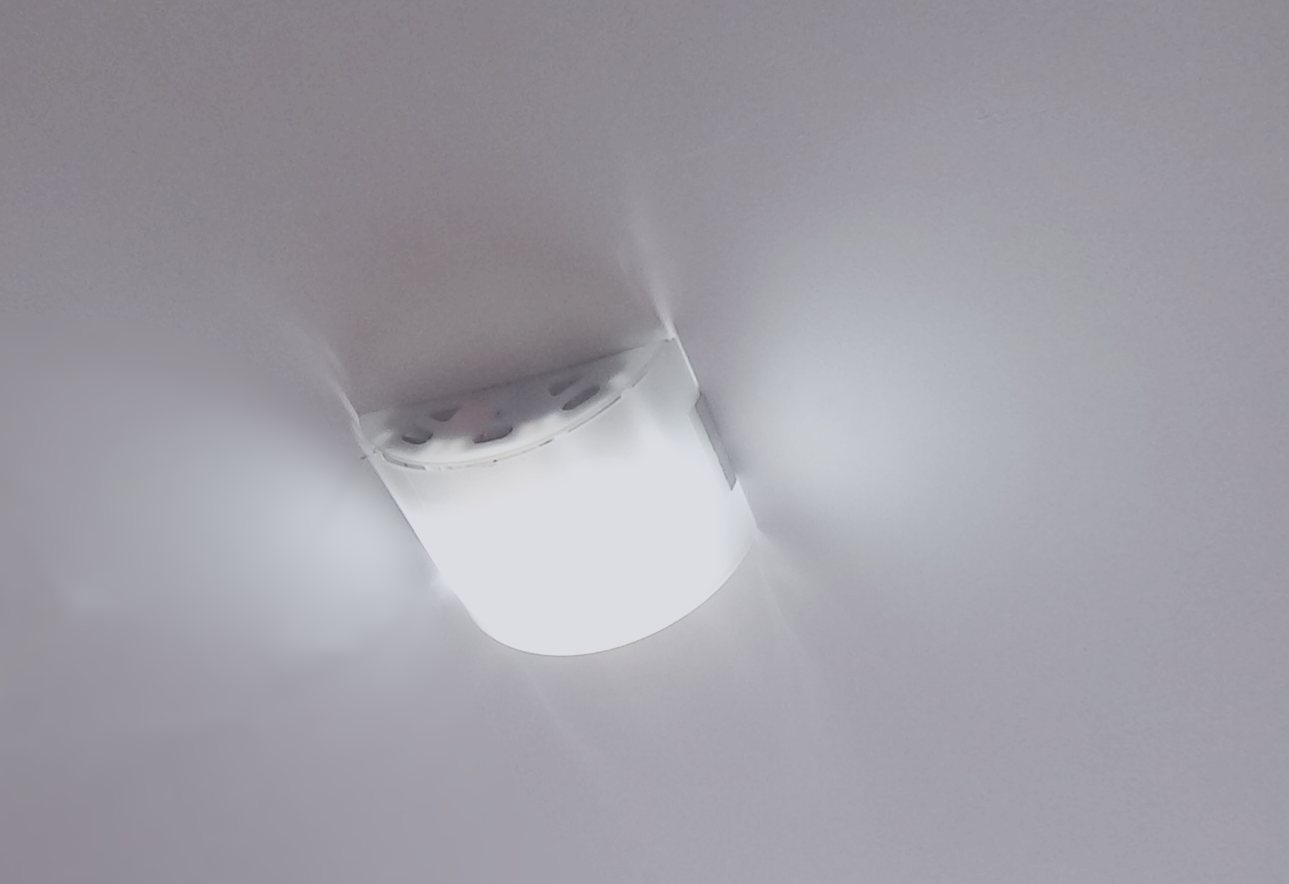

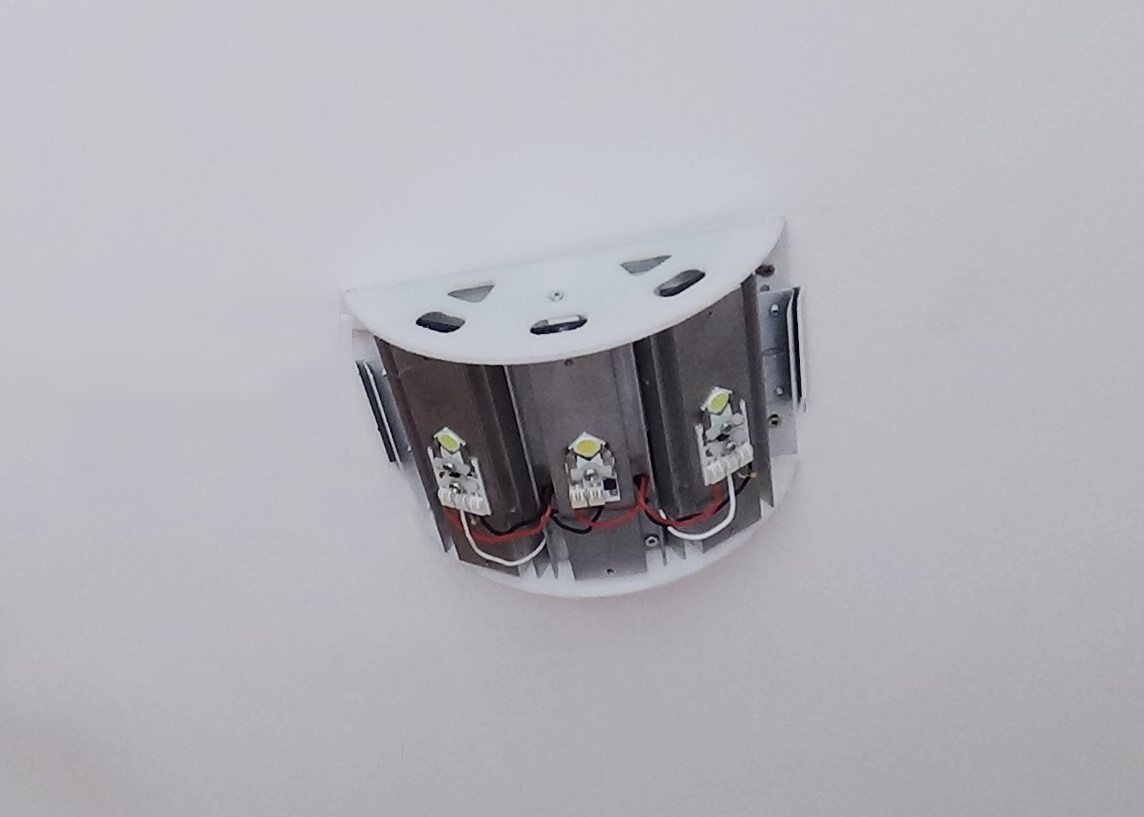

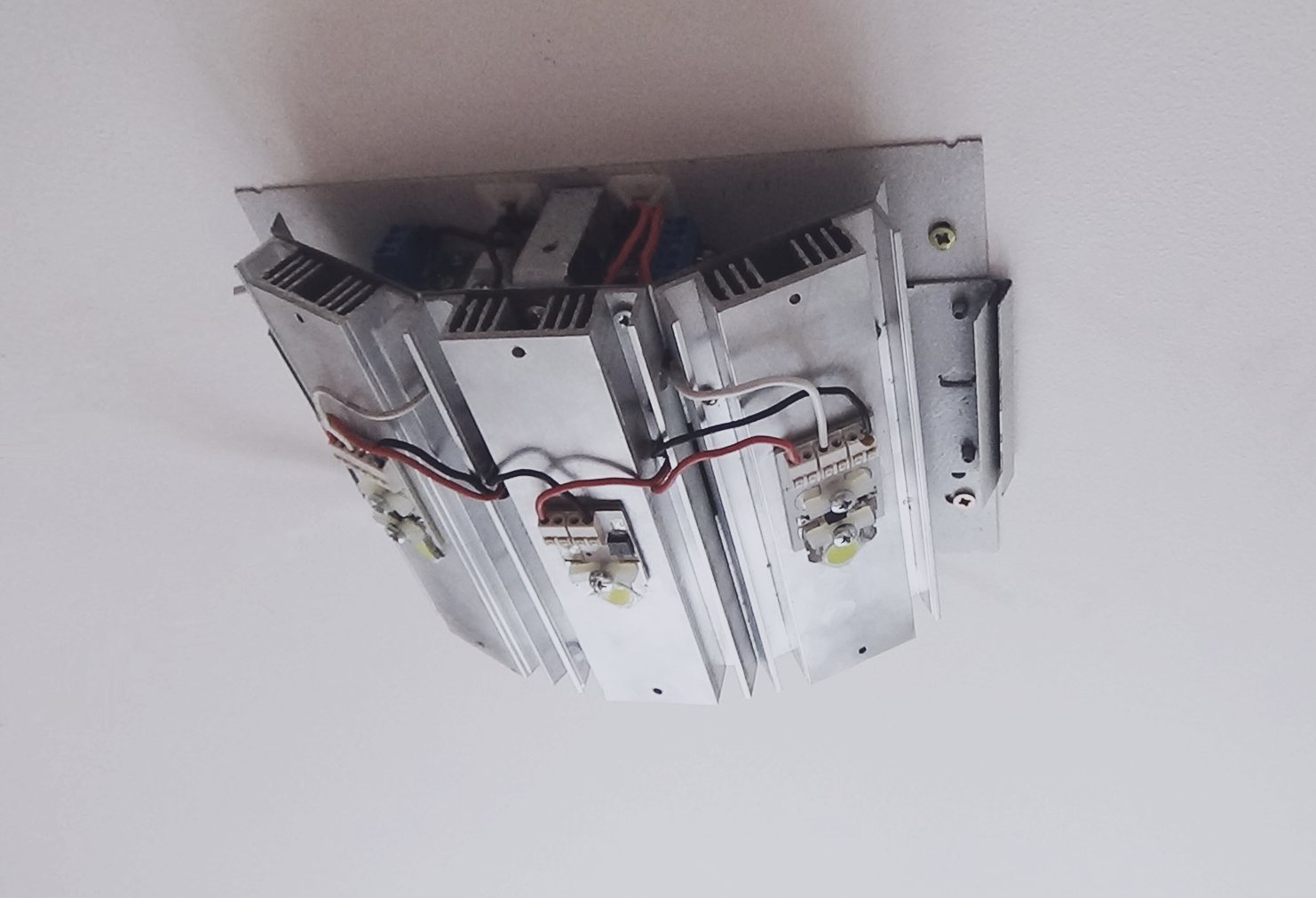

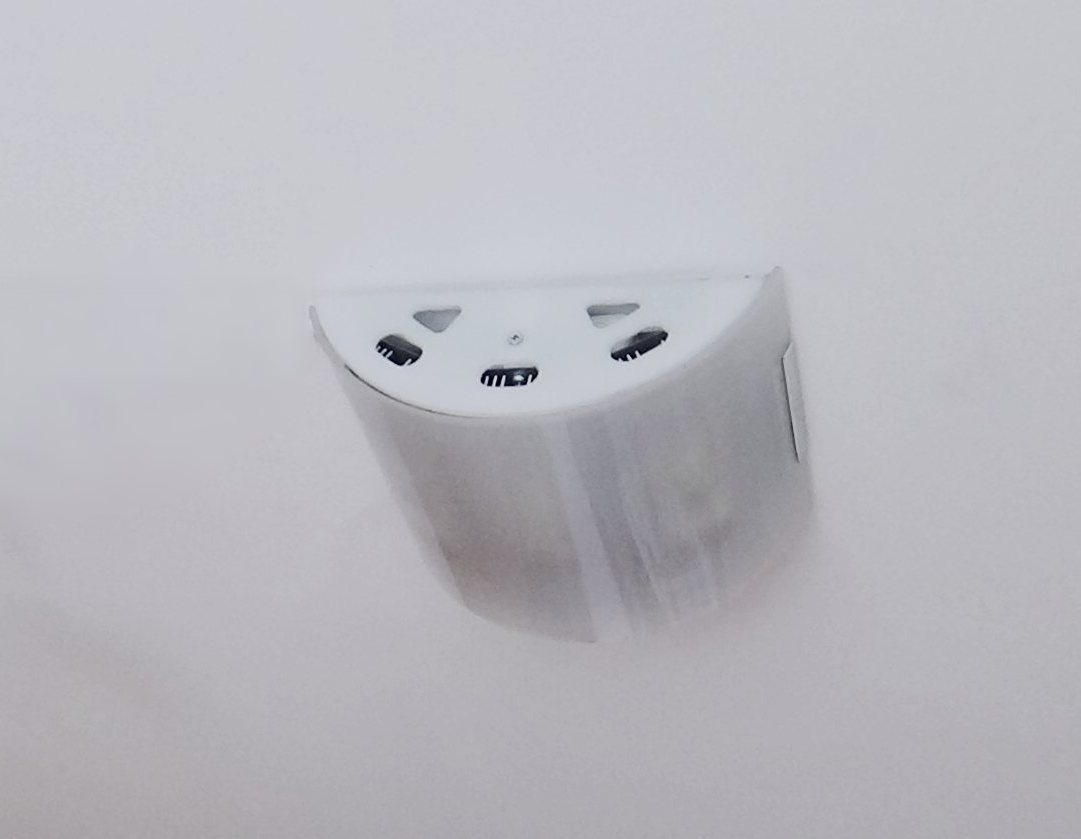

The pictures below show a ;uch smaller appliance based on the same construction with 3 light spots.
It's typically adjusted between 20W (±2400 lm) and 30W (±3600 lm).
It's made of three light rails with only one light spots each.
