Printed circuit board (PCB) light strip on aluminium profiles. The advantage of our PCB light strips over paper light strips is the quantity of current used in the installation and energy effficiency.
They are available in 8W (960 lm) and 4W (480 lm) variants. Compared with paper light strips, the 4W variant is twice stronger for the same lenght, and the 8W vairant is four times stronger.
It can be used for interior and furniture design in a similar way as paper strips where stronger light is required.
Because they are connected in parallel, there can be an infinite number of PCB light strips connected together without over heating and power losses as it happens with papaer light strips. They are also fully compatible with other 24VDC appliances which can be connected together on the same power supply.
Each PCB light strip can be separately turned ON or OFF if the ON/OFF option is chosen. When this option is not used, a simple, always-on variant can be used. It's possible to mix ON/OFF variants with always-on variants.

There is a wide range of colour available. It's also possible to mix PCB light strips of different colours in the sequence that you want.
Available colours: Cold white, Warm white, red, blue, green, yellow, amber, dark UV, agro light and other colours on demand. We can also offer mixed colours on the same board. For example a mix of cold and warm white led diodes.
It's also possible to mix 4W segments with 8W segments to make some colours or some areas shine stronger than others.

Another advantage is a much better temperature dissipation coeficient and a much better heat sinking capability. It means that energy efficiency is much better. The board also includes verious electrical protection for better reliability. We also offer the option to solder the wires directly or to use screwless, "wago" type terminals.

The disadvantage is that it requires installing wires parallel to the strips, but this is necessary to efficiently carry a lot of current over the installation. Without parallel wires, carrying a lot of current is not possible.
The design is also restricted to shapes with a minimum lenght of 50 cm per segment.

Our workshop can pre-assemble the PCB light strips on aluminium profiles, These profiles serve as a cover to protect and hide the LED diodes and as a heatsink to difuse the temperature.

The pictures below show several samples of open-frame aluminium profiles with our PCB light strips on display. The open-frame variant means that there is no plastic cover closing the aluminium profile. This solution is recommended in indirect light installations or where direct view on the LED diodes is not disturbing. In these installations it's better not to cover the LED diode to increase ventilation around them to keep their temperature low. It's also much cheaper.
Any aluminium profile can be used. You can order specific sizes or shape of profiles in stock at our suppliers. Customized profiles can be ordered only in big quantities equivalent to 450Kg of aluminium profile weight.
You can also use you own aluminium profiles. Either by sending them to our workshop or by mounting our PCB led strip yourself. In this case we will be happy to assist you.
Indoor use only.

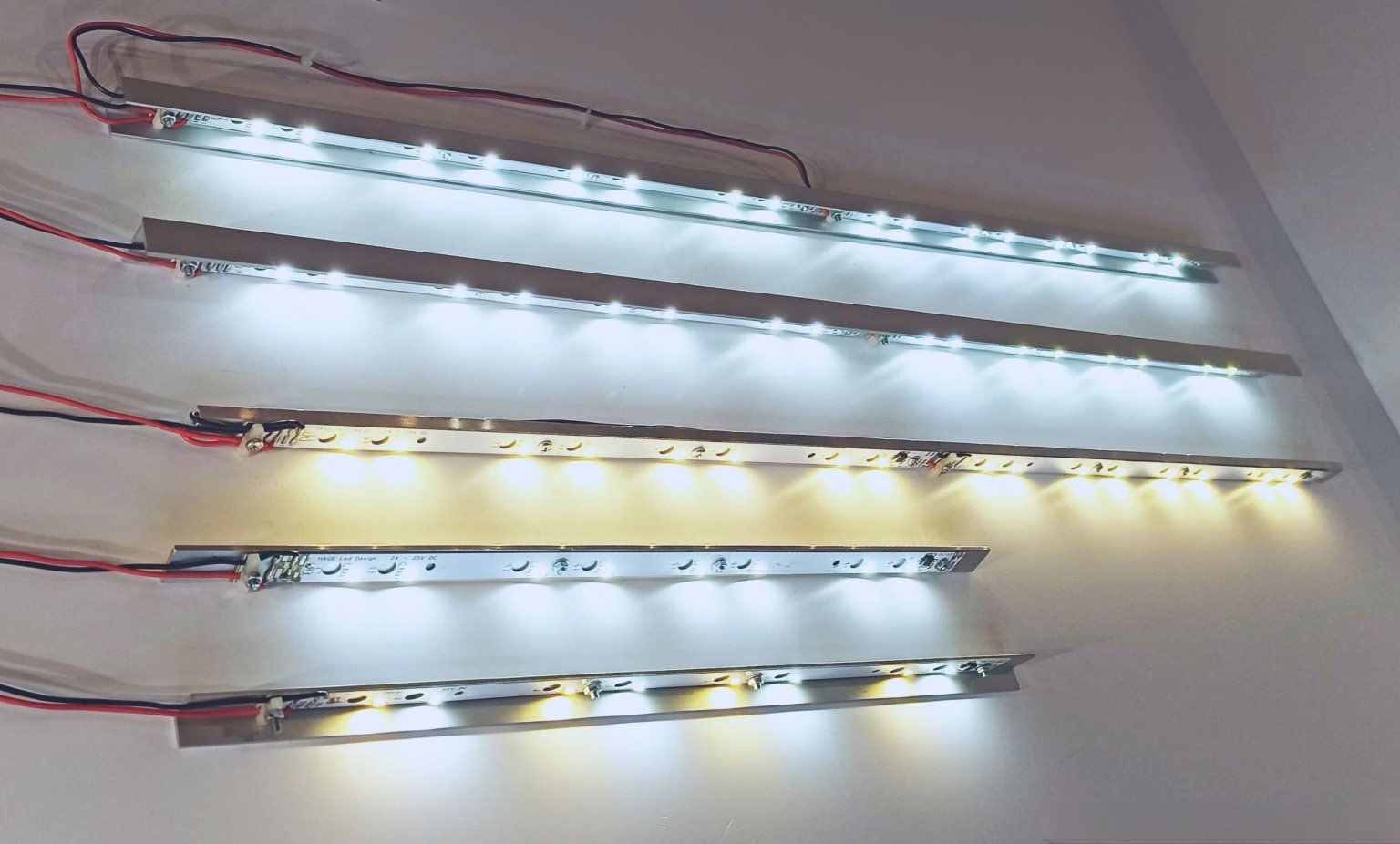

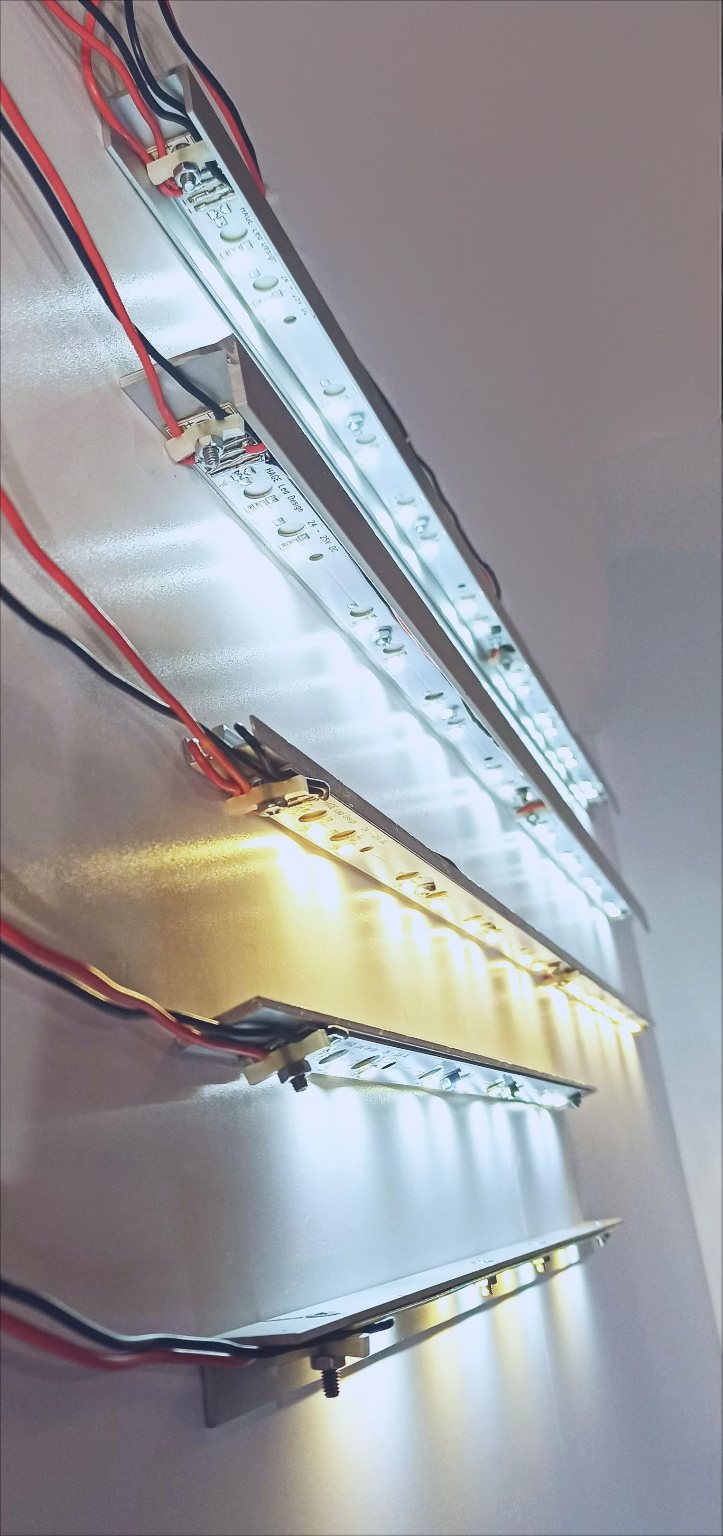

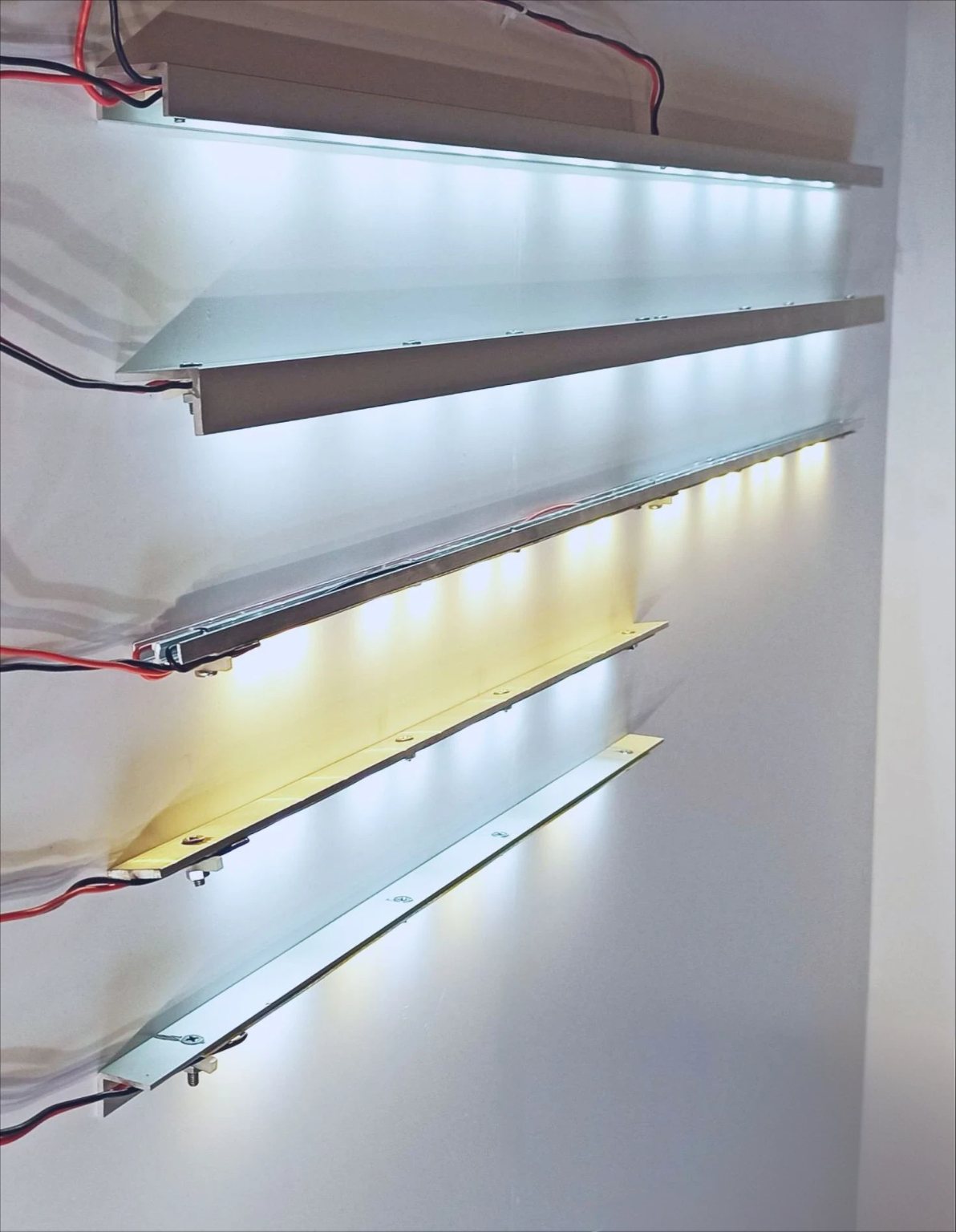

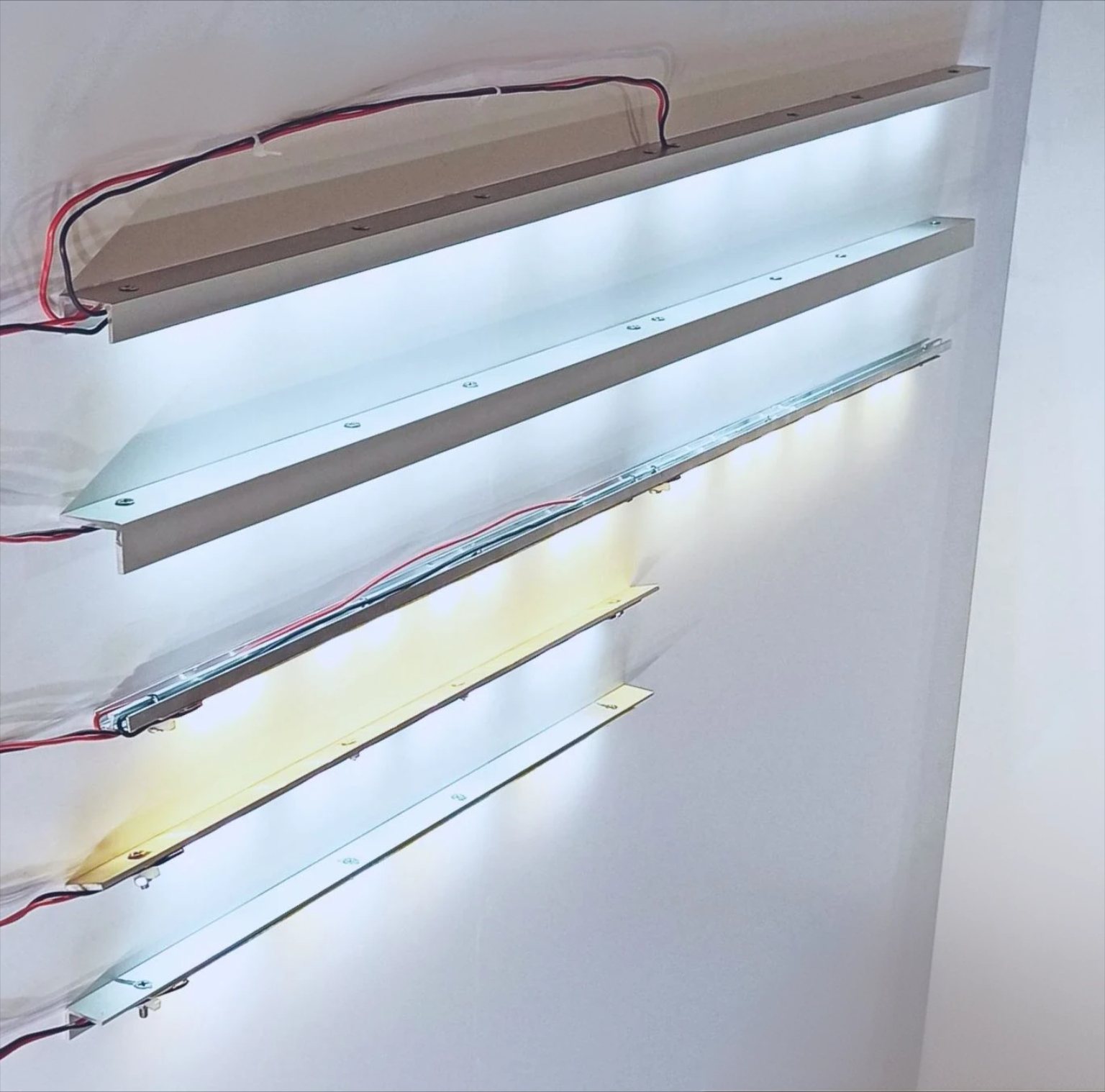

The first pictures show the LED profiles along a wall, with the light shining downward.
These are all 4W variants. You can see that the first two samples are cold white,
the third one is warm white, the forth one is cold white and the fift one is mixed cold and warm white.
The warm white light looks yellow because the intensity has been reduced for the photograph and it produced this optic effect.

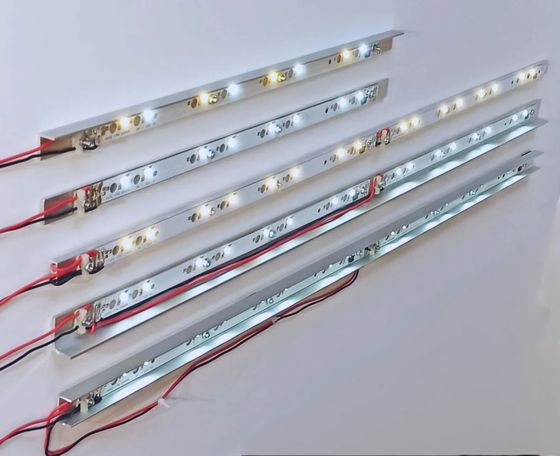

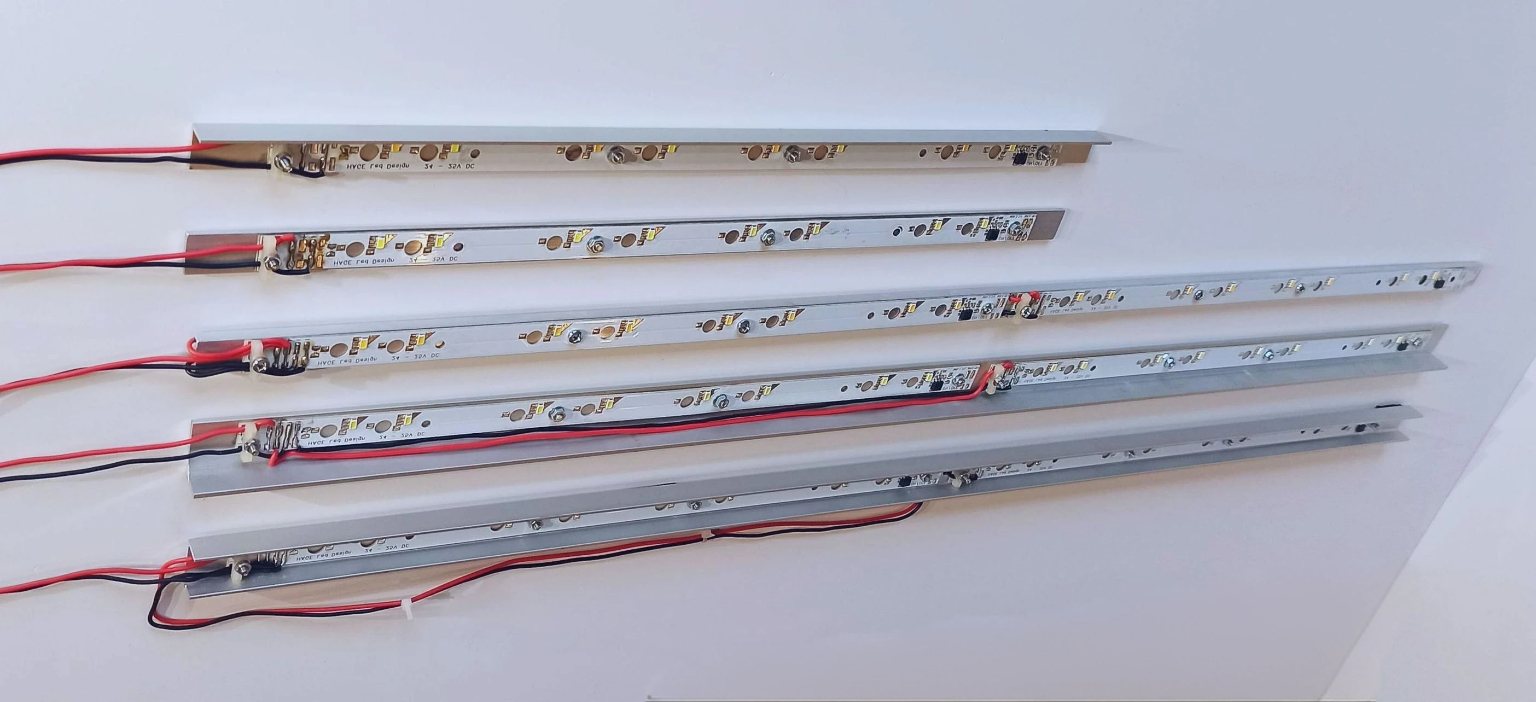

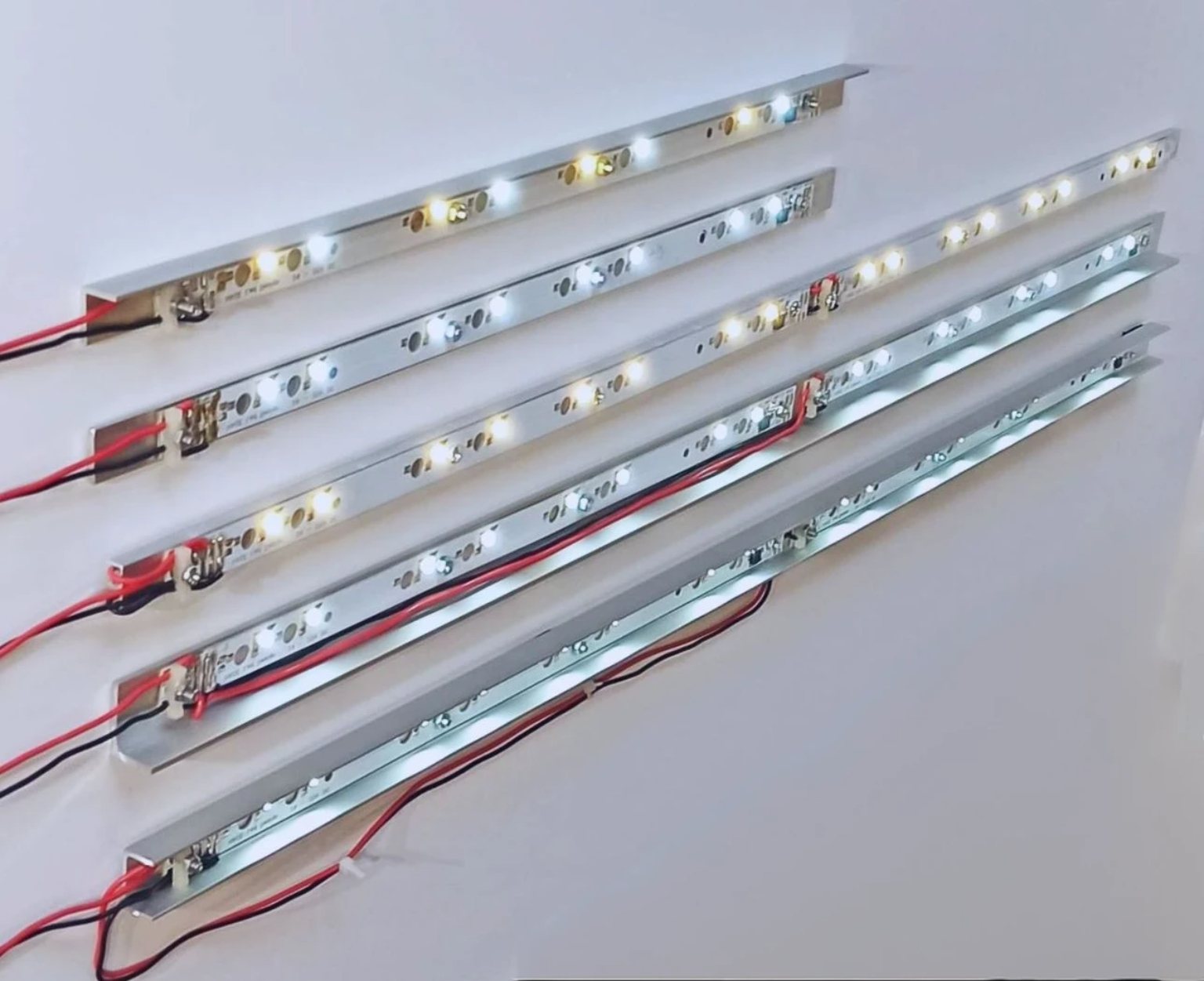

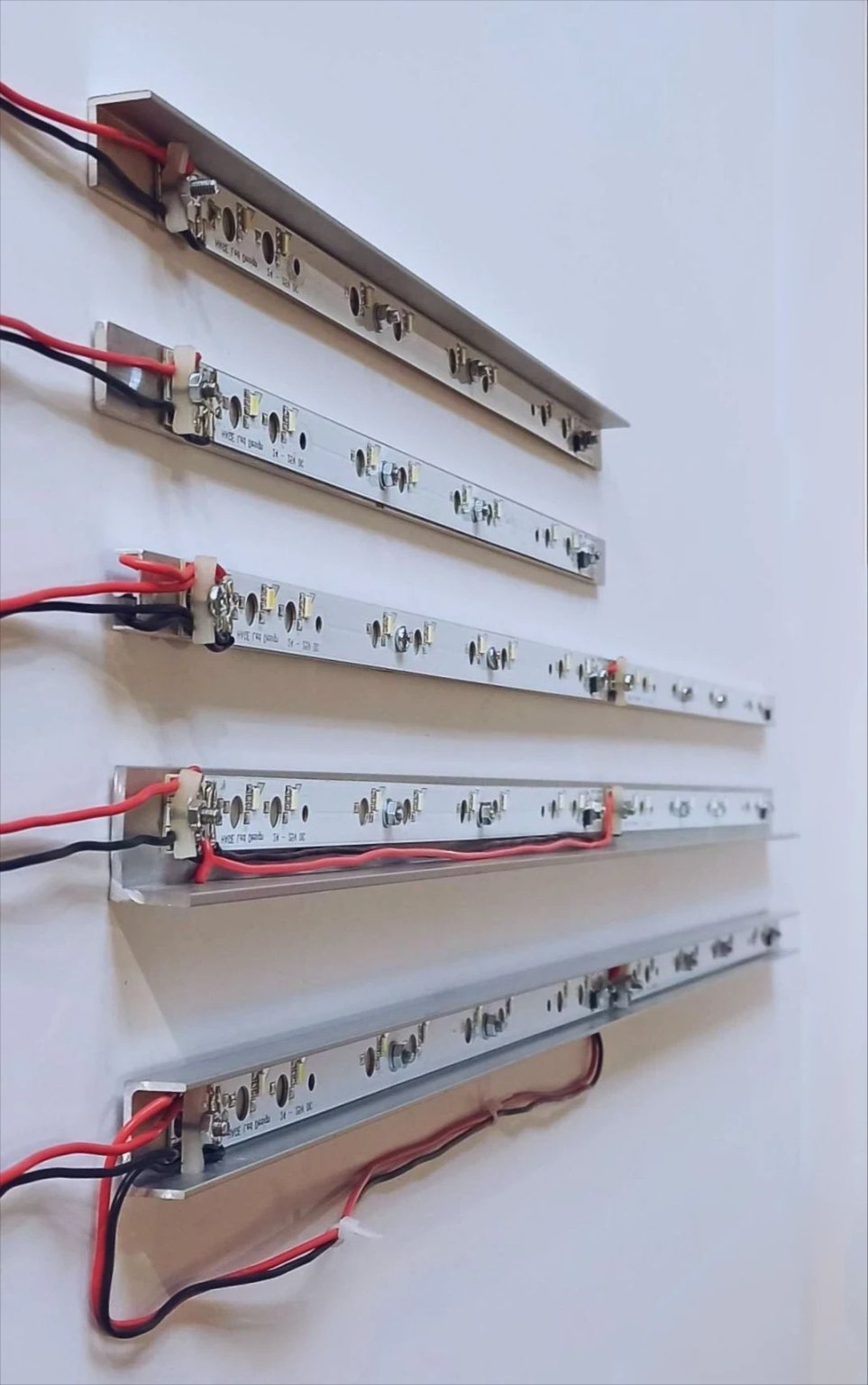

The next pictures show the profiles, in another montage, perpendicular to the wall.
The wires can be hiden inside the profile or running outside it if it's too small.

In this picture the intensity of the light has been reduced to the minimum to make the photograph.
