LR1 HAGE Led design

Printed circuit board (PCB) light strip in an aluminium profiles covered with a flat Polycarbonate cover.
The advantage of our PCB light strips over paper light strips is the quantity of current used in the installation and energy effficiency.
They are available in 8W (960 lm) and 4W (480 lm) variants. Compared with paper light strips, the 4W variant is twice stronger for the same lenght, and the 8W vairant is four times stronger.
It can be used for interior and furniture design in a similar way as paper strips where stronger light is required.
Because they are connected in parallel, there can be an infinite number of PCB light strips connected together without over heating and power losses as it happens with papaer light strips. They are also fully compatible with other 24VDC appliances which can be connected together on the same power supply.
Each PCB light strip can be separately turned ON or OFF if the ON/OFF option is chosen. When this option is not used, a simple, always-on variant can be used. It's possible to mix ON/OFF variants with always-on variants.

There is a wide range of colour available. It's also possible to mix PCB light strips of different colours in the sequence that you want.
Available colours: Cold white, Warm white, red, blue, green, yellow, amber, dark UV, agro light and other colours on demand. We can also offer mixed colours on the same board. For example a mix of cold and warm white led diodes.
It's also possible to mix 4W segments with 8W segments to make some colours or some areas shine stronger than others.

Another advantage is a much better temperature dissipation coeficient and a much better heat sinking capability. It means that energy efficiency is much better. The board also includes verious electrical protection for better reliability. We also offer the option to solder the wires directly or to use screwless, "wago" type terminals.

The disadvantage is that it requires installing wires parallel to the strips, but this is necessary to efficiently carry a lot of current over the installation. Without parallel wires, carrying a lot of current is not possible.
The design is also restricted to shapes with a minimum lenght of 50 cm per segment.

Our workshop can pre-assemble the PCB light strips on aluminium profiles, These profiles serve as a cover to protect and hide the LED diodes and as a heatsink to difuse the temperature.

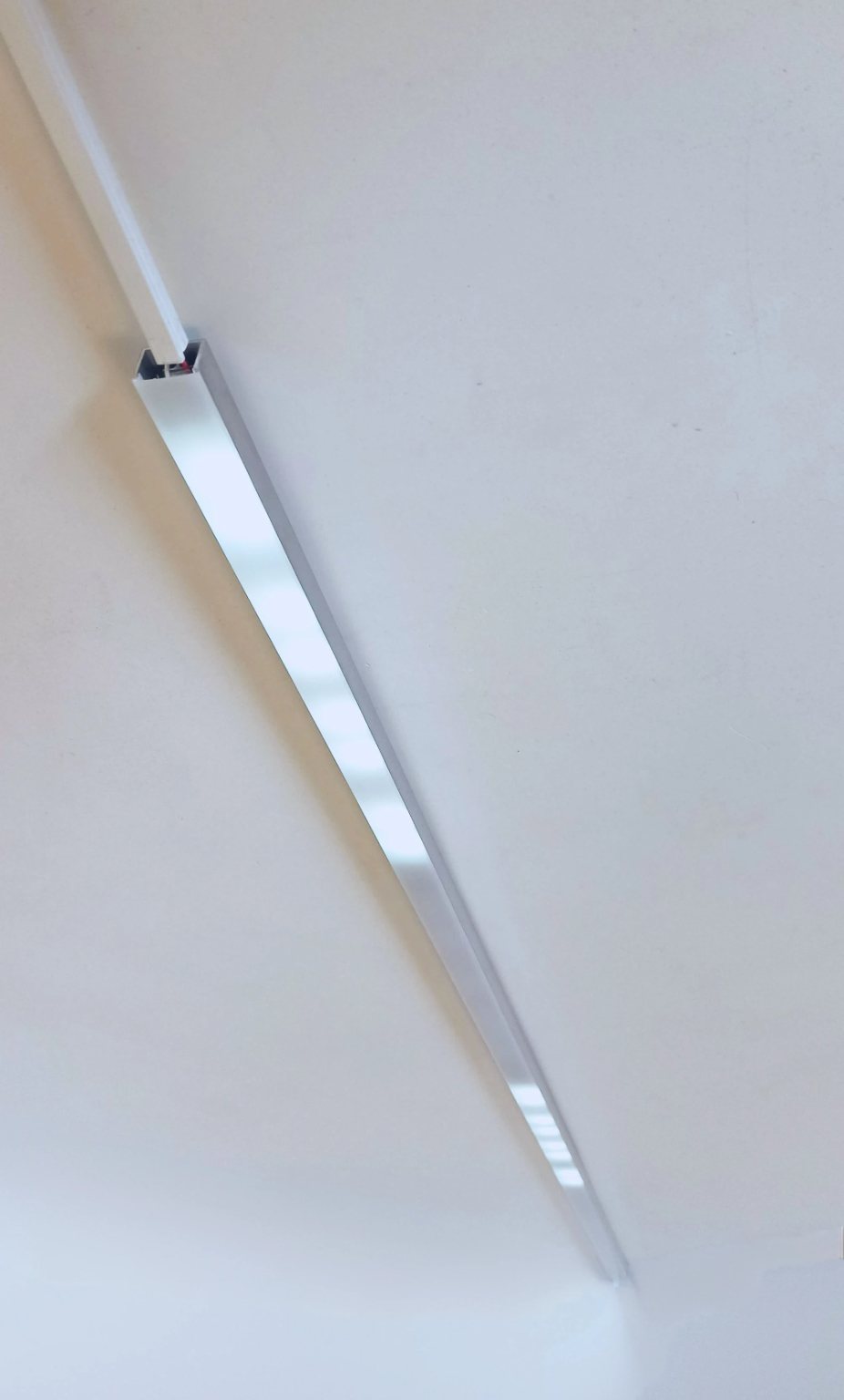

The pictures below show several samples of closed-case aluminium profiles with different PCB light strips inside. The closed-case variant means that there is is plastic cover closing the aluminium profile. This solution is recommended in direct light installations where the direct view on the LED diodes could be disturbing or when diffusion is required for aesthetic.
Only one aluminium profile can be used with this cover. Customized profiles can be ordered only in big quantities equivalent to 450Kg of aluminium profile weight and a lenght of 4000m.
Indoor use only.

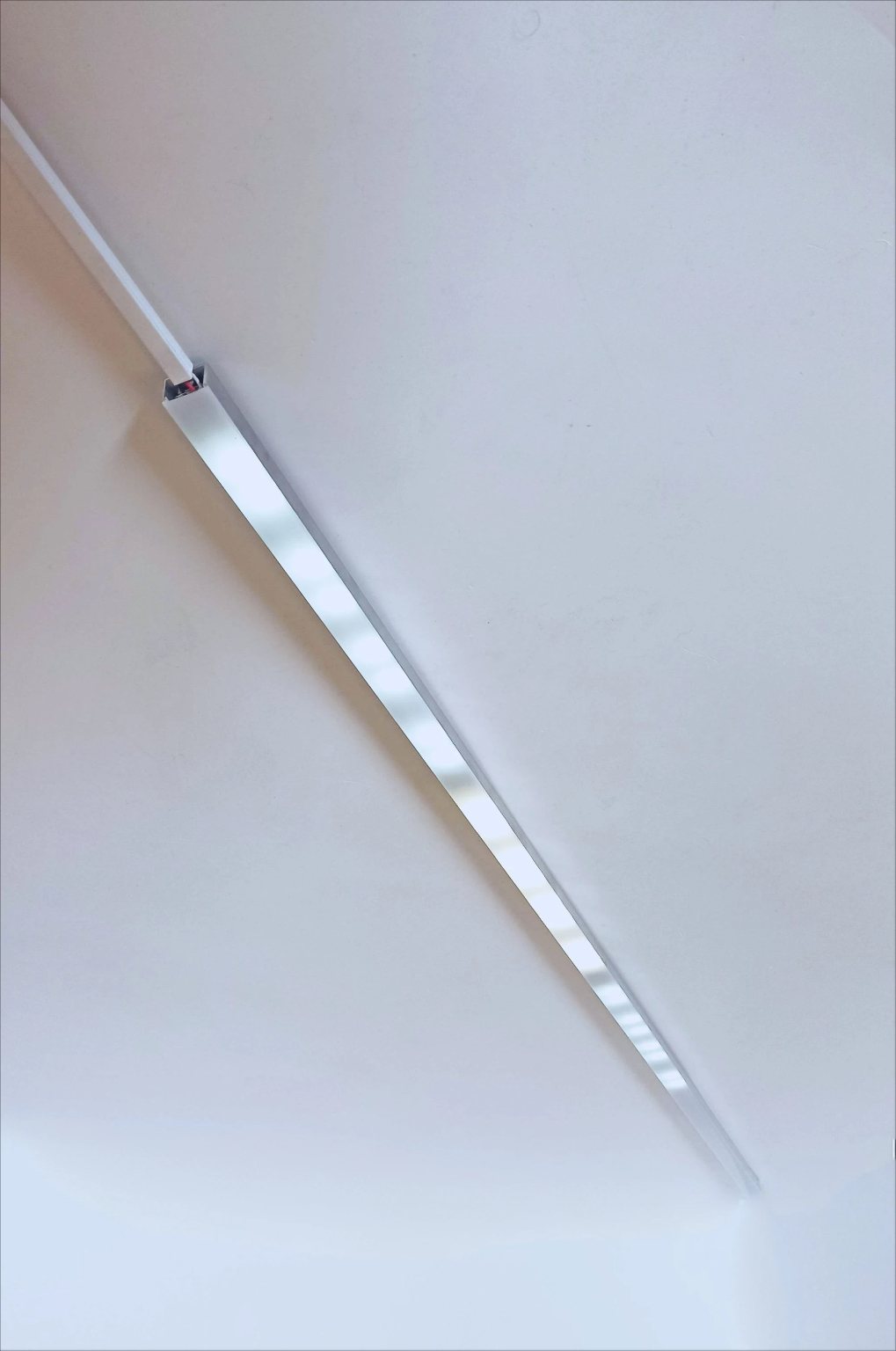

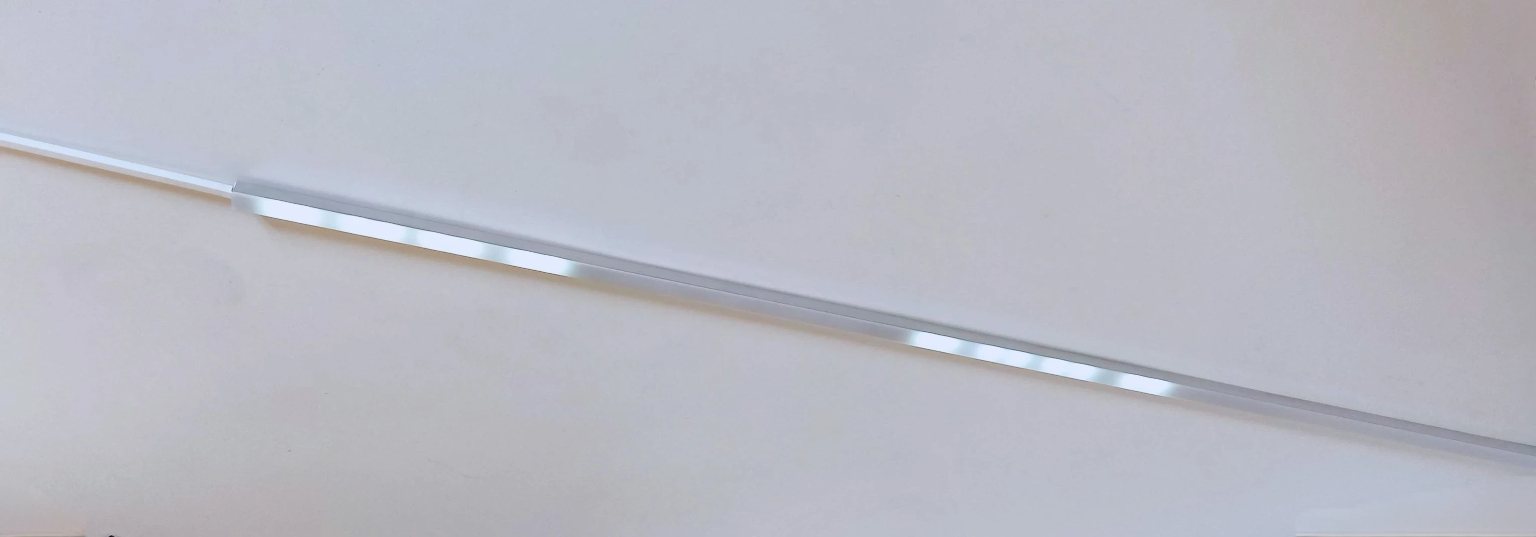

The pictures below show a profile with three LED strip segments.
The lenght of this sample is two meters, qlthought only one and half meters are used.
There are two cold white segments and one warm white segment in the middle.

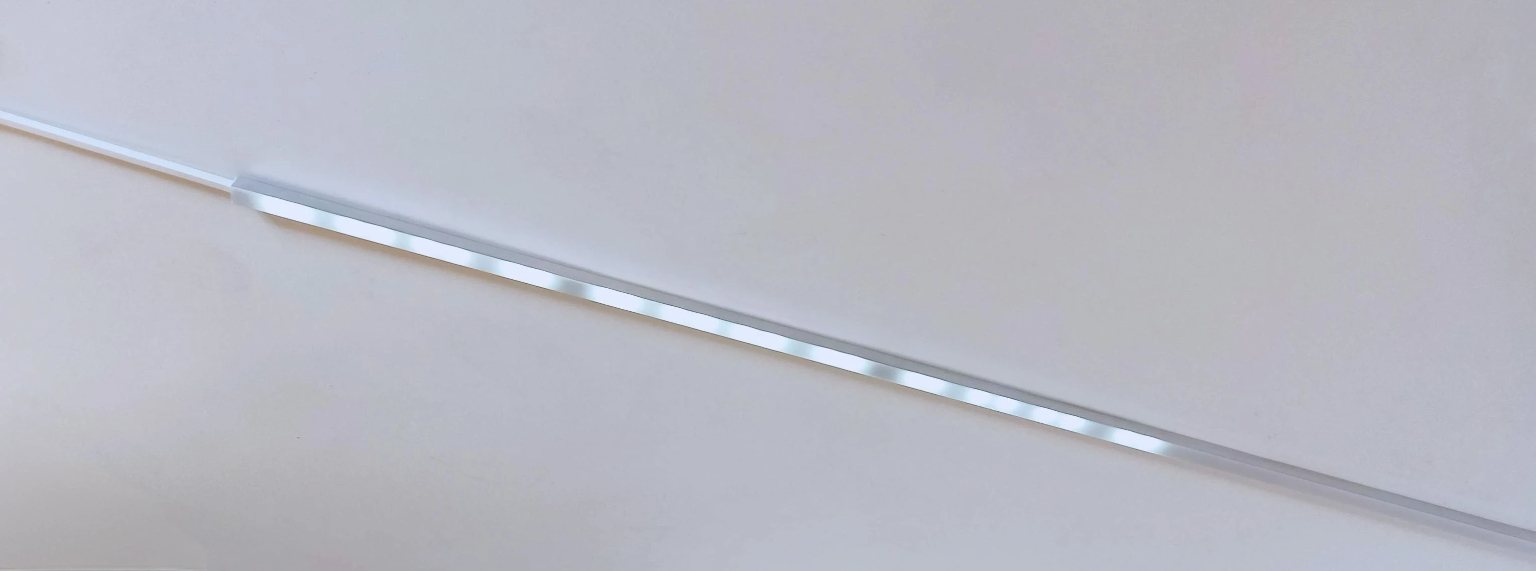

The next two pictures show a sequence when the warm white segment is on and off.

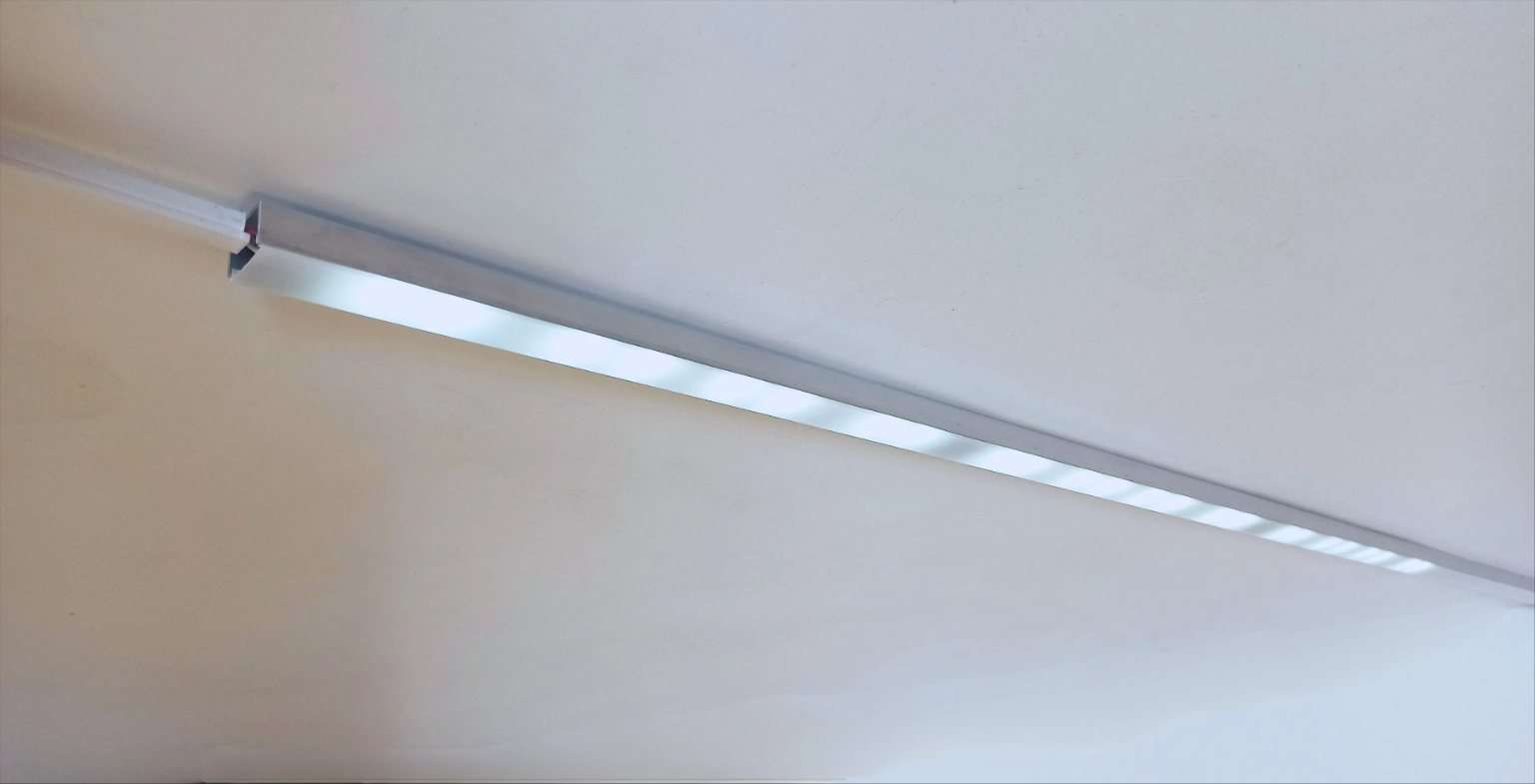

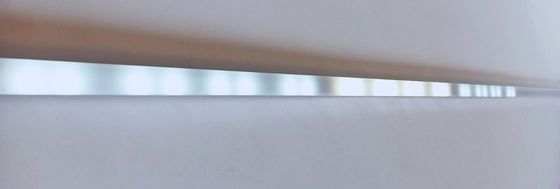

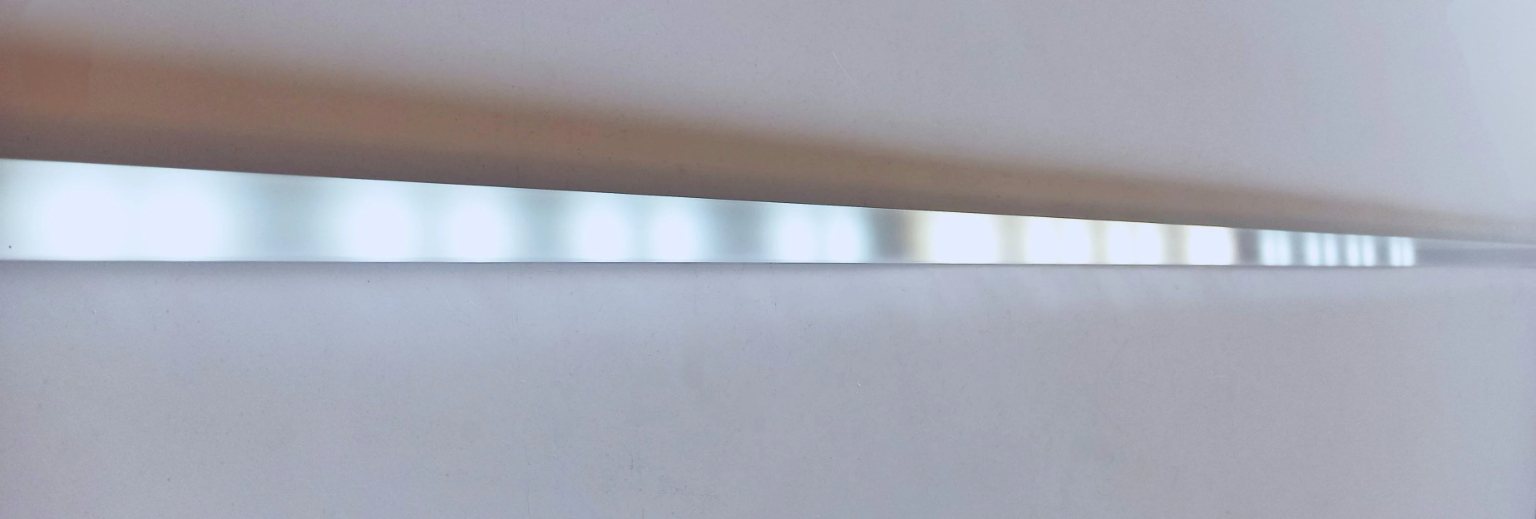

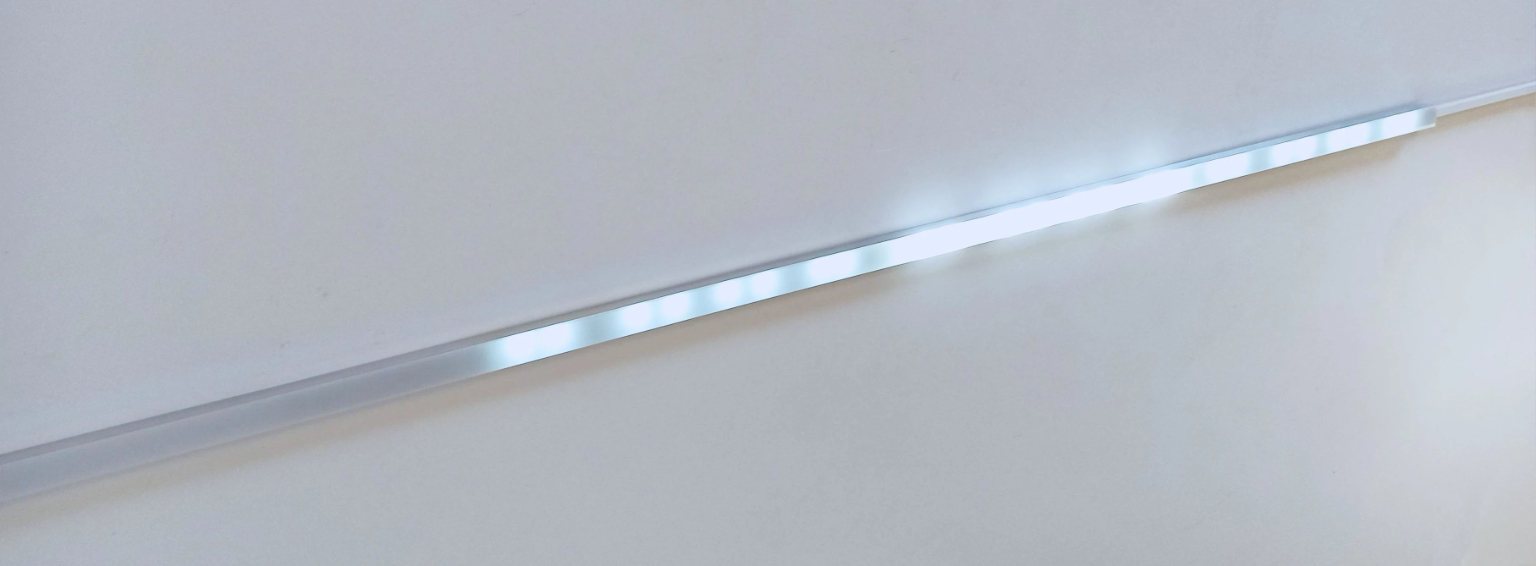

The bext picture shows close up of the profile.
Pairs of LED diodes are visible because the 4W variant has been used
and the intensity has been lowered to 2W to make this picture.
With the 8W variant these pairs of LED diodes are not vicible
because the light intensity is much higher than on this picture.

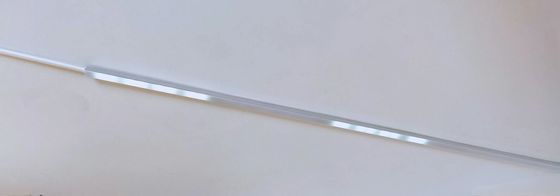

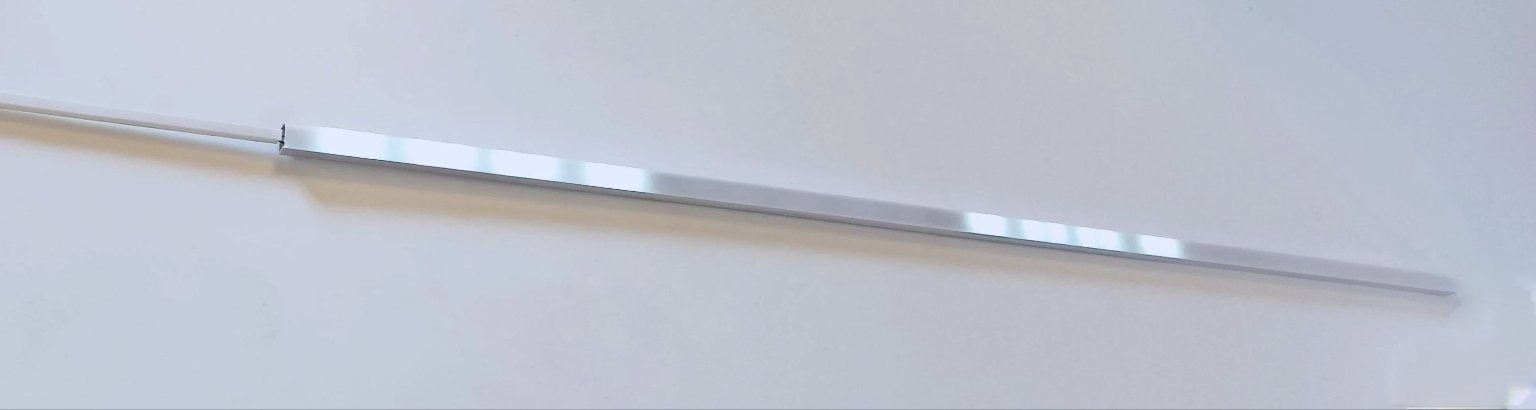

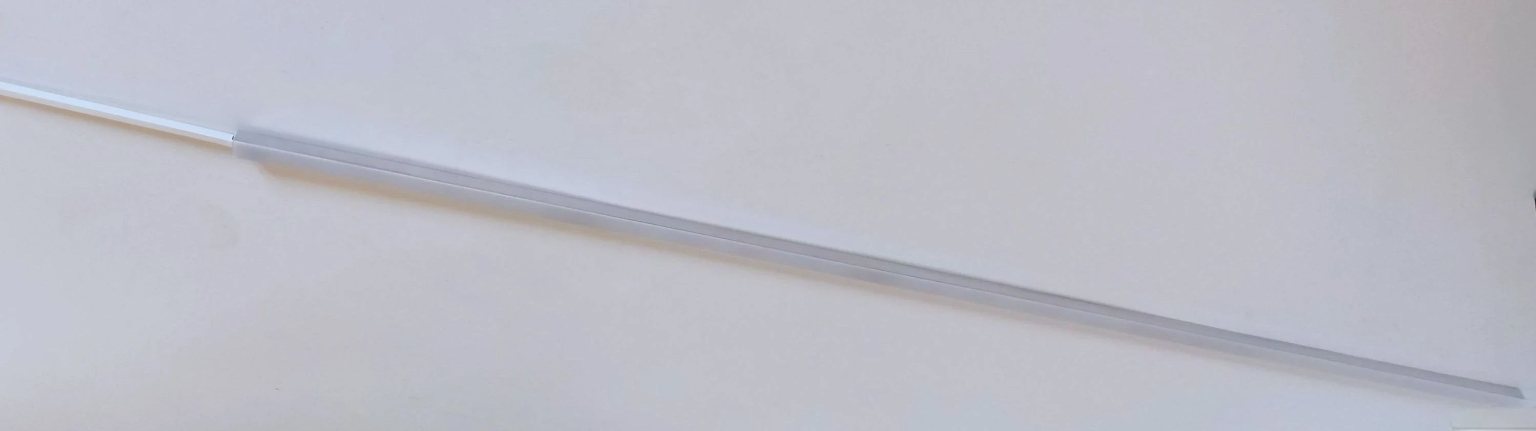

The next three pictures show a sequence when the warm white segment is turned off
and then the two other segments are turned off.

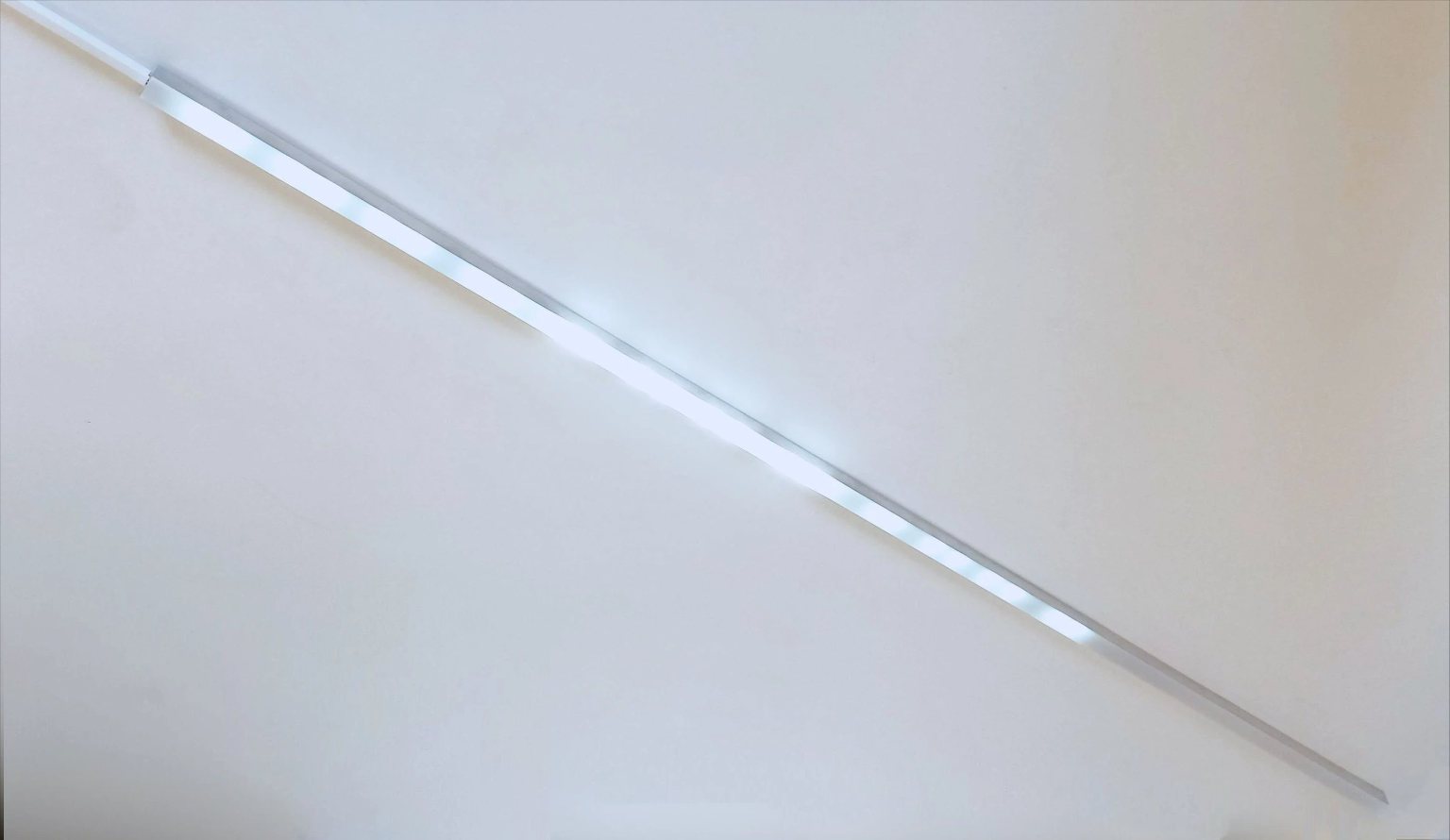

The next three pictures show a sequence with 4W the warm white segment has been replaced
with the 8W version. The difference of light intensity is visible.
As with other pictures, light intensity has be lowered by half, versus normal operation.

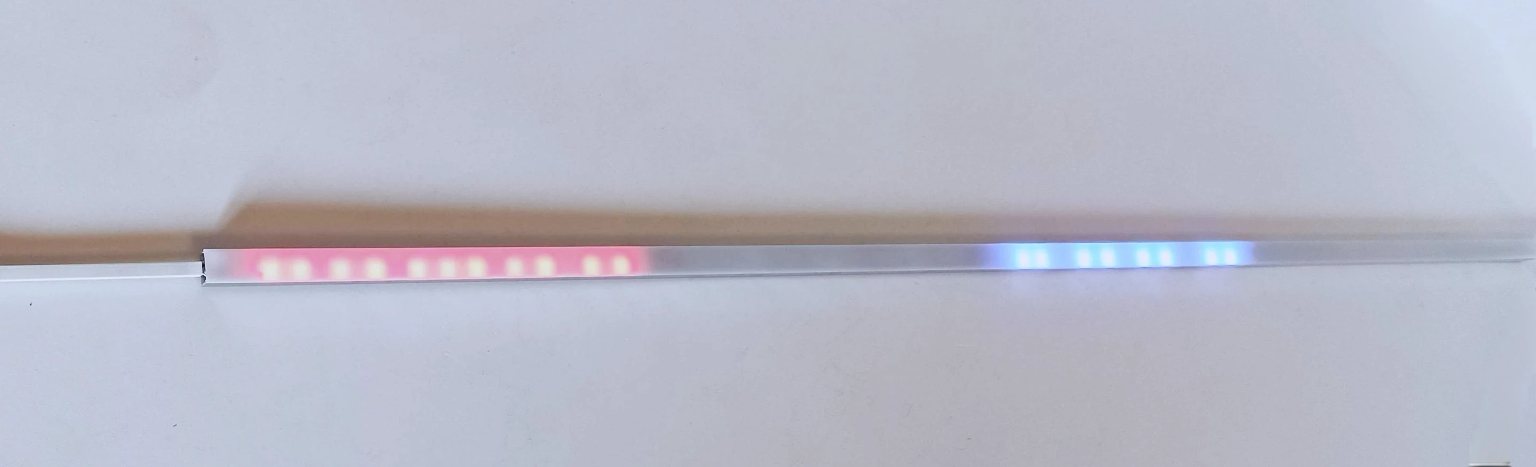

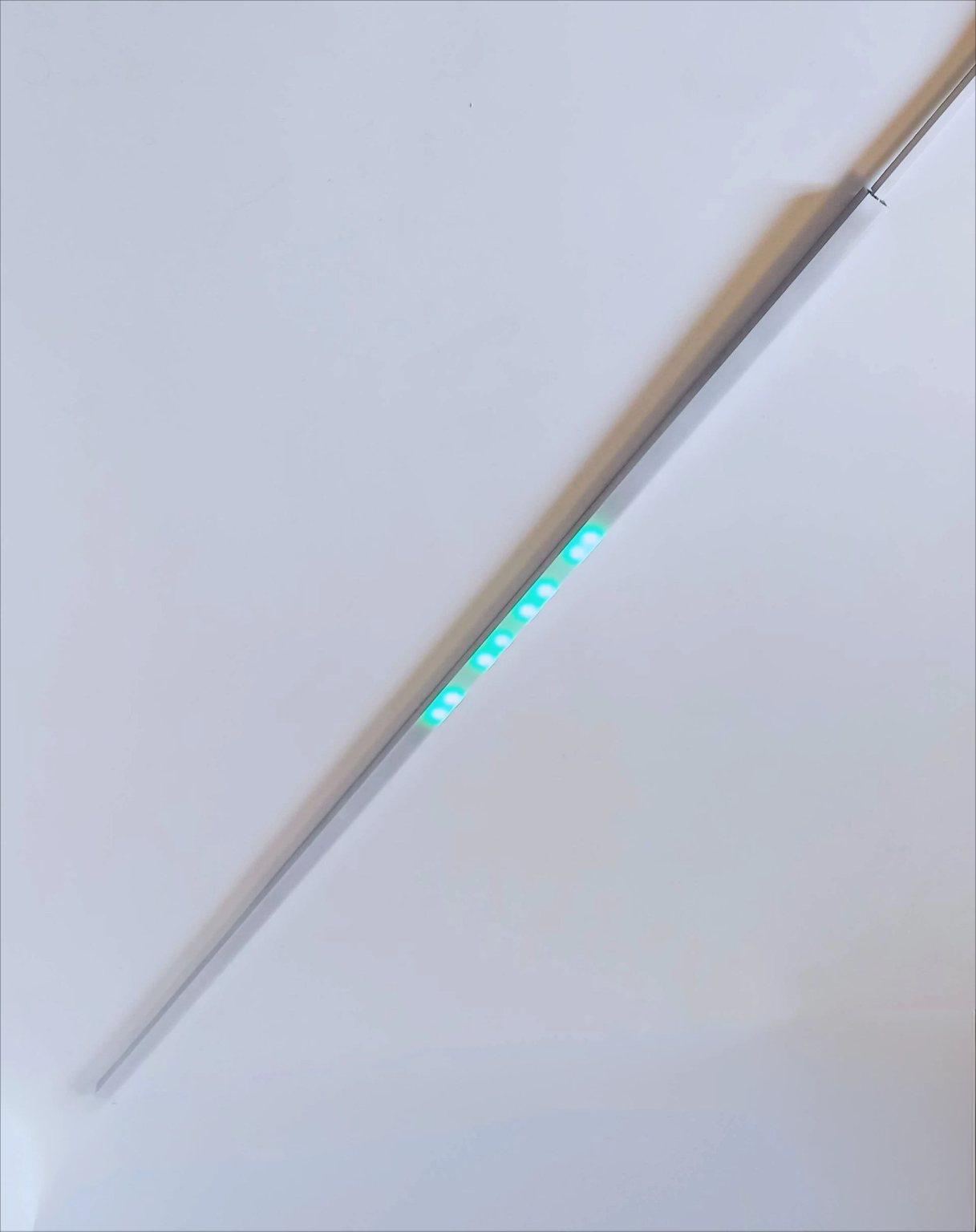

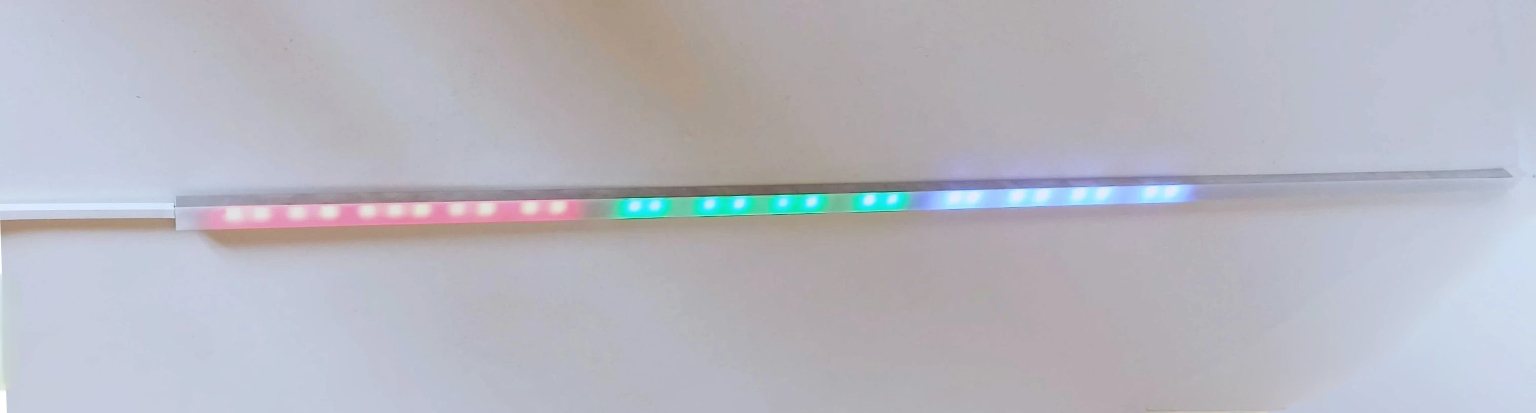

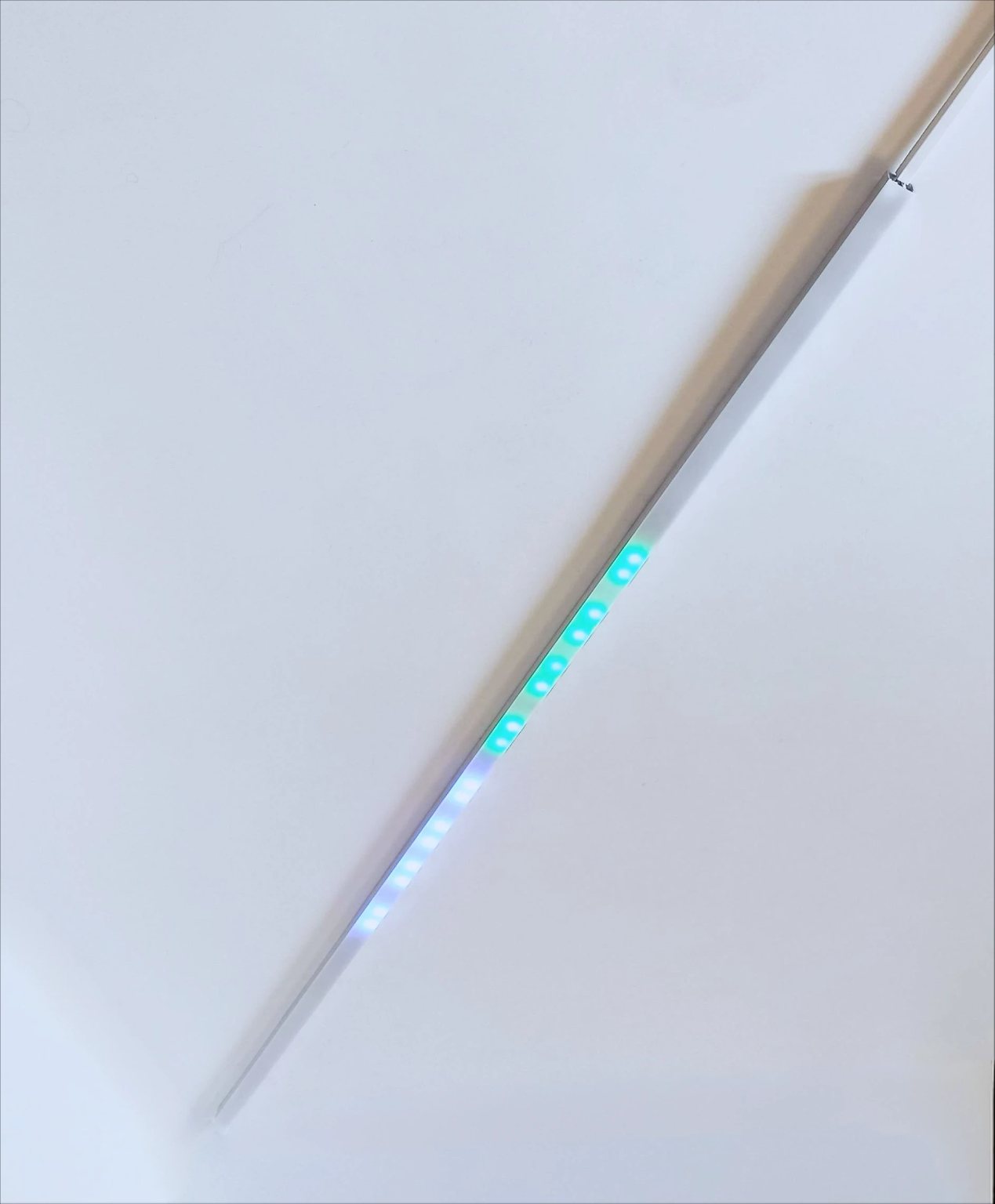

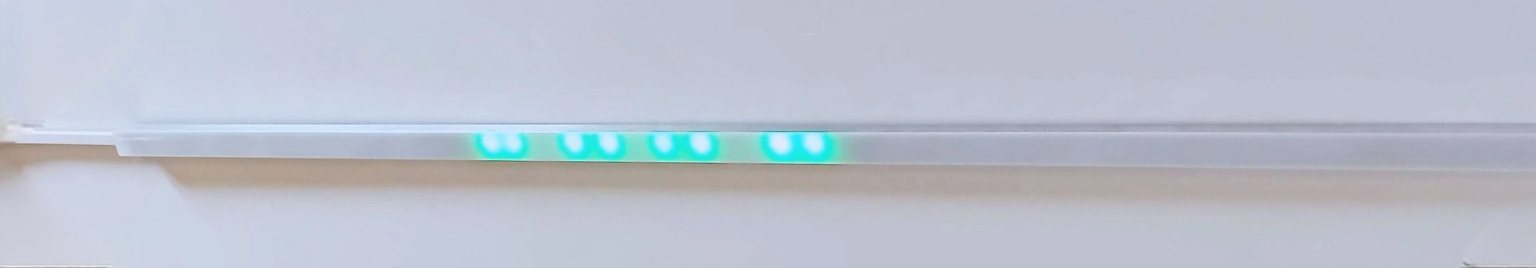

The next three pictures show a sequence with 4W blue, green and red segments
being turned on or off. Each segment is controlled individualy.
The blue segment looks white on the picture but is more blue in nrality.

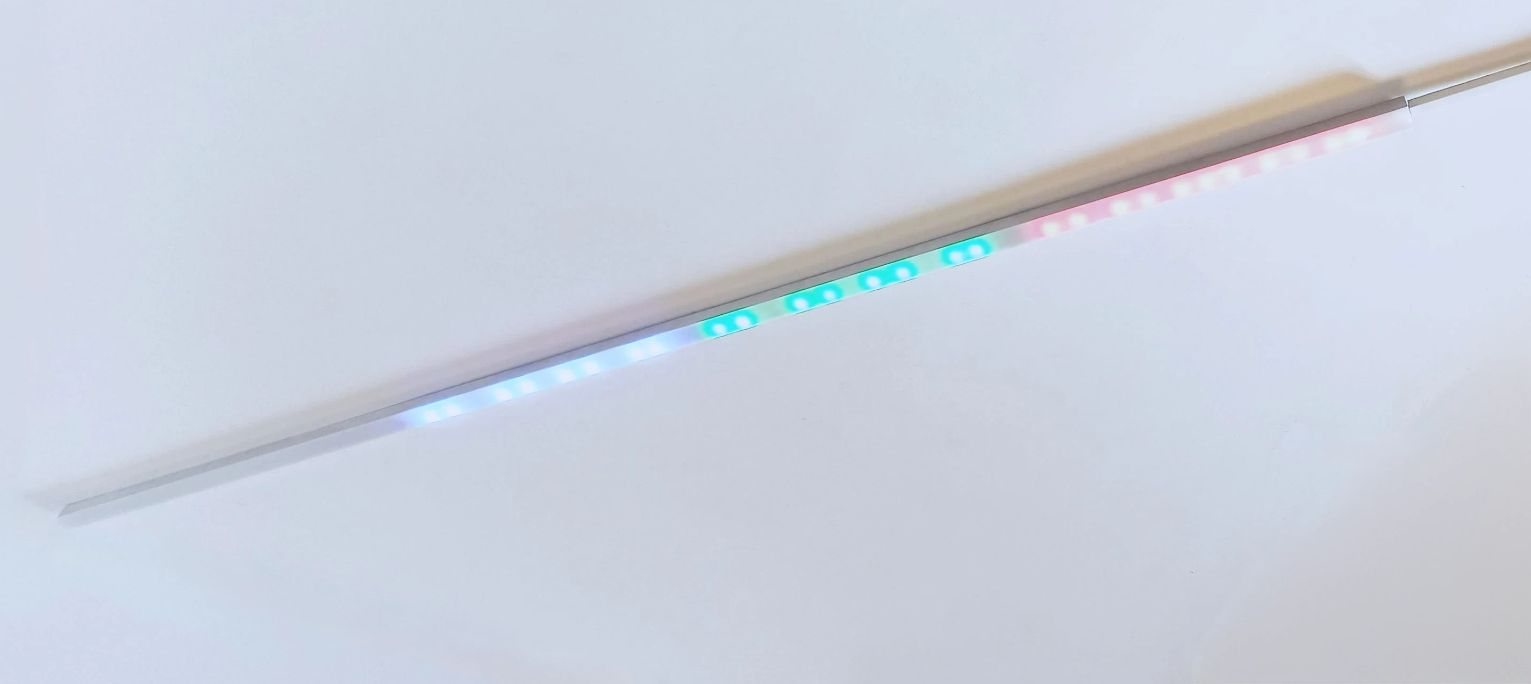

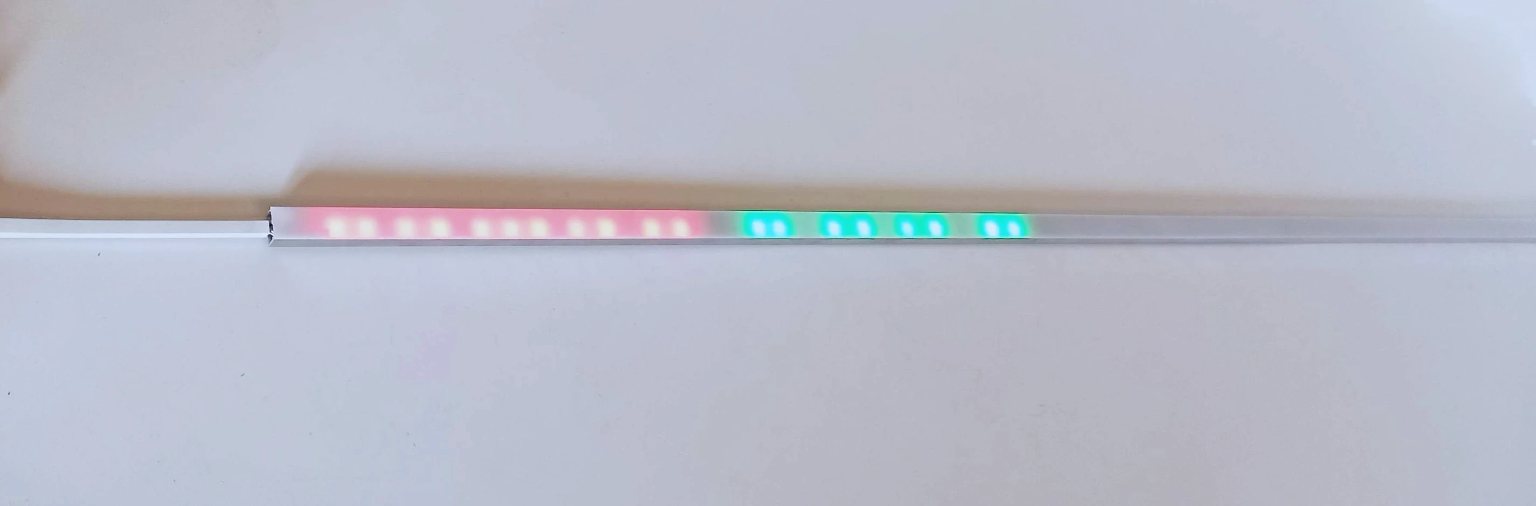

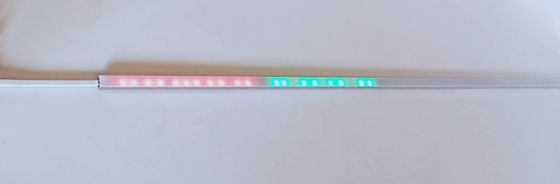

The same blue, green and red segments being turned on or off from another angle..

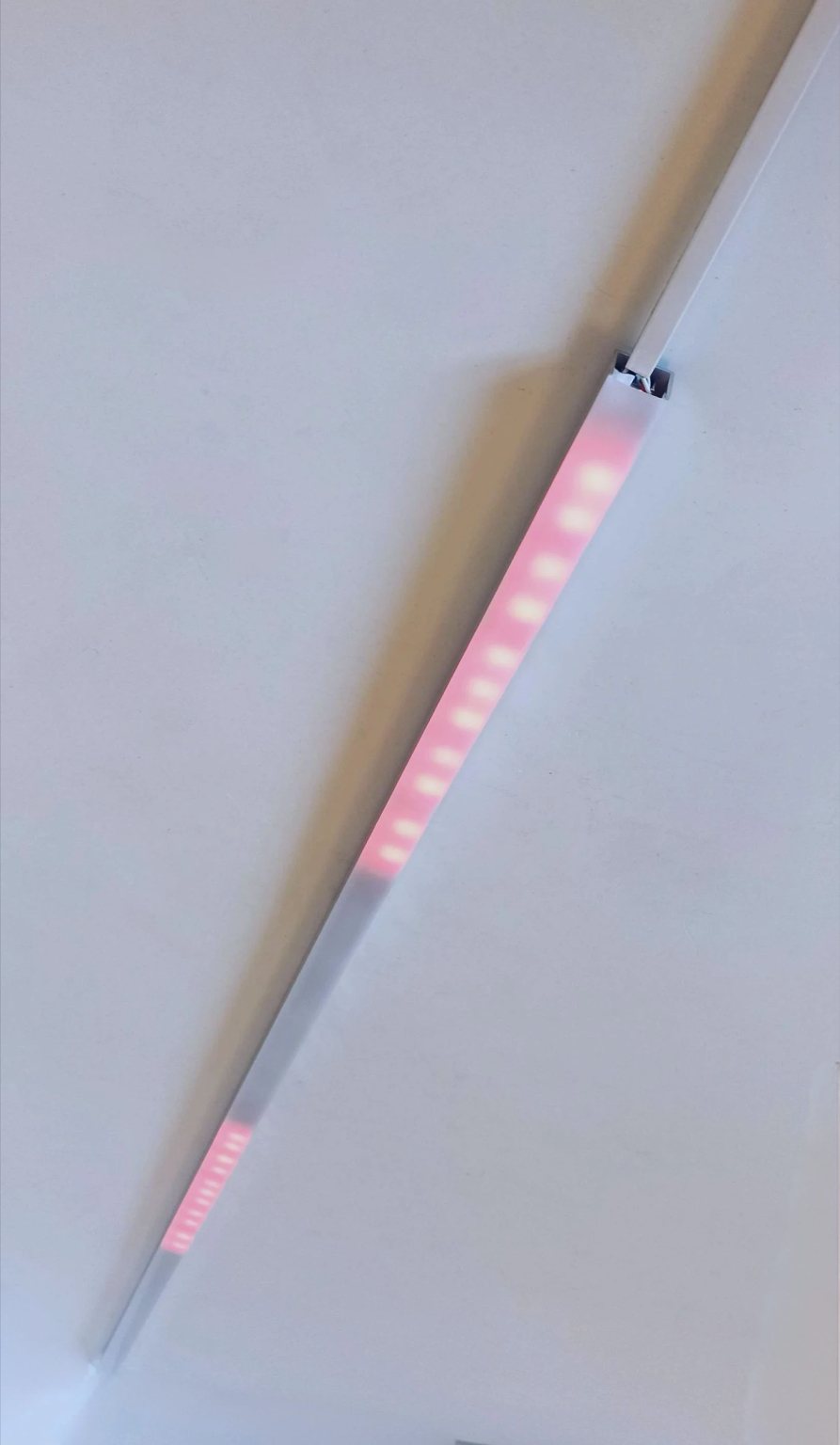

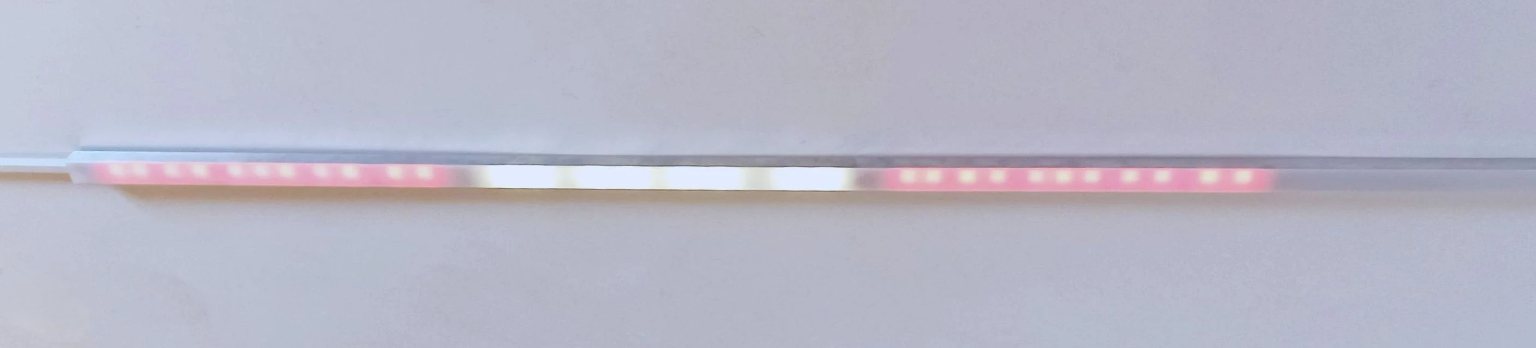

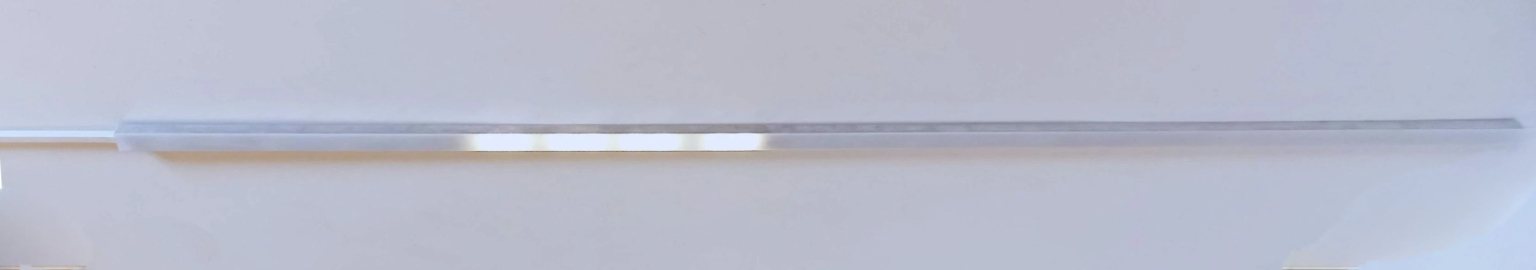

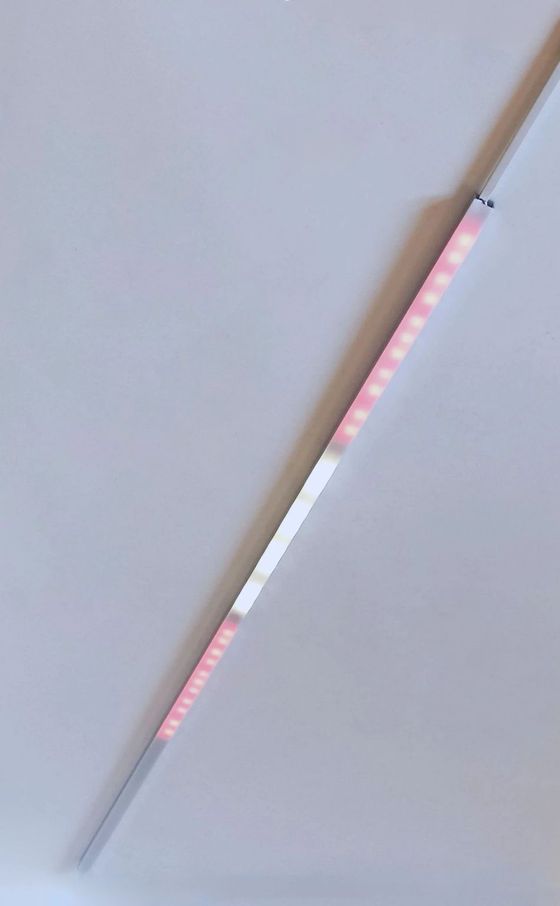

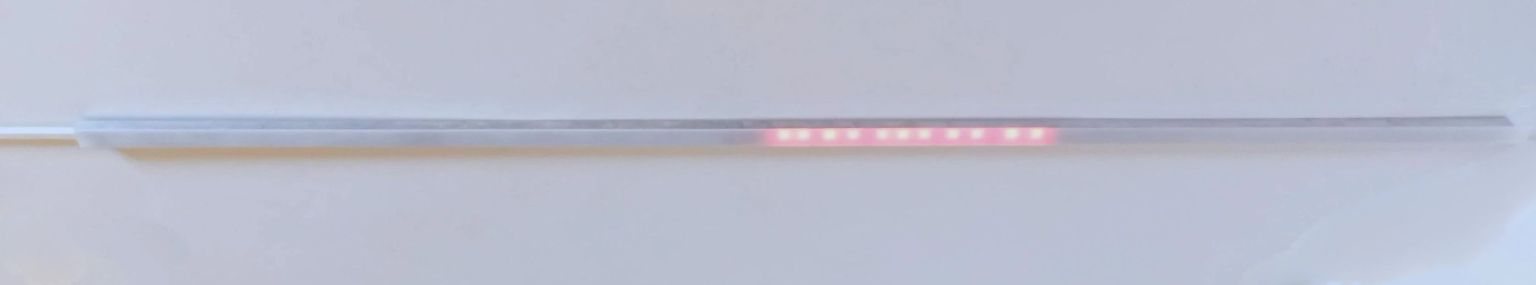

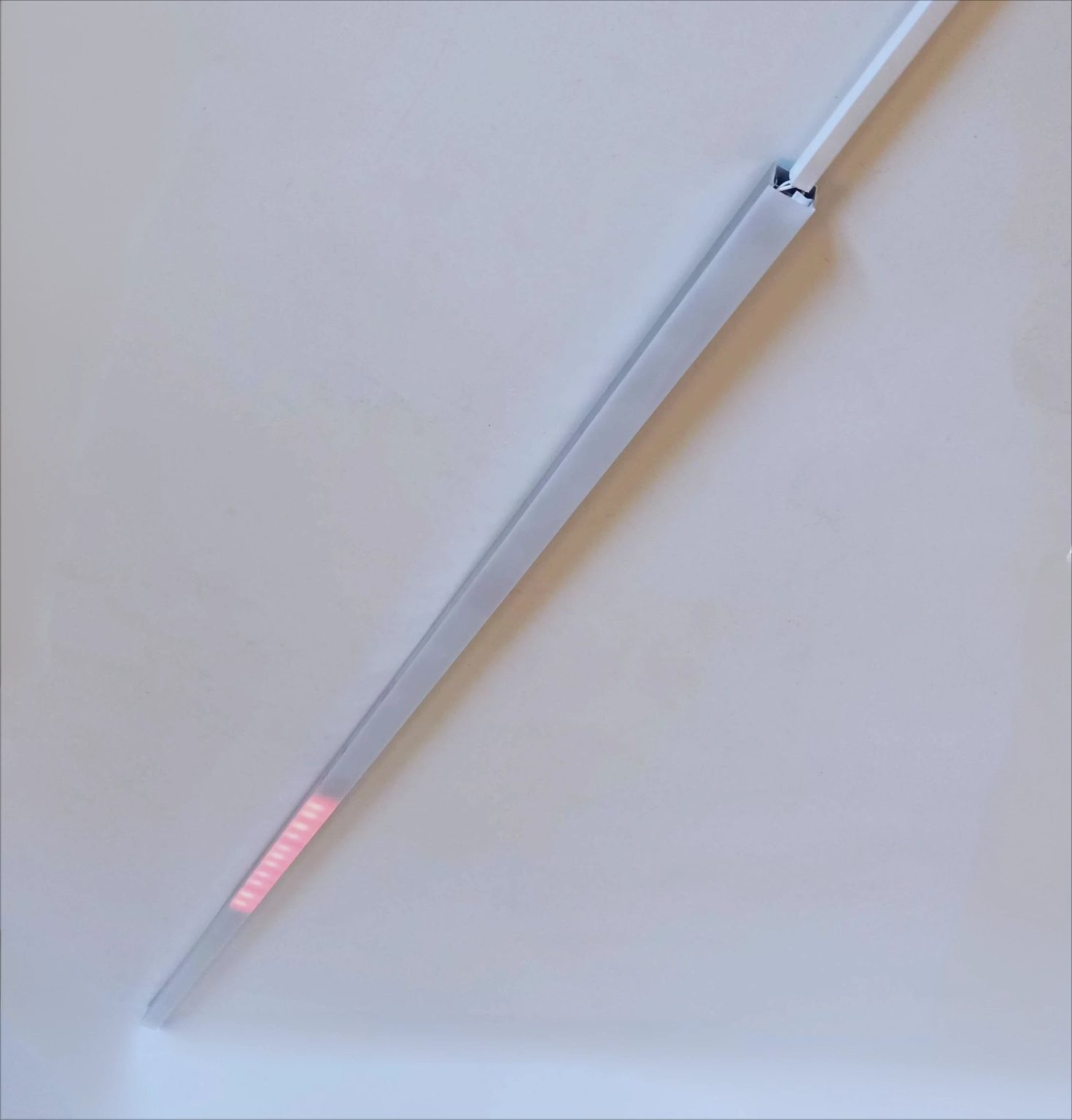

The next pictures show another setip with 4W red, 8W white and again a 4W red segments
being turned on or off. Each segment is controlled individualy.

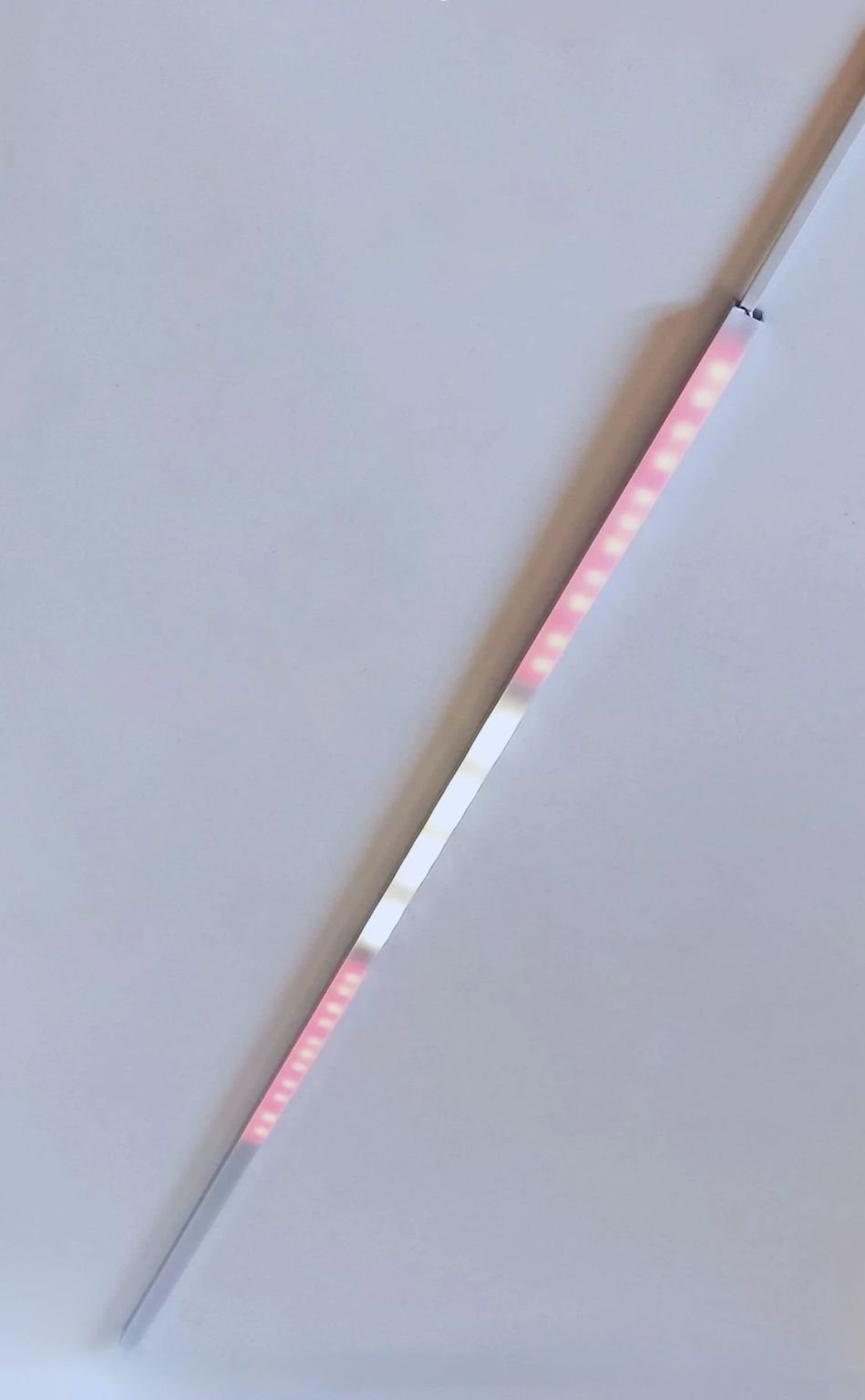

The same segments from another angle..
