SLTM HAGE Led design

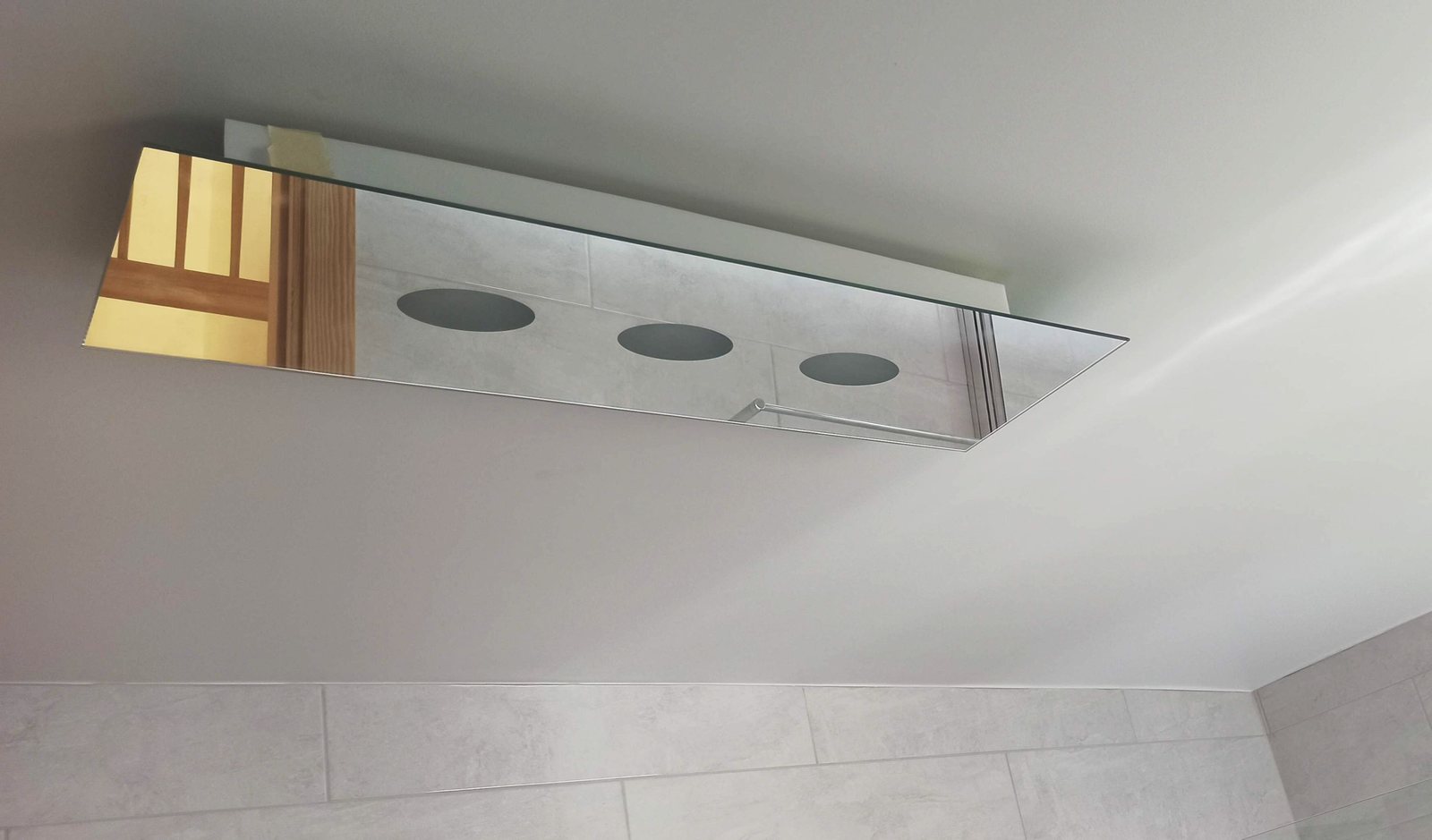

Direct light through mirror as ceiling appliance. It's made with a glass mirror with oval translucid areas leting the light through and an aluminium profile holding LED modules.
Instead of glass, Lightbond Plus can be used. Lightbond Plus is an aluminium/polietilene composite allowing much more possibilities than glass. It's cheaper, lighter, allow the design bigger, longer planes, various and complex shapes and a choice of several colours and textures. The Lightbond Plus mirror is not a perfect mirror in the sens that the reflected image is slightly deformed.
Glass mirror is a more noble material. The result is more elegant and beautiful but the shapes are usualy rectangular or polygones with strait edges. (There is no limitation in the shape or size of the translucid area.) It also more expensive, limited in size and more fragile.
The number and types of LED modules is limited only by the size of the luminary. Different types of LED modules can be included, with the option to turn on or off each one ondividualy or to adjust the light output.
It can either include its own pwoer supply, or be supplied with 24VDC current from a separate supply.

Indoor use only.

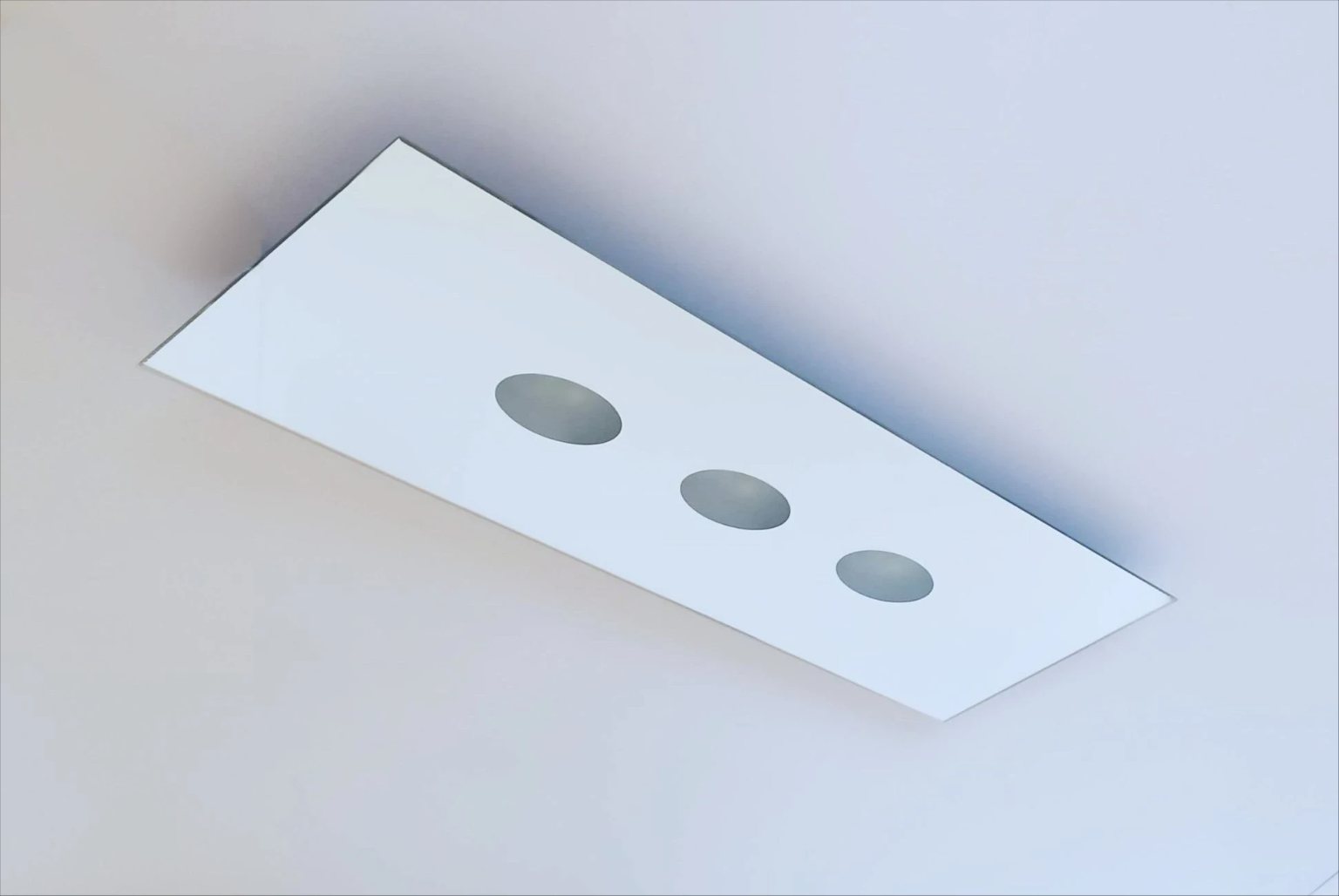

This glass mirror model uses three LED modules and
is typically adjusted between 18W (1800 lm) and 30W (3600 lm)
when all the modules are on.

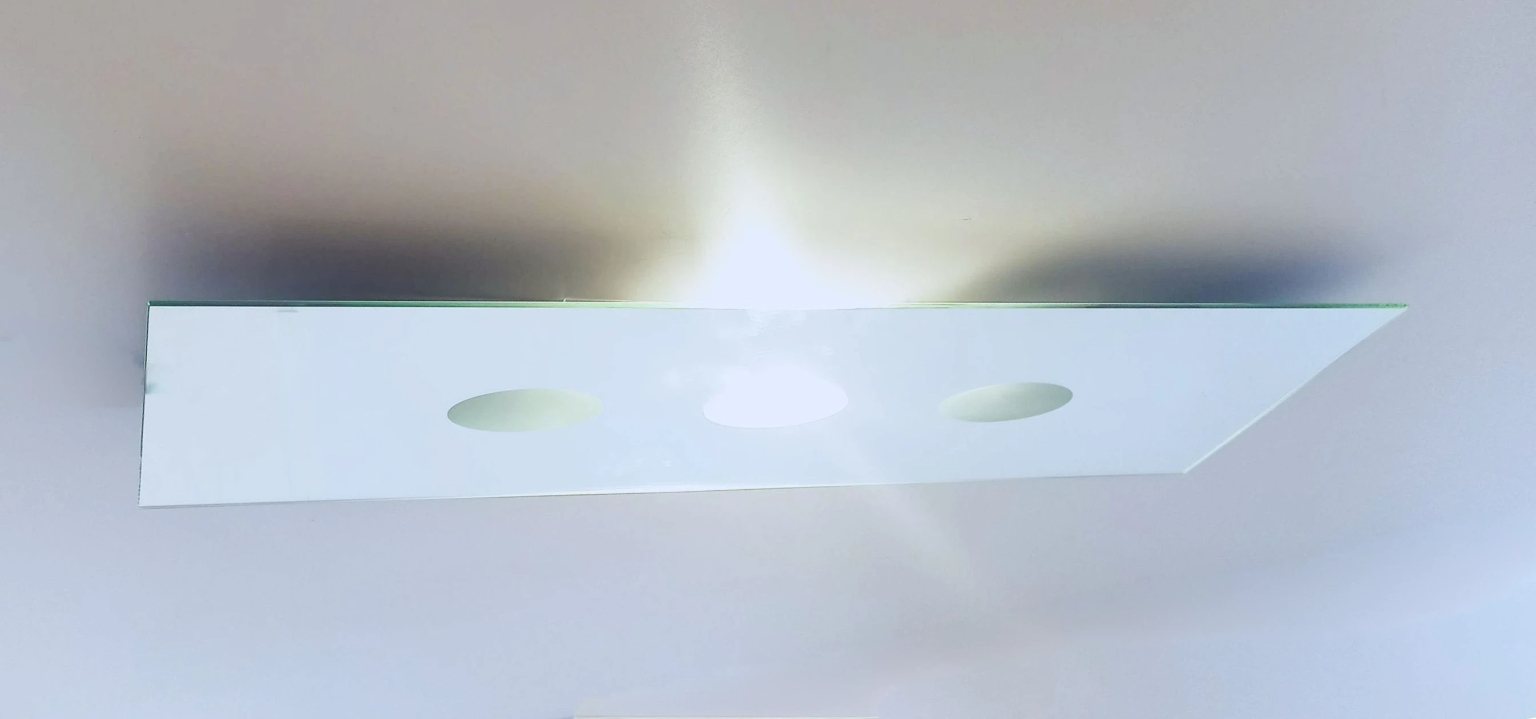

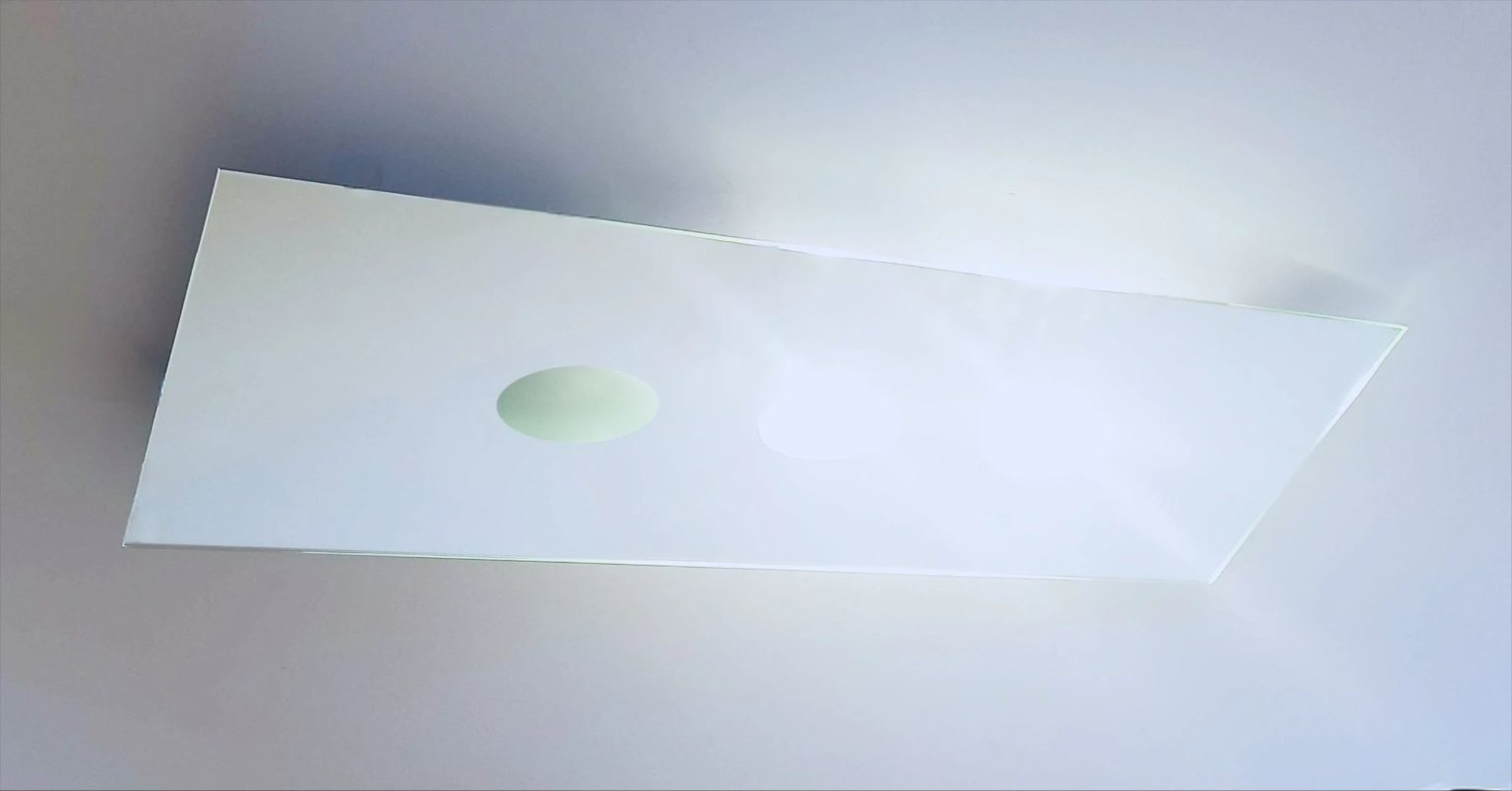

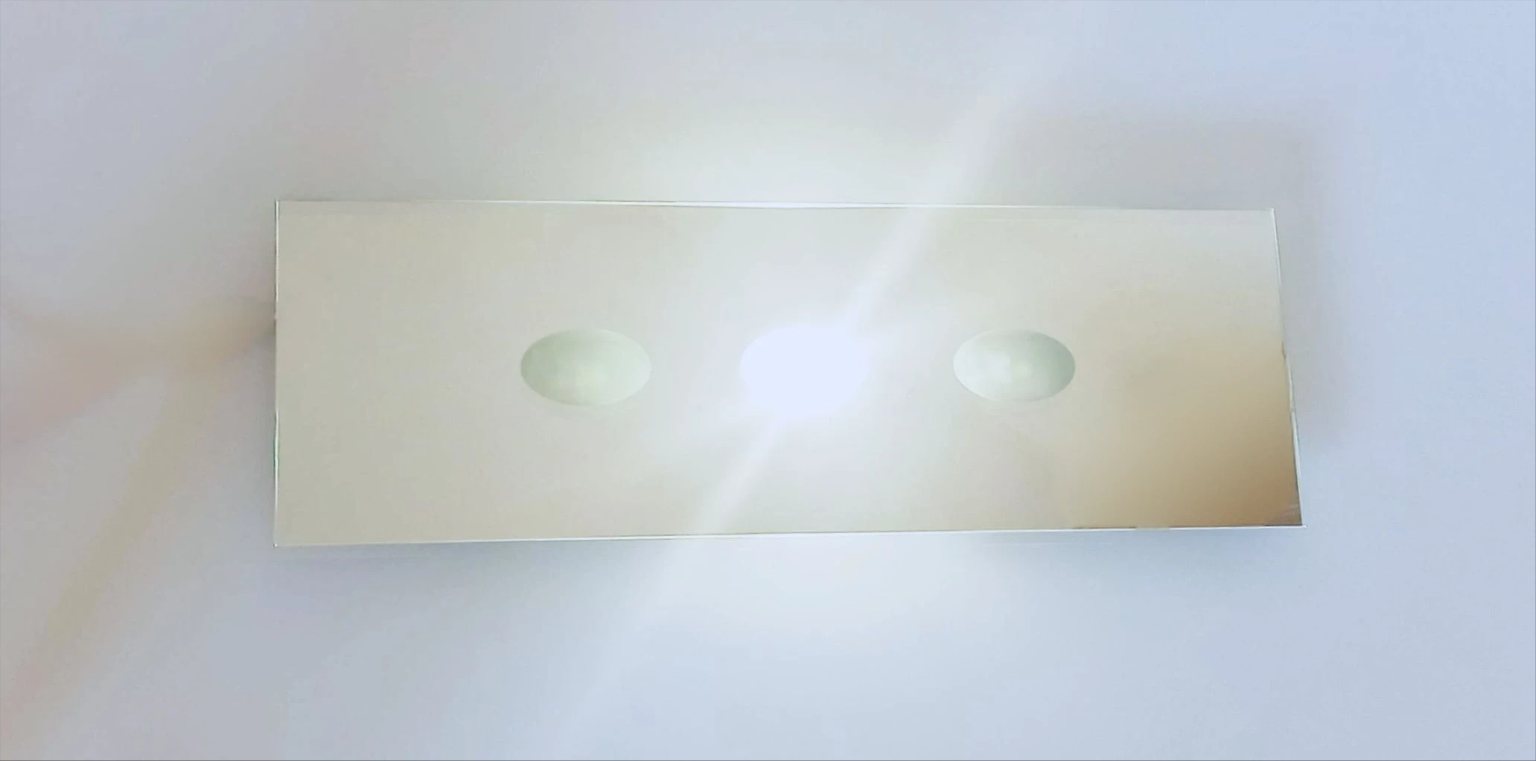

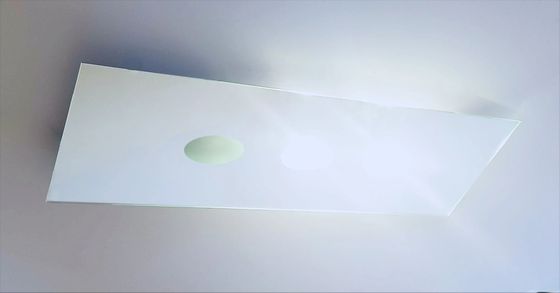

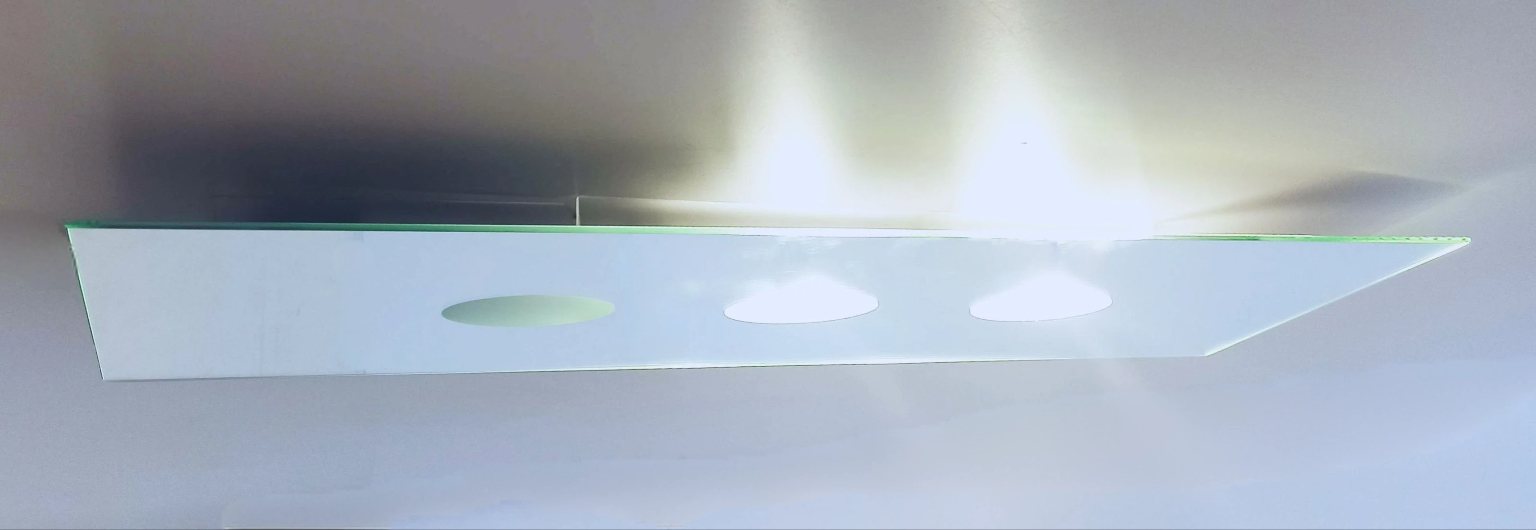

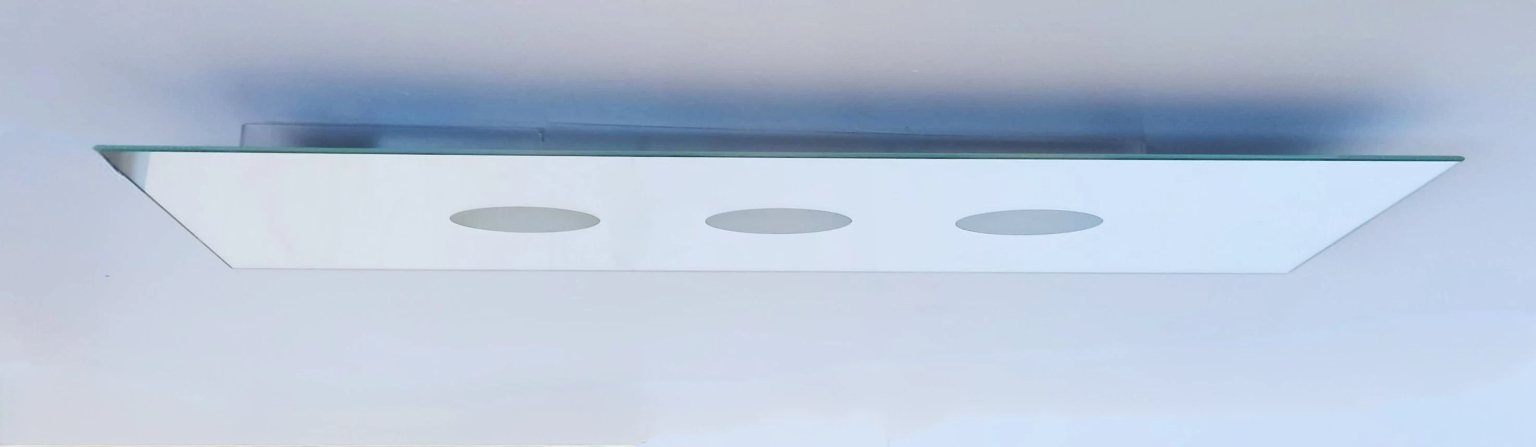

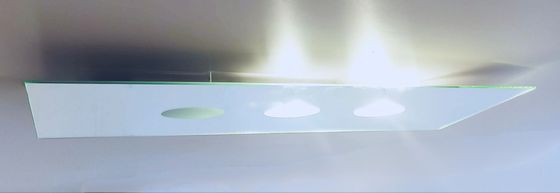

The next 5 pictures show a sequence when all three modules
are turned on, then one is turned off, then a second one is turned off,
and then turned on again.

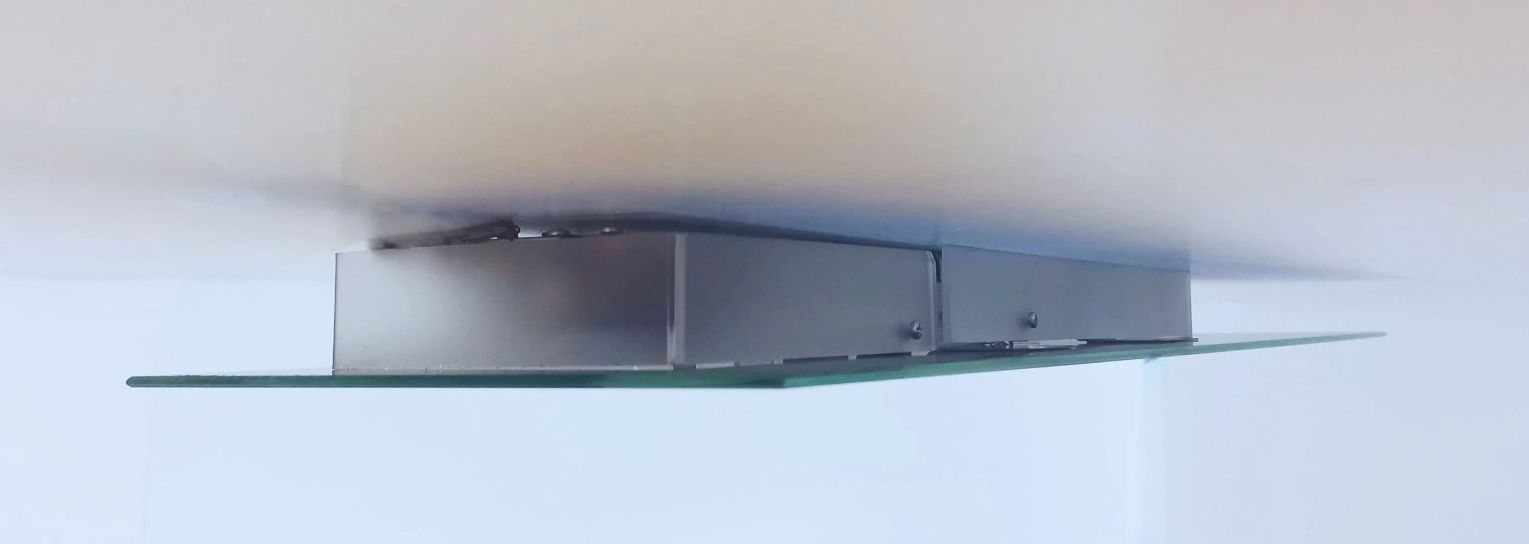

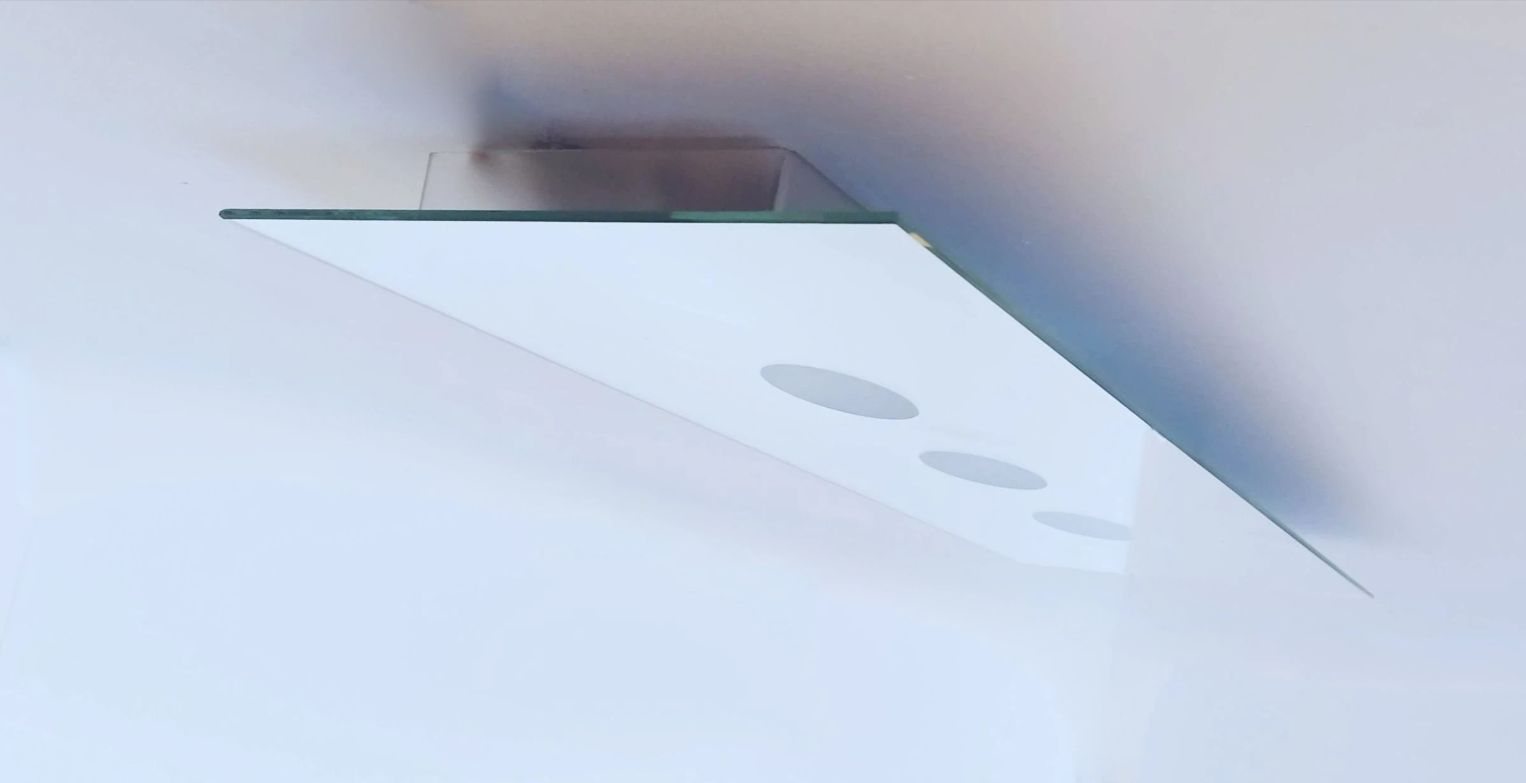

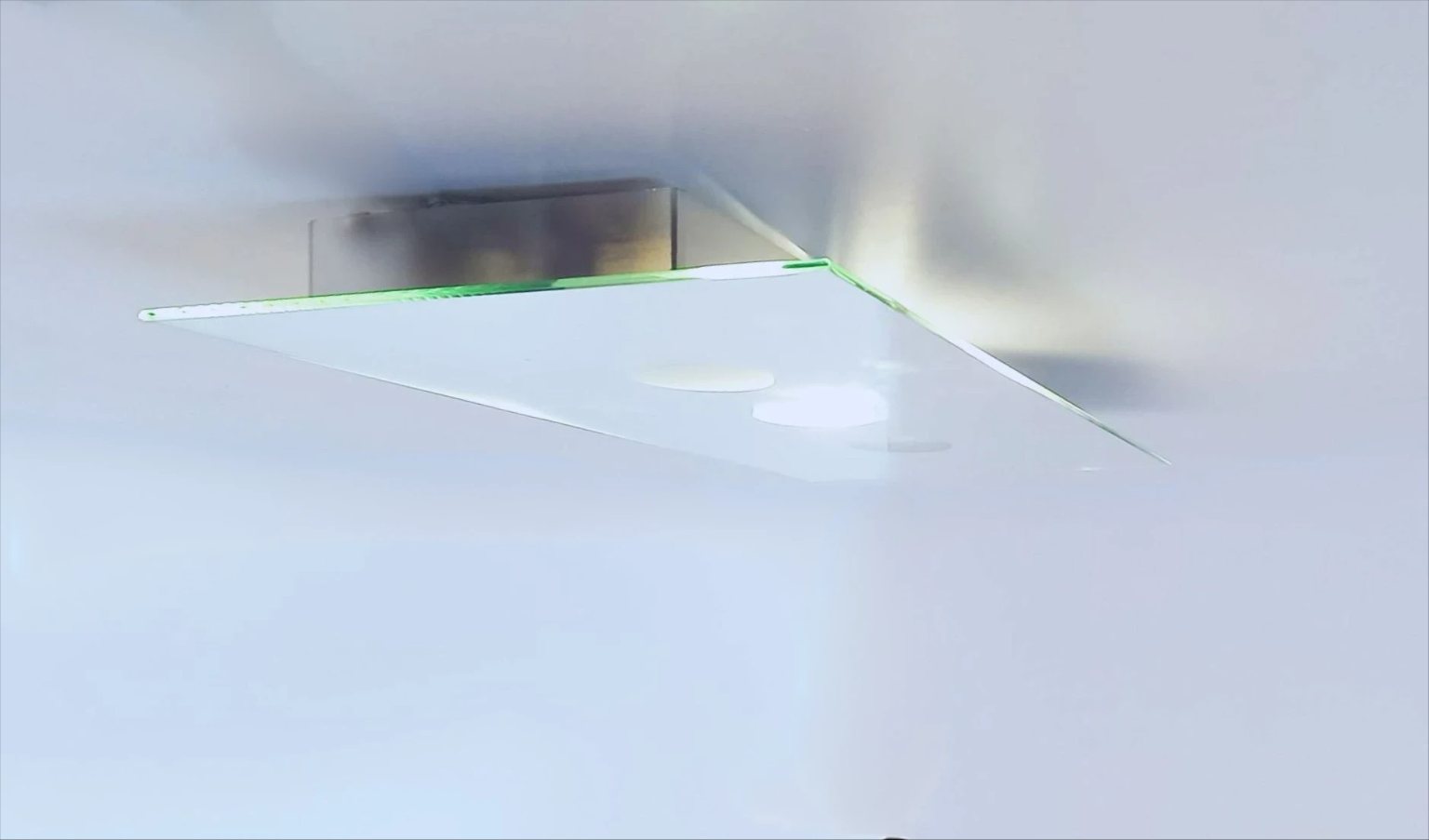

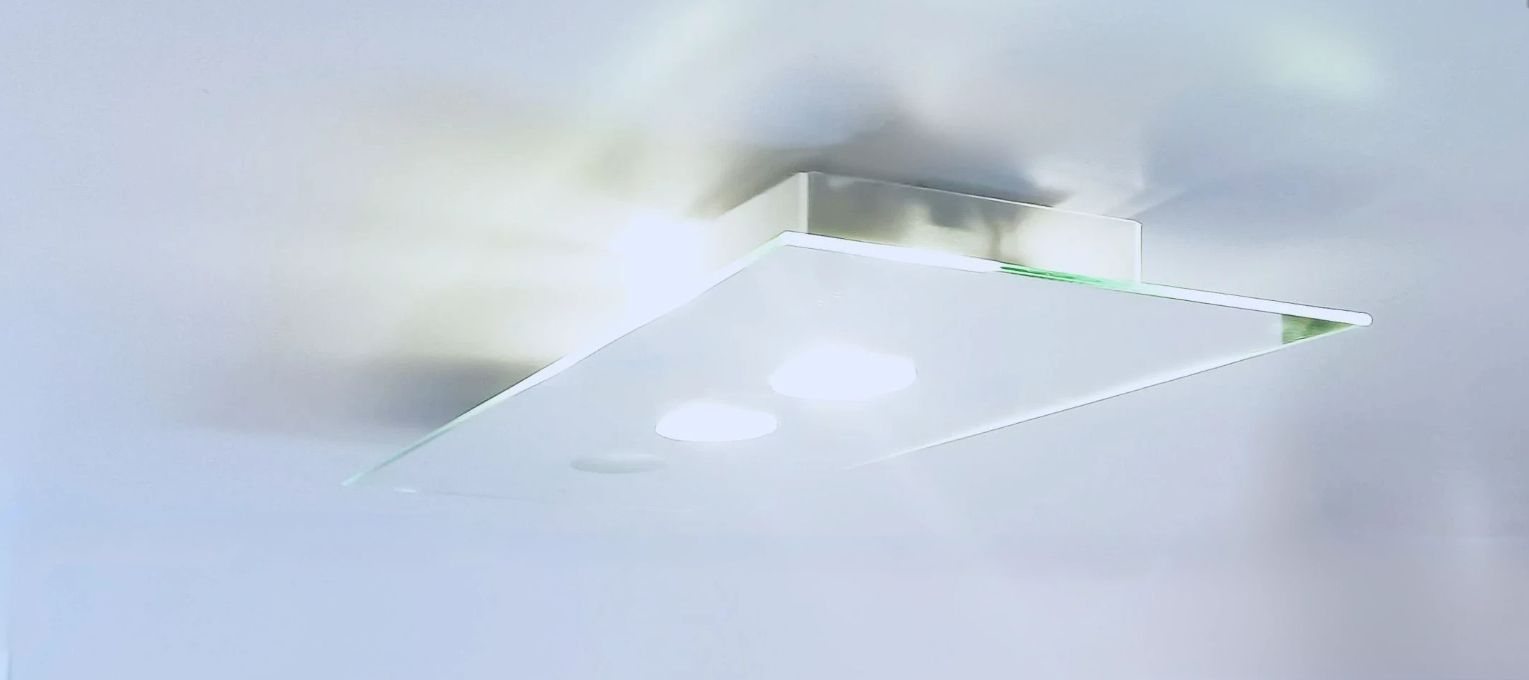

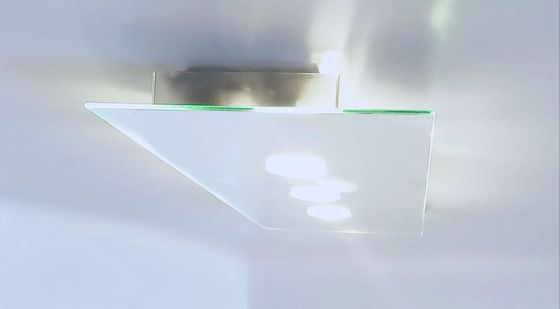

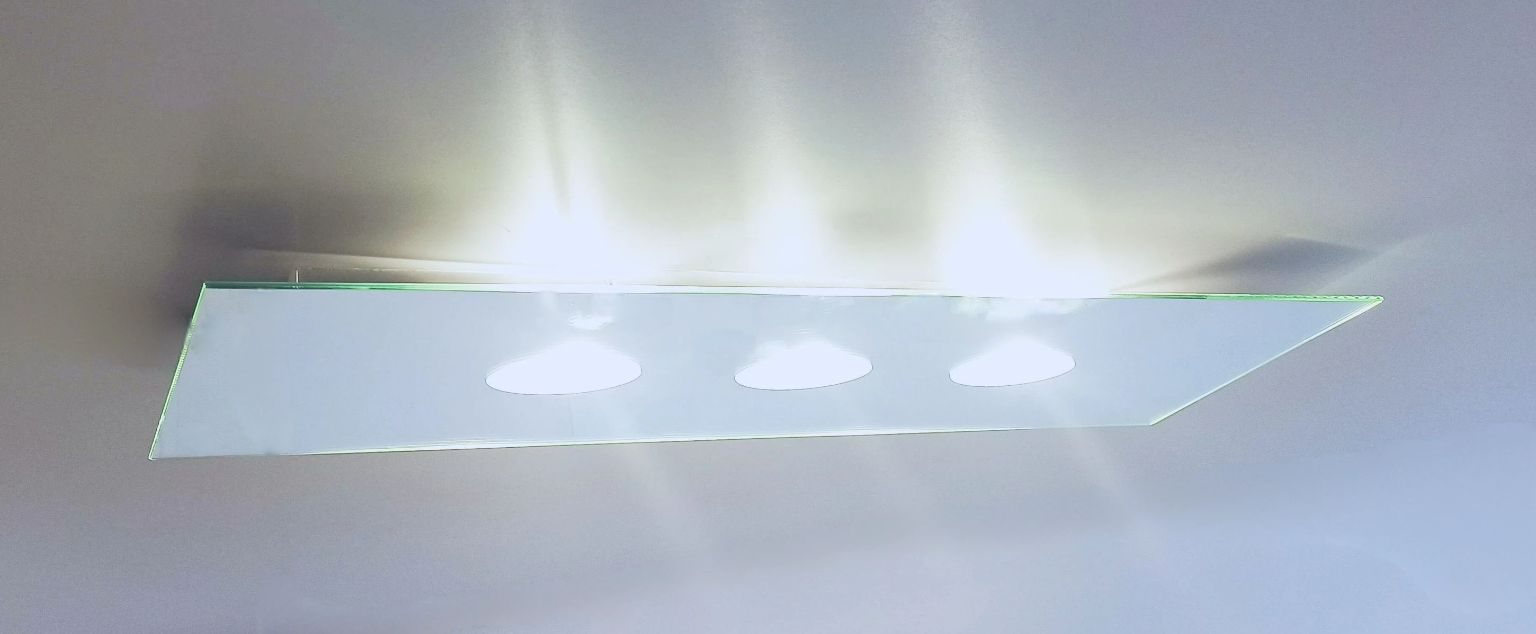

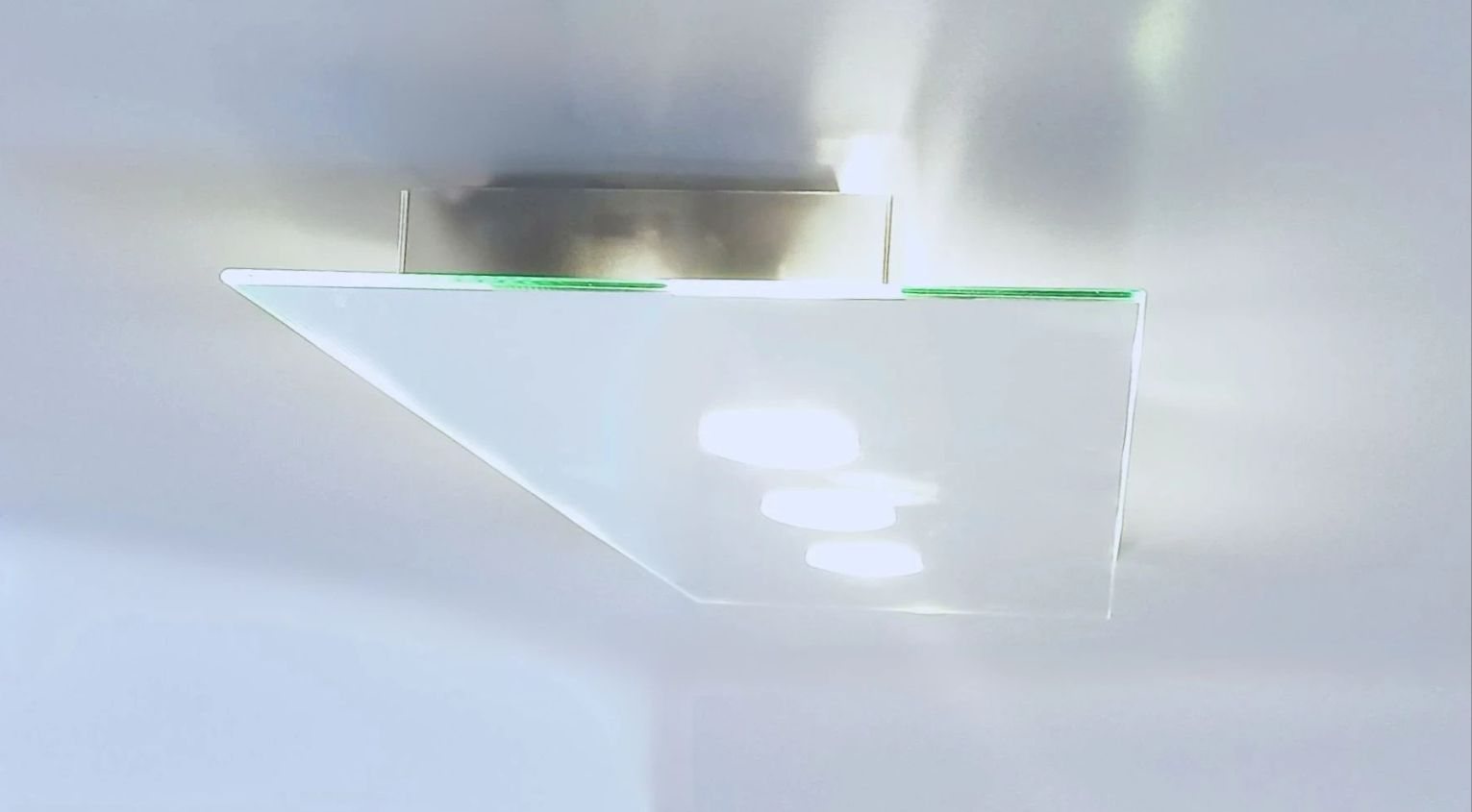

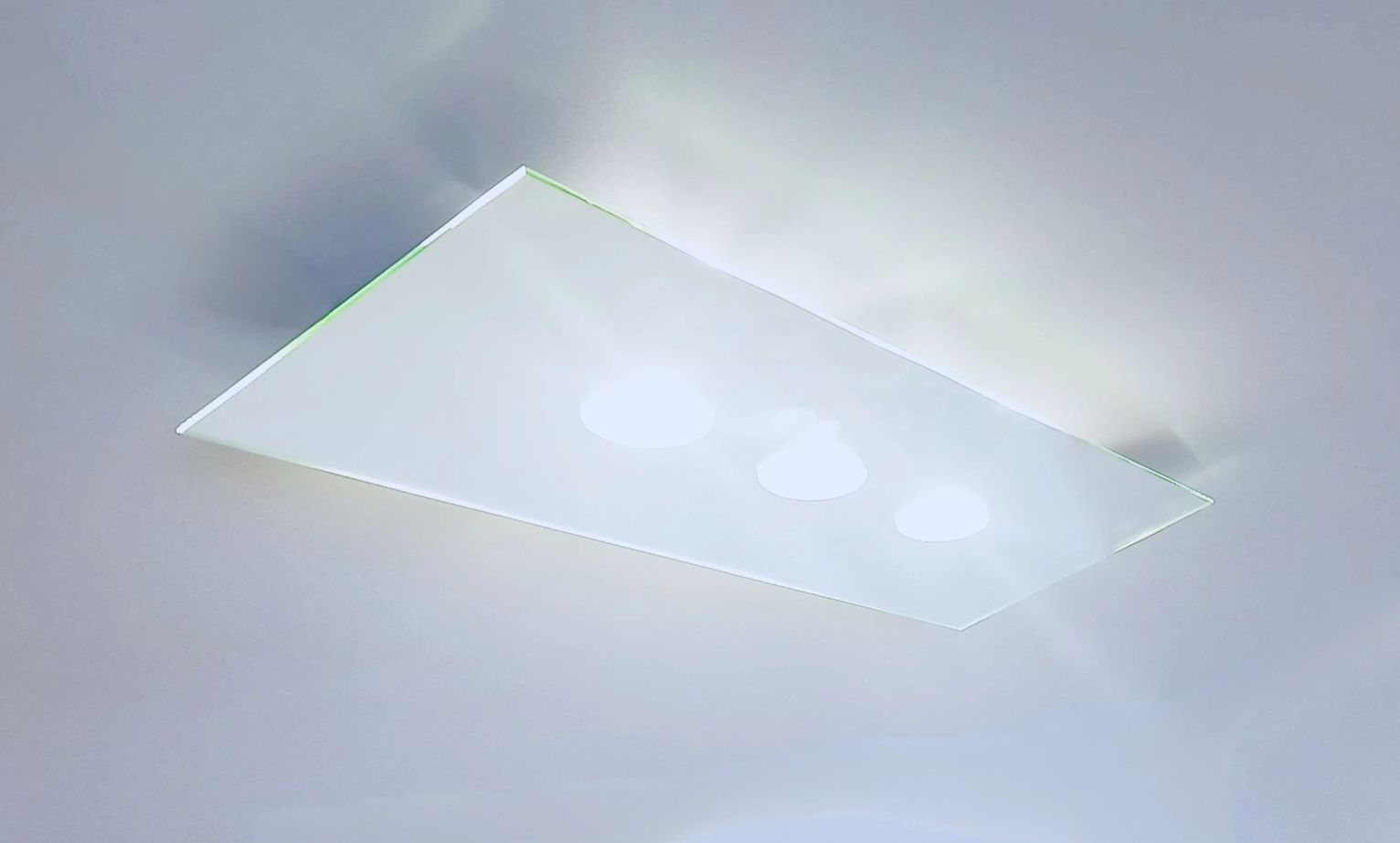

The next 7 pictures show the same model from the side.

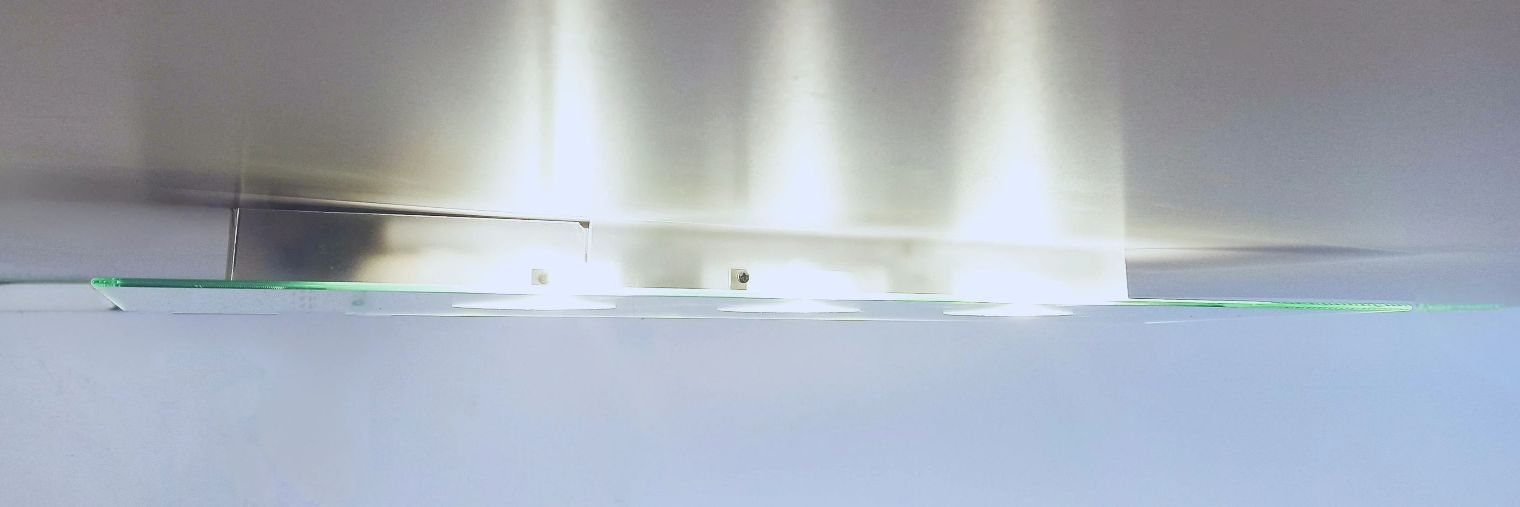

The translucid side protection is visible with light effects.
Light goes not only through the translucid holes but also
a little bit on the sides.

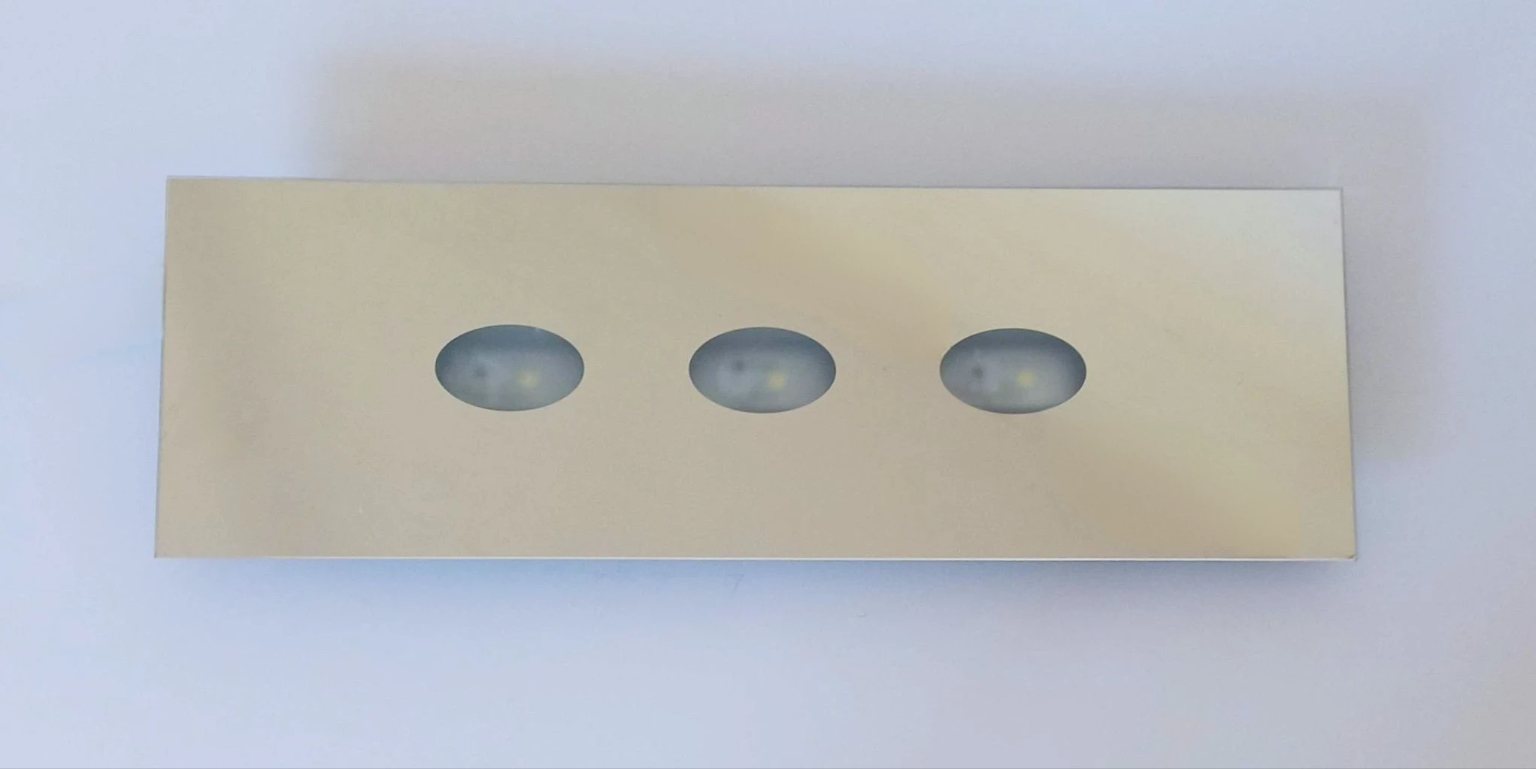

The next two pictures show the luminary from below.

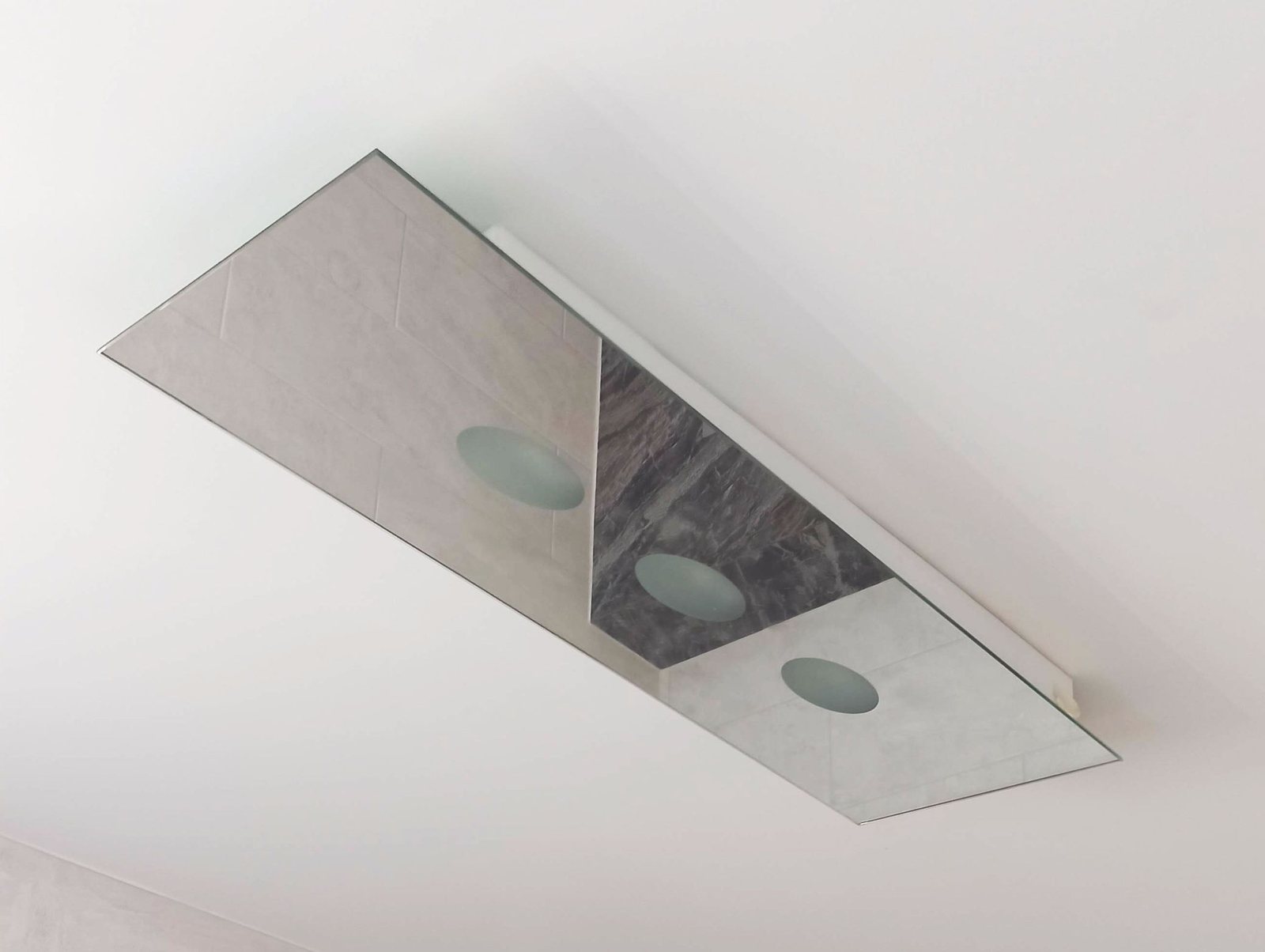

The next two pictures show a similar model in another environement.

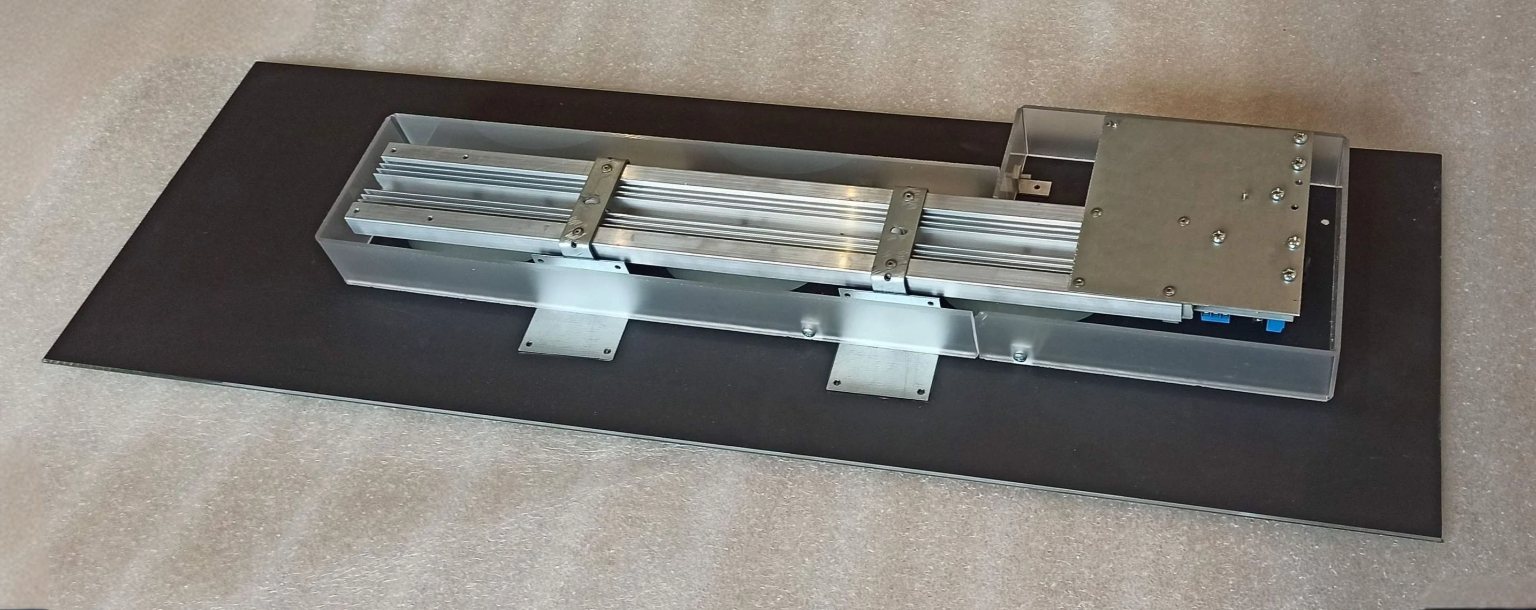

View of the hiden side of the same model.
