HAGE LED
D e s i g n

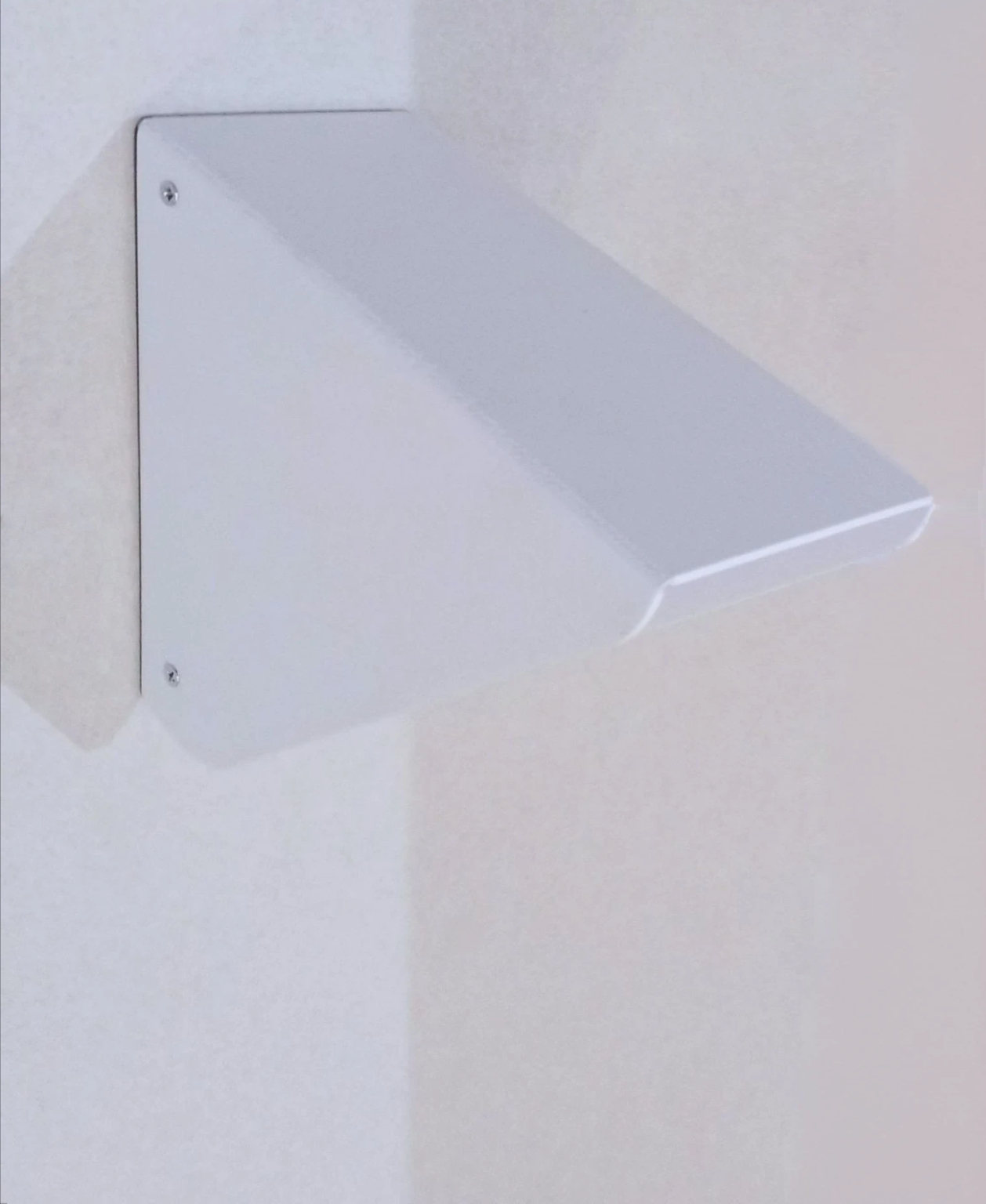

Outdoor lamp with 1 LED module and a white PMMA (Plexiglass) cover. It doesn't include a power supply. It has to be supplied with 24VDC current from a power supply located in a safe location, preferably inside a building. The concept is to separate potentialy hazedous 240VAC from all light appliances and switches located outside.

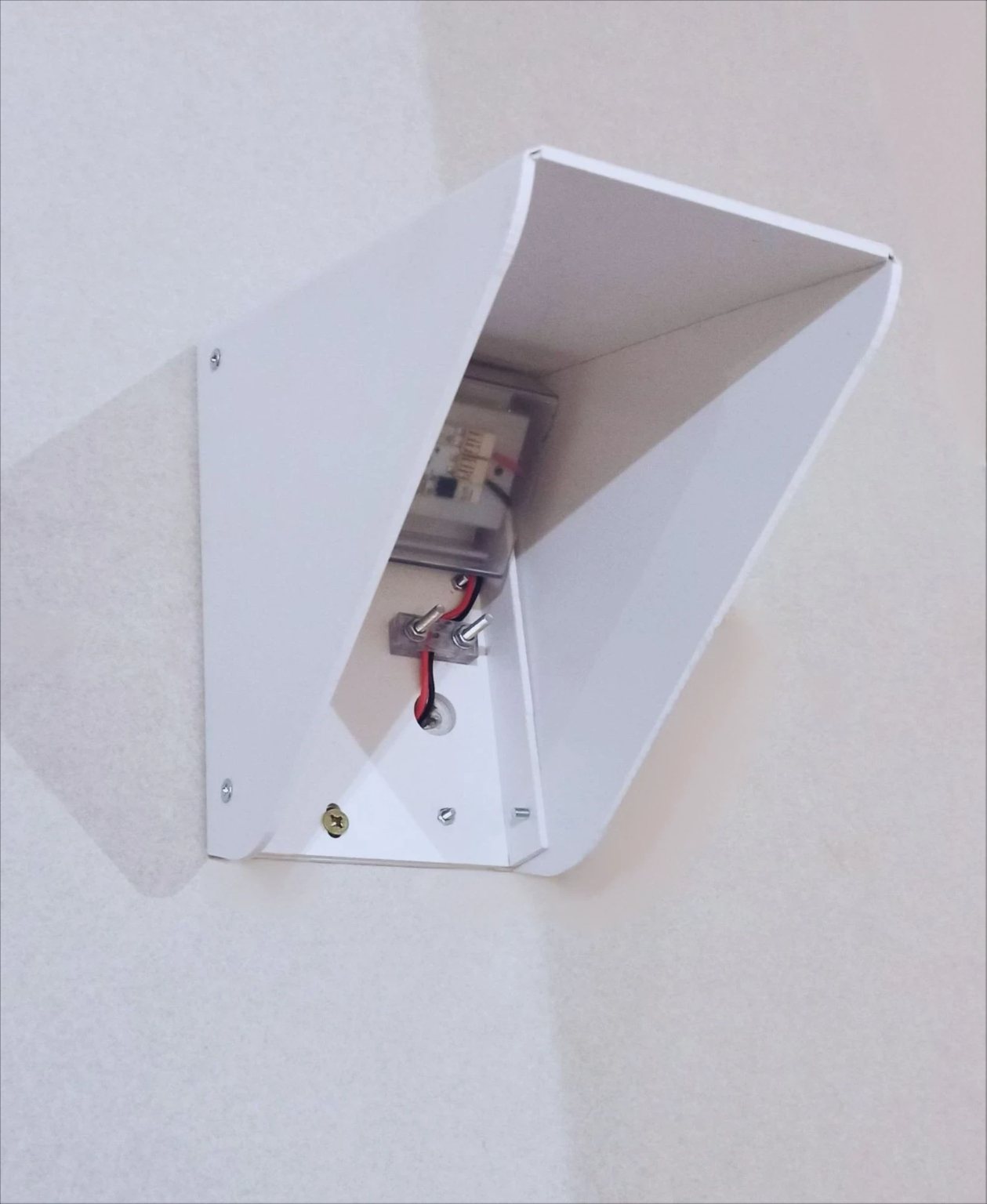

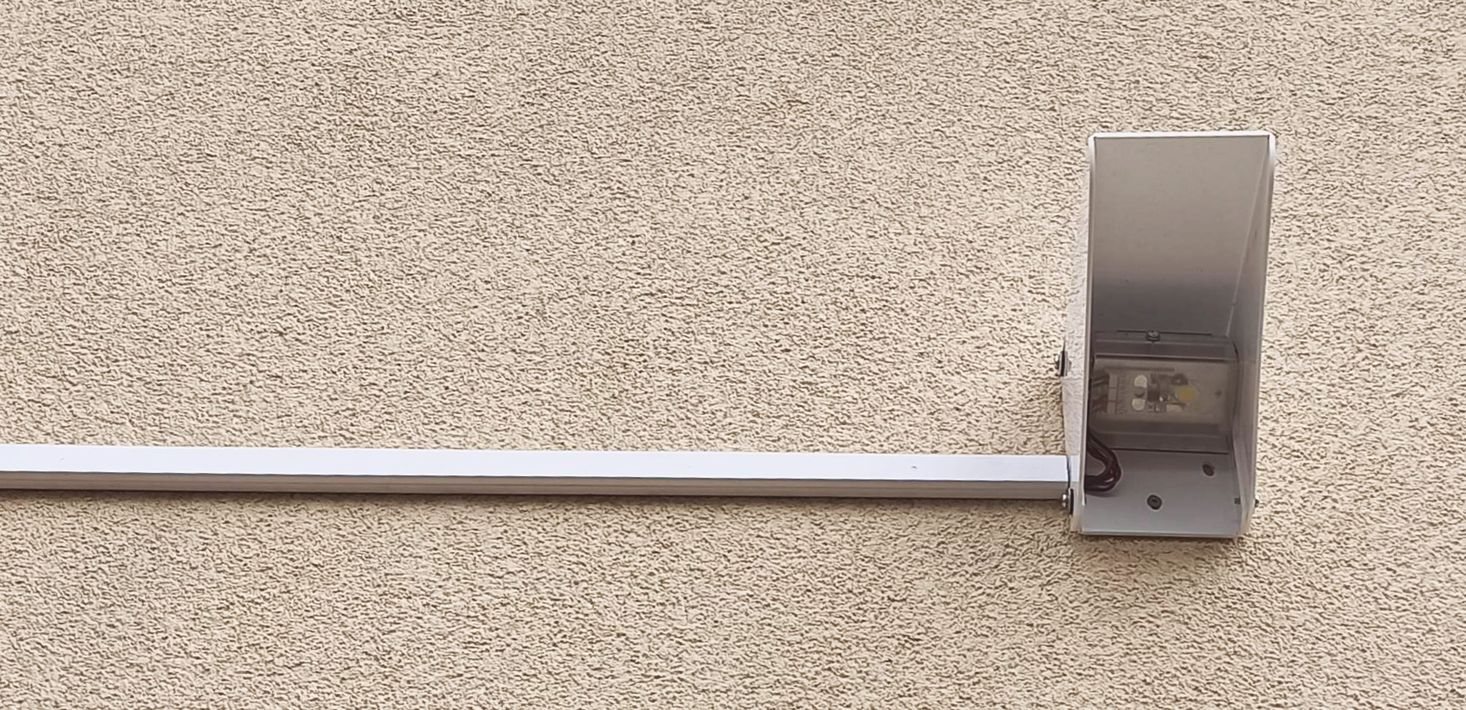

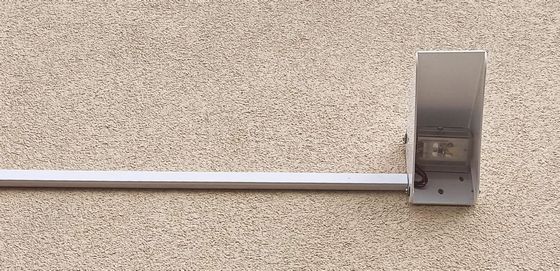

This model has block terminals able to connect large cables, allowing chain connecting several 24VDC appliances from one to another. Only one being connected to the power supply.

Other variants can contain up to 3 LED modules, up to ± 24W or ±2800lm. See also the same model with 3 modules

This model is rainproof, NOT waterproof..

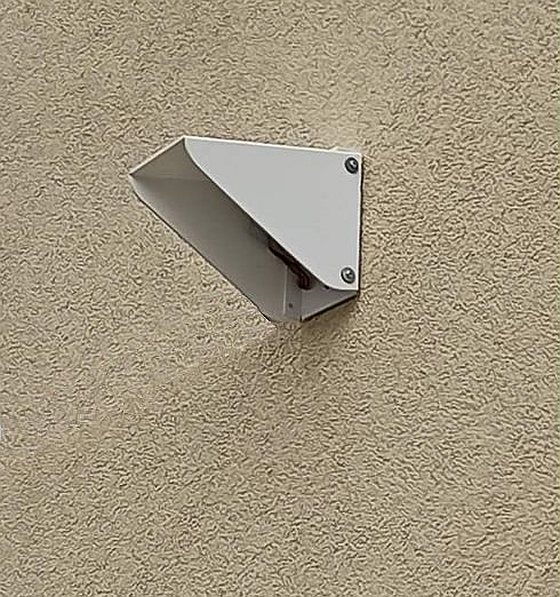

It can be installed outside, in accordance with instructions, without additional protection.
It can not be installed under water or where big quantity of water can spill or splash horizontaly, and regularly, for example where it can be hit by waves from the sea or very close to the surface of a swimming pool.
If the power supply is located inside a dry cabinet or a building, then there is no risk of electric shock or electric leakage in the case the internal components of the lamp would be in contact with water.

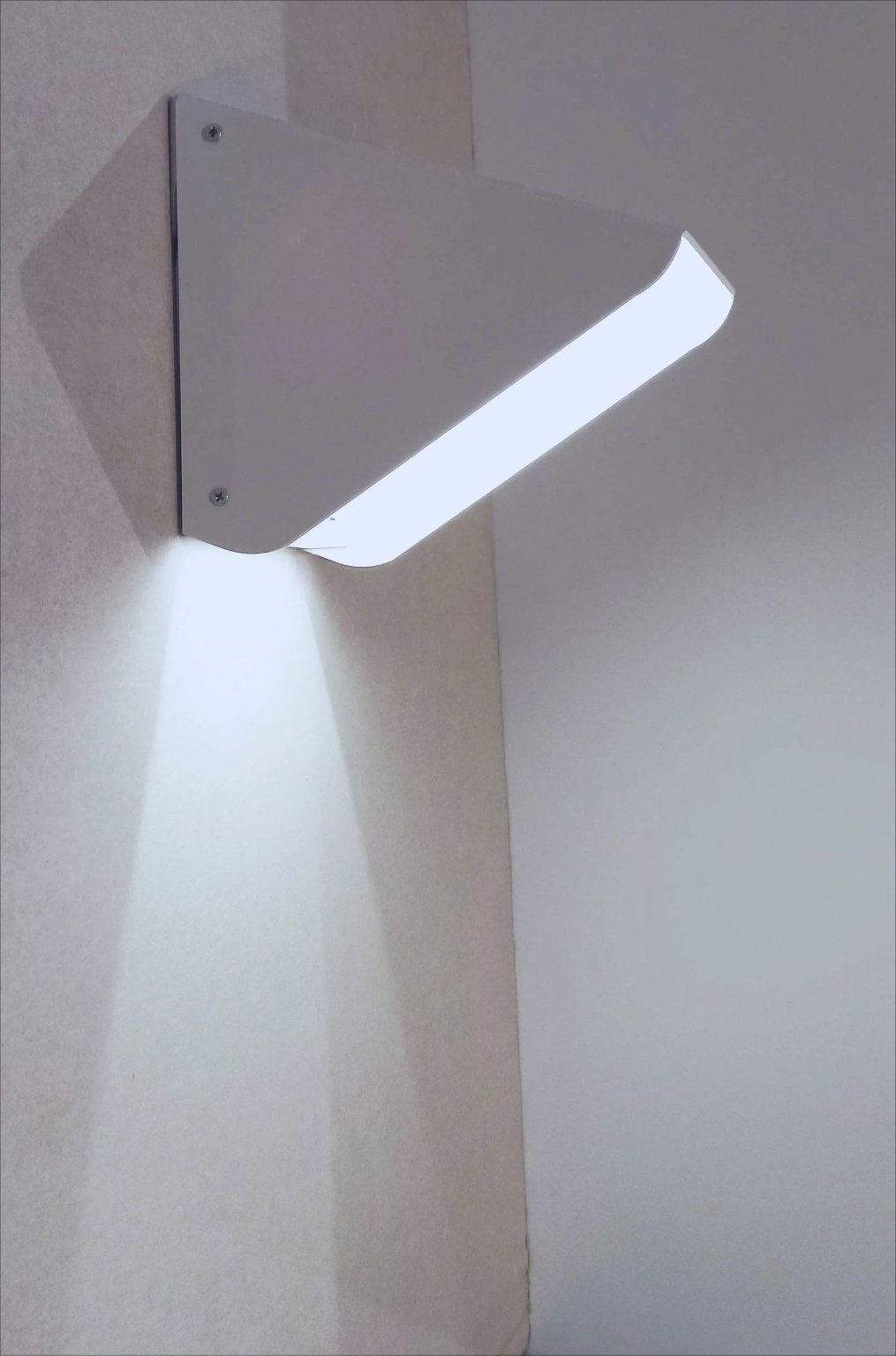

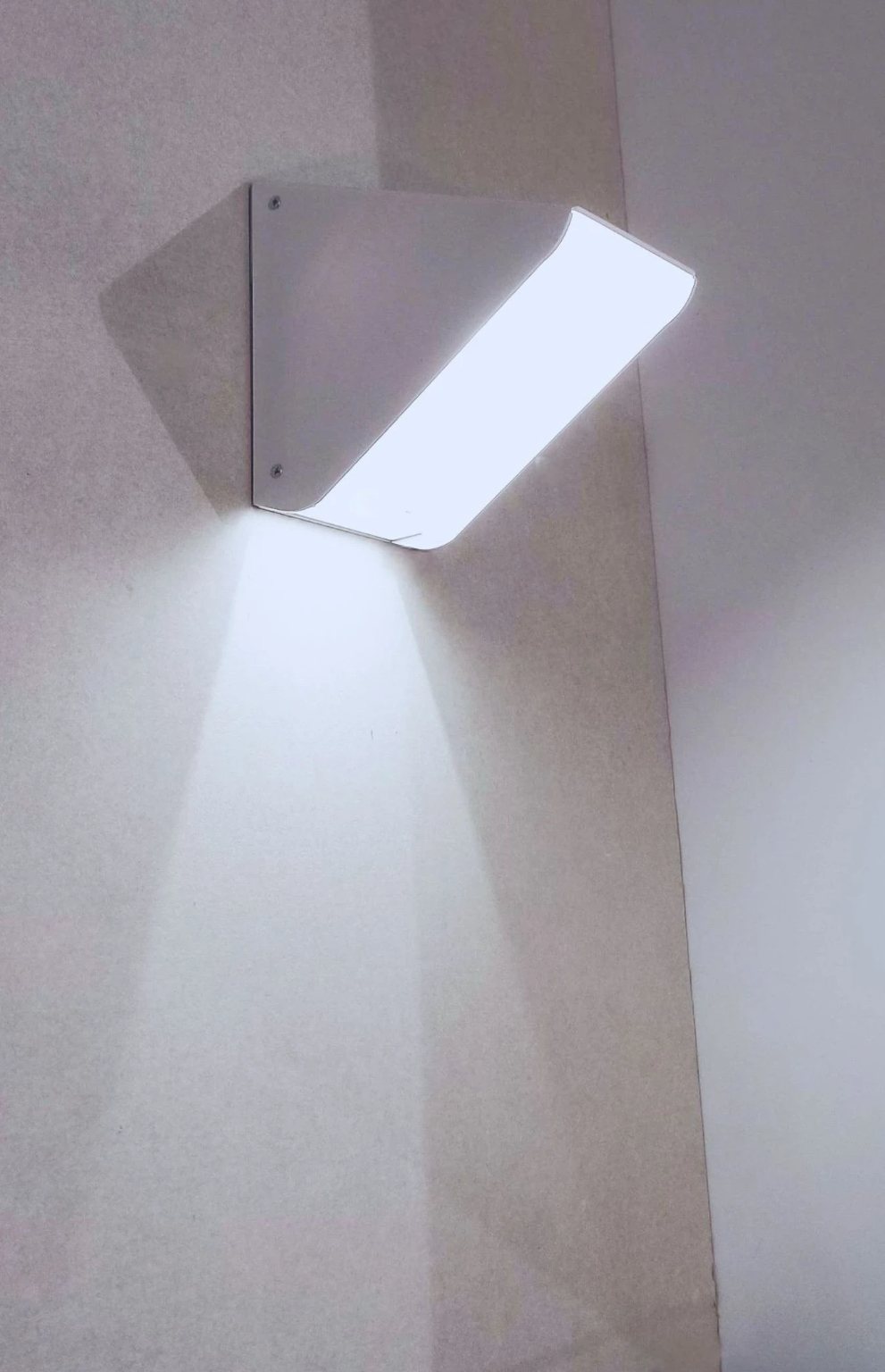

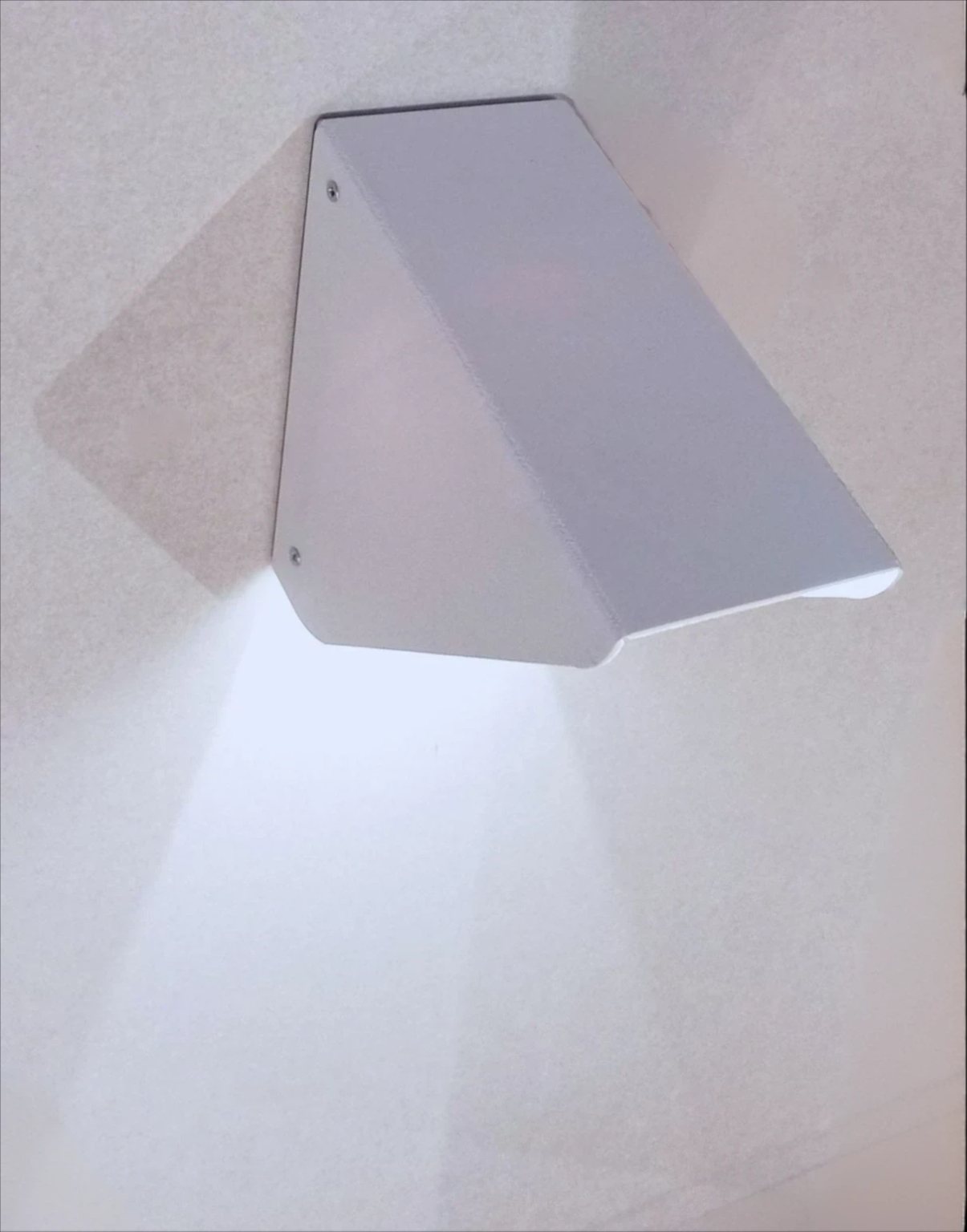

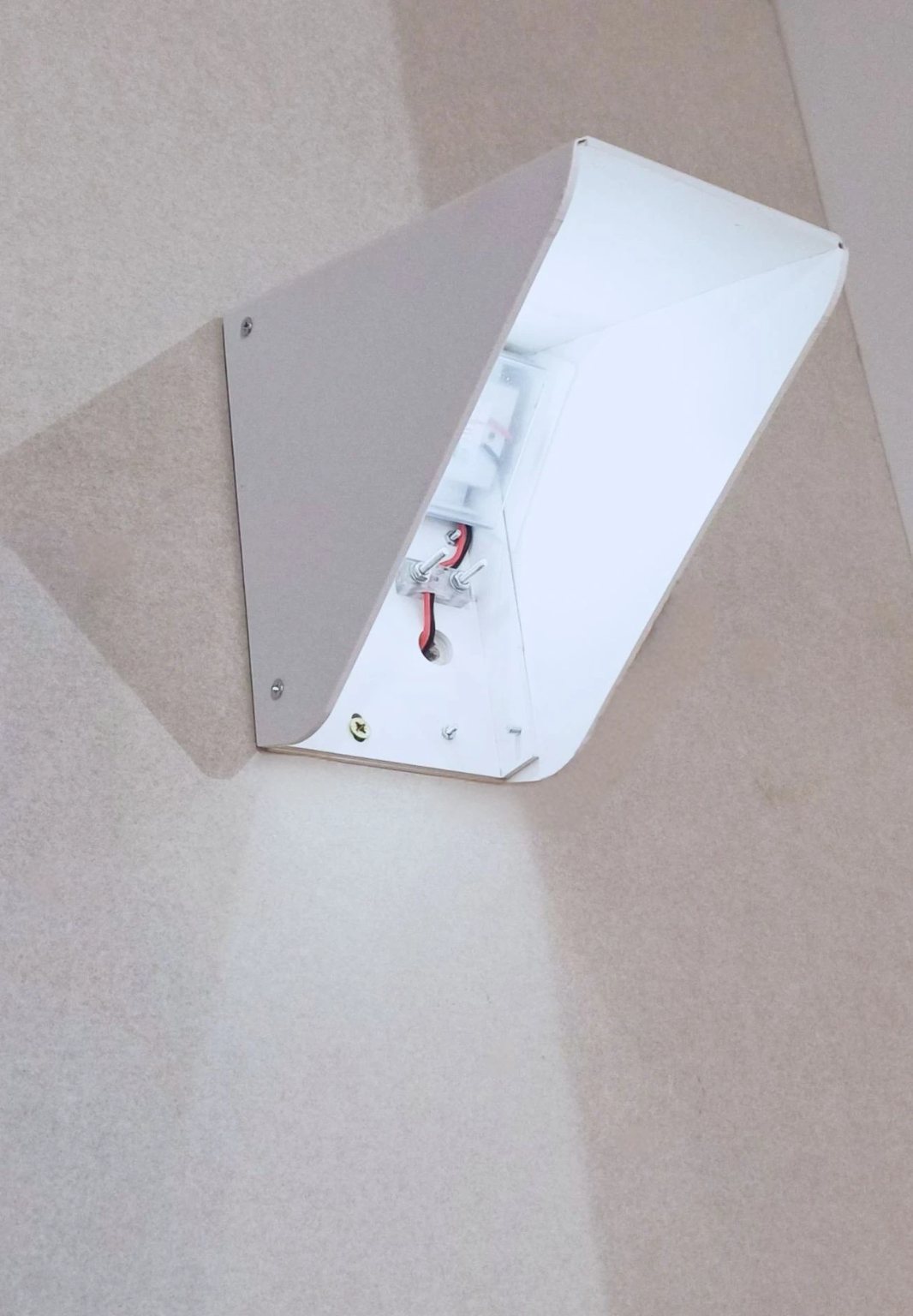

The model shown here has 1 LED module, ± 8W or ±960lm.
It's typically adjusted between 6W (600 lm) and 10W (1200 lm).
