HAGE LED
D e s i g n

Outdoor lamp with 3 LED modules and a white PMMA (Plexiglass) cover. It doesn't include a power supply. It has to be supplied with 24VDC current from a power supply located in a safe location, preferably inside a building. The concept is to separate potentialy hazedous 240VAC from all light appliances and switches located outside.
This model has block terminals able to connect large cables on both sides, allowing chain connecting several 24VDC appliances from one to another. Only one being connected to the power supply.

It can contain up to 3 LED modules, up to ± 24W or ±2800lm. It's typically adjusted between 16W (1920 lm) and 30W (3600 lm).
See also the same model with 1 module
This model is rainproof, NOT waterproof..
It can be installed outside, in accordance with instructions, without additional protection.
It can not be installed under water or where big quantity of water can spill or splash horizontaly, and regularly, for example where it can be hit by waves from the sea or very close to the surface of a swimming pool.
If the power supply is located inside a dry cabinet or a building, then there is no risk of electric shock or electric leakage in the case the internal components of the lamp would be in contact with water.

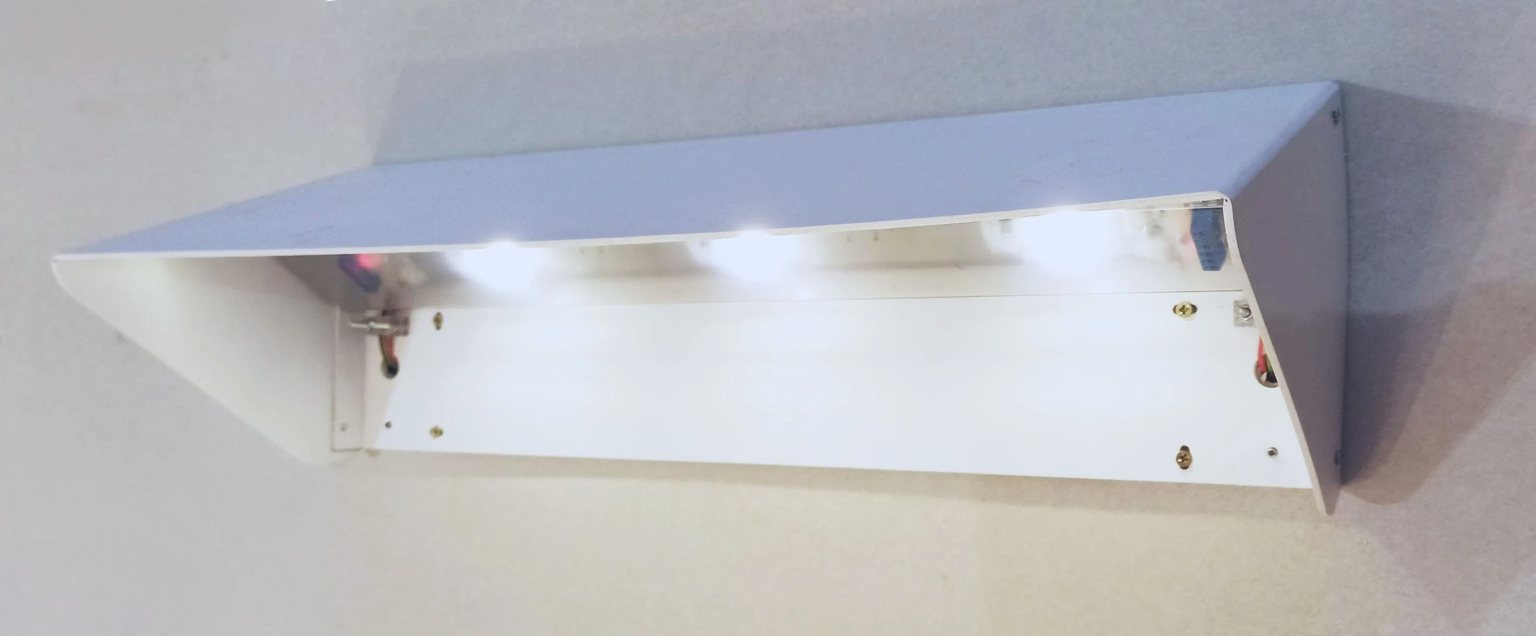

The model shown here has 3 LED modules (± 24W or ±2800lm).

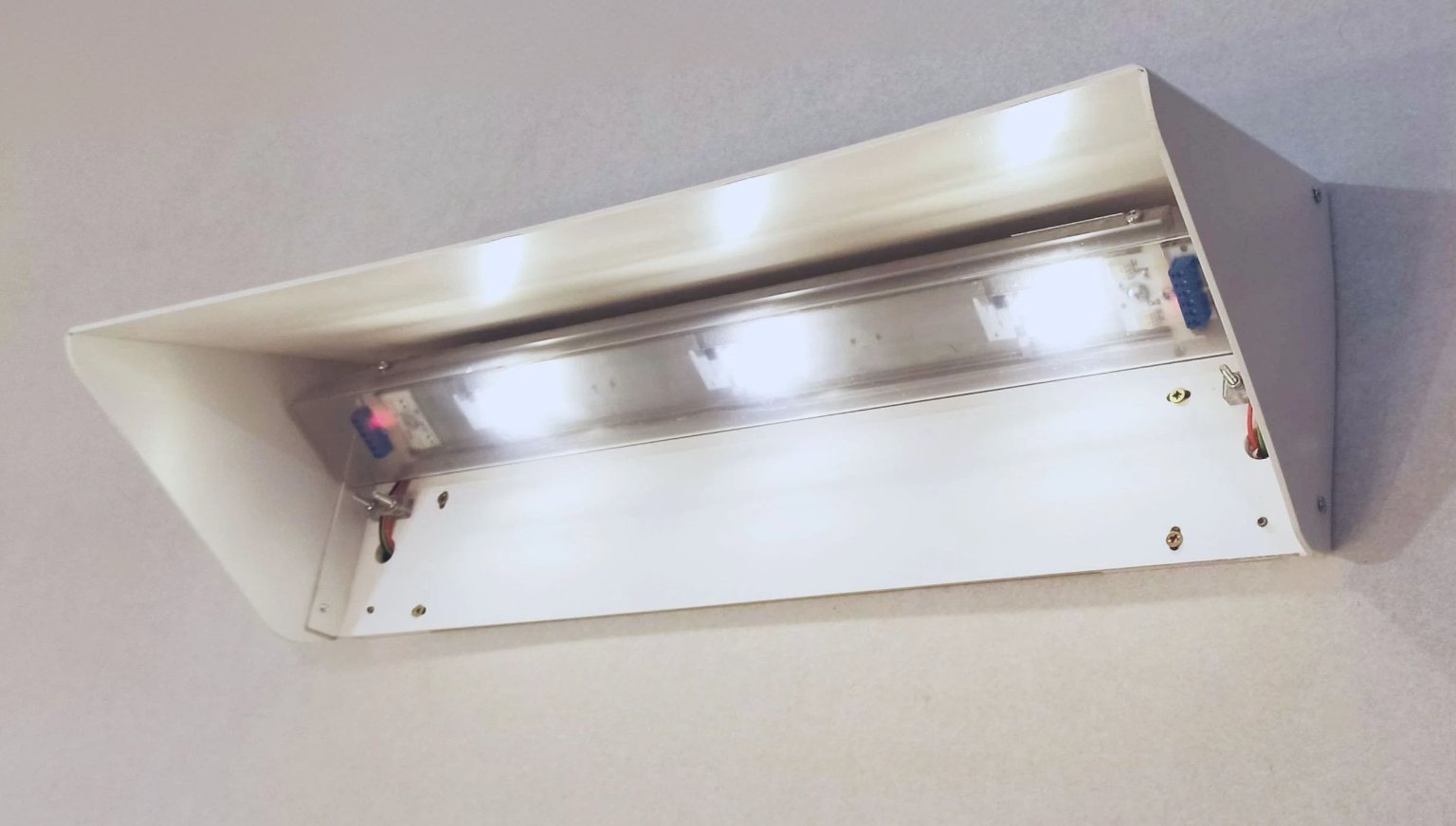

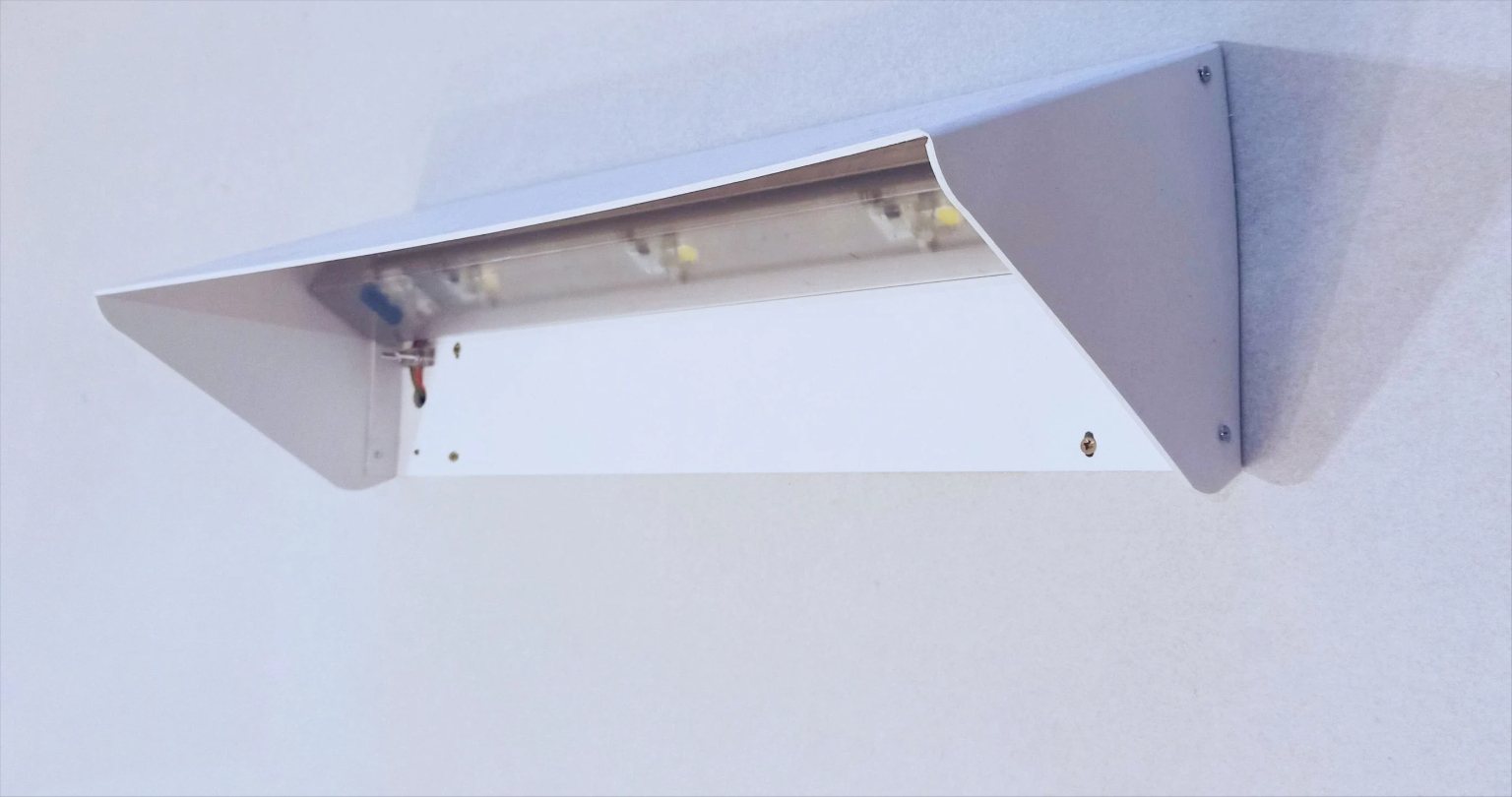

The next two pictures shows the LED modules under the hood.

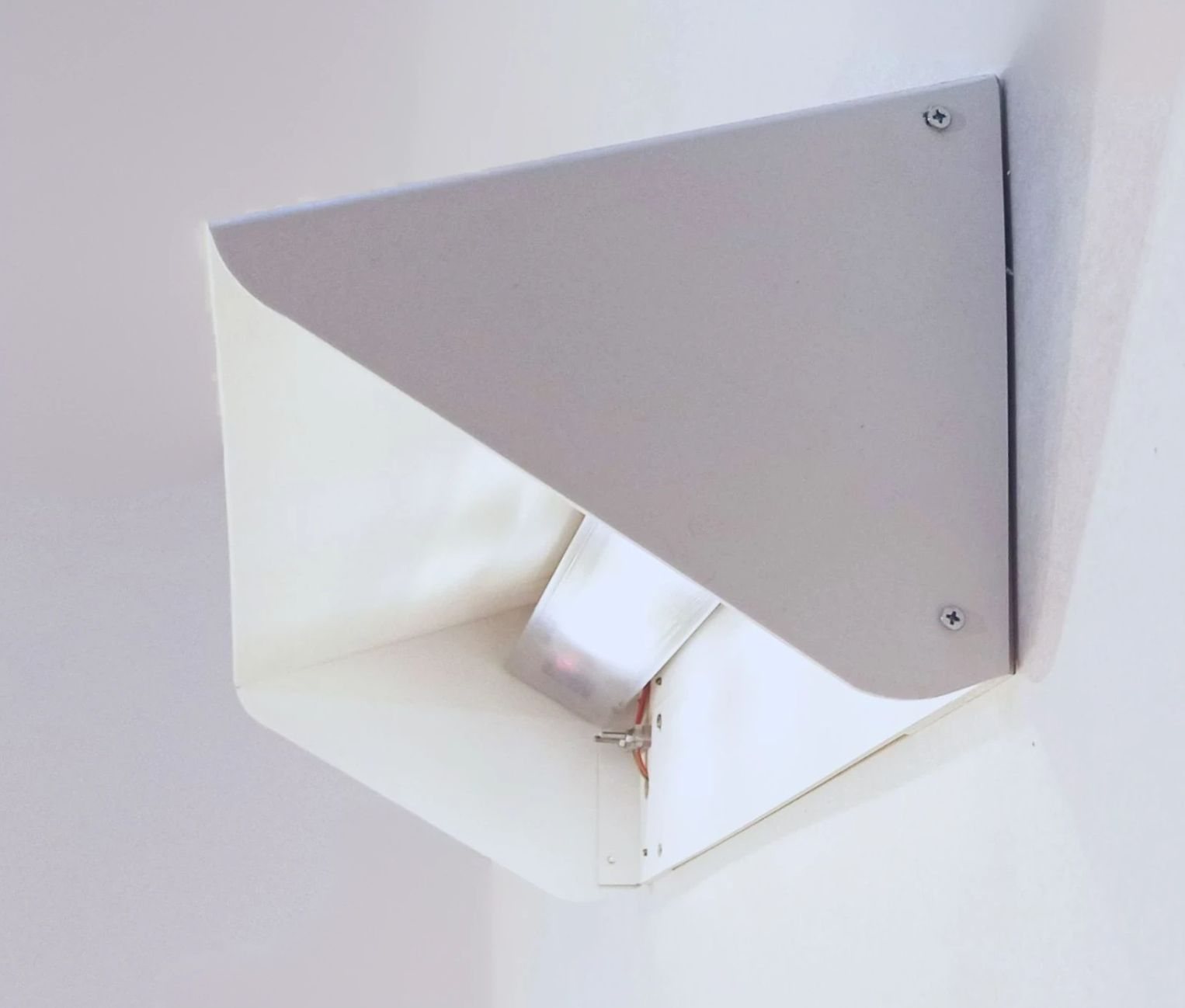

View from below. This can be visible when installed in a high location.

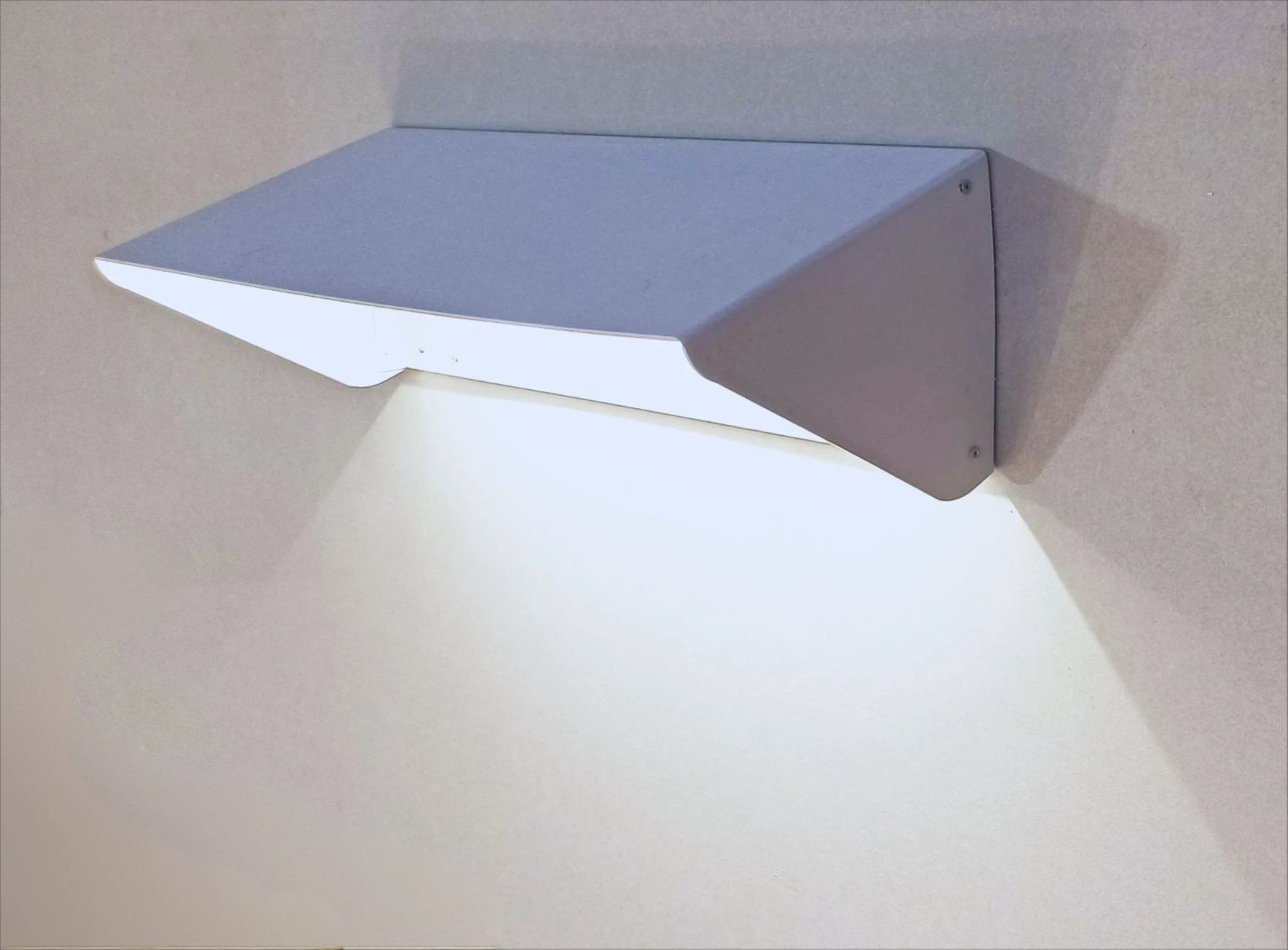

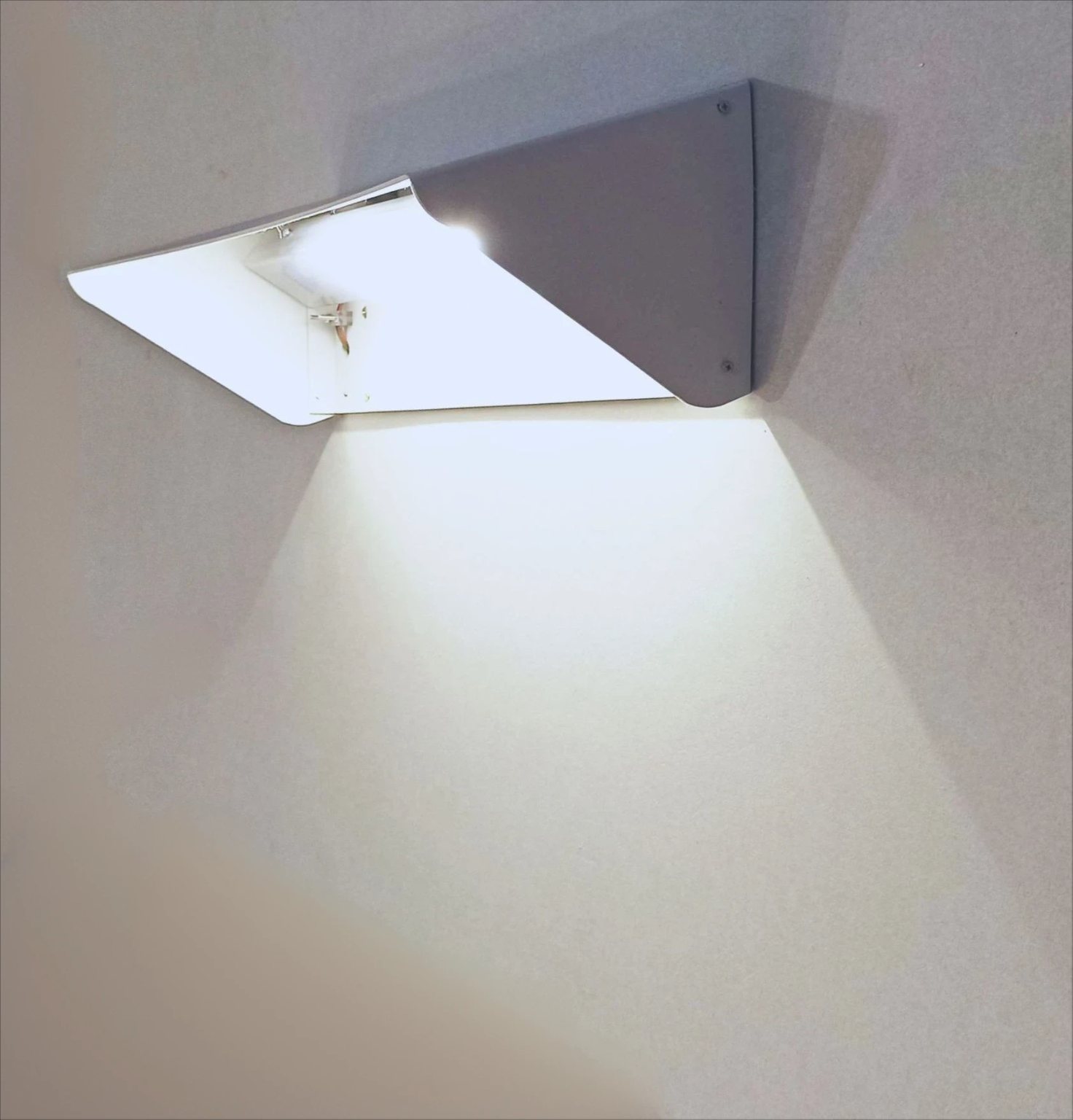

View from the side.
