LR1 HAGE Led design

Single LED modules are small appliances working only on 24VDC and don't include a 240VAC to 24VDC power supply, The poser supply has to be installed separately in a box or inside another appliance. It's possible to connect several module or more complex appliances together on a single power supply. The only limitation being the maximum current the power supply can give.

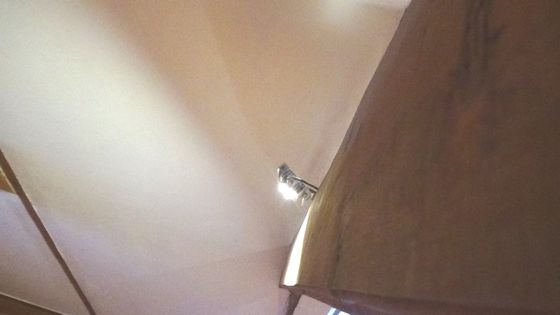

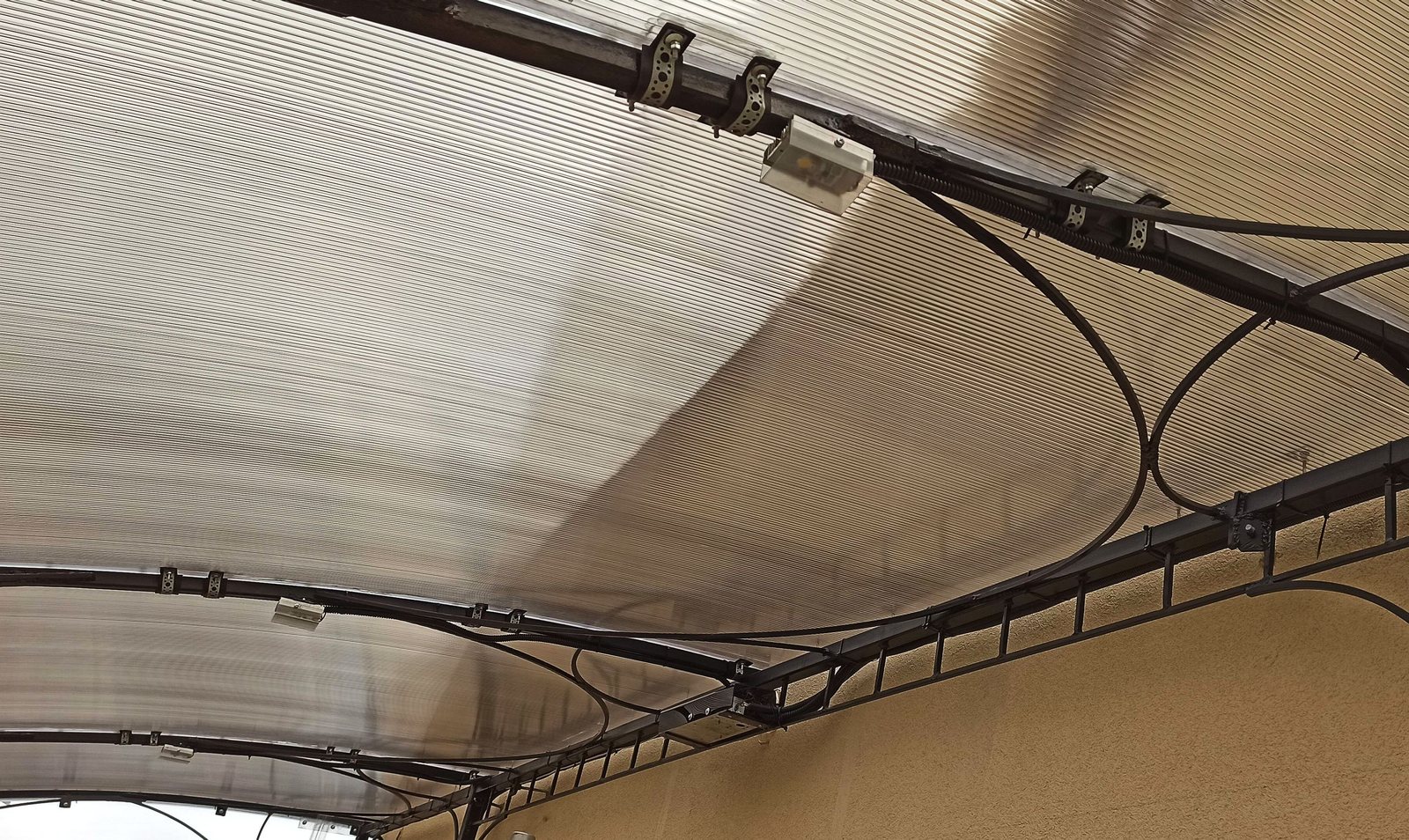

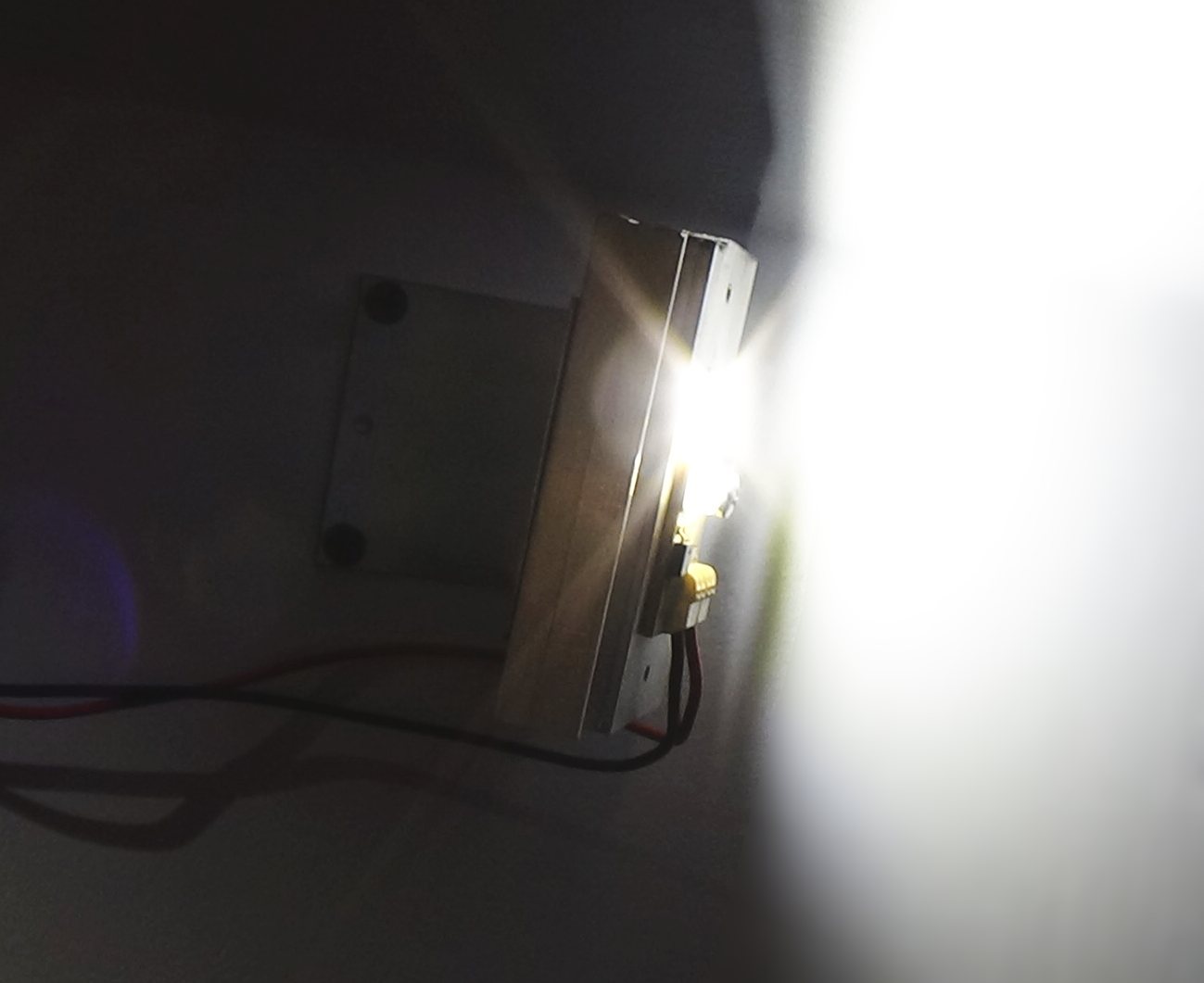

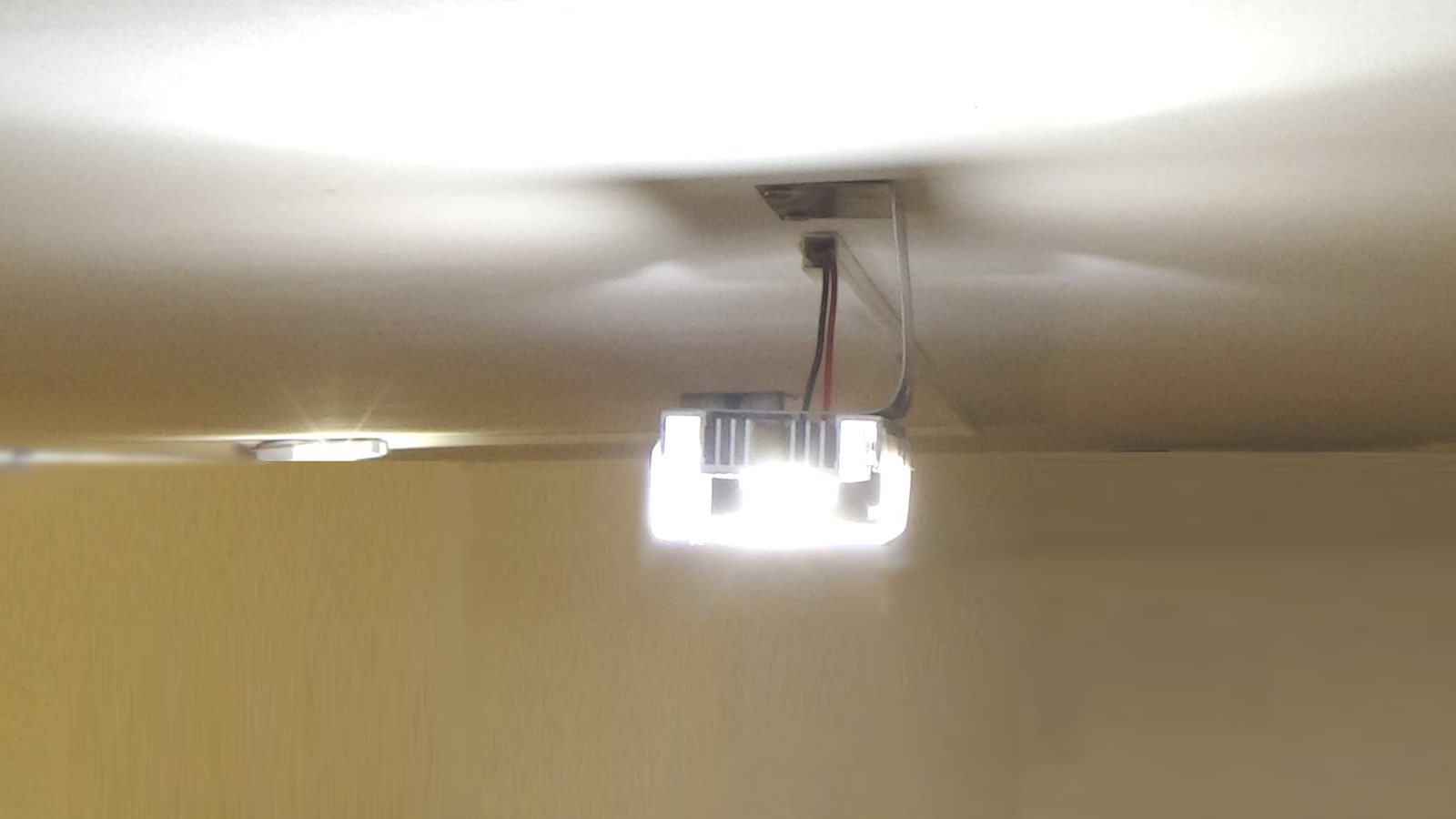

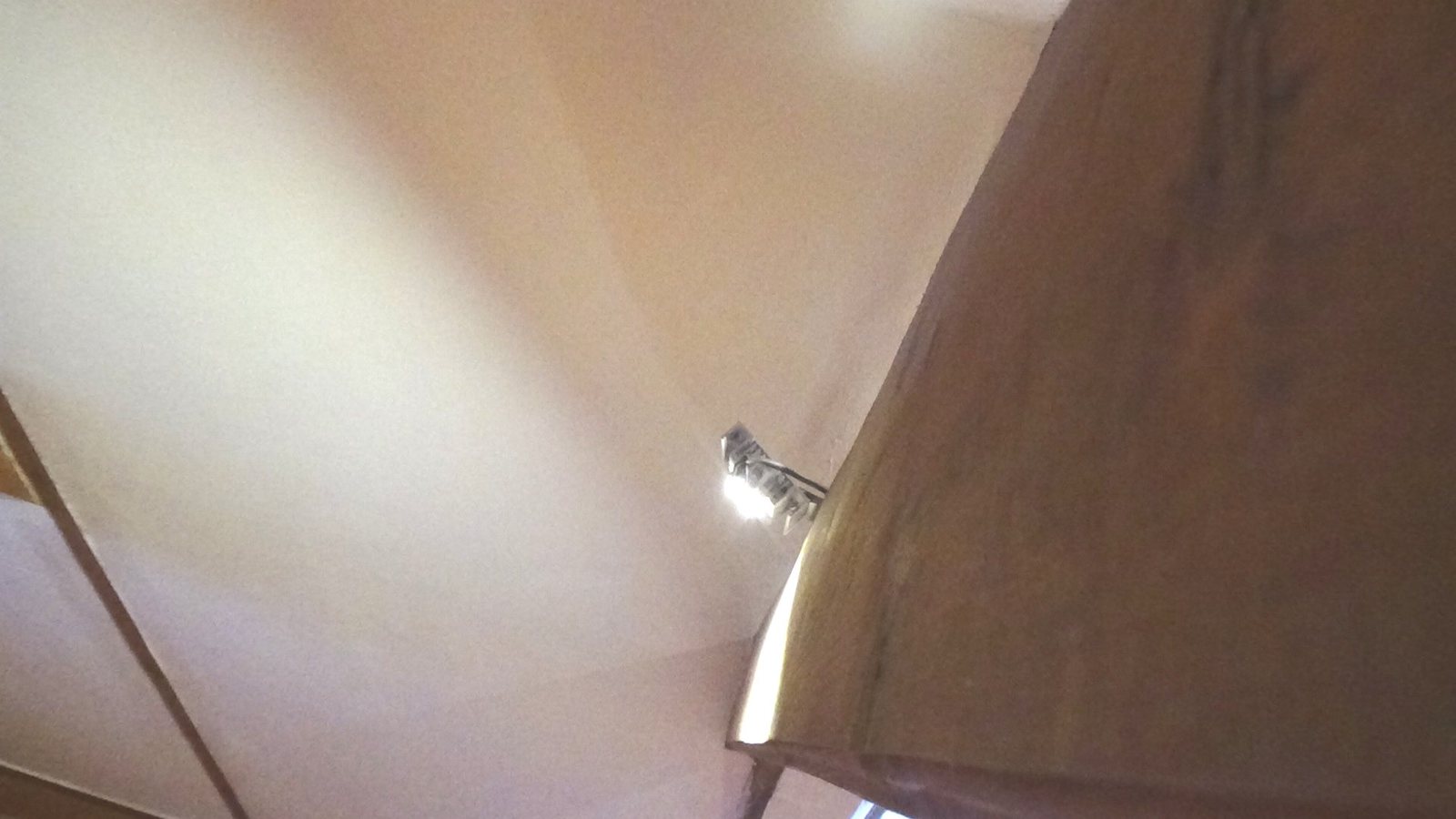

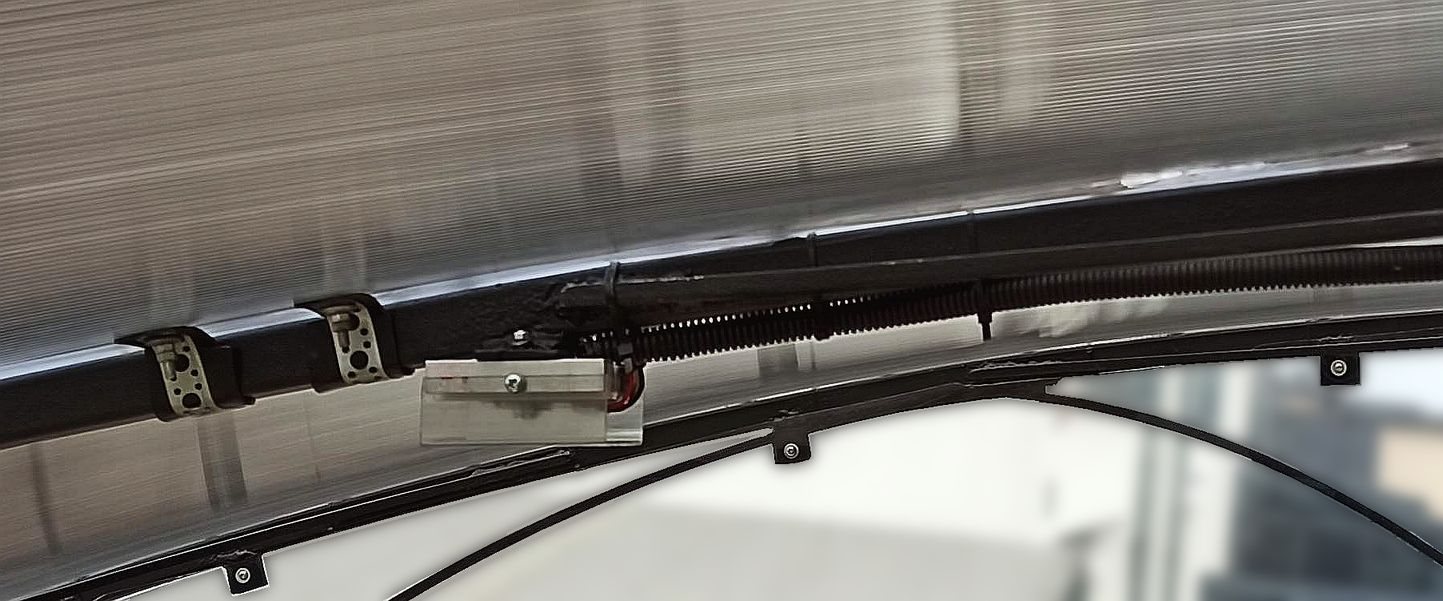

These modules are perfect for lighting installation where spots are hiden or not oriented directly toward people. Their visual impact on interior design is minimal, even barely noticeable, despite they relatively high power.
When spots are oriented toward people or require a minimum of protection, a cover can be added. There are many cases when a cover is not necessary.

It's typically adjusted between 6W (±720 lm) and maximum 10W (±1200 lm. Normal use is 8W (±960 lm) but the power supply can be regulated to output more or less light and to consume more or less current.

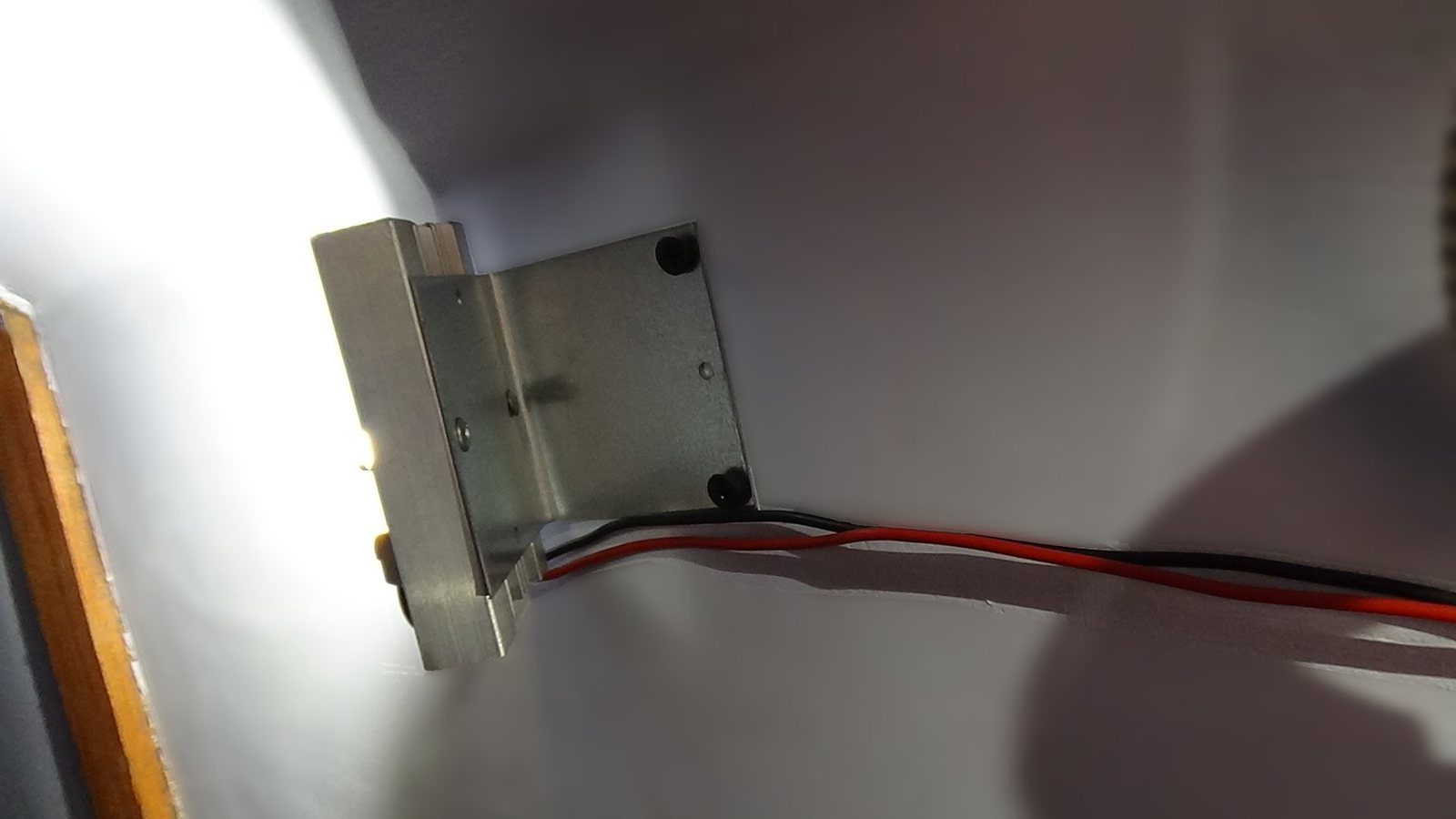

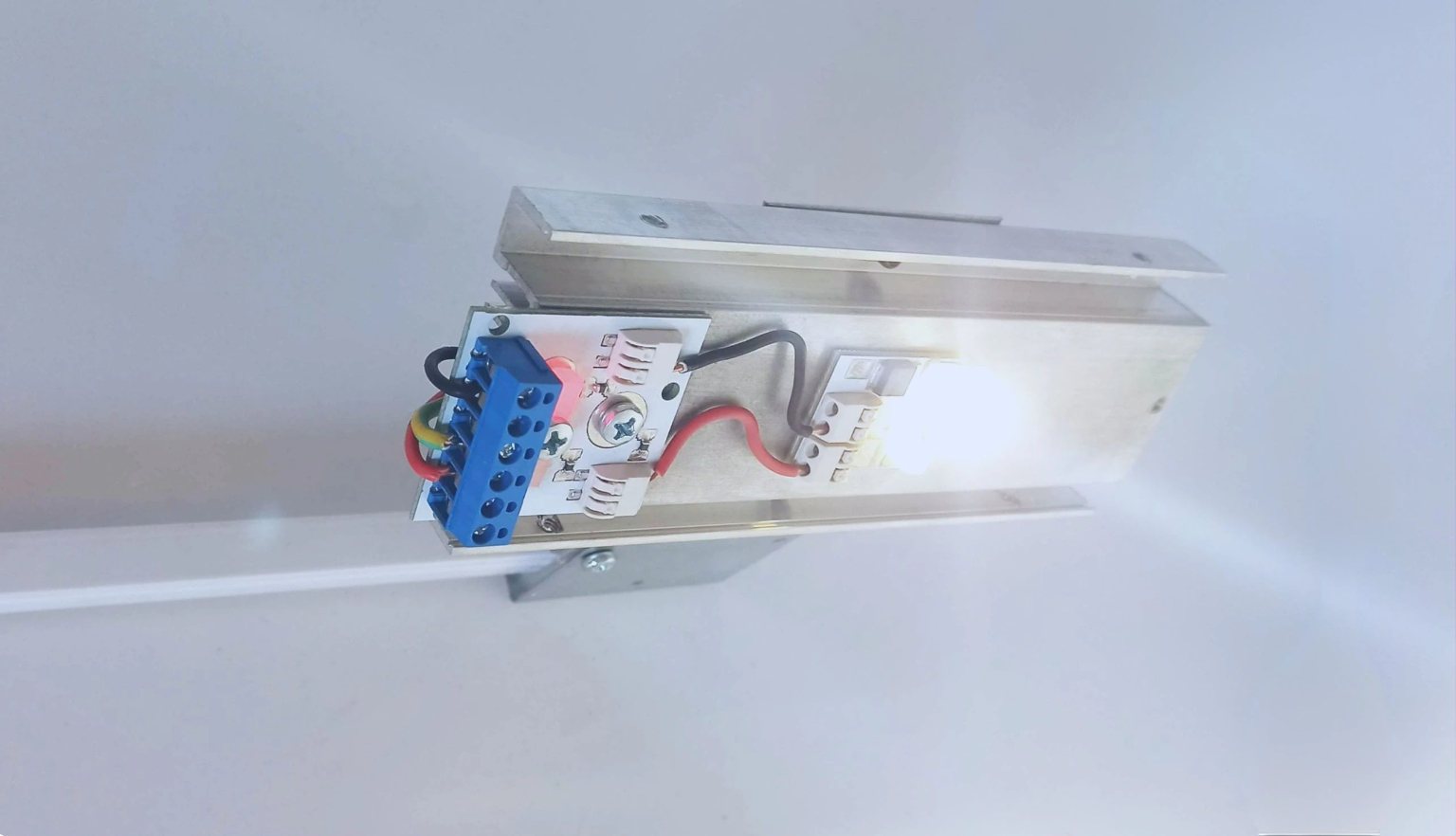

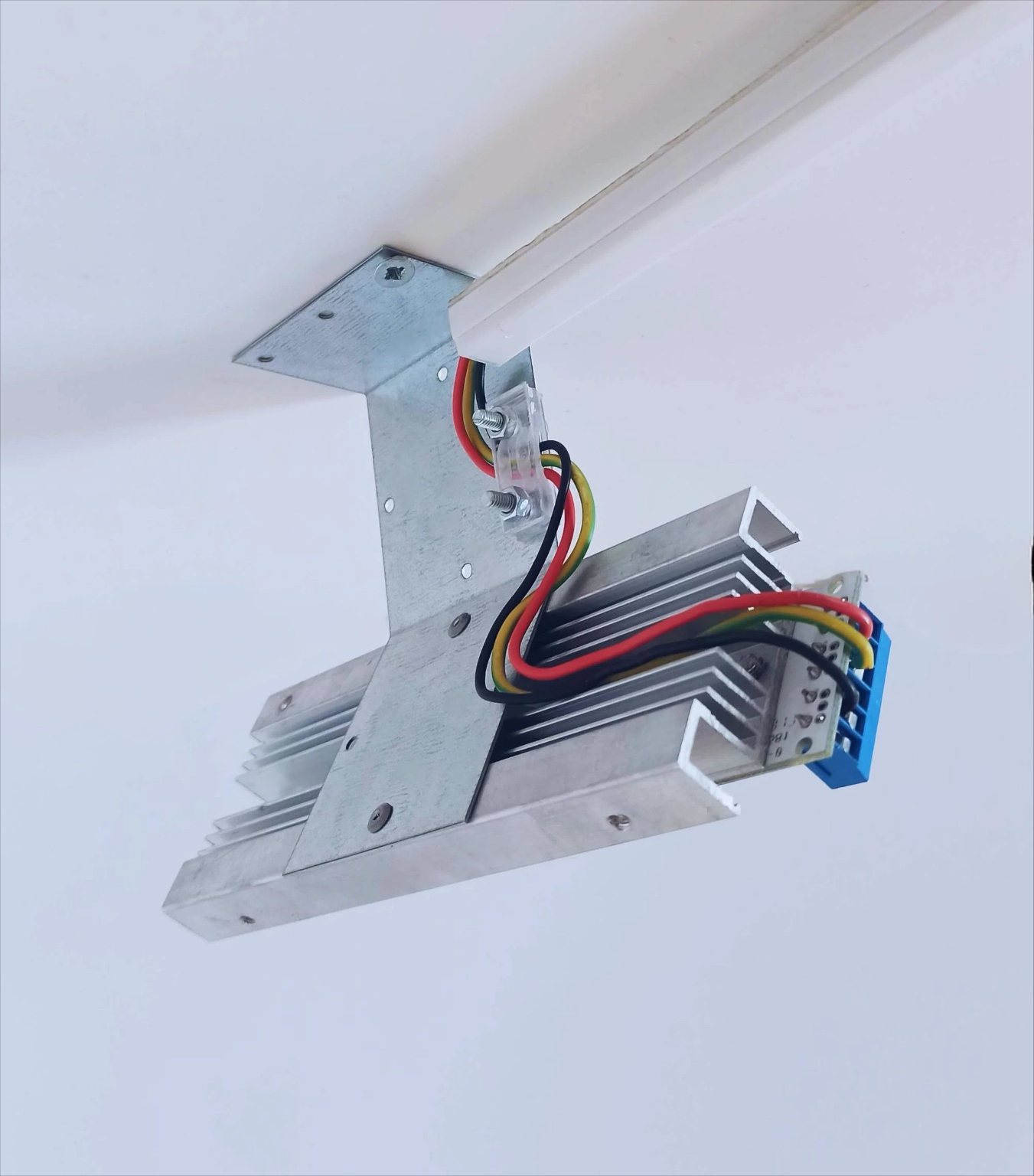

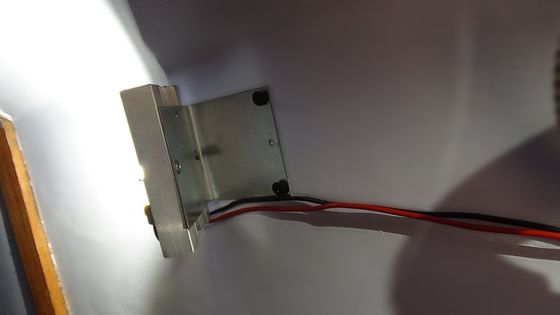

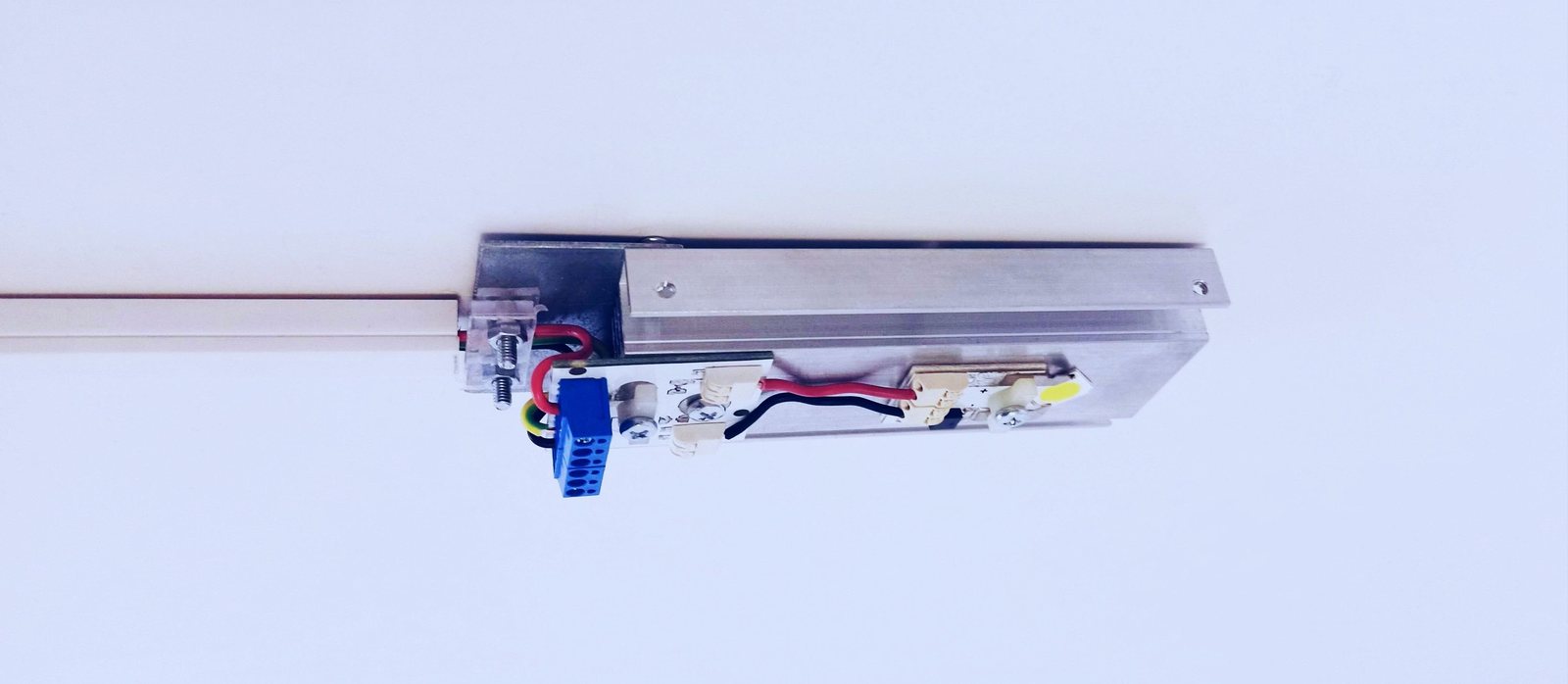

It's made of an aluminium heatsink and a steel backet dustomized for the needs of the installation.
These modules can include an option to be turned on or off whith secondary switches.

Indoor use only. This model is not water proof. For outdoor use, a rain protection kit can be ordered on demand.

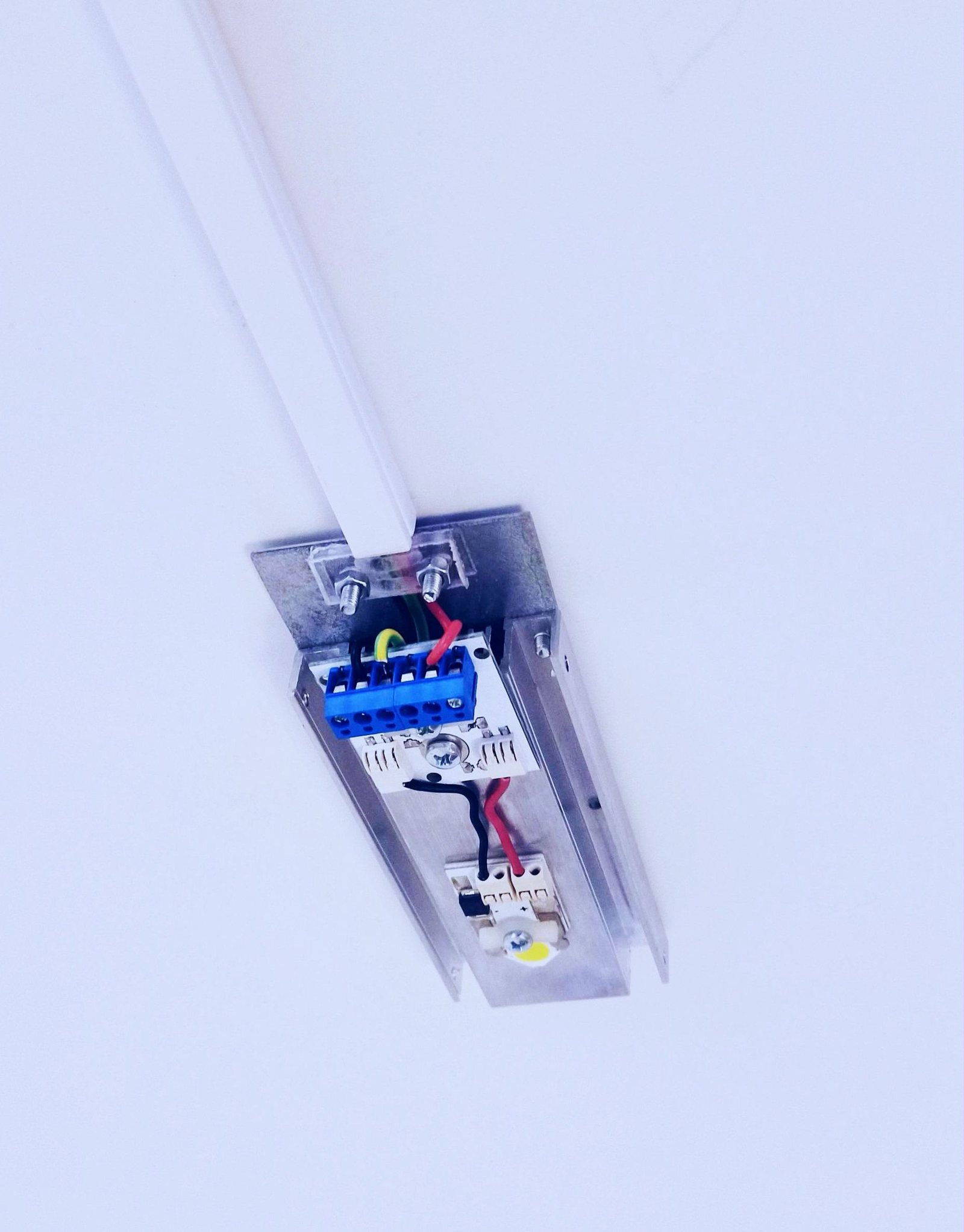

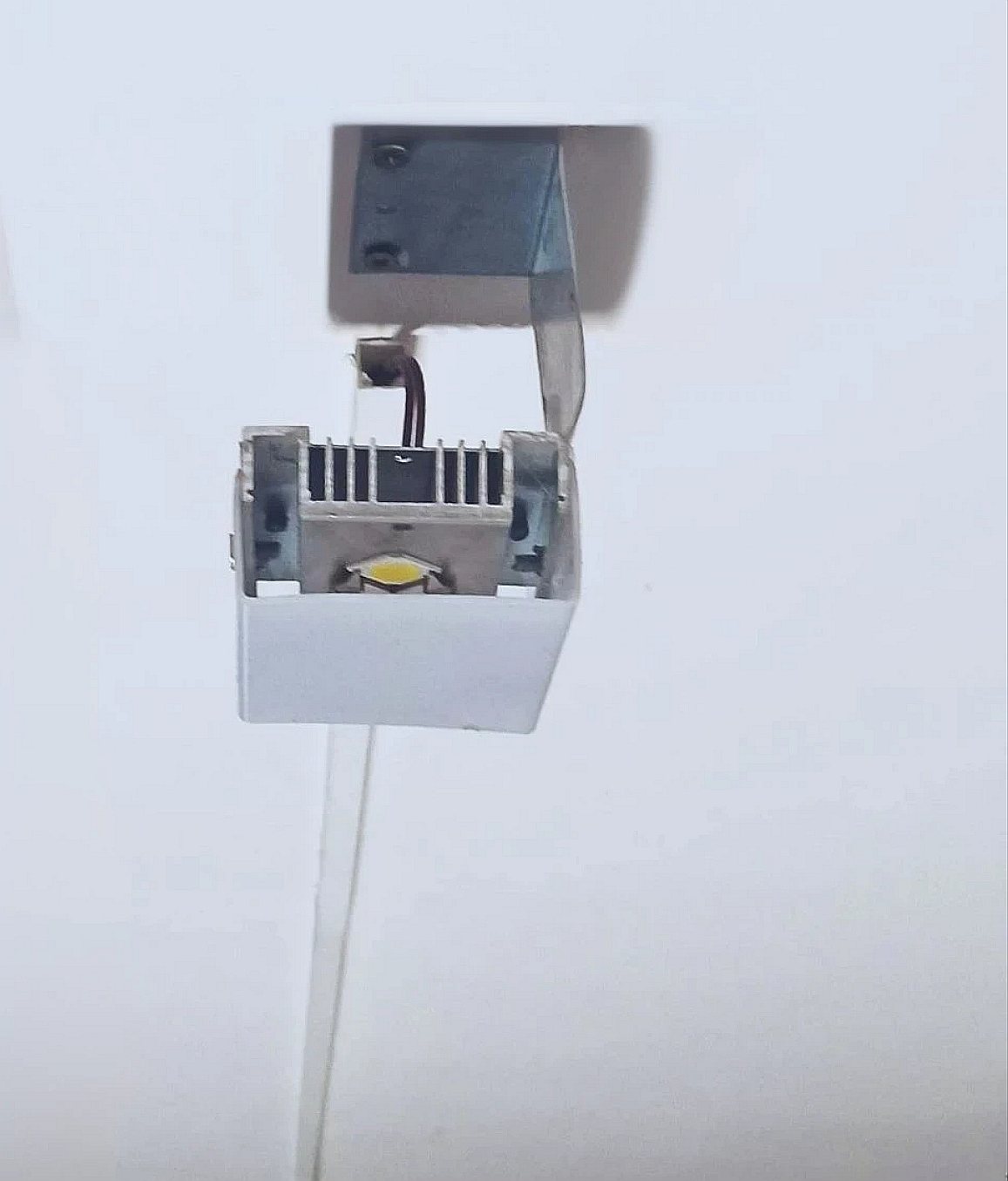

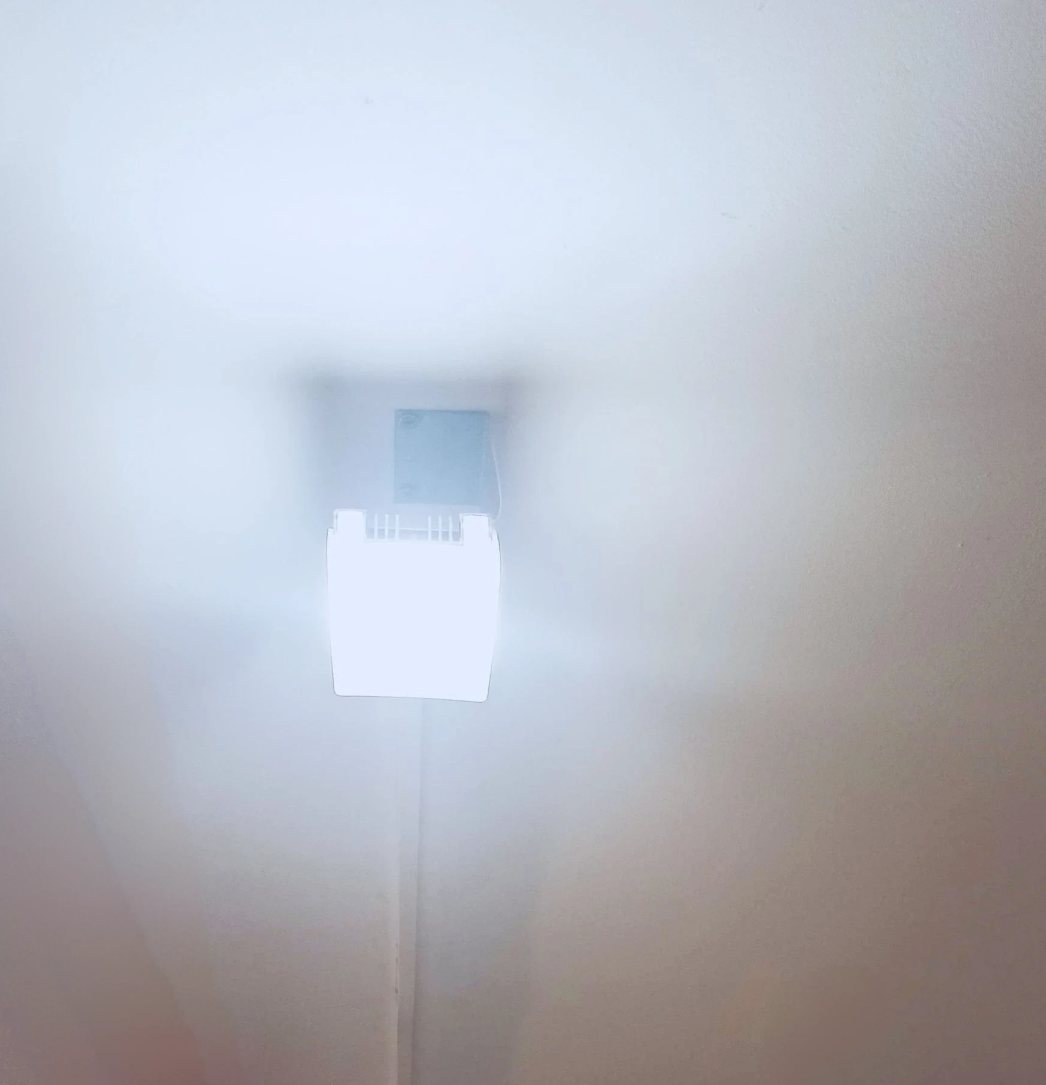

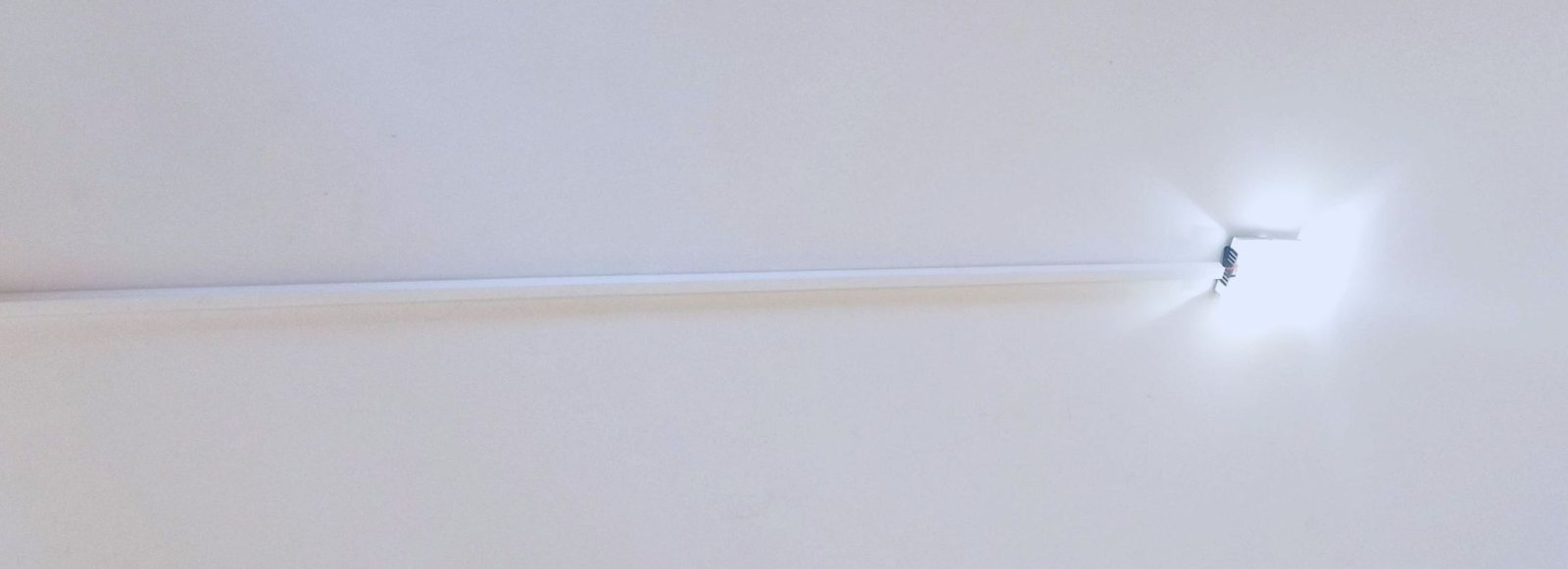

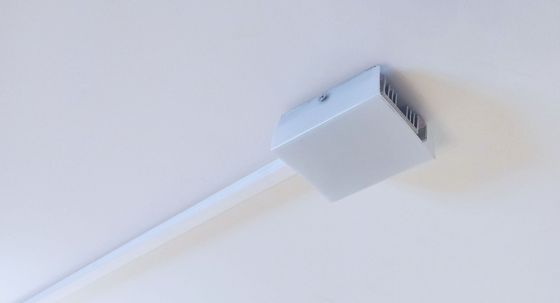

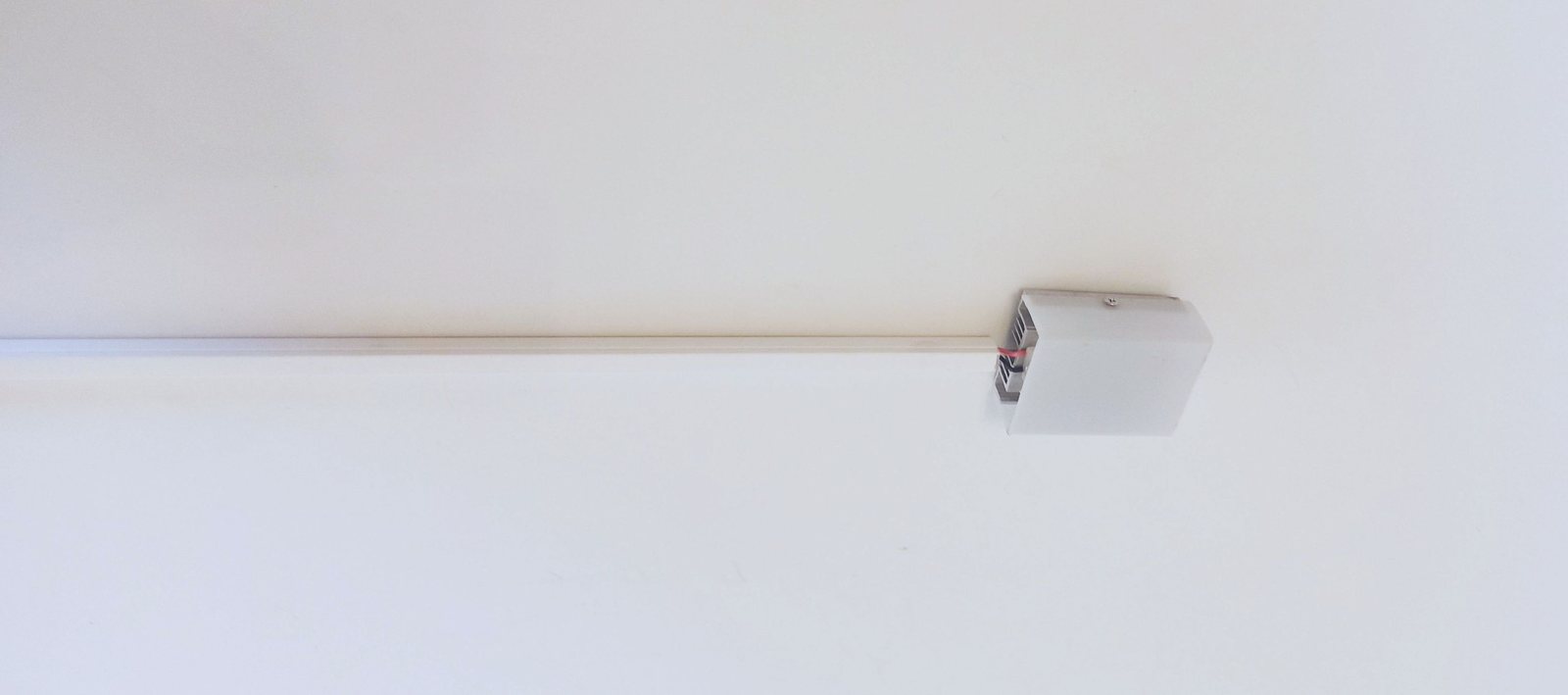

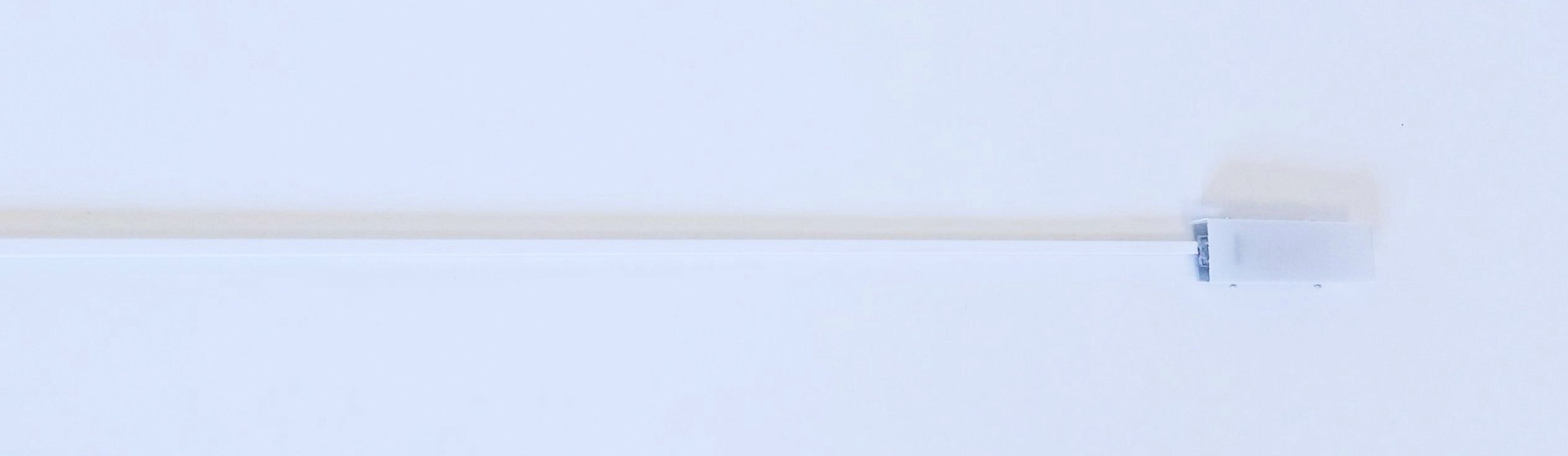

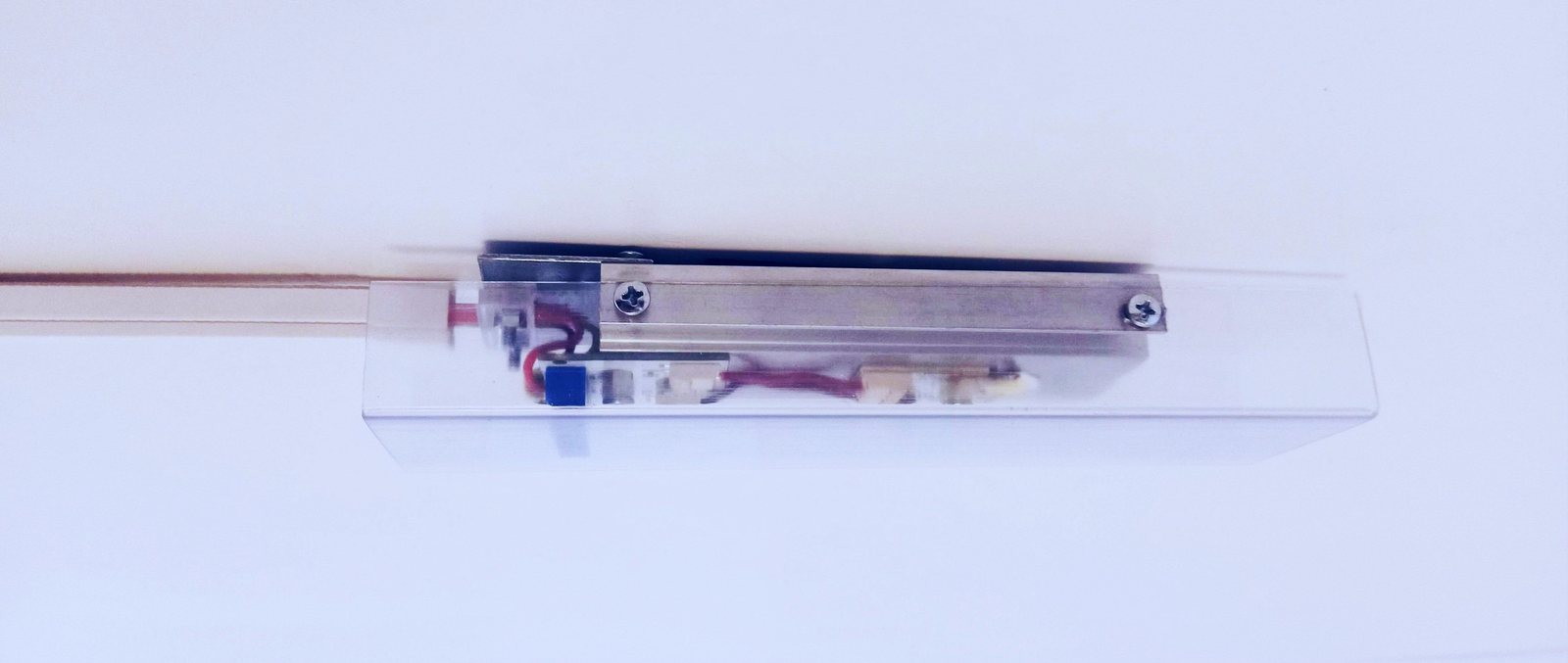

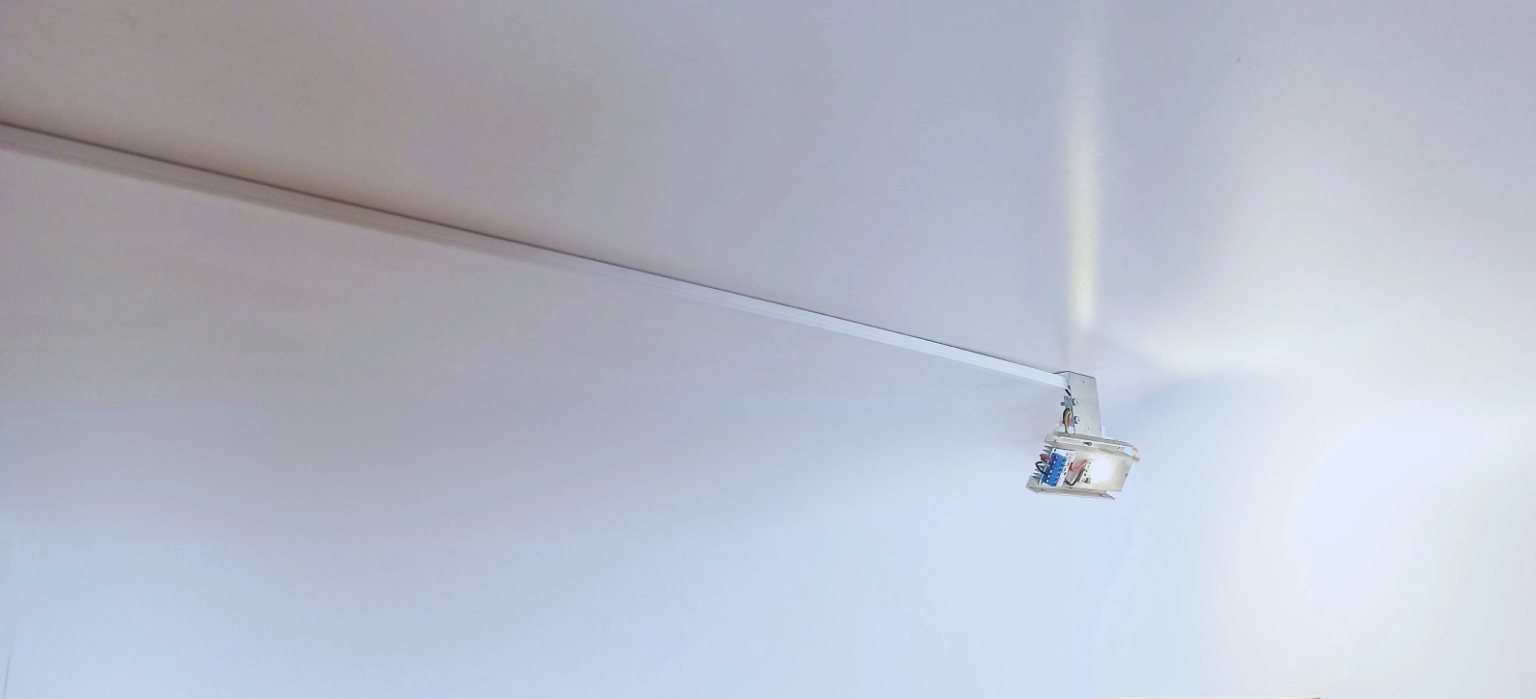

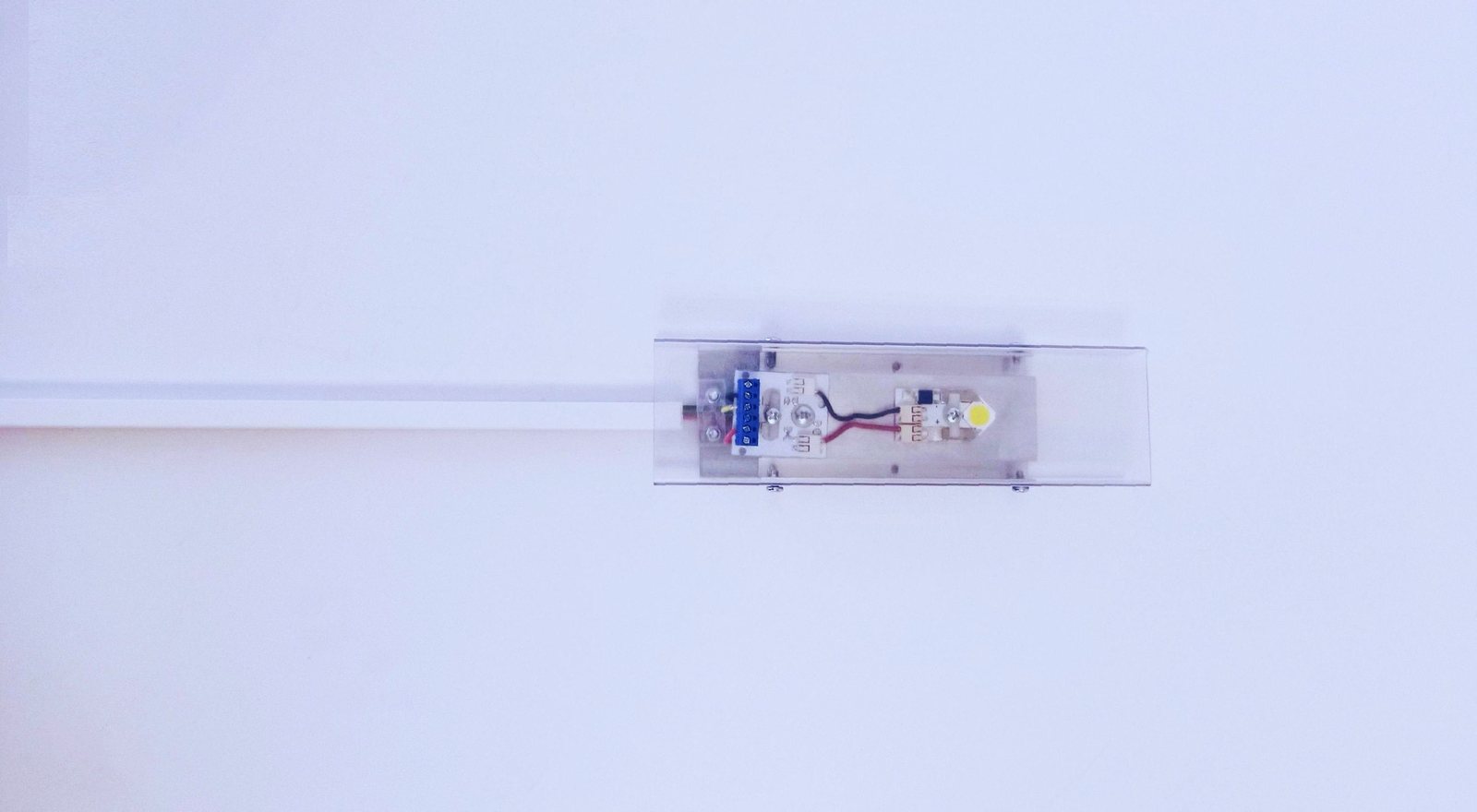

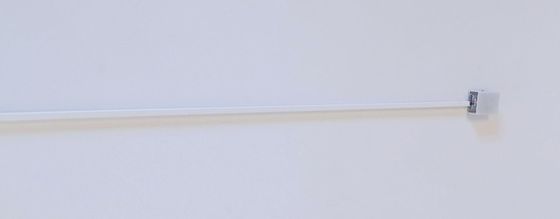

The pictures below show the basic LED module with the inexpensive rectangular PVC cover.
To see the other cover available look at LM1 Flat and LM1 Half Circle.

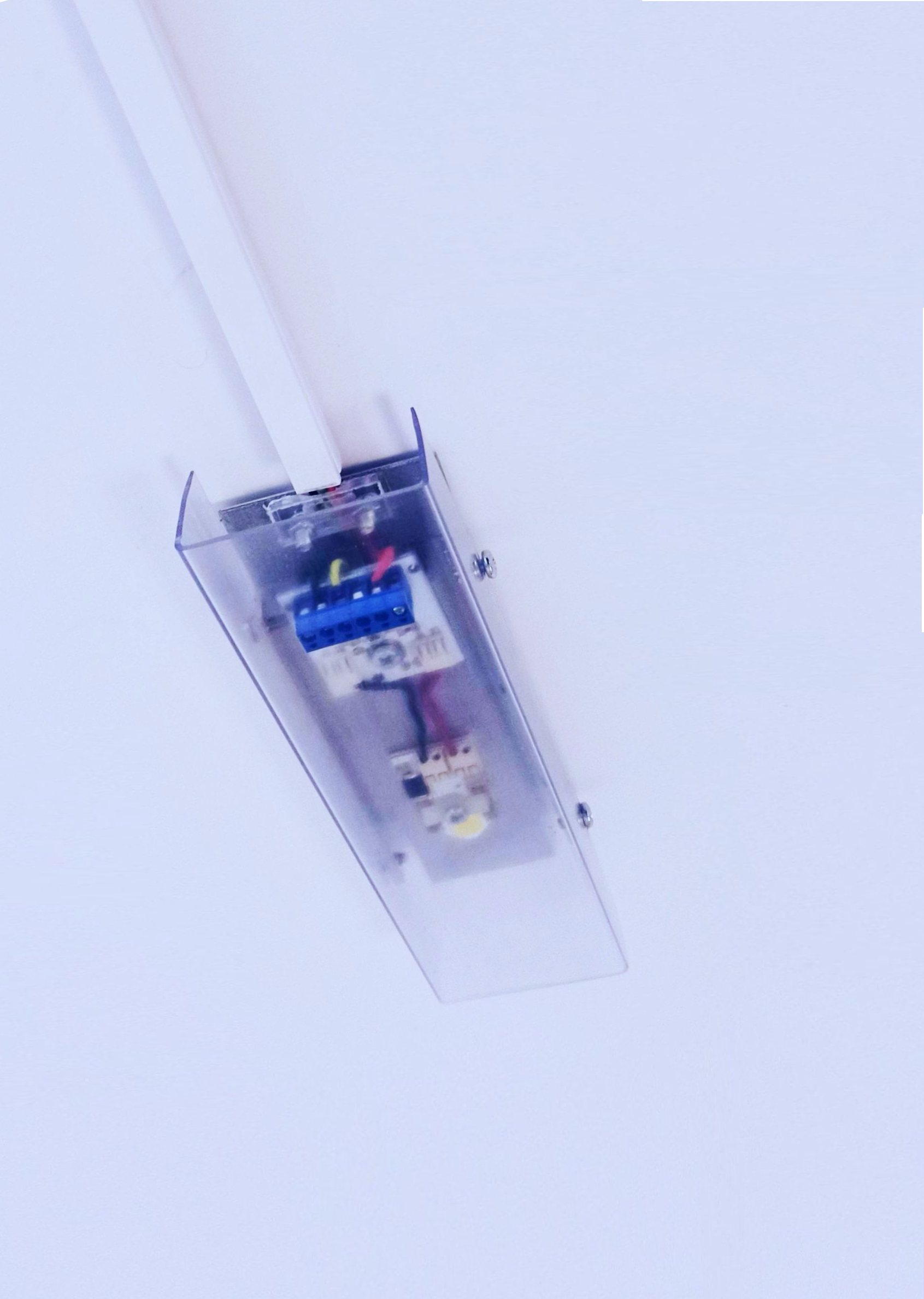

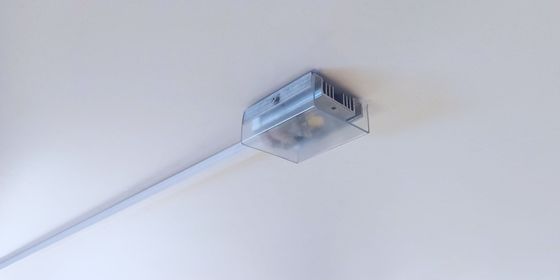

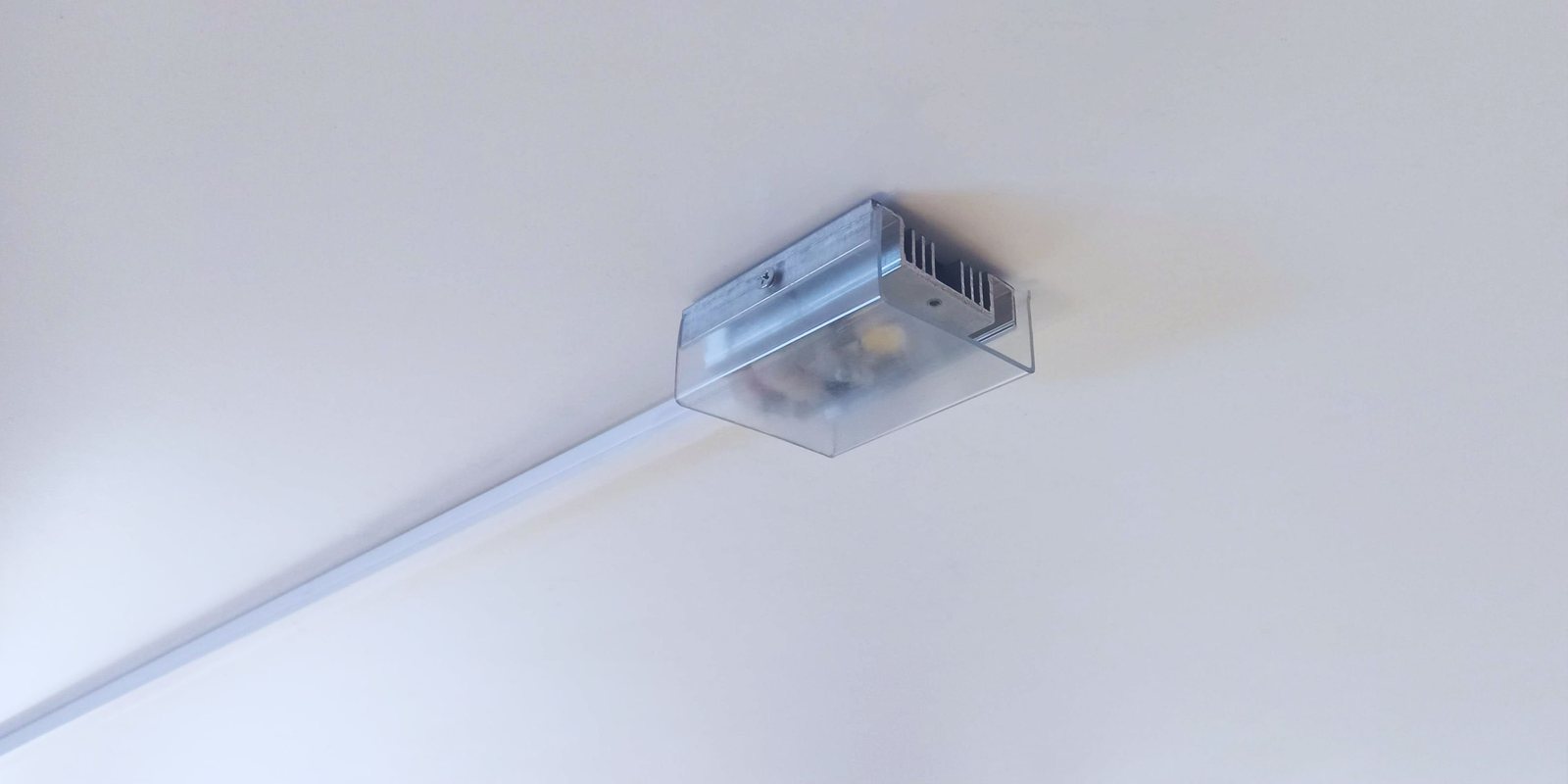

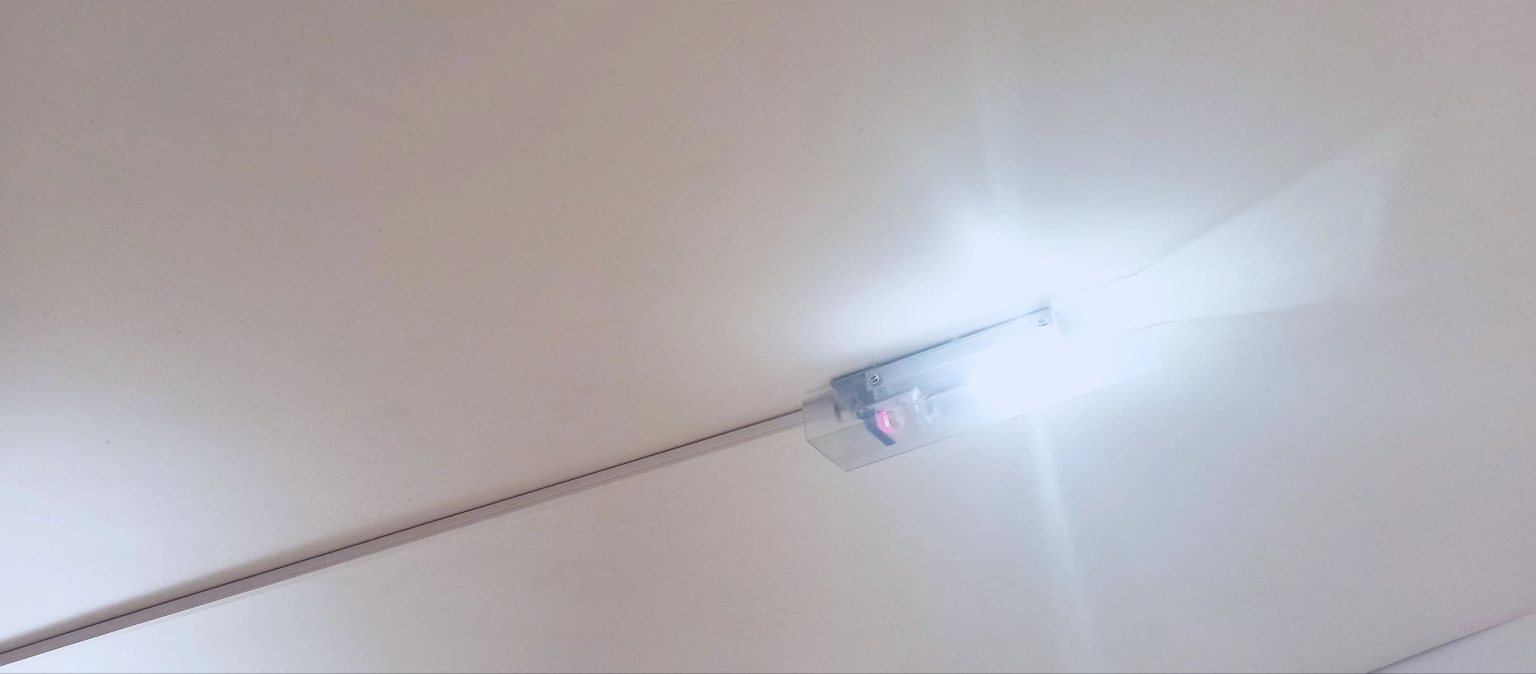

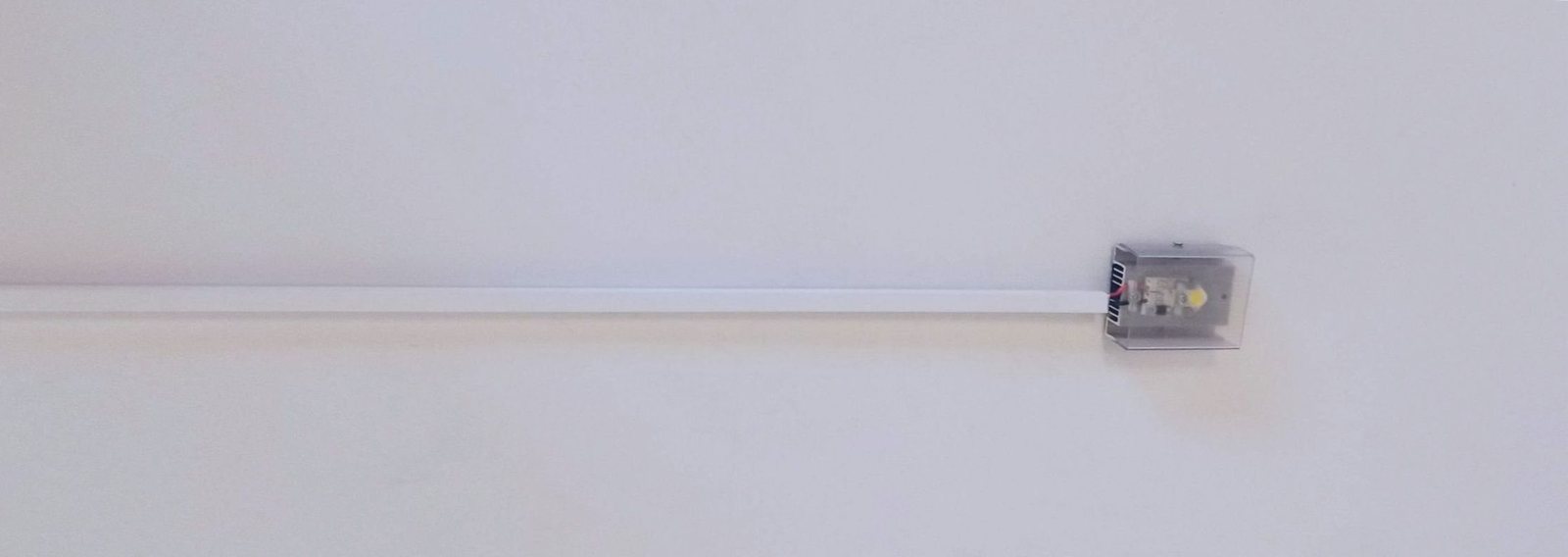

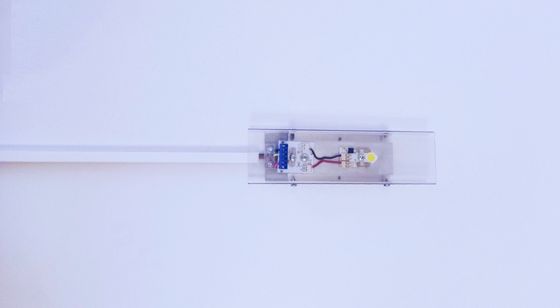

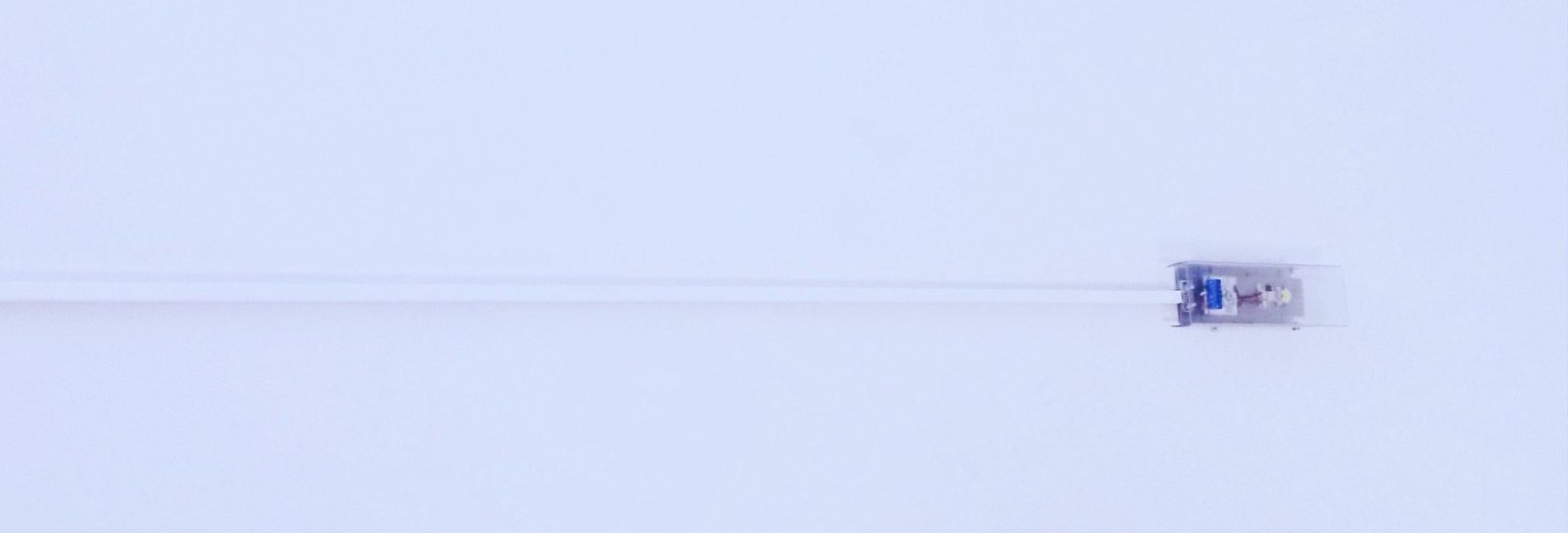

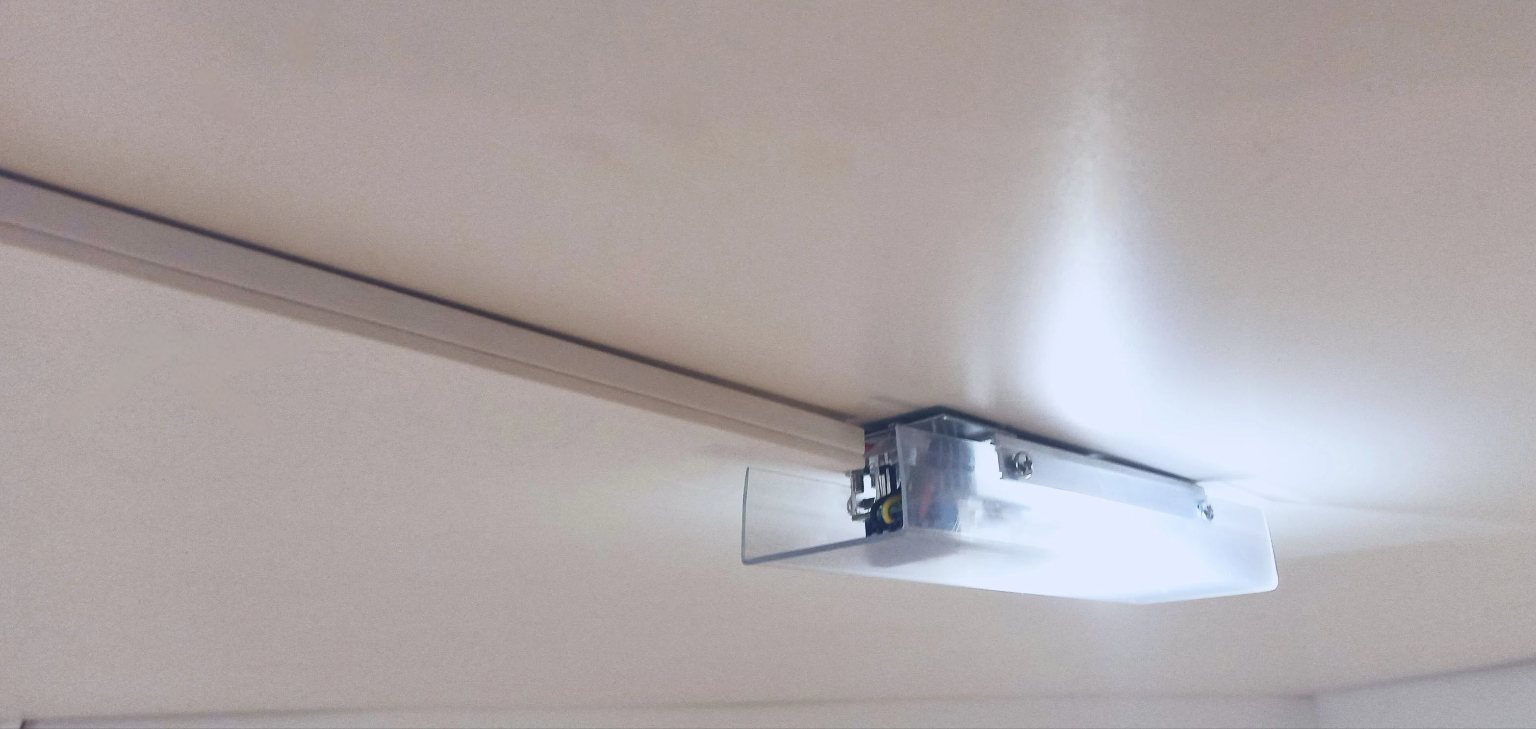

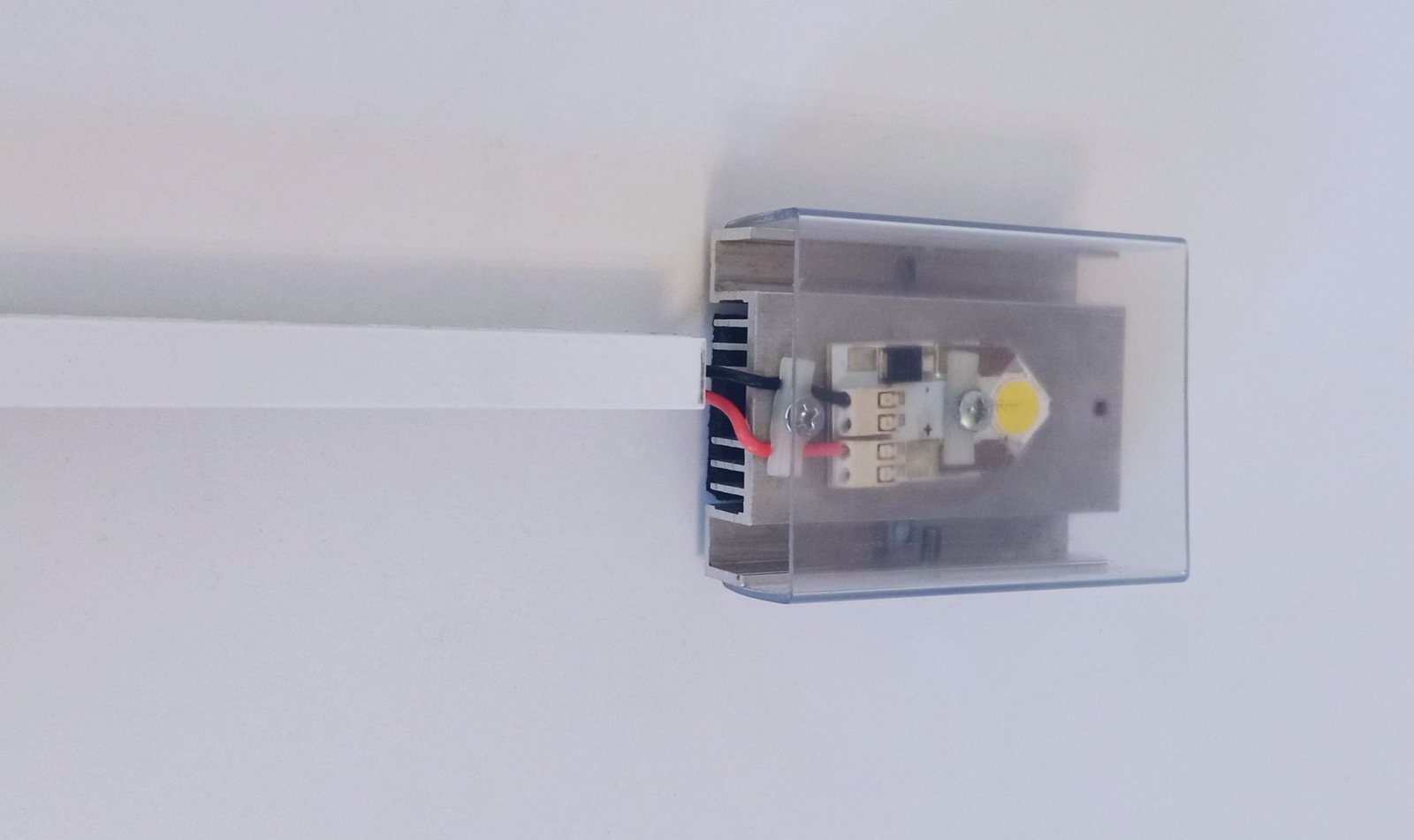

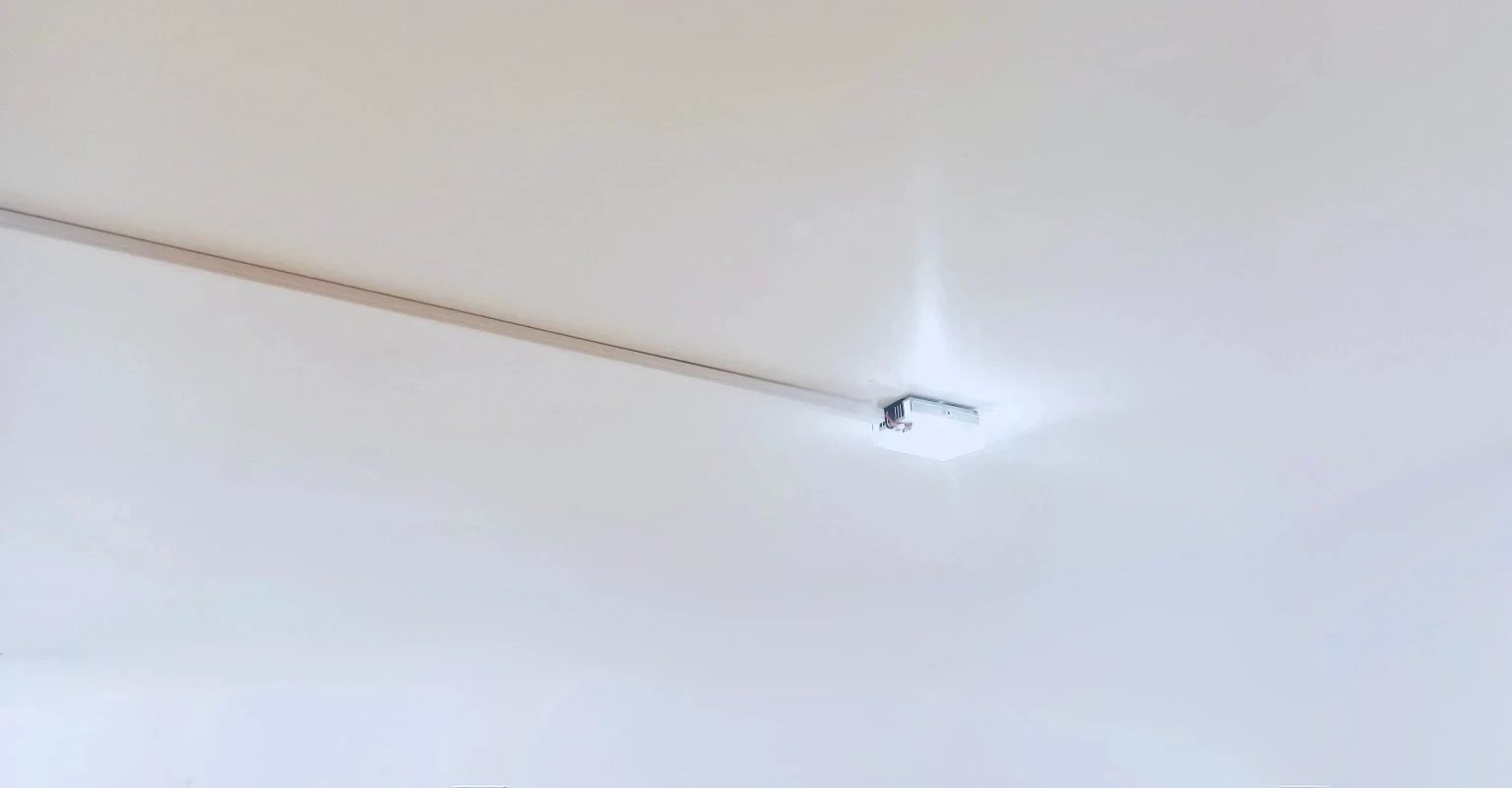

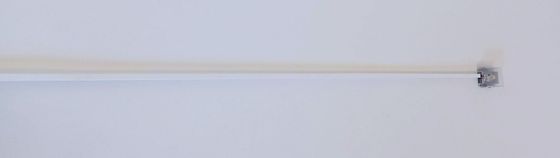

The picture below shows the most usual modul with transparent cover

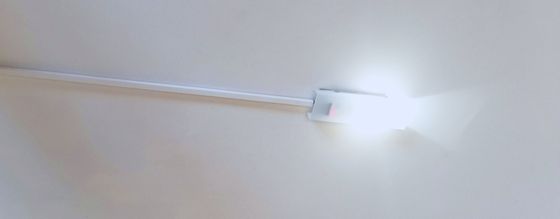

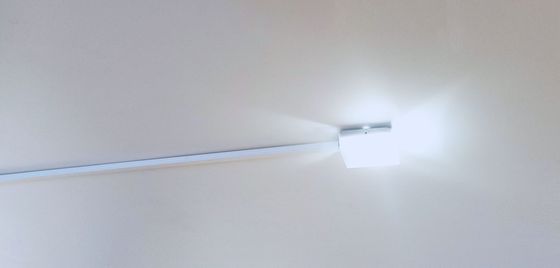

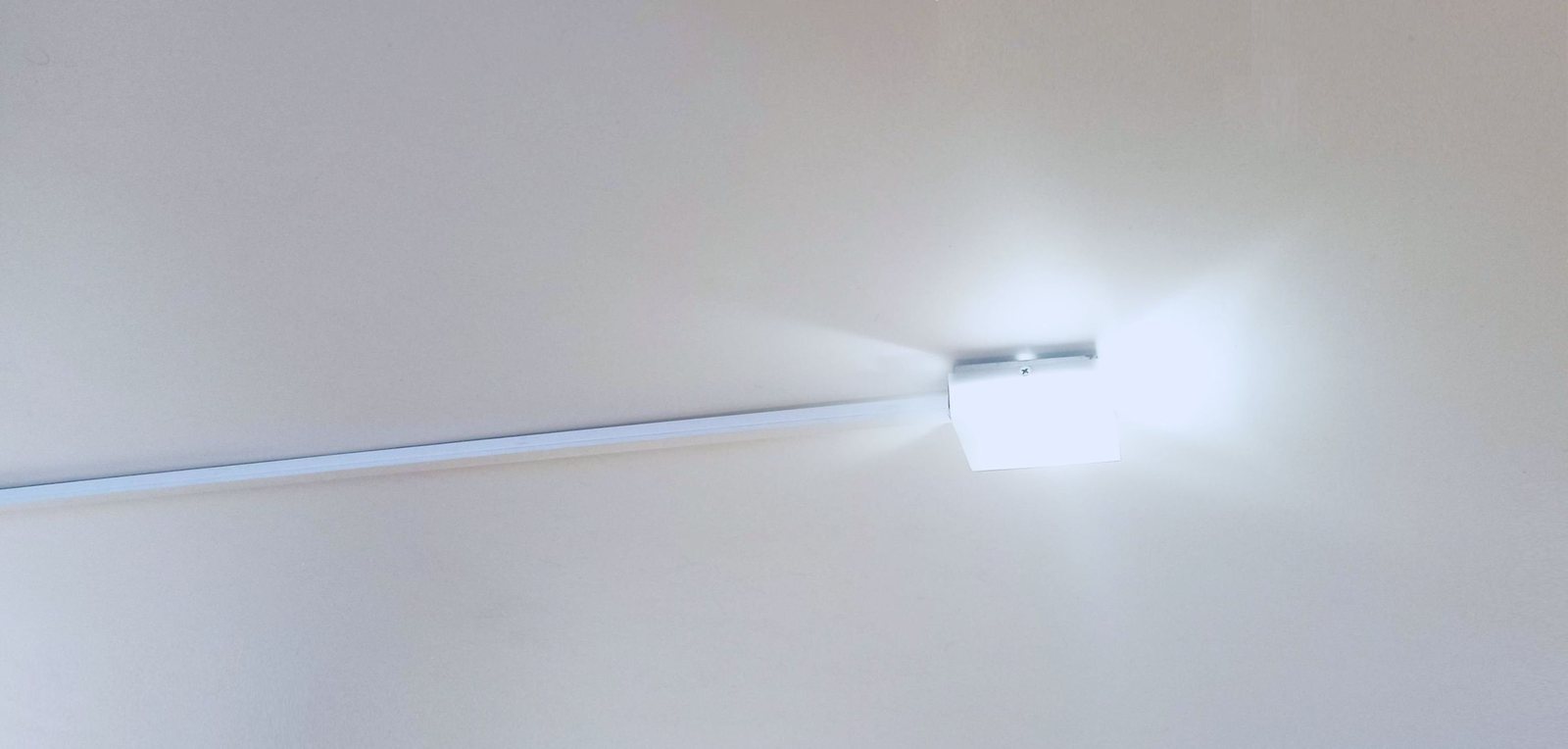

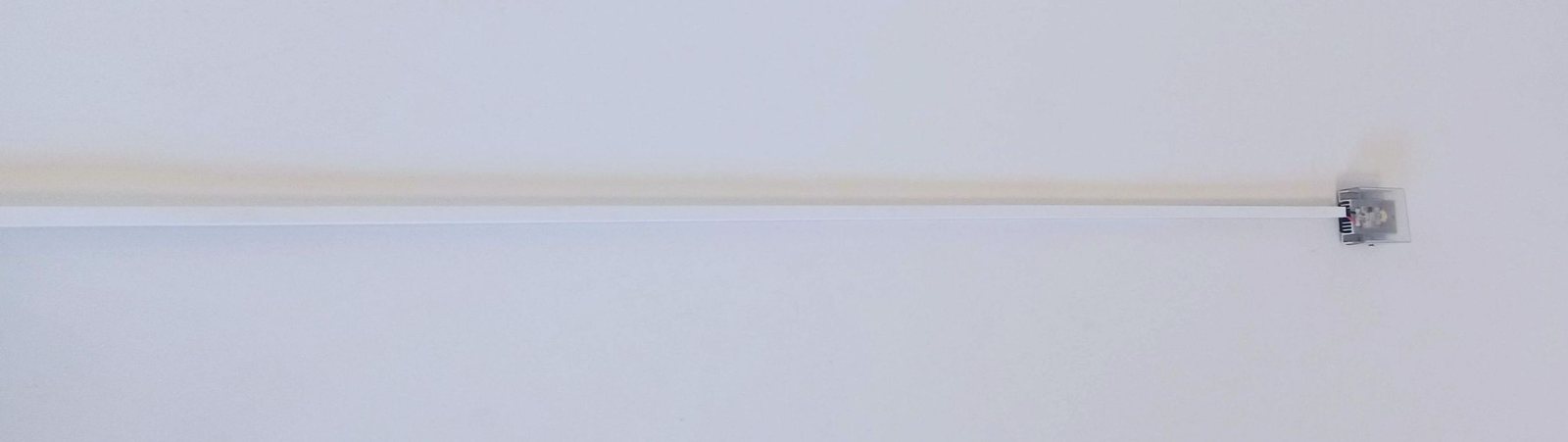

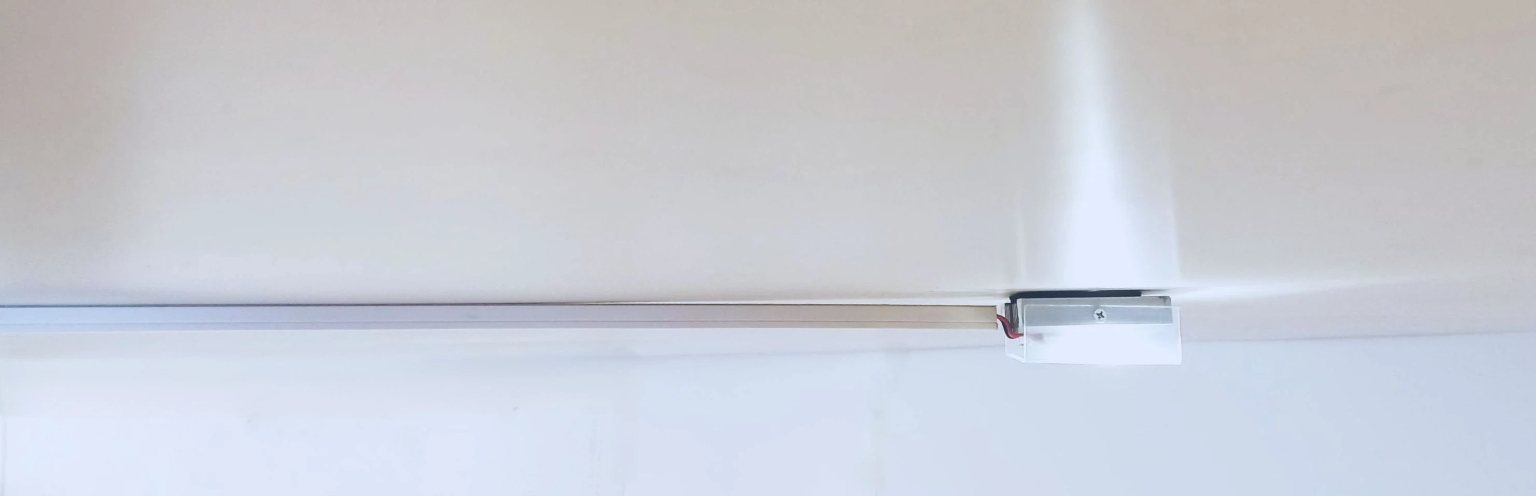

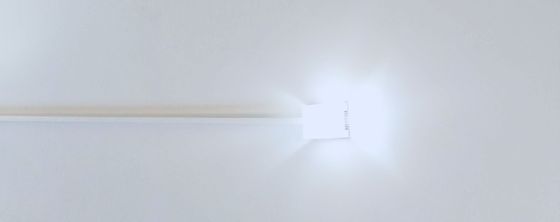

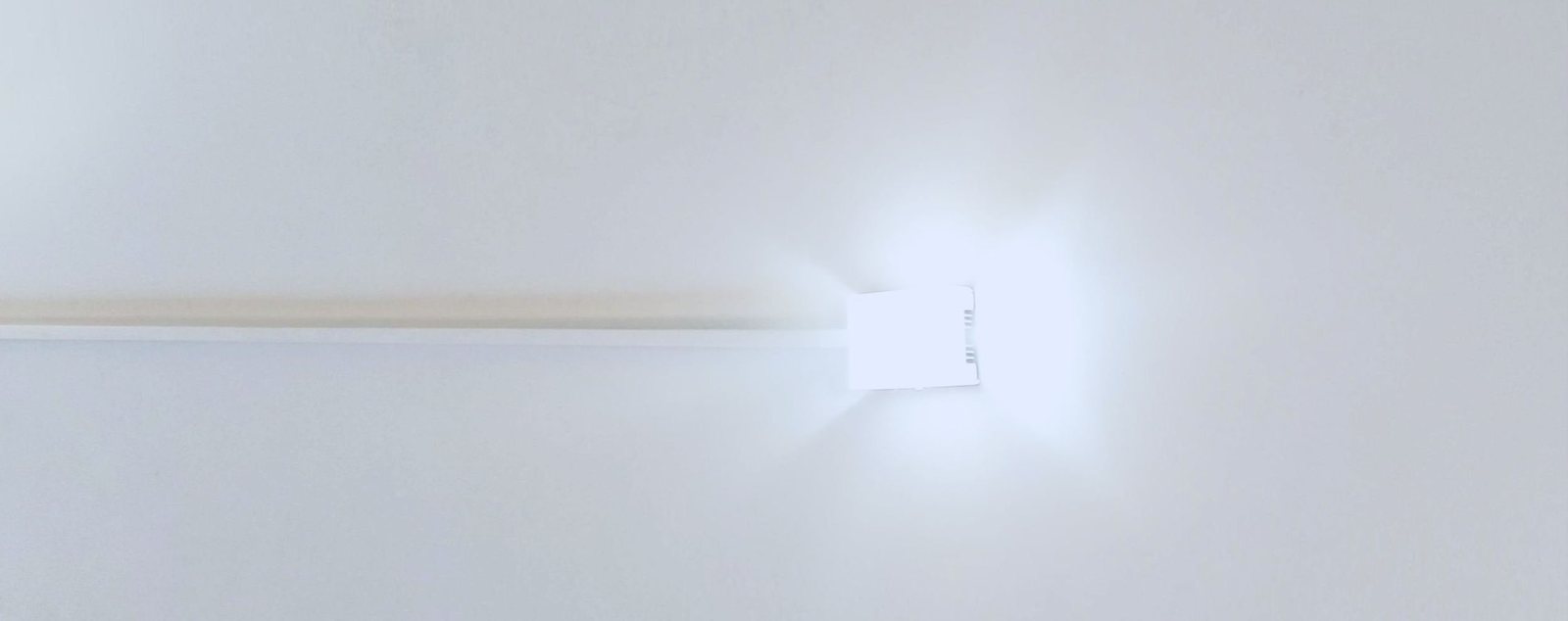

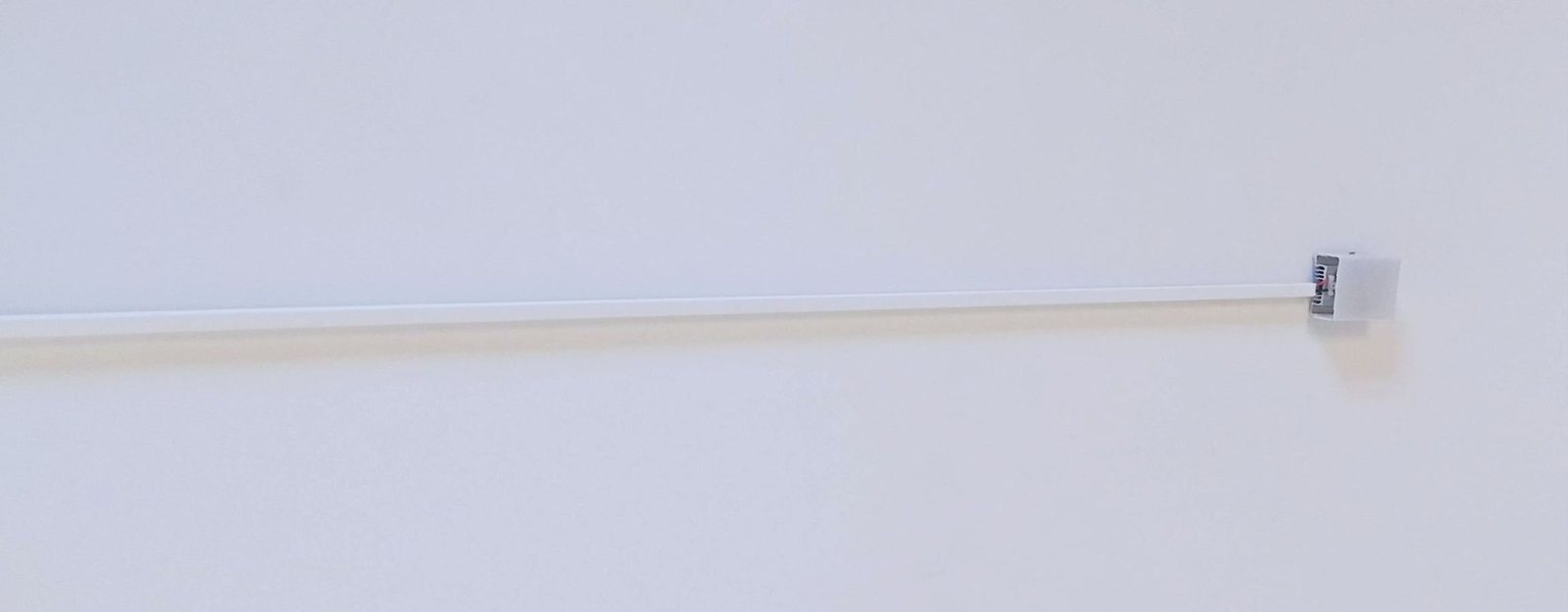

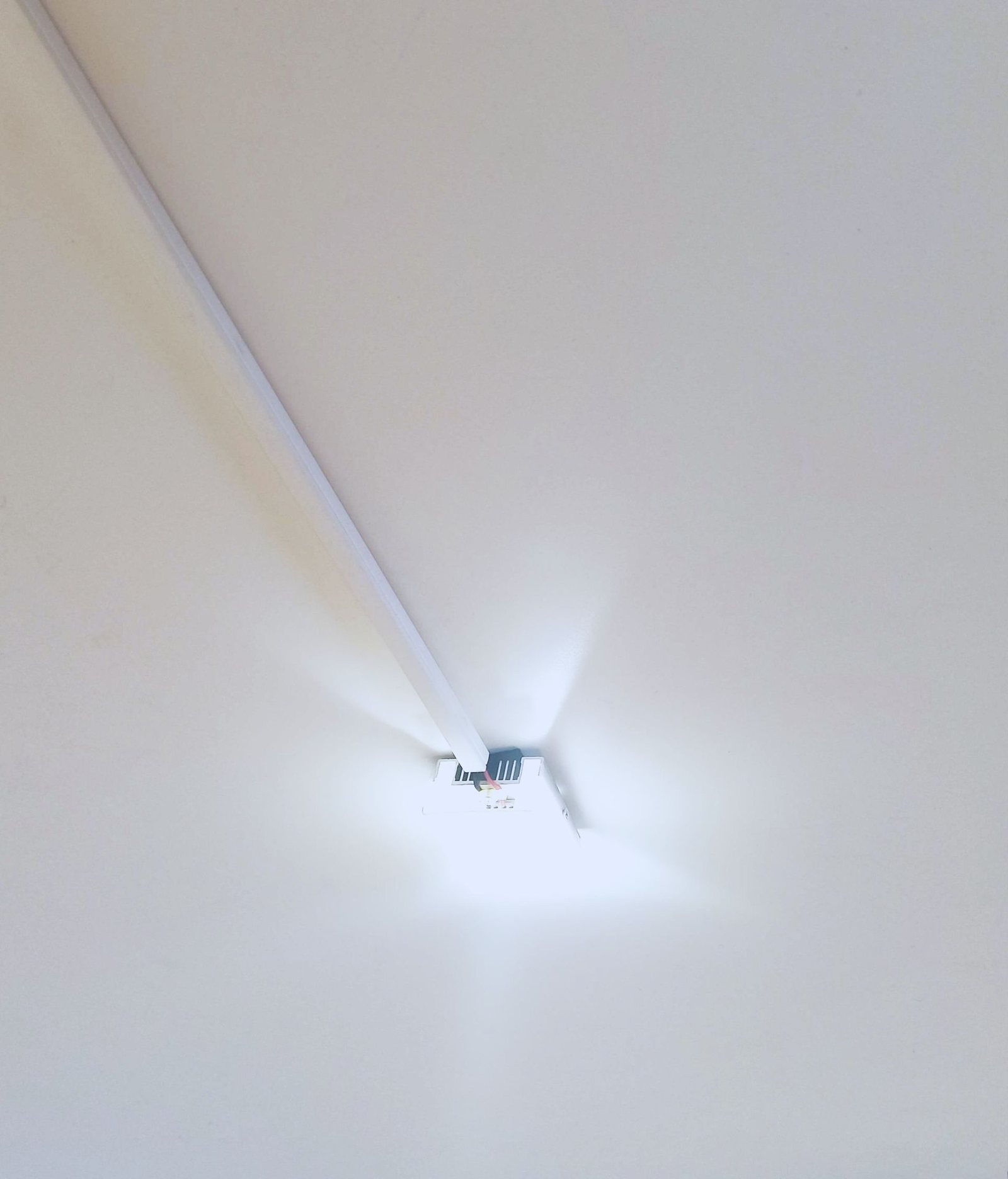

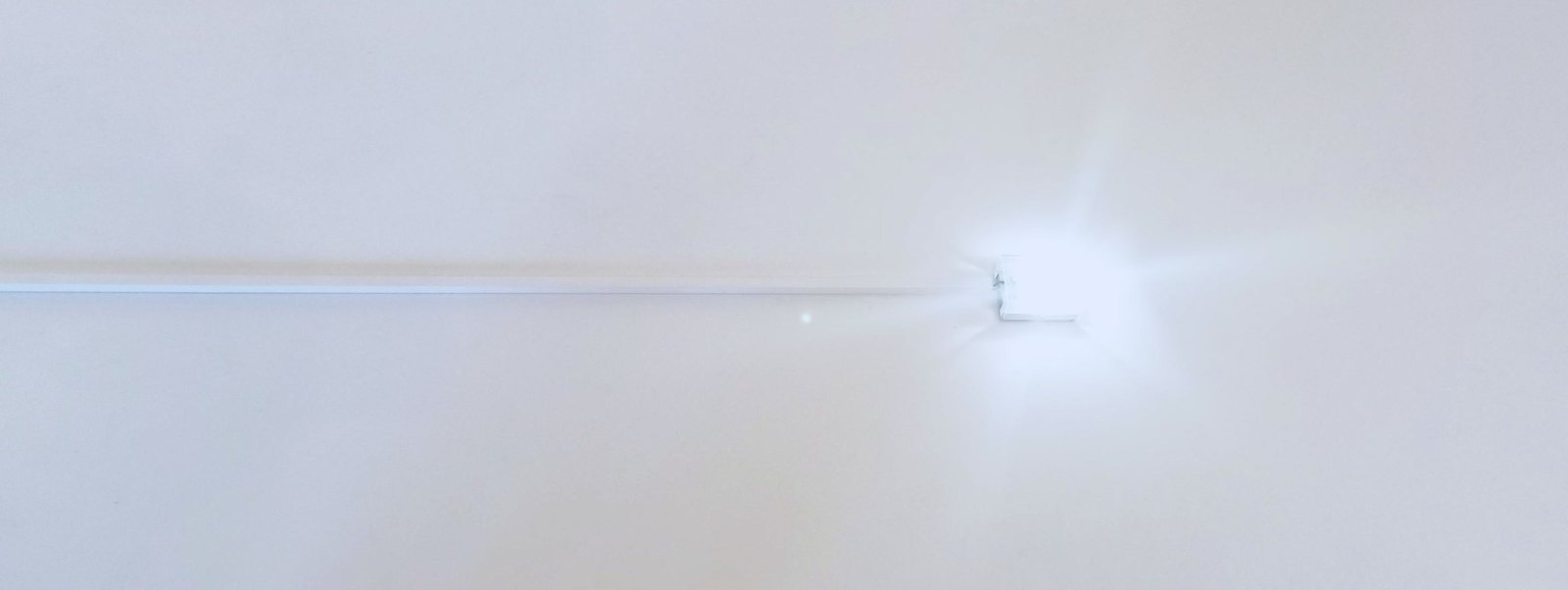

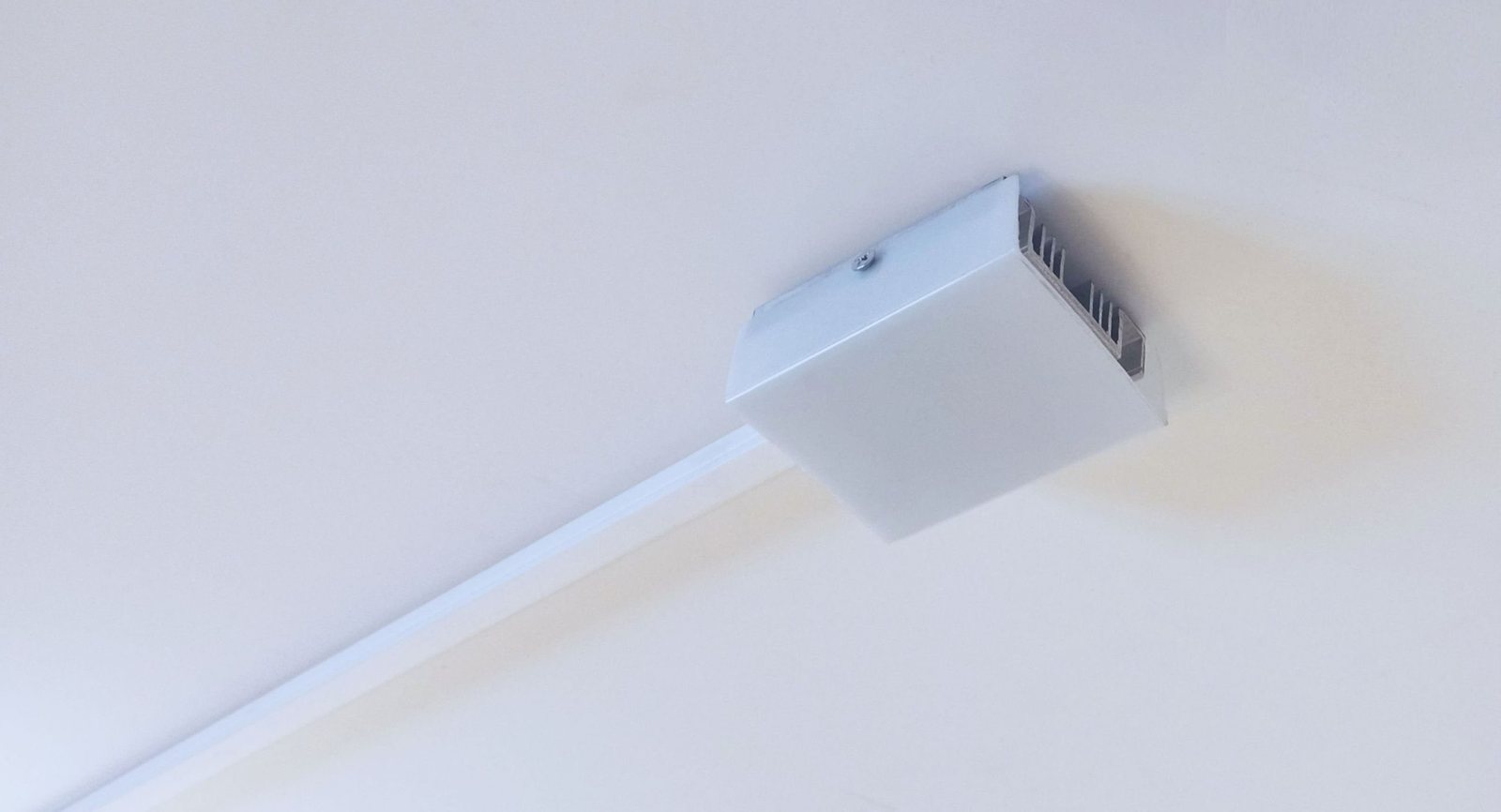

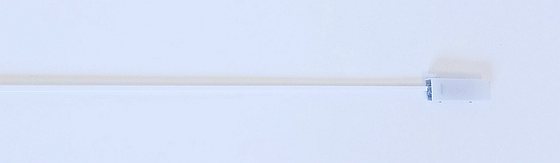

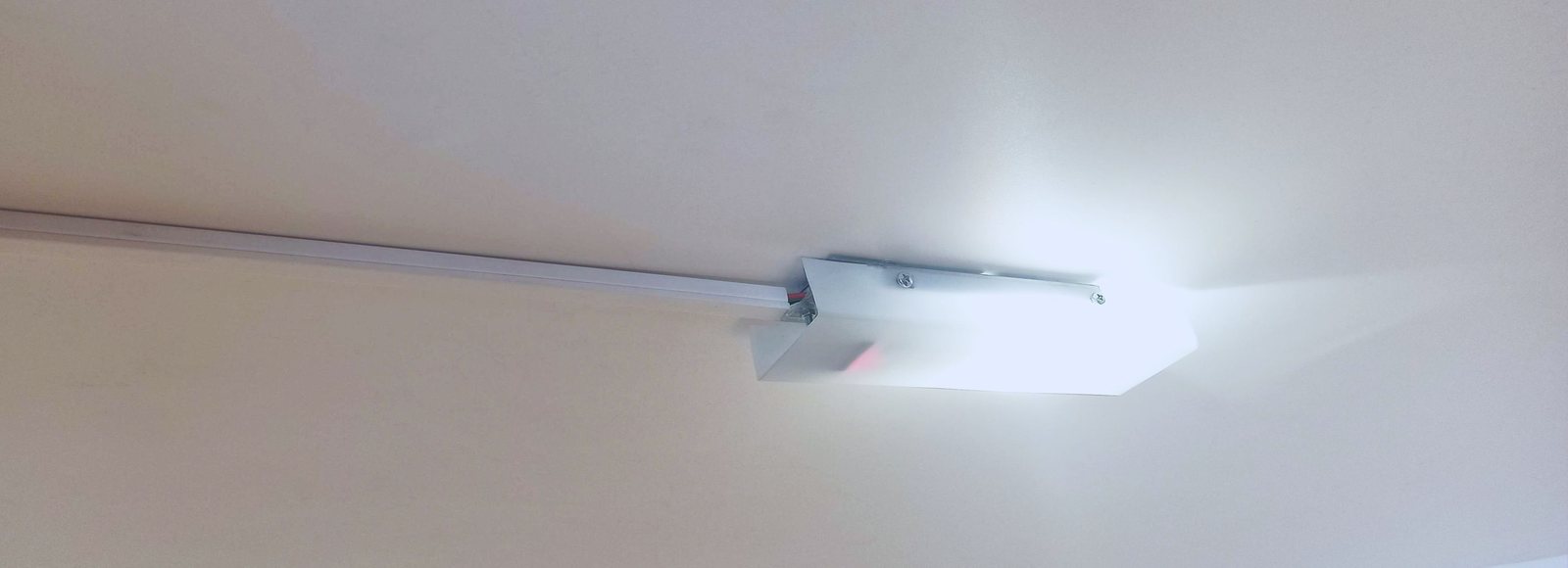

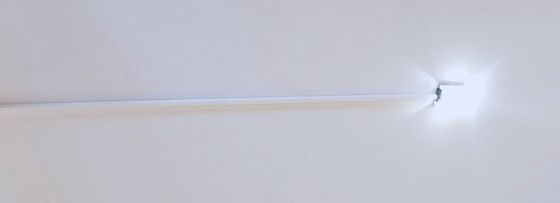

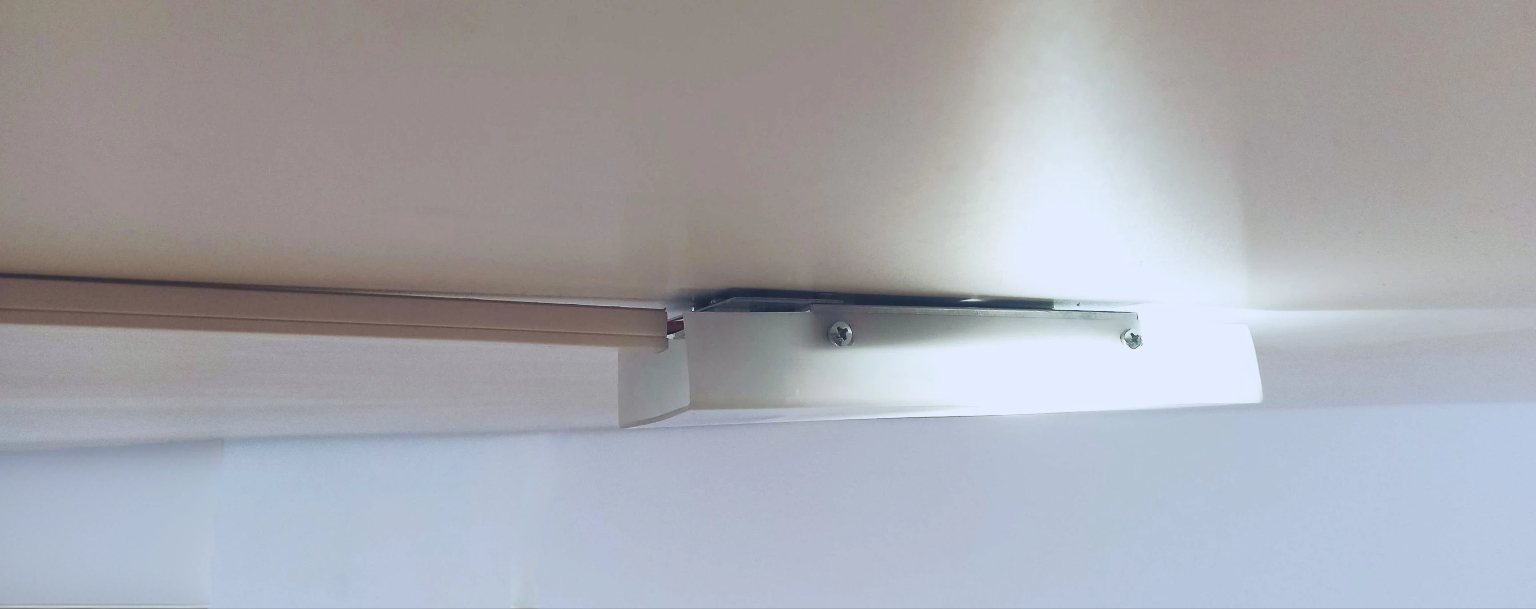

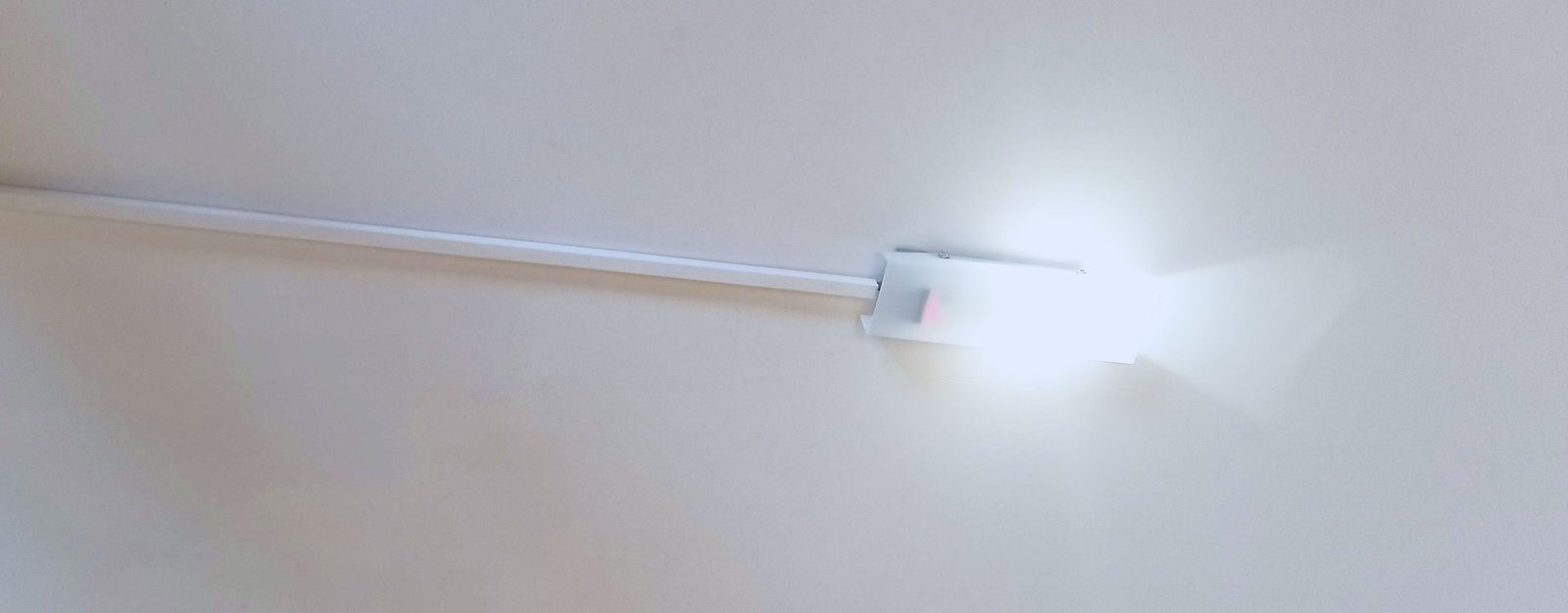

The next two pictures show the difference between transparent and white cover.
The white PVC cover reduces the output a little bit but better difuse the light.
