LR1 HAGE Led design

Single LED modules are small appliances working only on 24VDC and don't include a 240VAC to 24VDC power supply, The poser supply has to be installed separately in a box or inside another appliance. It's possible to connect several module or more complex appliances together on a single power supply. The only limitation being the maximum current the power supply can give.
These small, high-tech style modules perfectly fit in modern, minimalist interior design. Their visual impact on interior design is minimal, despite they relatively high power.

It's typically adjusted between 6W (±720 lm) and maximum 10W (±1200 lm. Normal use is 8W (±960 lm) but the power supply can be regulated to output more or less light and to consume more or less current.
It's made of an aluminium heatsink and a steel backet dustomized for the needs of the installation.
These modules can include an option to be turned on or off whith secondary switches.

Indoor use only. This model is not water proof. For outdoor use, a rain protection kit can be ordered on demand.

The pictures below show the basic LED module with the flat satine PMMA cover.
This cover difuse the light to make it more confortable to the eyes and offer basic protection for the LED.
To see the other cover available look at LM1 Half Circle. and LM1 Rectangle.

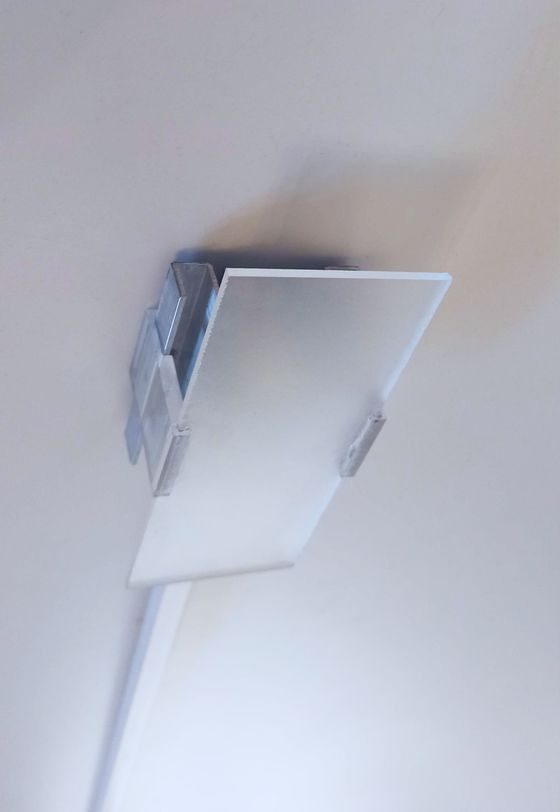

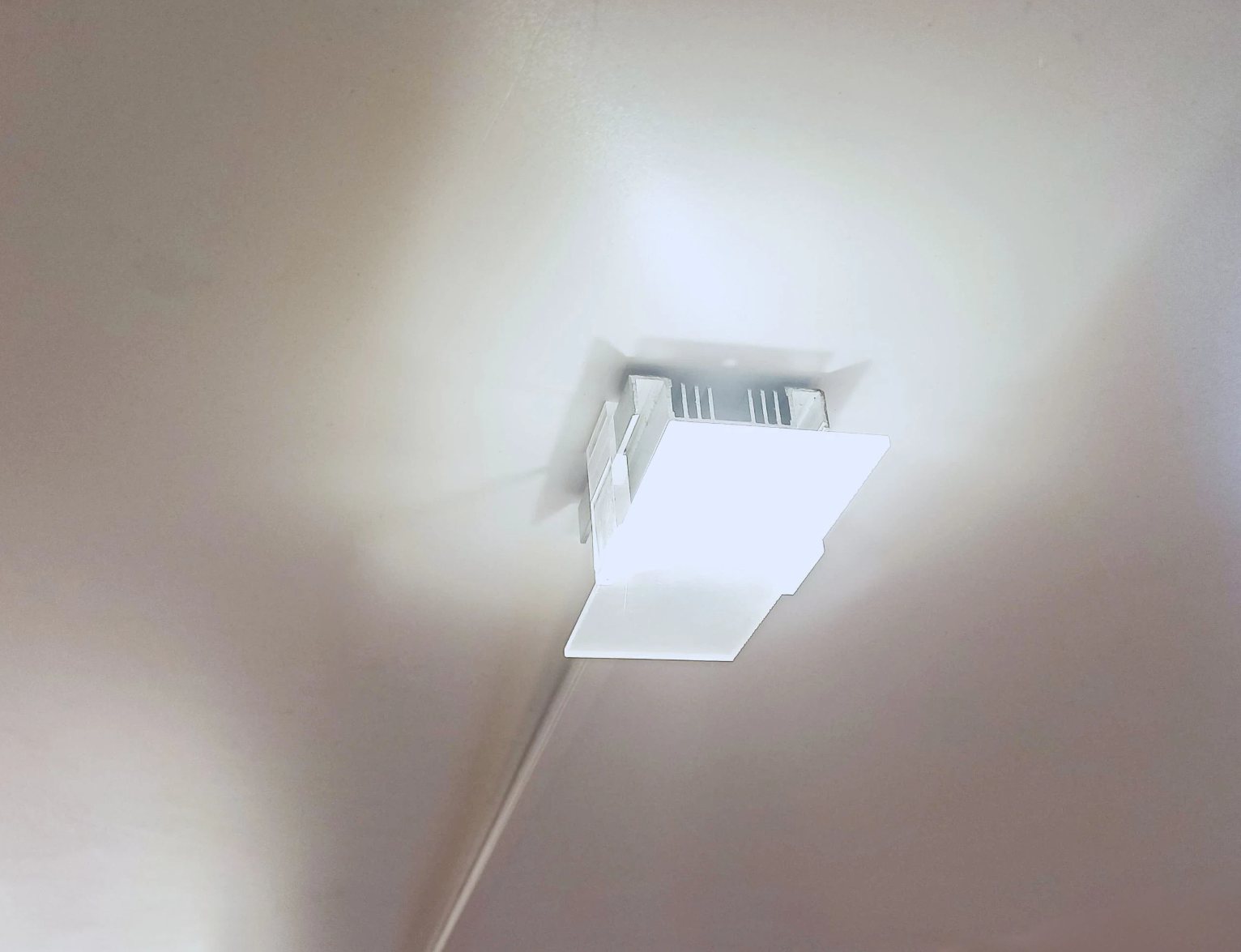

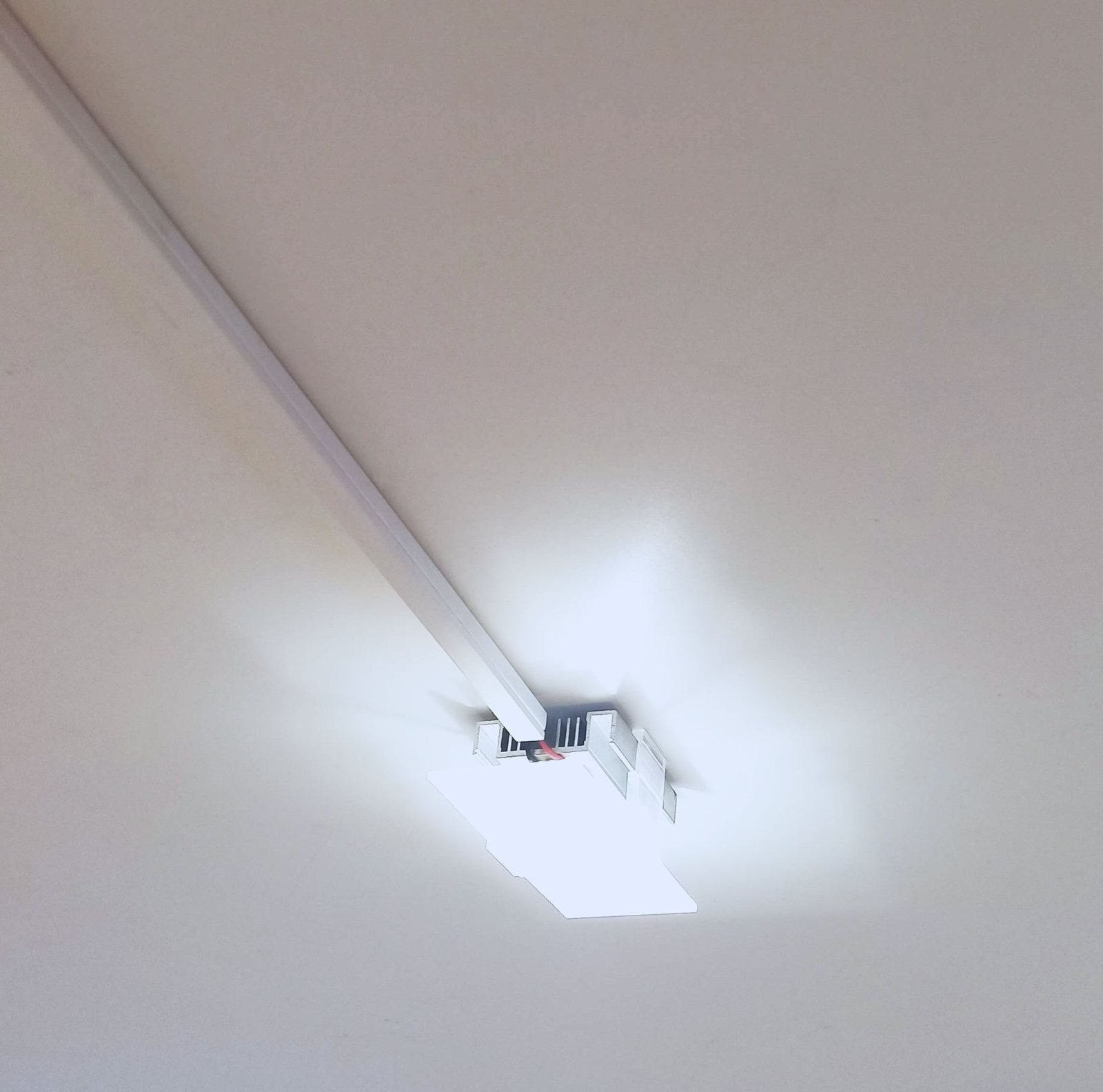

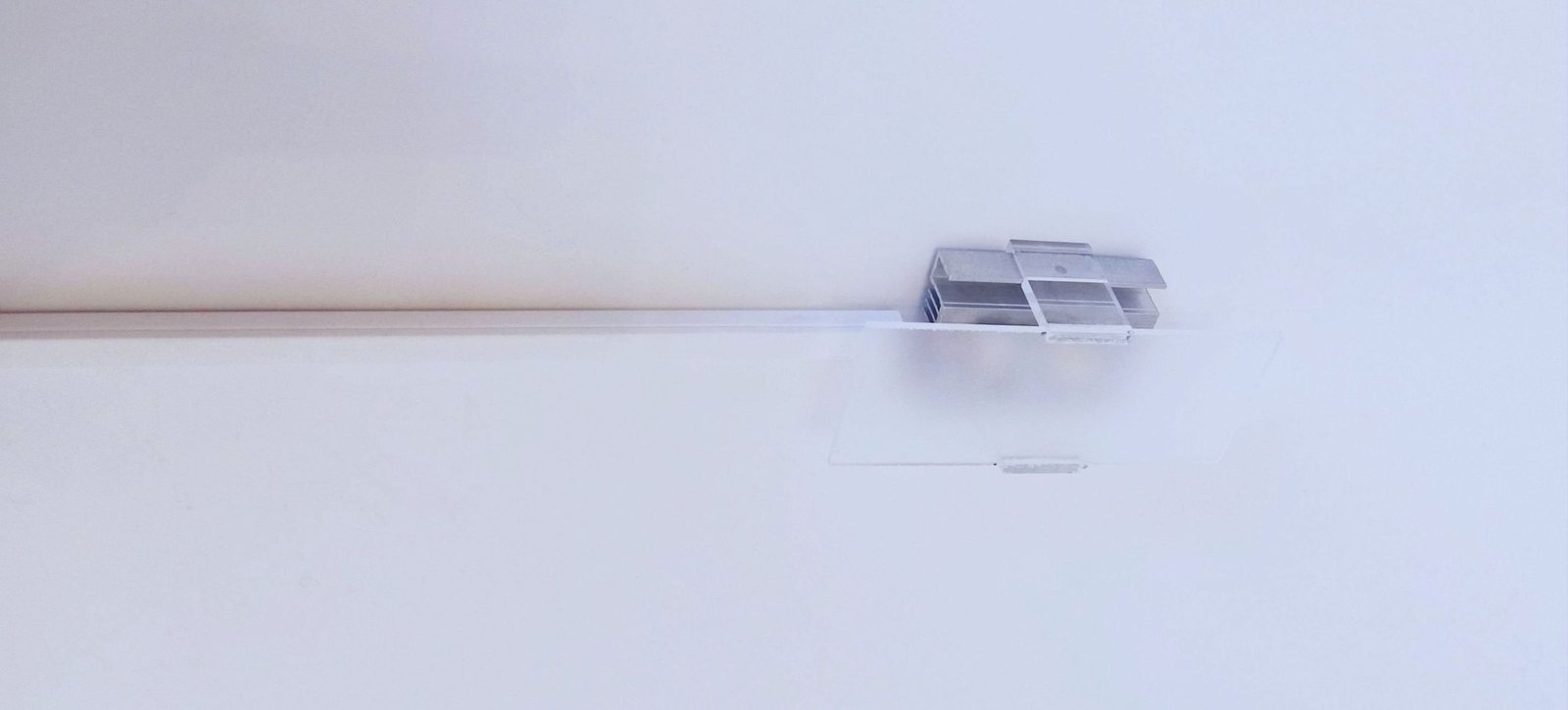

The first pictures show the basic version with a cover slightly longer than the module.

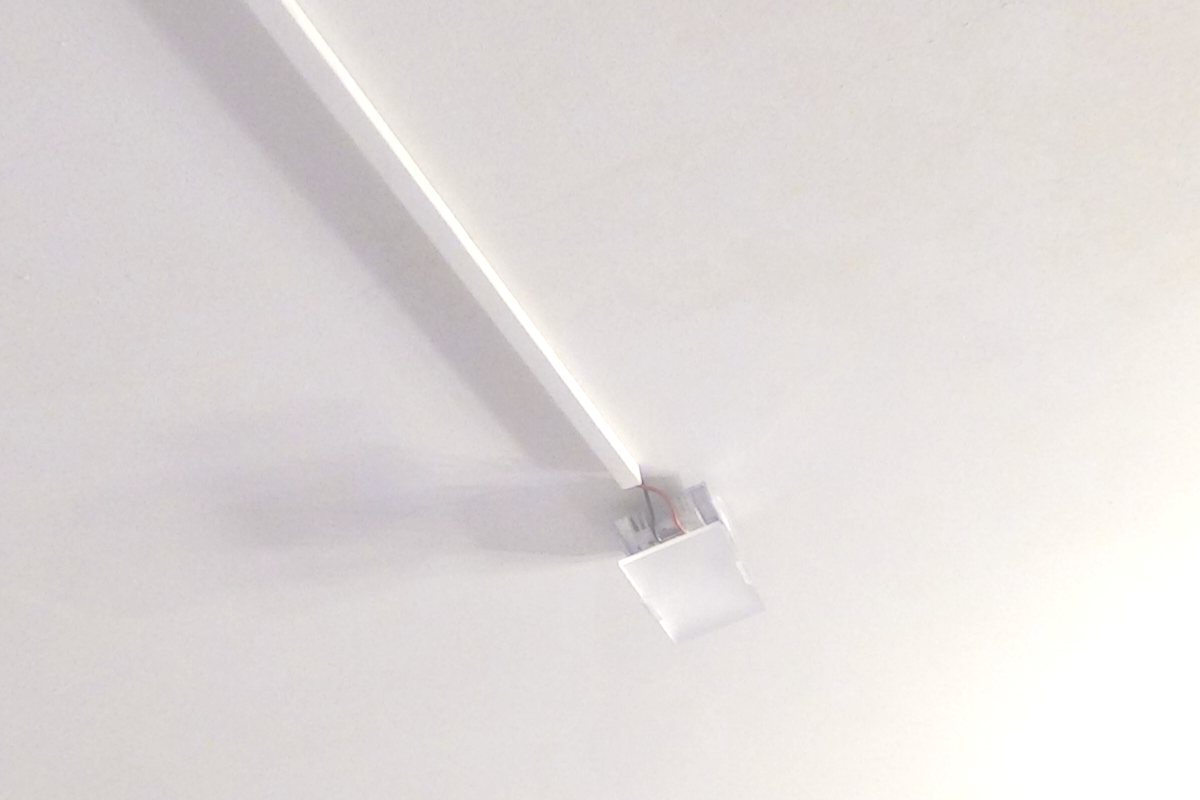

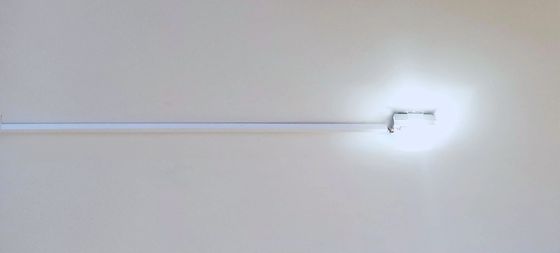

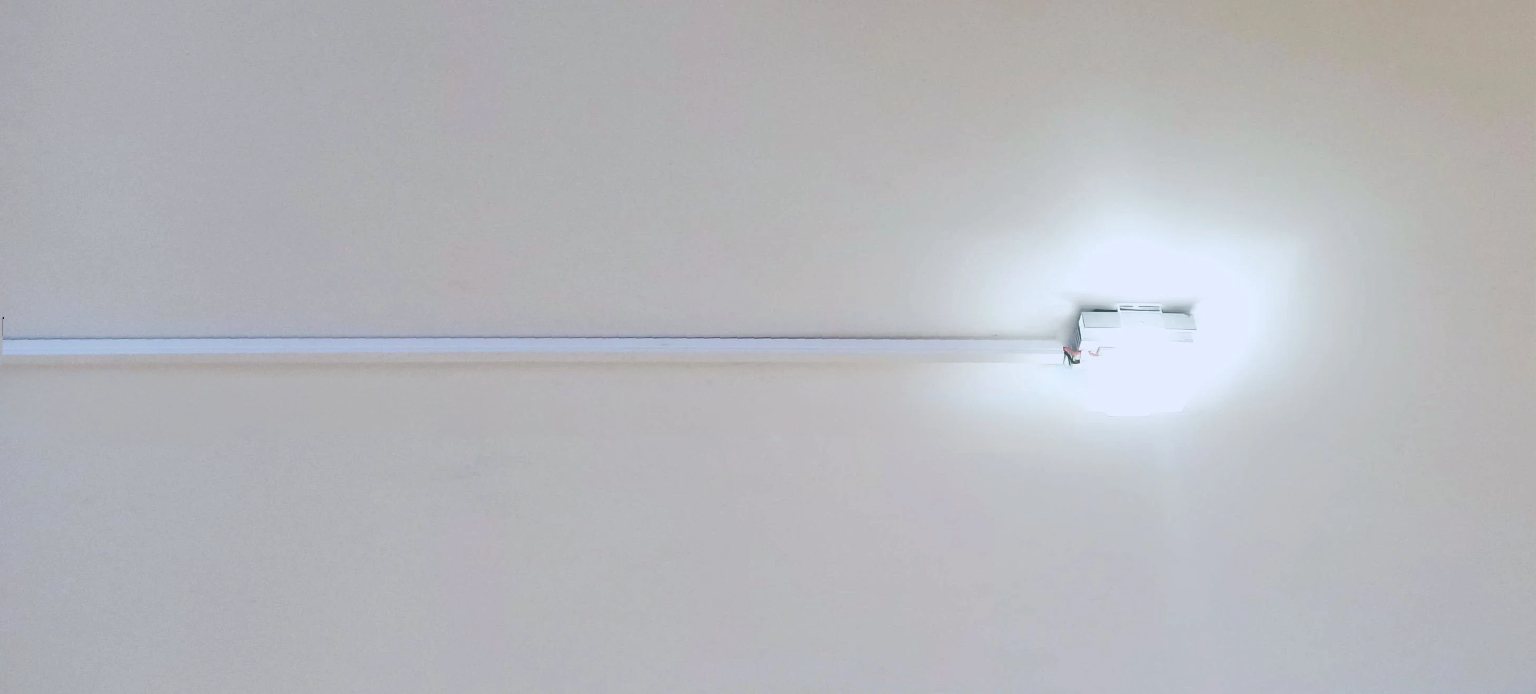

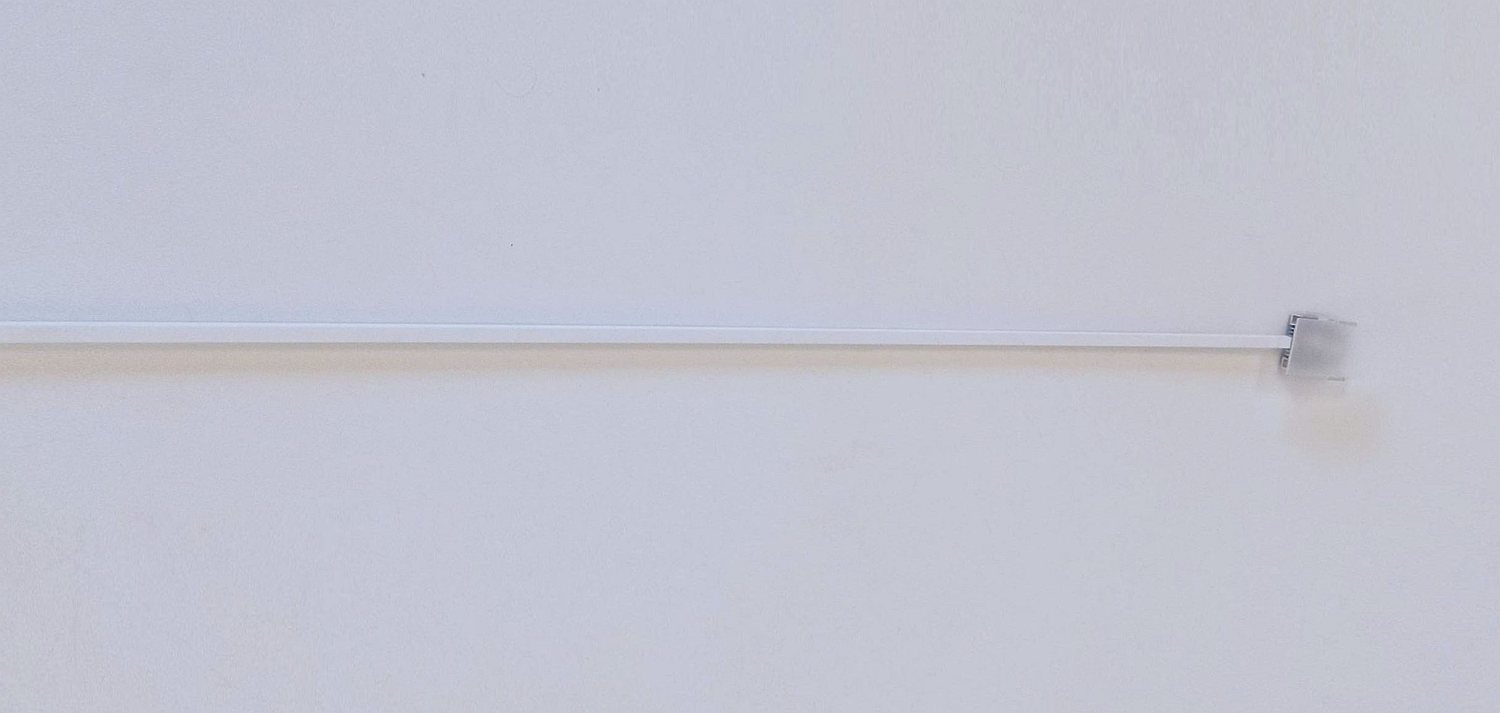

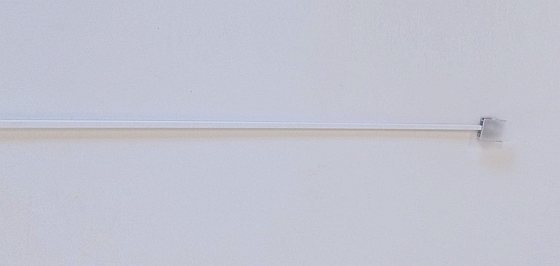

This picture show how small the module is in reality.

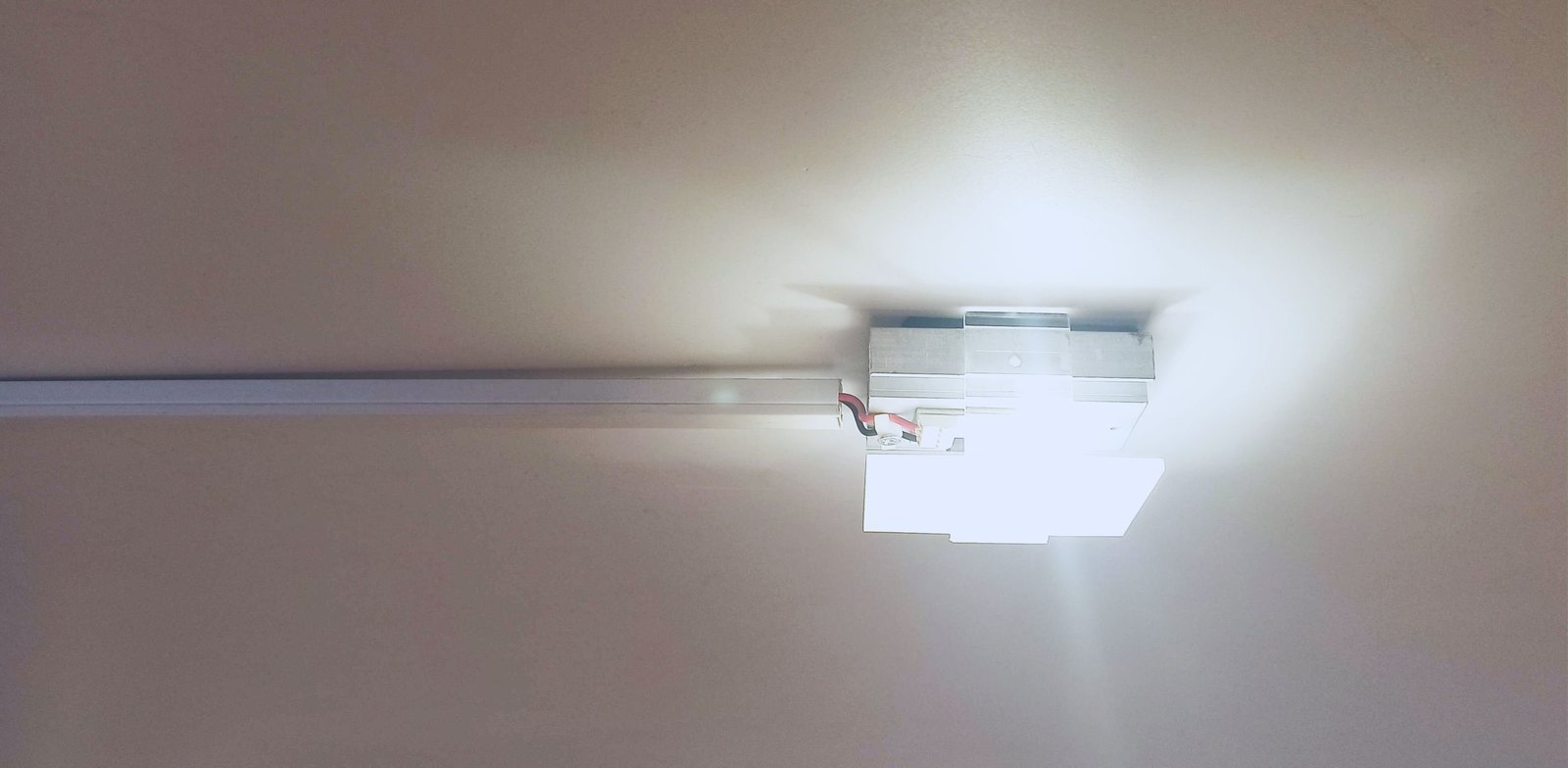

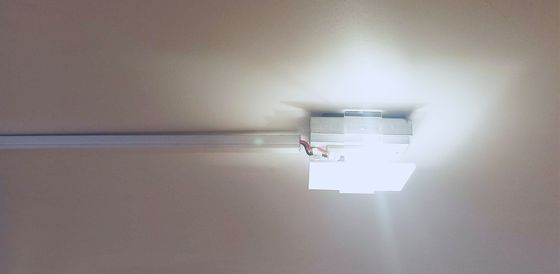

Here is two close views of the module from below.

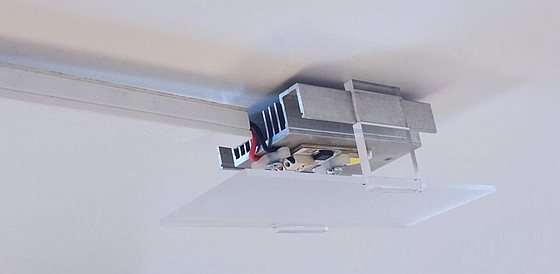

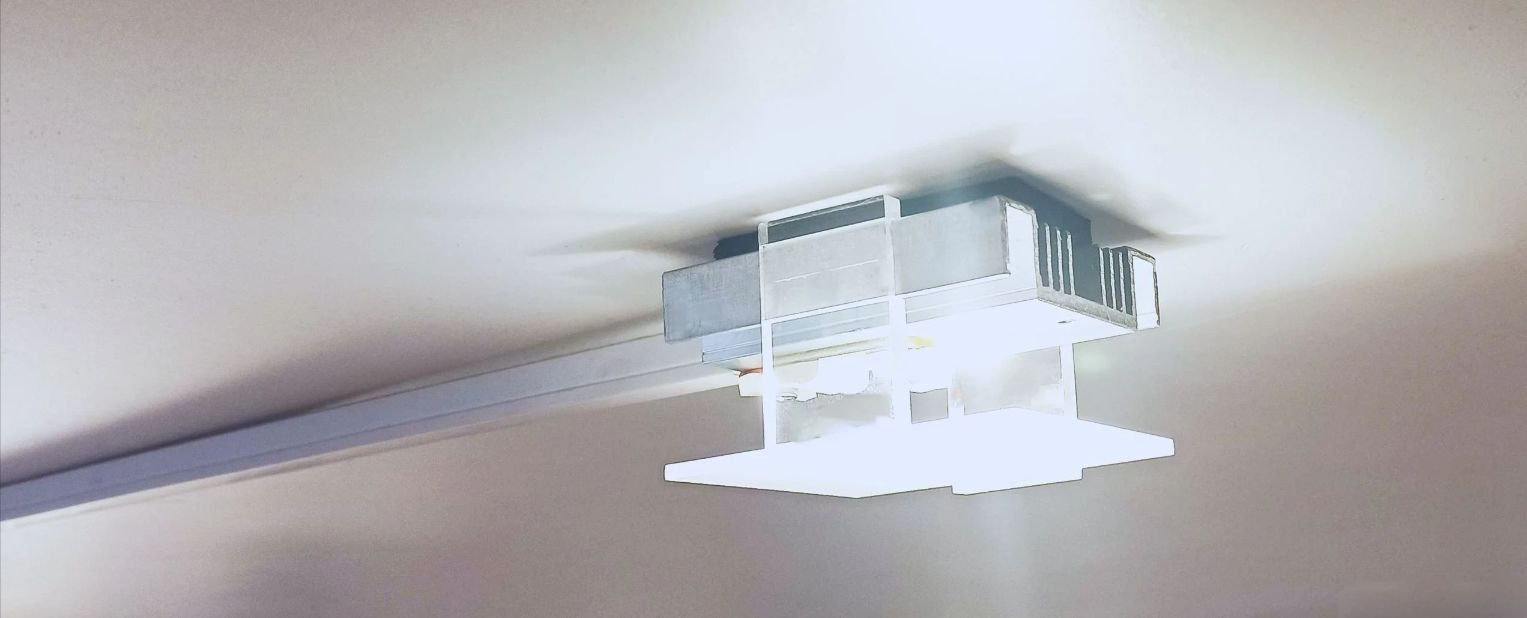

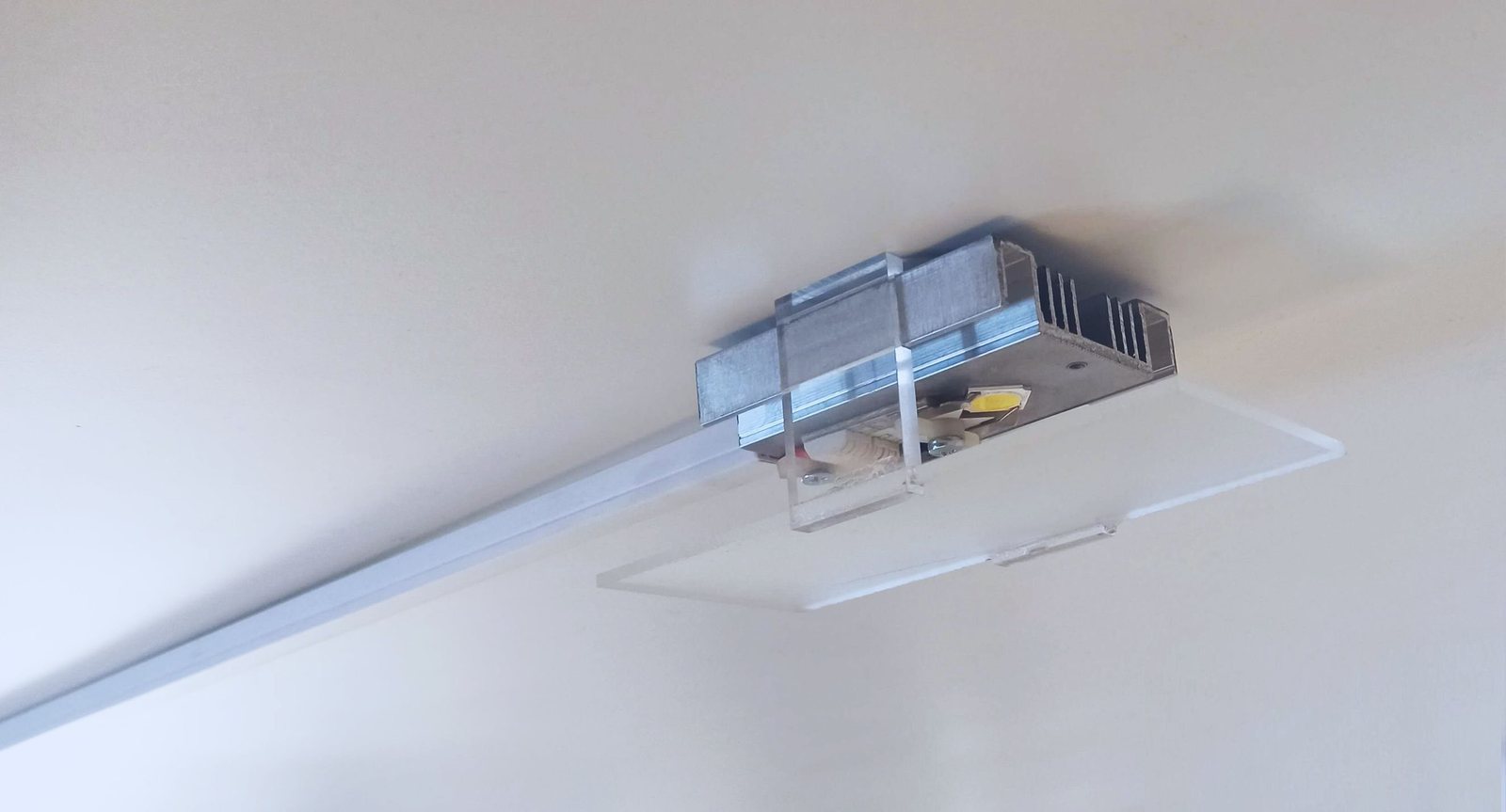

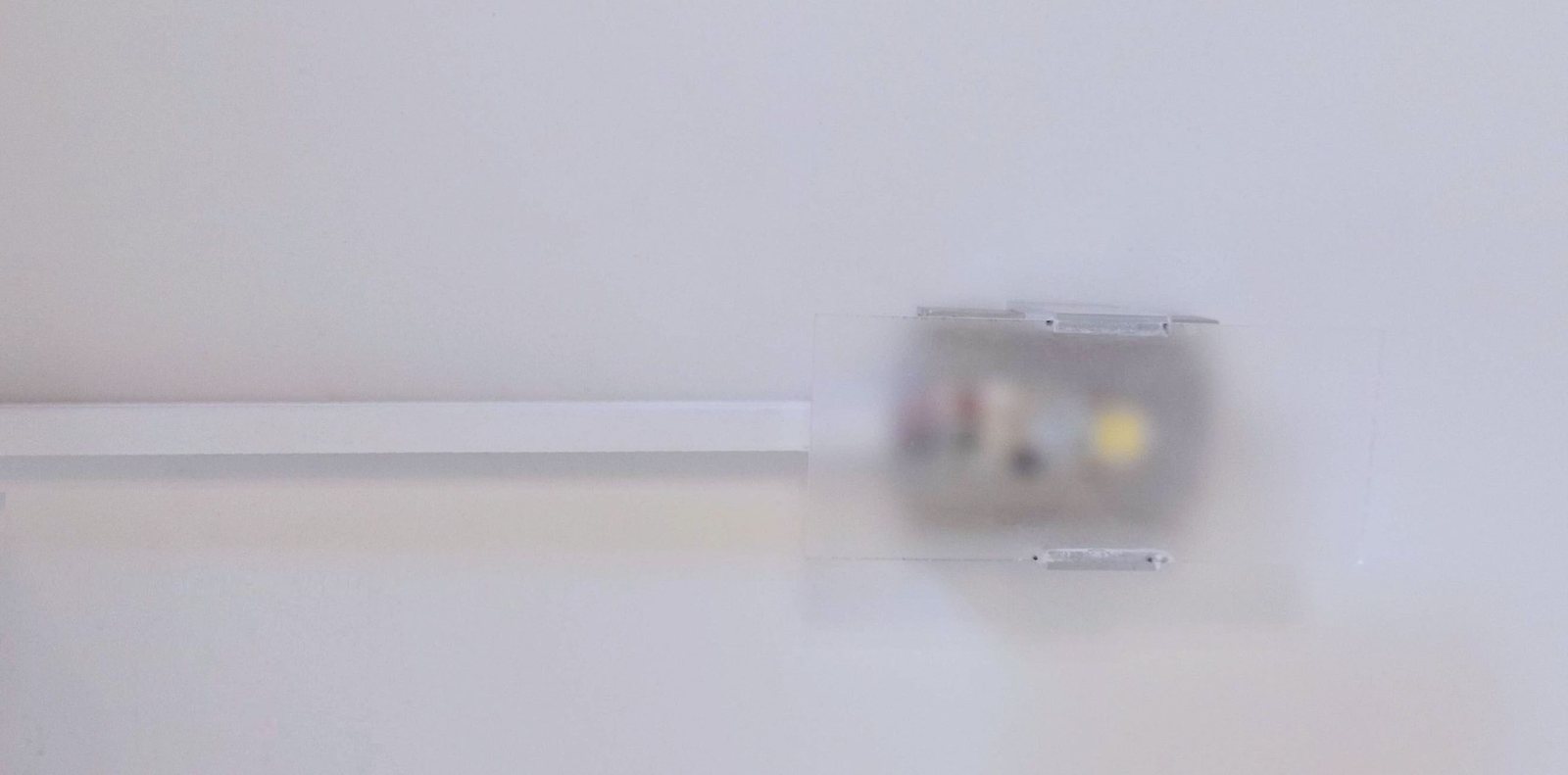

From below, the hardware is more visible. However this is not an usual view.

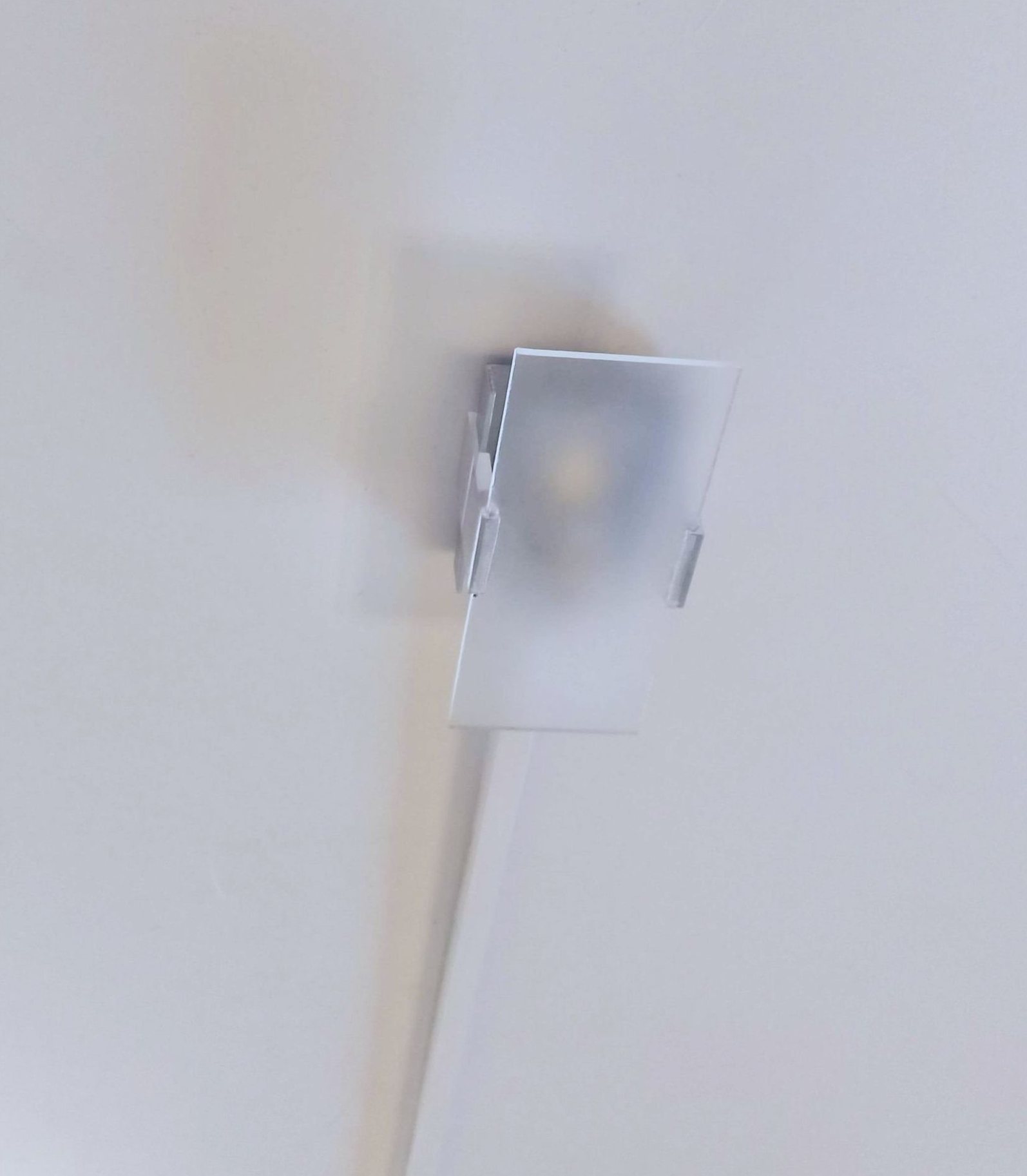

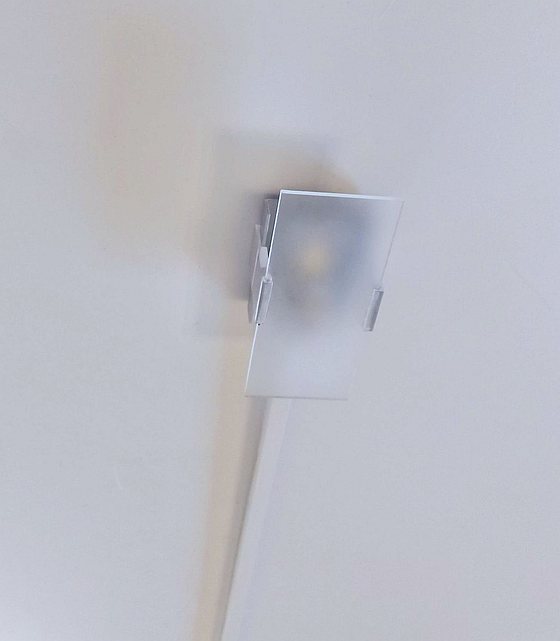

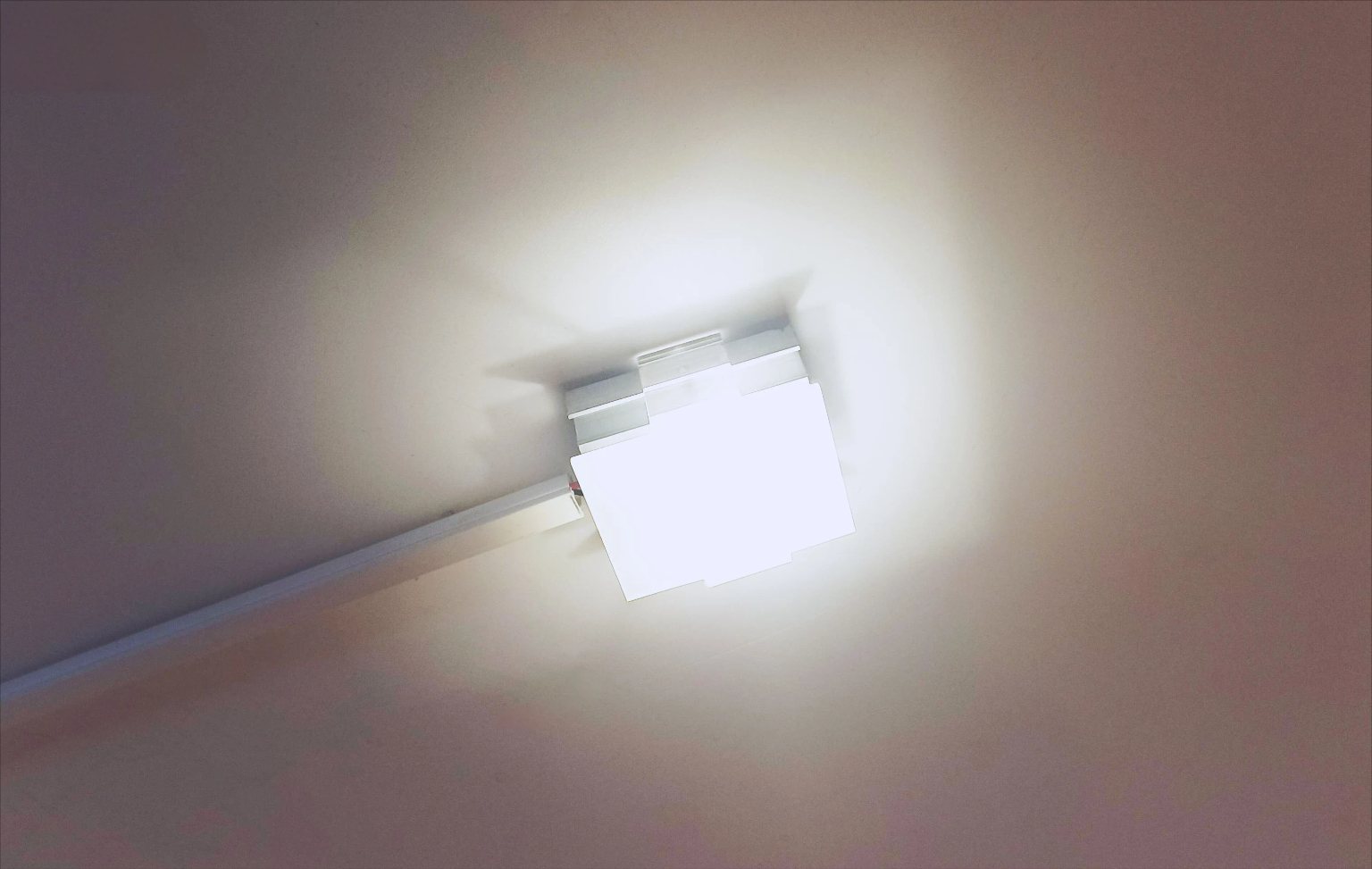

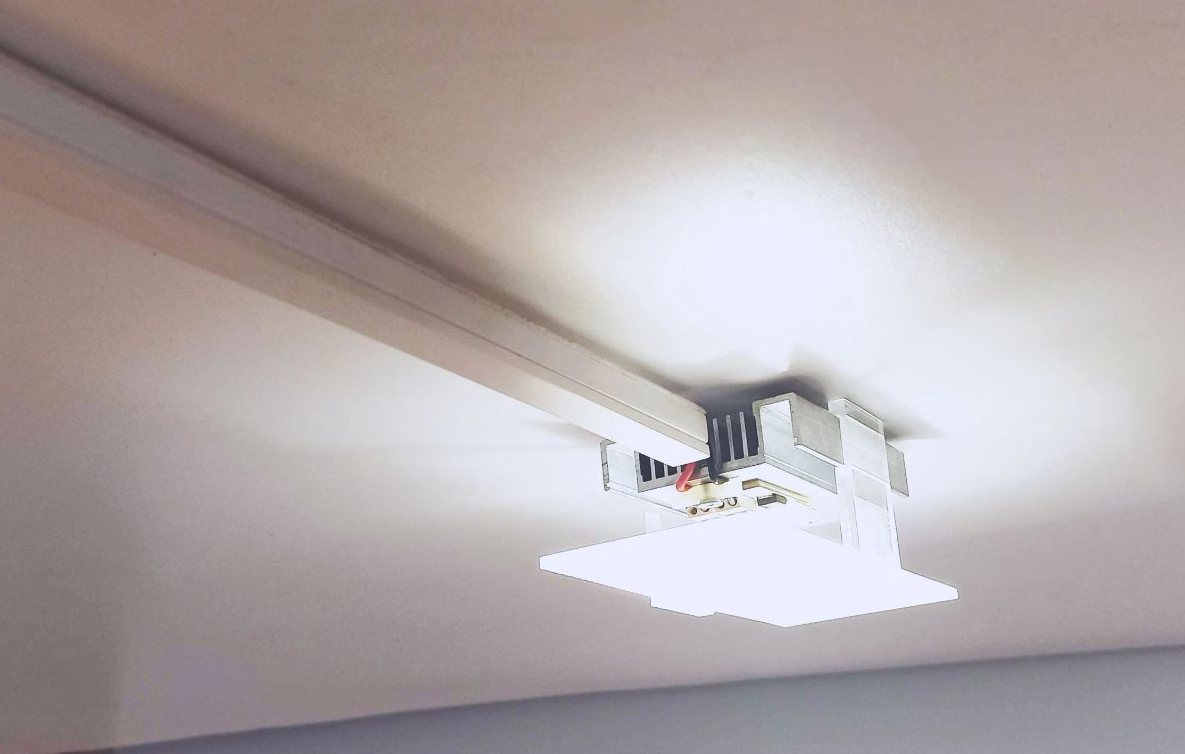

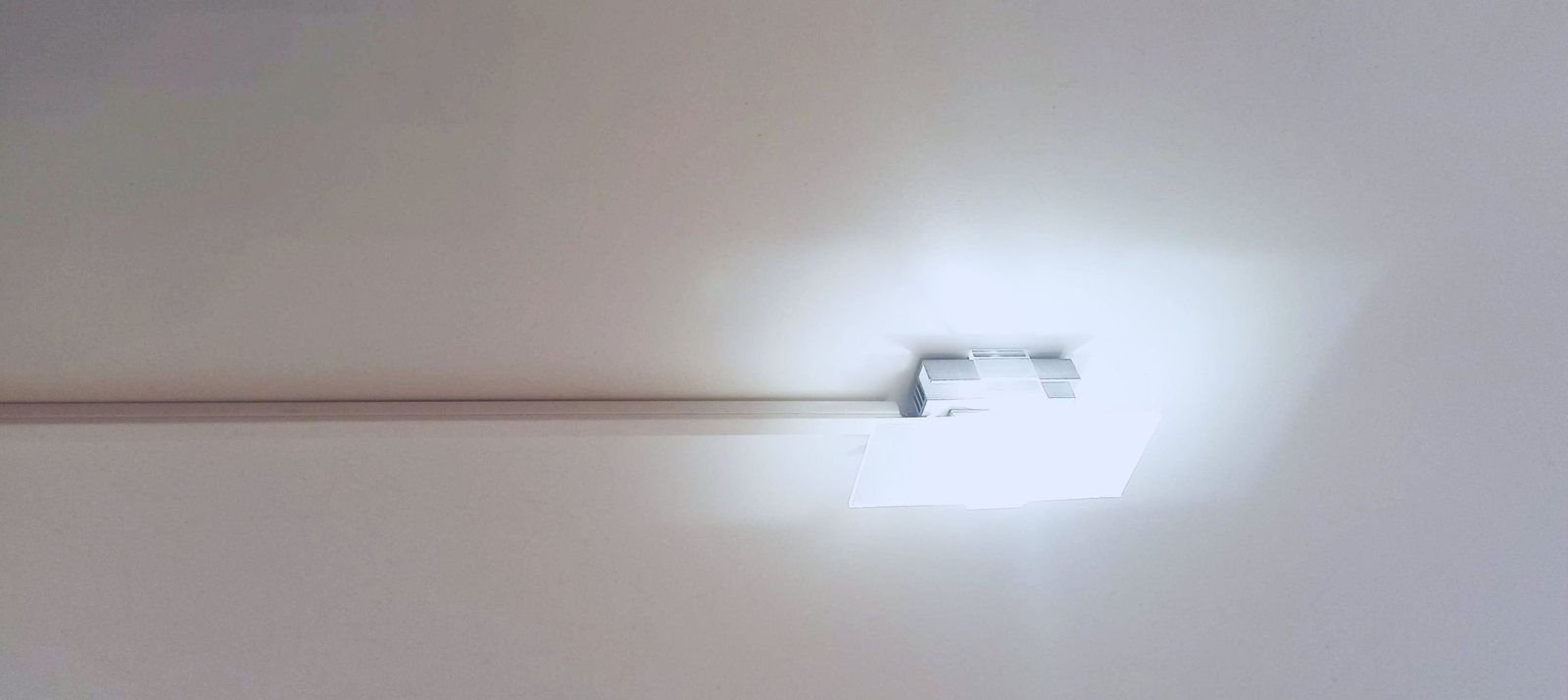

In this more natural view, the hardware is not visible through the cover.

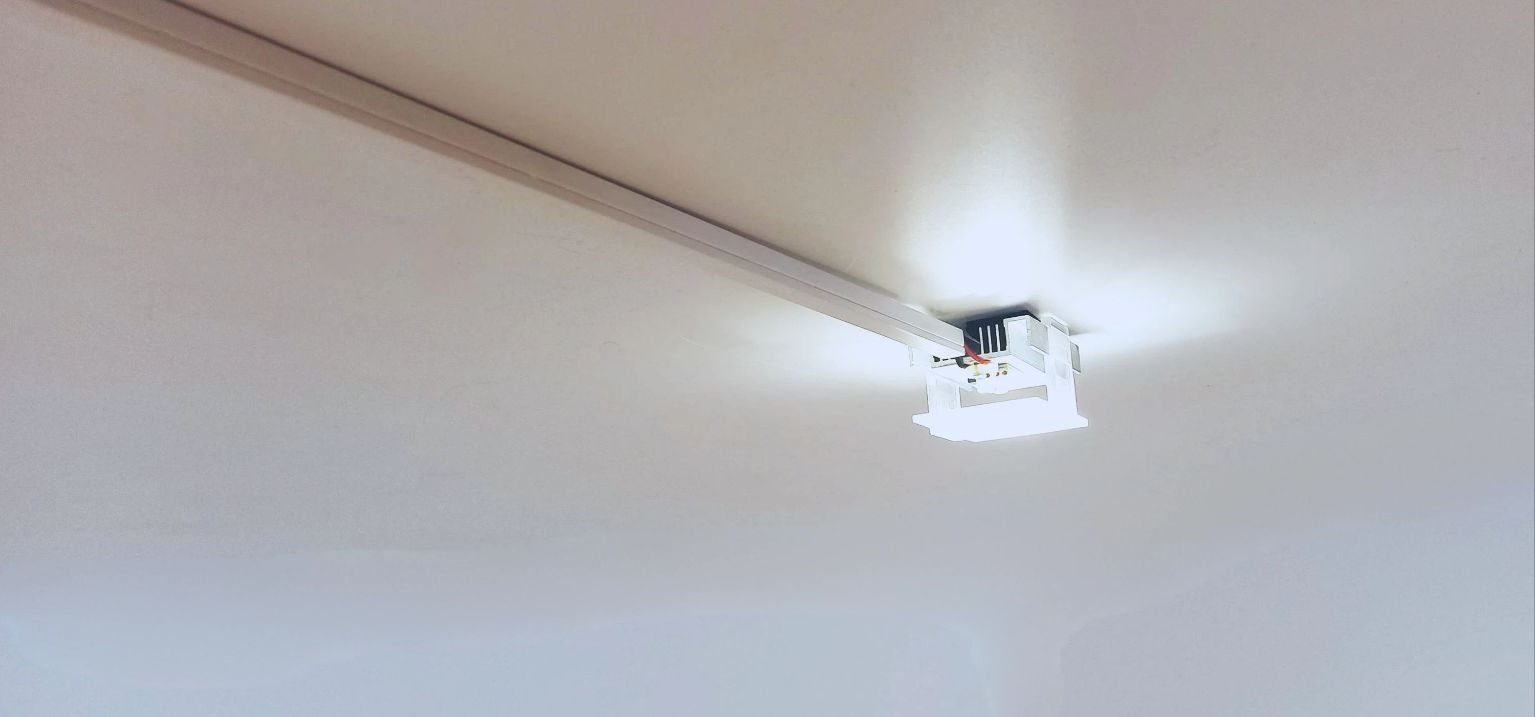

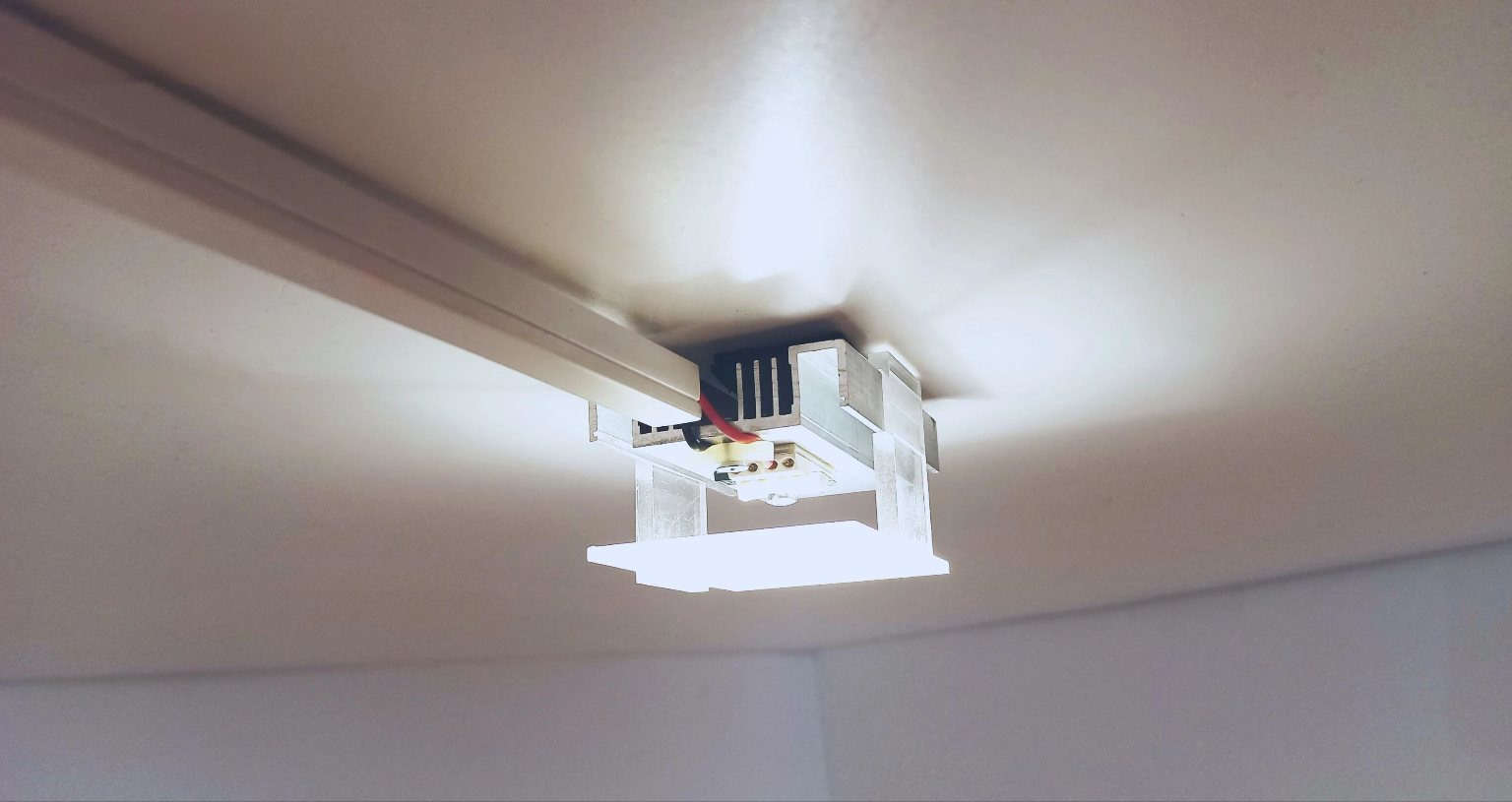

The next pictures show the basic version with a cover as short as the module.
The choice of the cover depends on the customer preference.

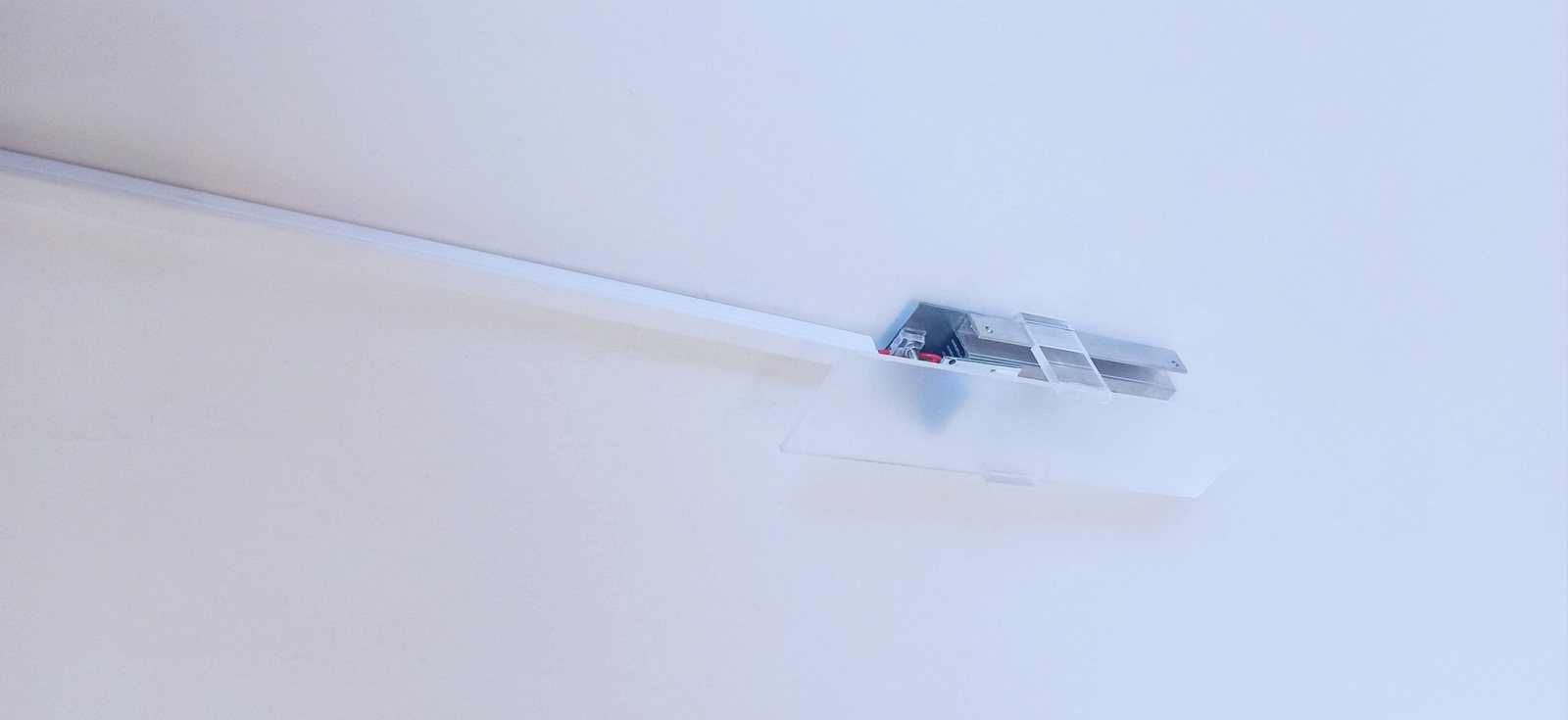

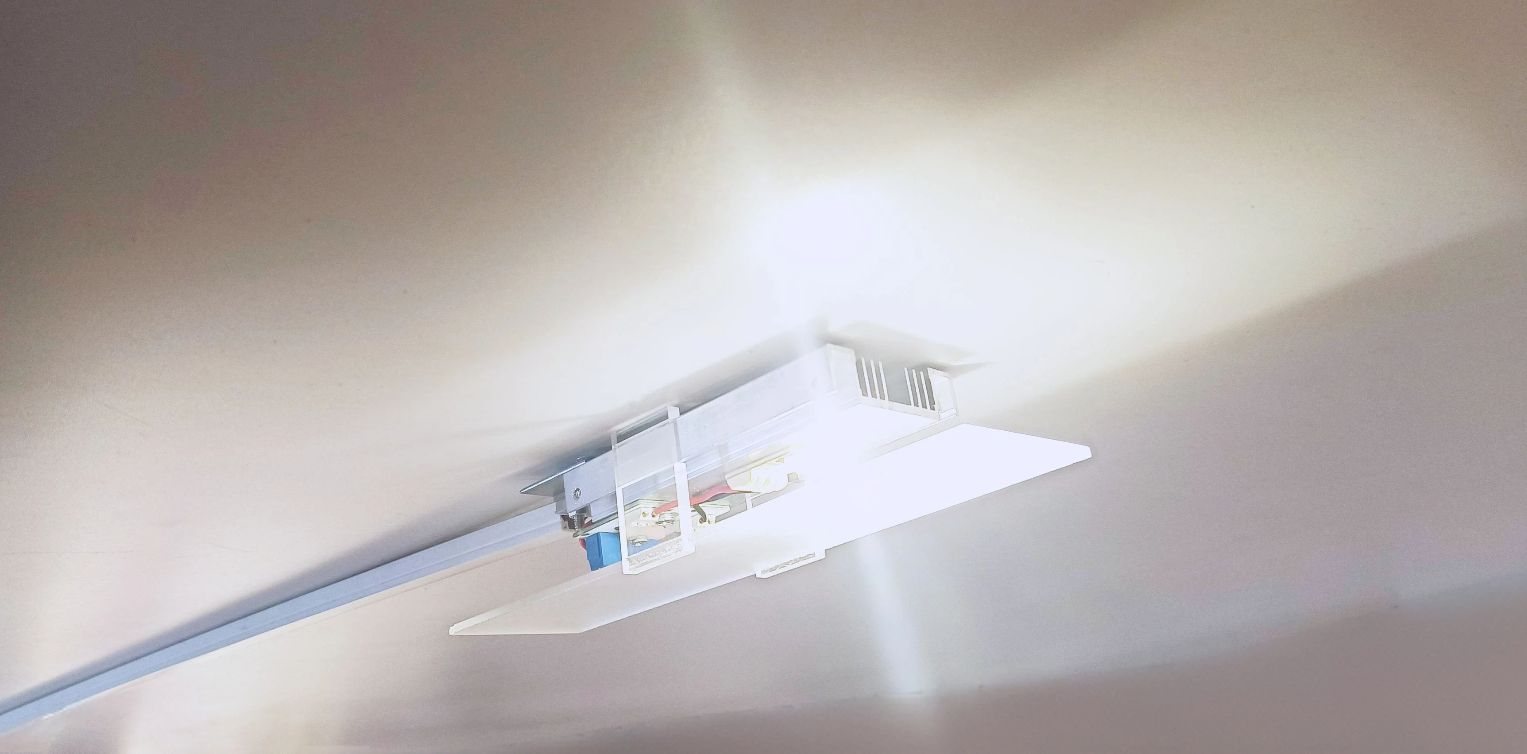

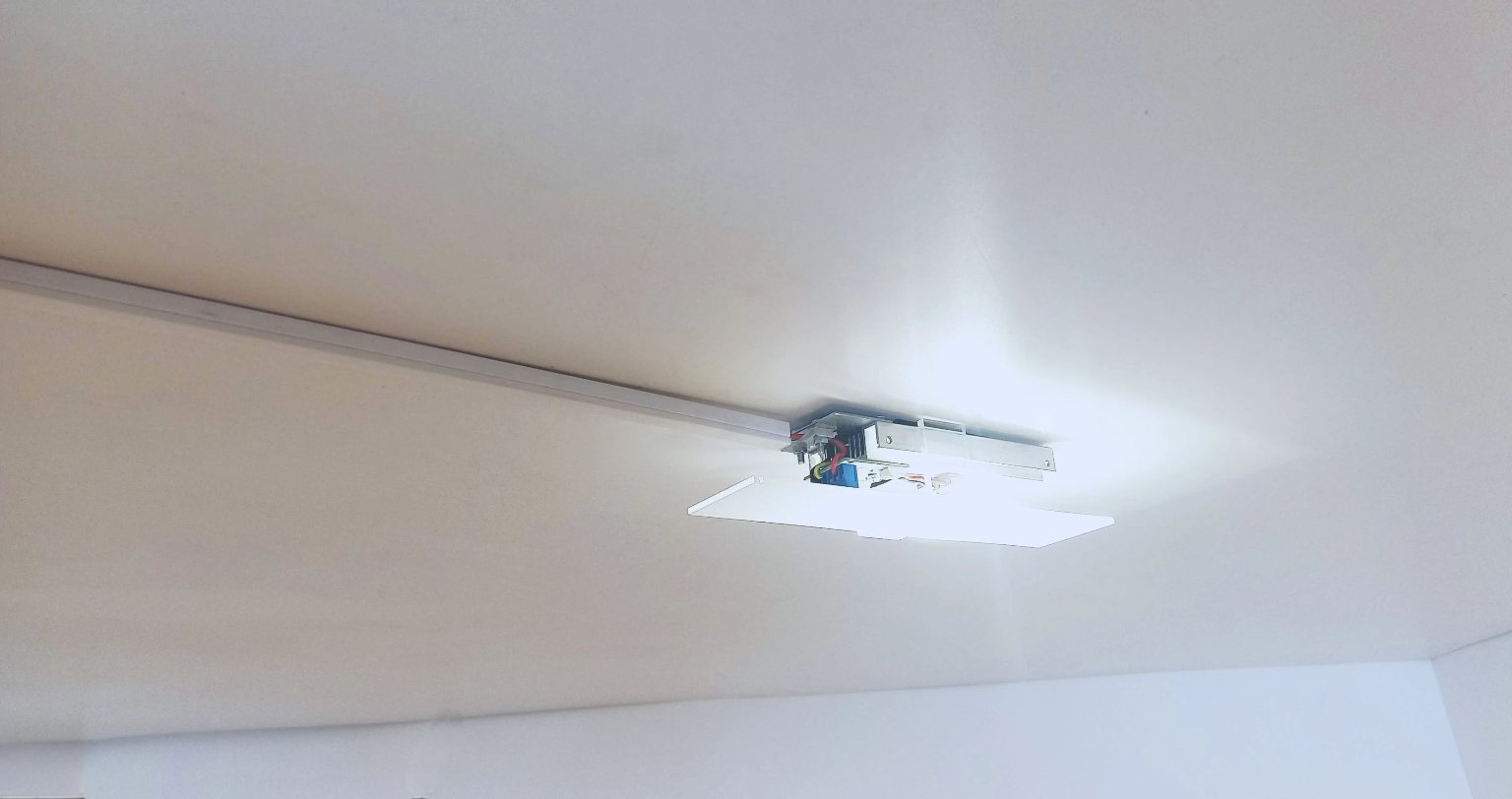

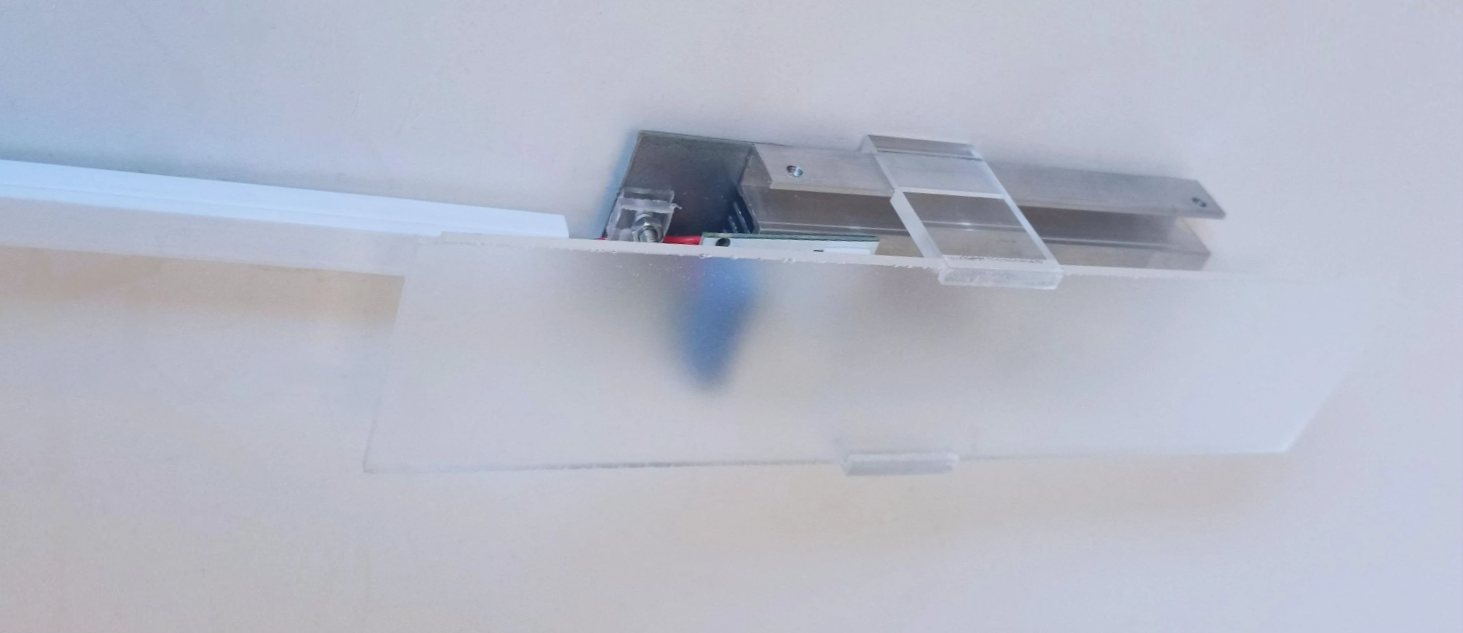

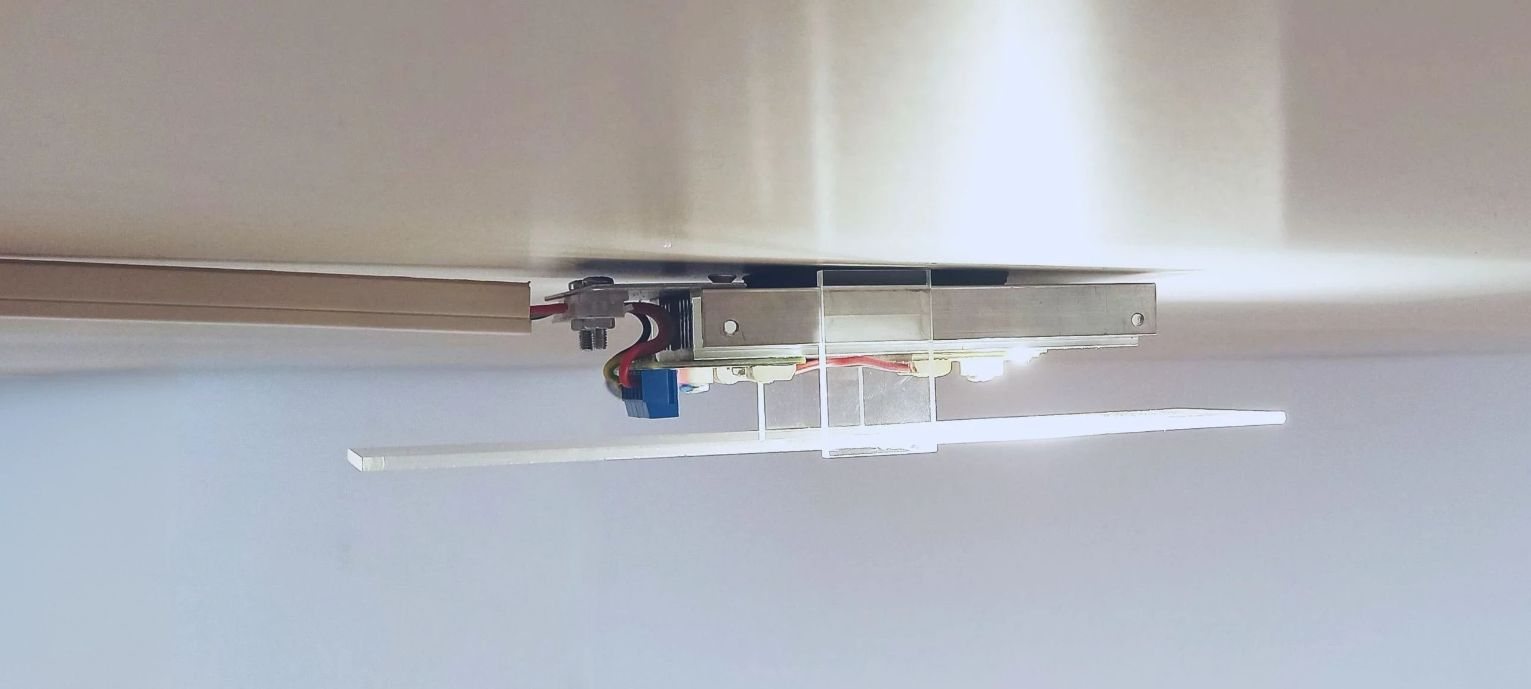

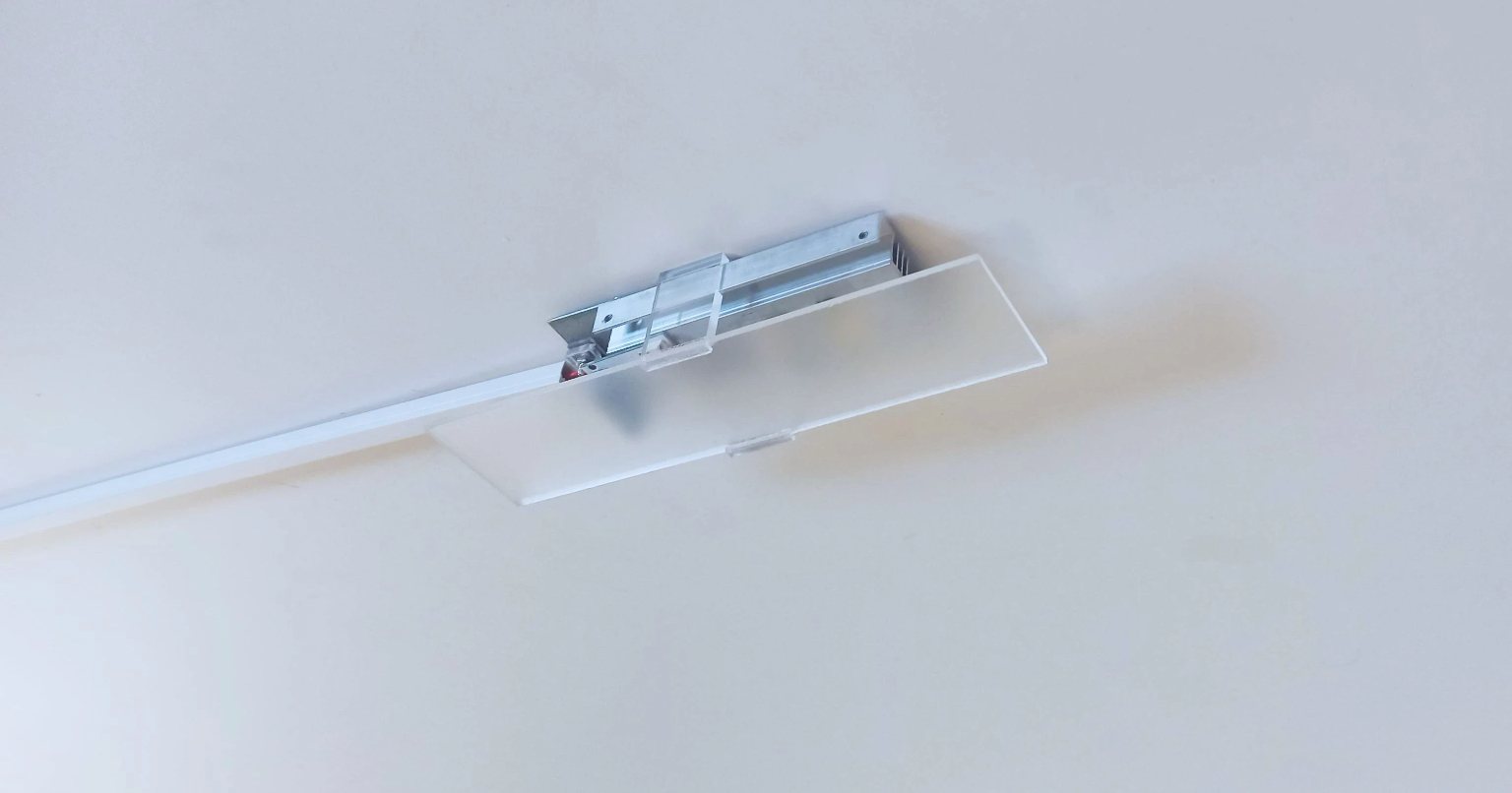

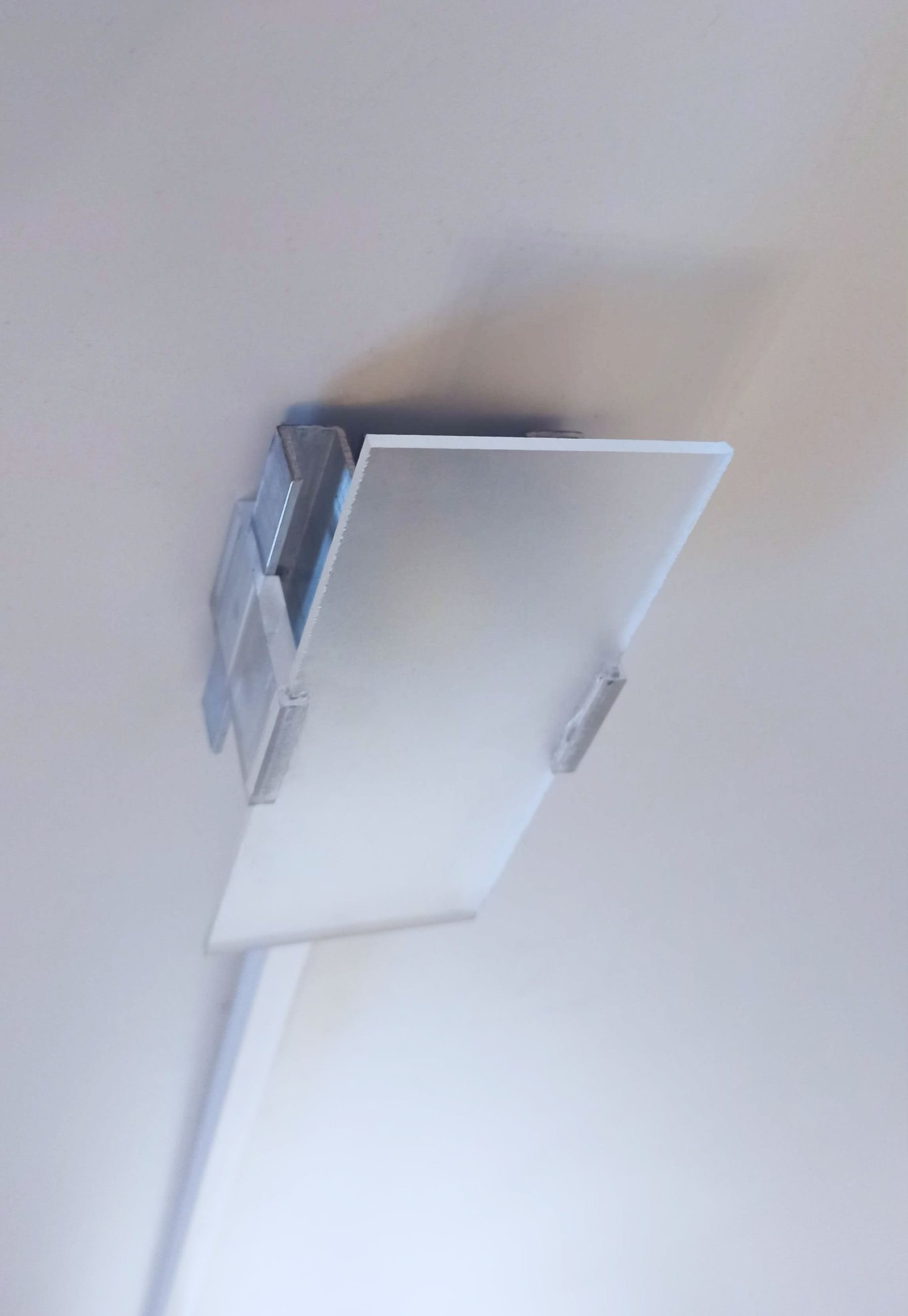

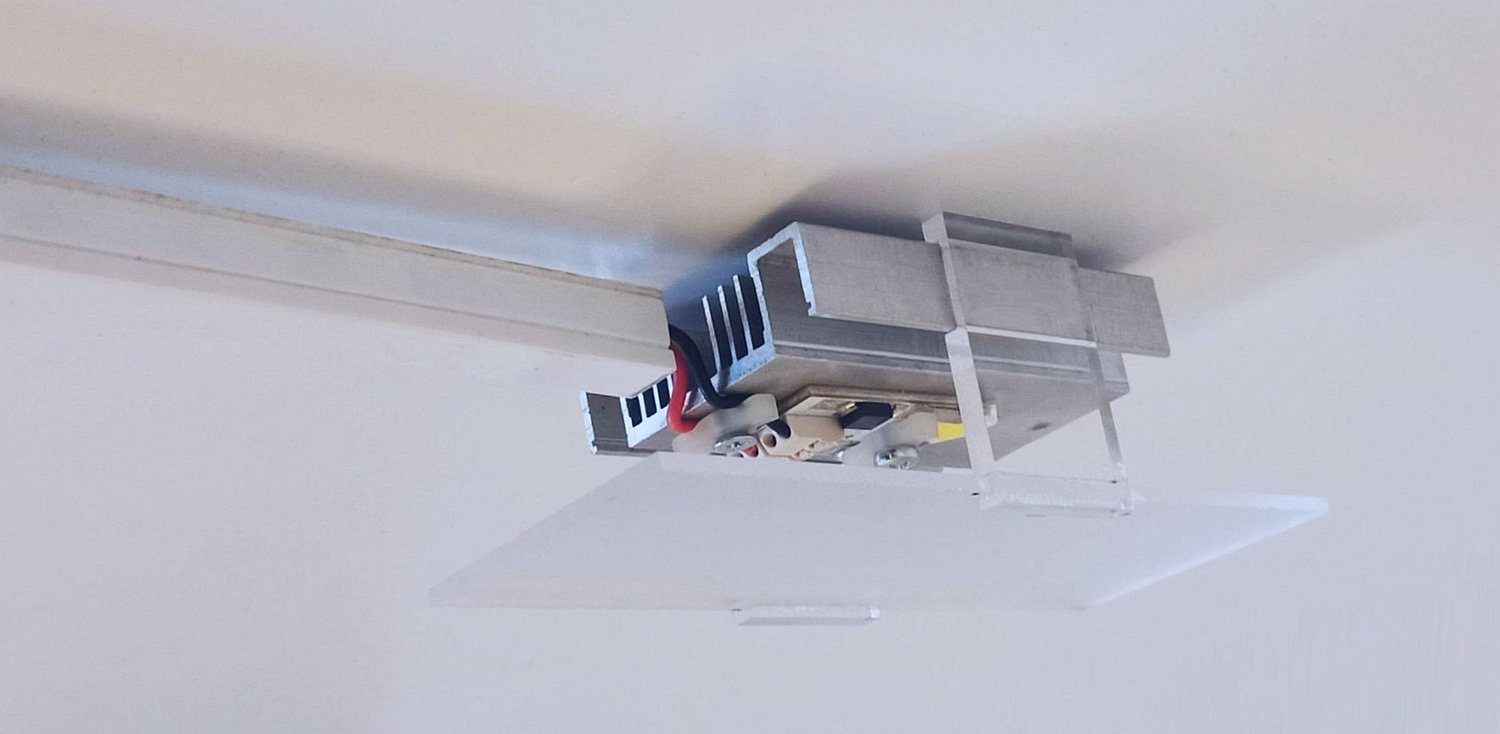

The next pictures show s little bit longer version with terminals for large wires up to 4mm.
