HAGE Led design

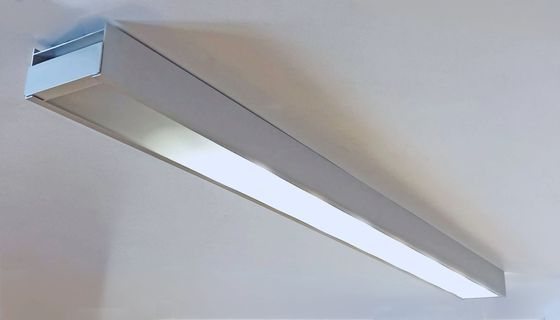

LRMAX

Construction: Single light rail in anodized or non-amodized aluminium case
H: 65, W:122, L 200 to 6000 mm in a single piece
8W to 400W
Light colour: Cold white, Warm white, Mixed Cold and Warm White. Other colours like blue, red, green and so on can be inserted
Multiple ON/OFF options
Dimming option
Cover colour: Satine, Transparent (other options on demand)
Cover material: PMMA (plexiglass) 3mm, Glass (option) 3mm
240Vac or 24Vdc

LR1

Construction: Single light rail
Power Supply Box Material: ABS, PMMA, Simopor Light according to preference.
H: 45 or 70, W:65, L 200 to 6000 mm in a single piece
8W to 400W
Light colour: Cold white, Warm white, Mixed Cold and Warm White. Other colours like blue, red, green and so on can be inserted.
Multiple ON/OFF options
Dimming option
Cover Shape: Rectangular (economic), Half Round (design), flat
Rectangular Cover colour: White, Transparent
Flat Cover colour: Satine
Half Round Cover colour: Satine, White Satine, Transparent
Rectangular Cover material: PVC 2mm
Flat Cover material: PMMA 3mm
Half Round Cover material: Flexible Polycarbonate 0.375mm and 0.150mm
240Vac or 24Vdc

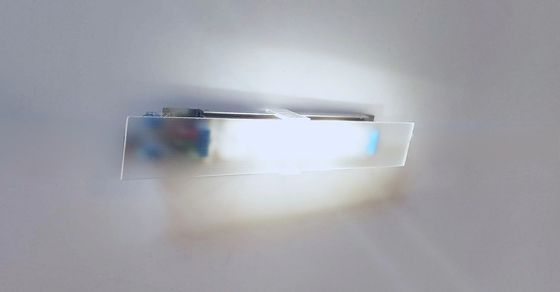

LR1 with Flat Cover
Cover colour: Satine.
Open on the sides

LR1 with Half Round Cover
Cover colour: Satine, White Satine, Transparent

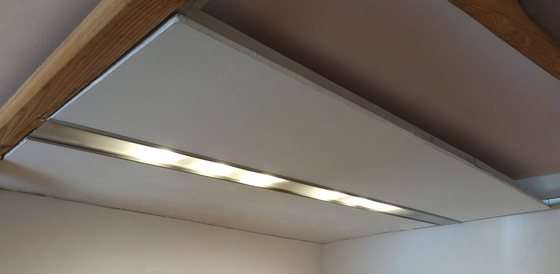

LR1 INSERT

Construction: Single light rail, Metal frame, inserted in a gipsboard ceiling.
H: 4mm (externally visible), W:110mm, L 200mm to 6000mm in a single piece
8W to 400W
Light colour: Cold white, Warm white, Mixed Cold and Warm White. Other colours like blue, red, green and so on can be inserted.
Multiple ON/OFF options
Dimming option
Cover Shape: Flat
Cover colour: White, Satine, Transparent
Flat Cover material: Polycarbonate 0.375mm to 0.75mm or PMMA 2mm to 3mm
240Vac or 24Vdc

LR1 with Open Flat Cover
Cover colour: Satine.
Open on the sides

LR1 with Half Round Cover
Cover colour: Satine, White Satine, Transparent

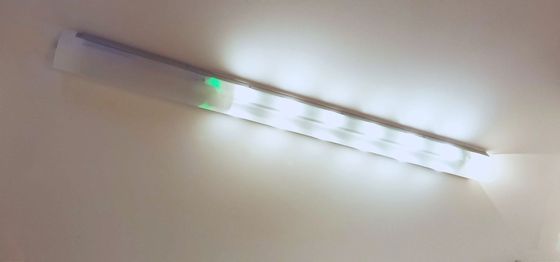

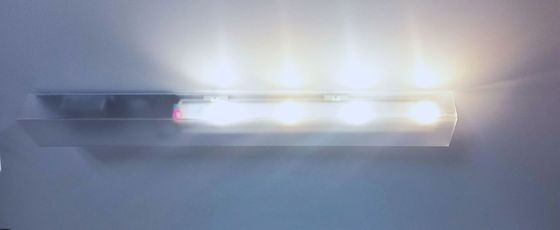

LR2 with Half Round Cover

Construction: Double Aluminium Light Rail
Power Supply Box Material: ABS, PMMA, Simopor Light according to preference.
H: 70 (rectangular) ,100 (half round), W:120, L 200 to 6000 mm in a single piece
16W to 400W
Light colour: Cold white, Warm white, Mixed Cold and Warm White. Other colours like blue, red, green etc can be inserted.
Multiple ON/OFF options
Dimming option
Cover Shape: Rectangular, Half Round (design)
Rectangular Cover colour: Satine, Transparent
Half Round Cover colour: Satine, White Satine, Transparent
Rectangular Cover material: PMMA 3mm
Half Round Cover material: Flexible Polycarbonate 0.375mm
240Vac or 24Vdc

LR2 with Rectangular Cover
Cover colour: Satine, Transparent

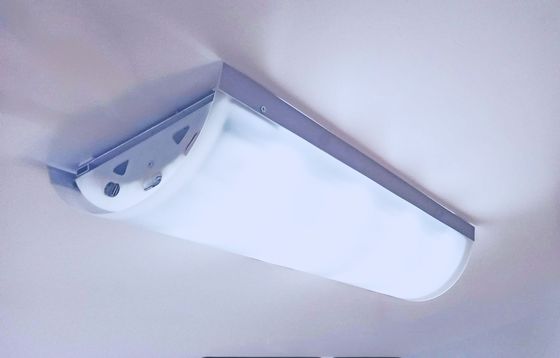

LR3

Construction: Triple Aluminium Light Rail
Power Supply included
H: 115, W:240, L 200 to 6000 mm in a single piece
24W to 400W
Light colour: Cold white, Warm white, Mixed Cold and Warm White. Other colours like blue, red, green etc can be inserted.
Multiple ON/OFF options
Dimming option
Cover Shape: Half Round
Cover colour: Satine, White Satine, Transparent
Cover material: Flexible Polycarbonate 0.375mm, PMMA
240Vac or 24Vdc

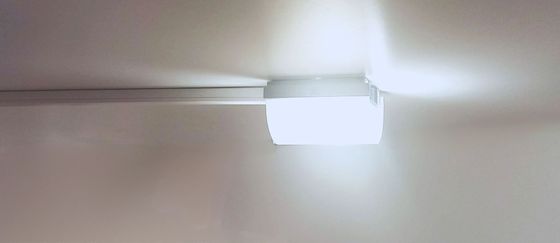

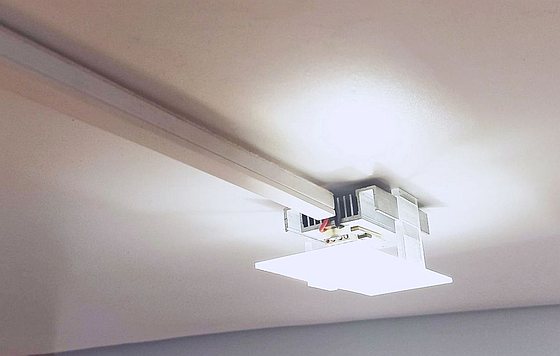

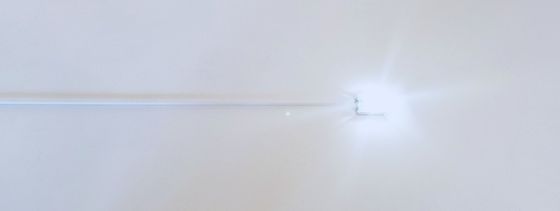

LM1 with Rectangular Cover

Construction: Single LED on aluminium sink + customized holder
Power Supply not included
Size not including holder: H: 45 or 70, W:65, L 80 to 200
8W
Light colour: Cold white, Warm white
ON/OFF, Dimming options
Cover Shape: Rectangular (economic), Half Round (design)
Rectangular Cover colour: White, Transparent
Half Round Cover colour: Satine, White Satine, Transparent
Rectangular Cover material: PVC 2mm
Half Round Cover material: Flexible Polycarbonate 0.375mm and 0.150mm
24Vdc

LM1 with Flat Cover
Cover colour: Satine.
Open on the sides

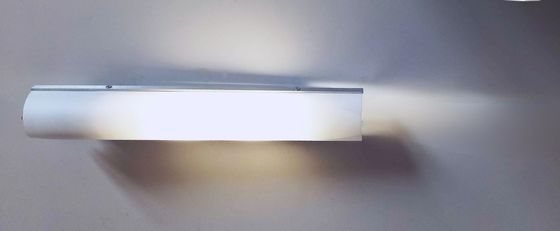

LM1 with Half Round Cover
Cover colour: Satine, White Satine, Transparent

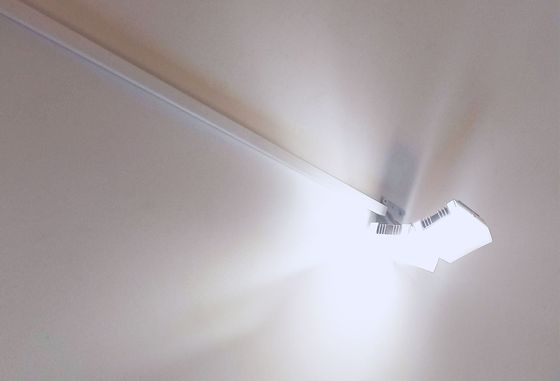

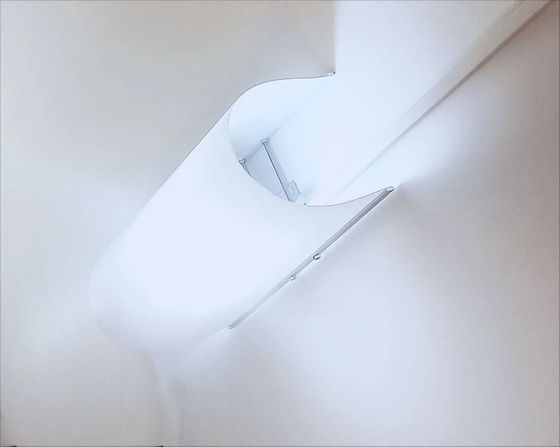

LM2 with Rectangular Cover

Construction: Two LED on aluminium sink + customized holder
Power Supply not included
Size not including holder: H: 45 or 70, W:125, L 80 to 200
8W
Light colour: Cold white, Warm white
ON/OFF, Dimming options
Cover Shape: Rectangular (economic), Half Round (design)
Rectangular Cover colour: White, Transparent
Half Round Cover colour: Satine, White Satine, Transparent
Rectangular Cover material: PVC 2mm
Half Round Cover material: Flexible Polycarbonate 0.375mm and 0.150mm
24Vdc

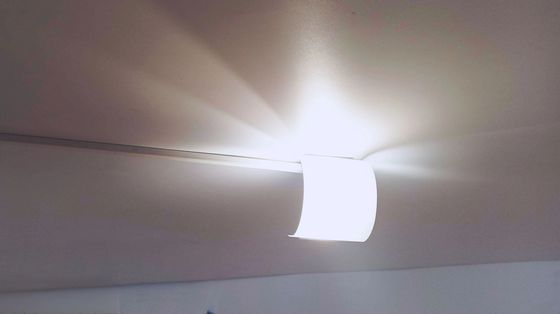

LM2 with Half Round Cover
Cover colour: Satine, White Satine, Transparent

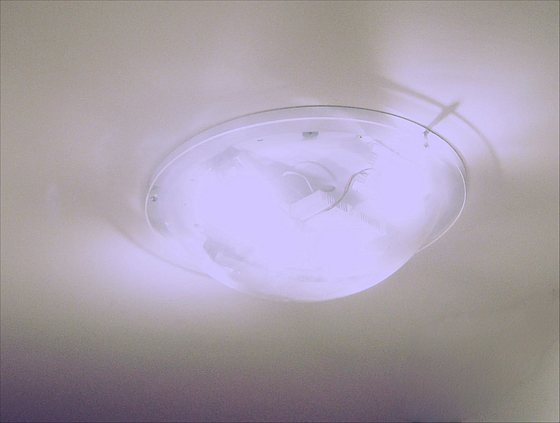

HS (Half Spherical)

Construction: Half Spherical white, satine or transparent cover on steel body and aluminium heatsinks
Power Supply included
H:150 , ∅:420
24W to 65W
Light colour: Cold white, Warm white
ON/OFF, Dimming options
Cover material for HS and QS: PMMA 3mm
240Vac, 24Vdc

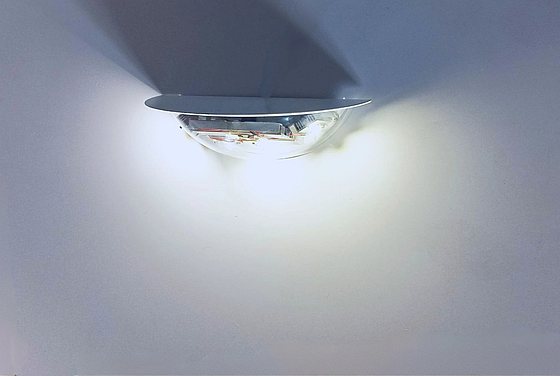

QS (Quarter Spherical)

Construction: Half Spherical white, satine or transparent cover on steel body and aluminium heatsinks
Power Supply included
H:150 , ∅:420
24W to 65W
Light colour: Cold white, Warm white
ON/OFF, Dimming options
Cover material for HS and QS: PMMA 3mm
240Vac, 24Vdc

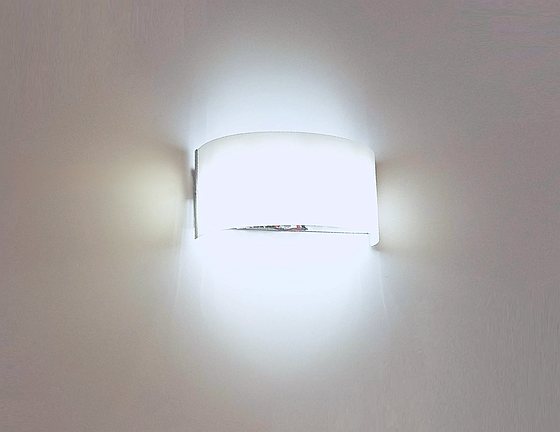

HC (Half Circle)

Construction: Half circular white, matt cover on steel body and aluminium heatsinks
Power Supply included
H:150, W:140, L:200
16W to 40W
Light colour: Cold white, Warm white
ON/OFF, Dimming options
Cover Shape: half circular (HC)
Cover colour: White, Transparent Satine
Cover material: Pylicarbonate 0.375mm
240Vac, 24Vdc

HC (Half Circle)

Construction: Half circular white, matt or satine cover on steel body and aluminium heatsinks
Power Supply included
H:150, W:140, L:200
16W to 40W
Light colour: Cold white, Warm white
ON/OFF, Dimming options
Cover Shape: half circular (HC)
Cover colour: White, Transparent Satine
Cover material: Pylicarbonate 0.375mm
240Vac, 24Vdc

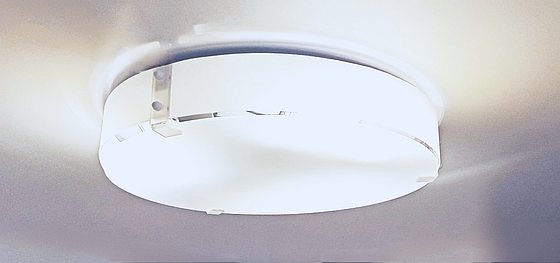

Construction: Round polycarbonate on steel body and aluminium heatsinks
Power Supply included
H: 80mm, ∅: 420mm
24W to 80W
Light colour: Cold white, Warm white
ON/OFF, Dimming options
Cover colour: Satine, White (not recommended)
Cover material PMMA 3mm
Siding material: Pylicarbonate 0.375mm
240Vac, 24Vdc

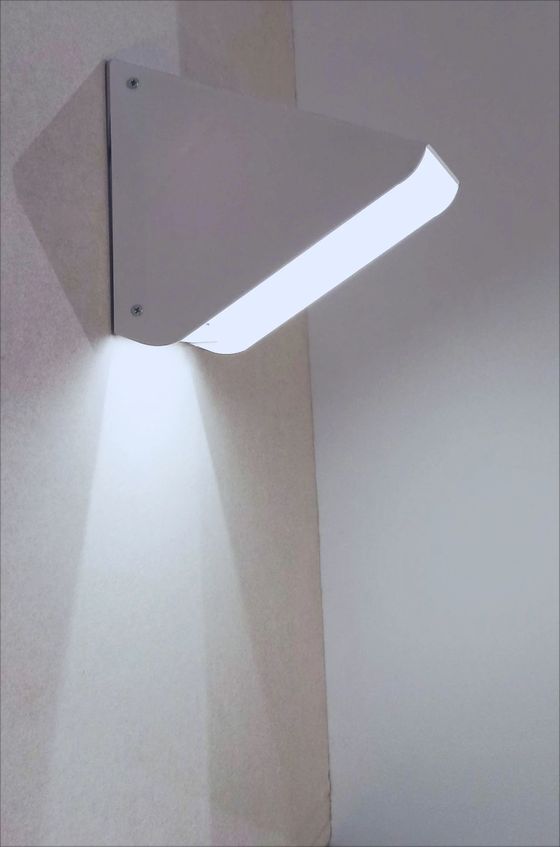

LR1RAIN

Rainproof (Warning: Not Waterproof)
Construction: PMMA body and aluminium heatsinks
Power Supply not included (A version including the power supply is in development)
H: 200mm, W: 230mm L: 110mm to 600mm
8W to 32W
Light colour: Cold white, Warm white
ON/OFF, Dimming options
Cover material PMMA 3mm
Cover Colour: White, other colour on demand.
24Vdc

LR1RAIN LONG
Same model, with 3 LED modules.

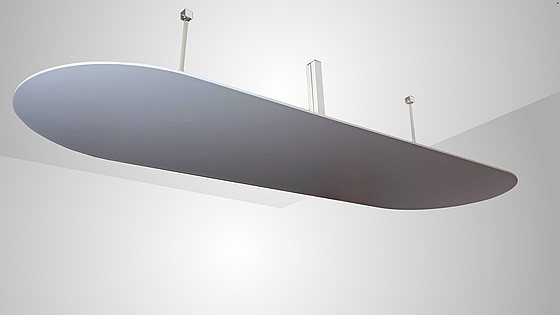

ICL

Indirect Ceiling Light
Construction: Simopor Light plane and aluminium heatsinks
Power Supply included
H: 150mm, W: 300mm to 580mm L: 300mm to 3000mm
8W to 400W
Light colour: Cold white, Warm white, other colours can be inserted.
ON/OFF, Dimming options
Plane Colour: White, other colours on demand.
240 Vac, 24Vdc

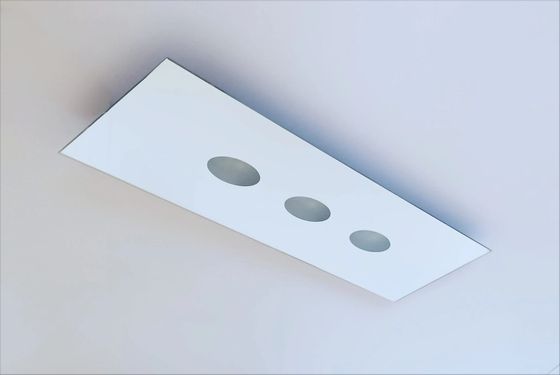

SLTM

Spot Light Trough Mirror
Construction: Mirror and aluminium heatsinks
Power Supply included
L: 100mm to 2000mm, W: 100 to 2000mm, H: 60mm
8W to 400W
Light colour: Cold white, Warm white, other colours can be inserted.
ON/OFF, Dimming options
Combination of through mirror light and indirect light or side light possible,
240 Vac, 24Vdc

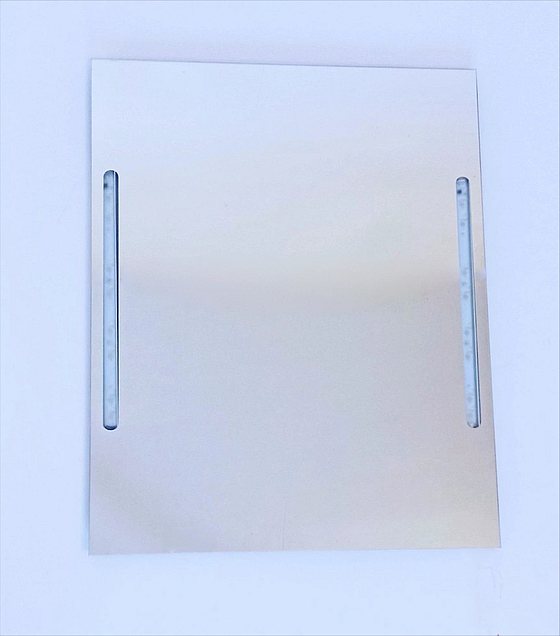

FLTM

Face Light Trough Mirror
Construction: Mirror and aluminium profiles
Power Supply not ncluded, or included with a thicker construction.
L: 100mm to 2000mm, W: 100 to 2000mm,
Thickness without power supply: 30mm, with power supply: 50mm to 65mm
Typically 8W (4W to 400W technically possible)
Light colour: Cold white, Warm white, red, bleu, green, yellow, amber, dark UV and other colours on demand.
ON/OFF, Dimming options
Combination of through mirror light and indirect light or side light possible,
240 Vac, 24Vdc

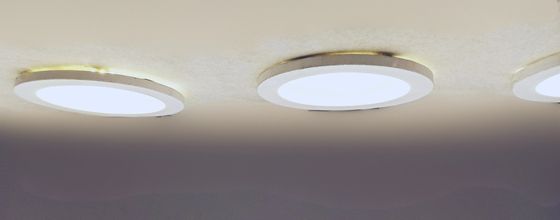

CSL

Ceiling Spot Light
Construction: Round cover and aluminium profiles, furniture or gipsboard mounted.
Power Supply not ncluded,
∅: Typically 50mm or 70mm (any diameter equal or larger than 50mm available on demand)
Height required above the board, without power supply: 30mm, with power supply: 50mm to 65mm
Thickness of the cover below board: 5mm (+ typically 1mm of open space between the board and the cover)
8W in each series of 4 (24Vsc). 6W in series of 3 (18Vdc), 4W in series of 2 (12Vdc)., 2W in stand alone (6Vdc).
Light colour: Cold white, Warm white, red, blue, green, yellow, amber, dark UV, agro light and other colours on demand.
ON/OFF with an additional control board (only for full series), Dimming options (entire installation)
Combination with other types of modules possible when using 24Vdc,
24Vdc, 18Vdc, 12Vdc and 6Vdc (voltage depends on the number of spots in a single series).

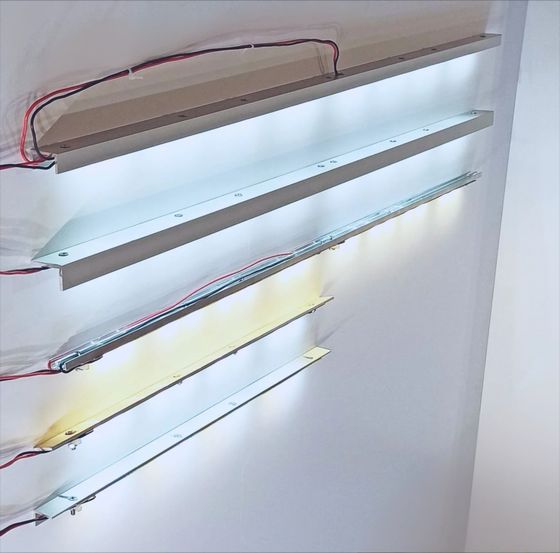

LSTR OPEN FRAME

Profile Material: Anodized or non-amodized aluminium
Power Supply Box Material: ABS, PMMA or Simopor Light according to preference.
H: 20 to 30 mm, W:20 to 40 mm (or larger according to profile selection), L 200 to 6000 mm in a single piece
4W to 400W
Light colour: Cold white, warm white, blue, red, green, pink, yellow, amber, dark UV, Agro light, mixed warm and cold white, mixed white and colours, mixed colours with infinite combinations
ON/OFF, Dimming options
Cover Shape: Flat (only 20x35mm profile), Half Round (all other proofiles)
Flat Cover colour: White (Transparent on demand for large orders)
Half Round Cover colour: Satine, White Satine, Transparent
Flat Cover material: Polycarbonate 1mm
Half Round Cover material: Flexible Polycarbonate 0.150mm
24Vdc (240Vac with a separate power supply box)

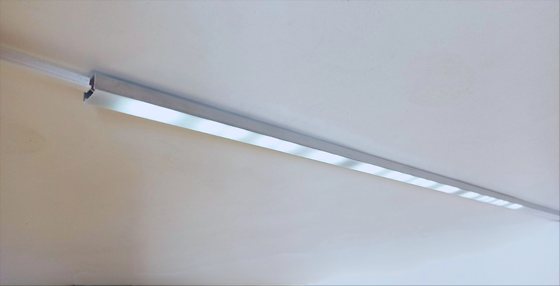

LSTR FLAT

Cover Shape: Flat (only 20x35mm profile)
Flat Cover colour: White (Transparent on demand for large orders)
Flat Cover material: Polycarbonate 1mm
24Vdc (240Vac with a separate power supply box)

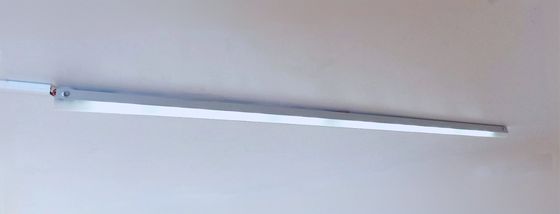

LSTR HALF ROUND

Cover Shape: Half Round
Half Round Cover colour: Satine, White Satine, Transparent
Half Round Cover material: Flexible Polycarbonate 0.150mm
24Vdc (240Vac with a separate power supply box)

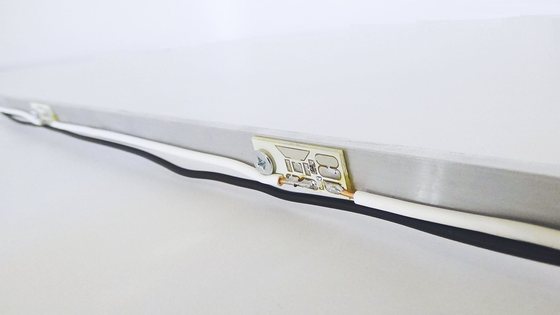

MINILED

Decorative, Ambiant, Dot or Indicator Light
Construction: Small PCB on galvanized steel support. Can be inserted in a PVC profile.
Power Supply not ncluded,
PCB size: 23mm * 9mm
PVC profile size: 15mm * 15mm, L: 2000 in a single piece.
150 mA or 20 mA (the 20 mA version can be adapted to use less current)
Power of the 150 mA version: 4W in each series of 8 (24Vsc). 3W in series of 6 (18Vdc), 2W in series of 4 (12Vdc), 1W in series of 2 (6Vdc), 0.5W in stand alone (3Vdc).
Power of the 20 mA version: 0.48W in each series of 8 (24Vsc). 0.36W in series of 6 (18Vdc), 0.24W in series of 4 (12Vdc), 0.12W in series of 2 (6Vdc), 0.06W in stand alone (3Vdc). In stand alone the current can be reduced to as low as 1mA.
Light colour: Cold white, Warm white, red, blue, green, yellow, amber, dark UV, agro light and other colours on demand.
ON/OFF with an additional control board (only for full series), Dimming options (entire installation)
Combination with other types of modules possible when using 24Vdc,
24Vdc, 18Vdc, 12Vdc and 6Vdc (voltage depends on the number of dots in a single series)
